Posistor® for over current protection PRG SERIES
BC-E0160J

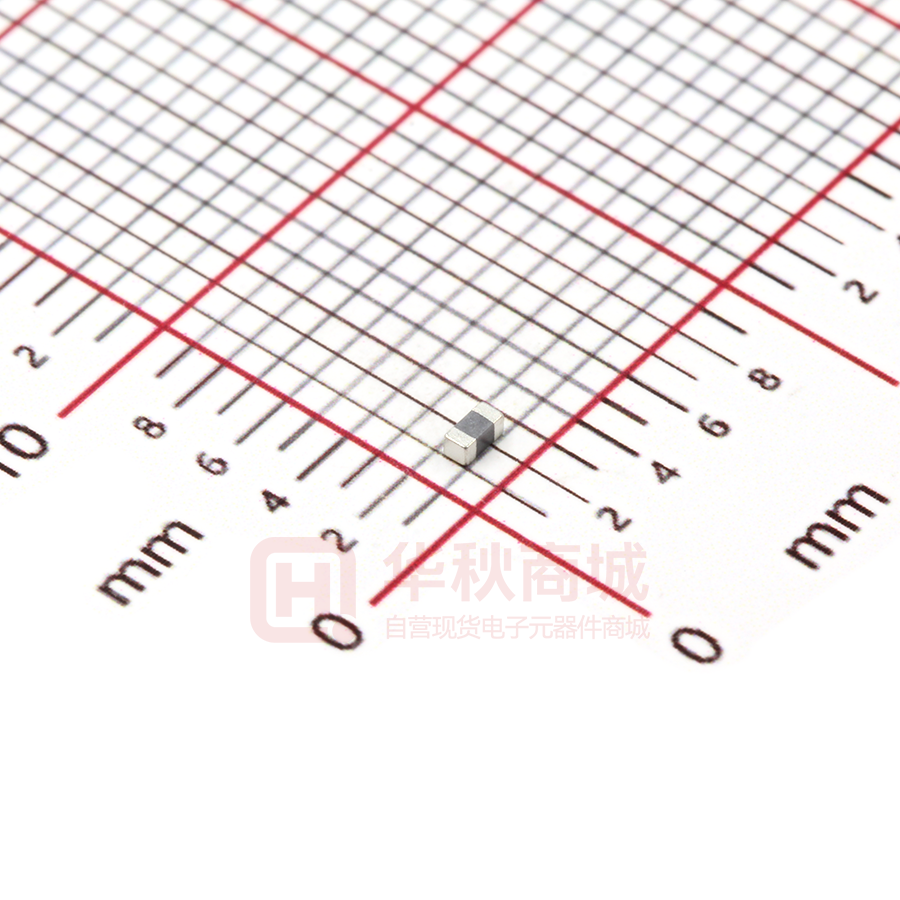

PRG18BB***MB1RB SERIES
1.Part Numbering
ex)
PR
G
18
Product ID Series
Dimensions
BB
Temperature
Characteristics
330
Resistance
M
B1
Resistance
Tolerance
Individual
Specifications
*1
Max.
Current
*2
Hold Current
RB C
Packaging
2. Ratings
Part Number
Charac.
Resistance
(at 25°C)
Max.
Voltage
25mA(at +60°C)
36mA(at +25°C)
20mA(at +60°C)
PRG18BB470MB1RB
47ohm ±20%
630mA
29mA(at +25°C)
BB
15mA(at +60°C)
DC
PRG18BB101MB1RB C.P.100°C 100ohm ±20%
300mA
21mA(at +25°C)
24 V
approx.
10mA(at +60°C)
PRG18BB221MB1RB
220ohm ±20%
130mA
14mA(at +25°C)
7mA(at +60°C)
PRG18BB471MB1RB
470ohm ±20%
60mA
10mA(at +25°C)
Packaging Tape : Taping (Standard quantity is 4000pcs. Per reel)
PRG18BB330MB1RB
33ohm ±20%
900mA
*3
Trip Current
85mA(at -10°C)
71mA(at +25°C)
75mA(at -10°C)
61mA(at +25°C)
55mA(at -10°C)
45mA(at +25°C)
35mA(at -10°C)
29mA(at +25°C)
25mA(at -10°C)
21mA(at +25°C)
*1 Shows the Maximum Current value which Shall be passed repeatedly when the circuit runs abnormally.
*2 Shows the Maximum Current value which Shall be passed continuously without tripping at 25°C and 60°C
*3 Shows the Trip Current value when Posistor ® shall protect circuit from over load at -10°C and +25°C
3. Dimensions [mm]
L1
(1) Electrode (Sn plating)
(2) BaTiO3 Semiconductive Ceramic
W
(1)
L2
L3
(2)
W
H
H
L1
W
H
L2 and L3
1.60±0.15
0.80±0.15
0.80±0.15
0.1~0.6
4. Quantity (Standard Quantity)
Products quantity in a reel
4,000 pcs. /reel
This information may be changed without a previous notice.
Murata Manufacturing Co., Ltd.
Resistance-Temperature Characteristics
Typical Curve
1000
Resistance Change(R/R25)
100
10
1
0.1
-20
0
20
40
60
80
100
120
140
160
Temperature (℃)
BB-026'
This information may be changed without a previous notice.
Notice for use
CAUTION
1. This product is designed for application, which is used under ordinary environment. (room temperature,
normal humidity, normal pressure) Do not expose this to the following environments, because all these
factors can deteriorate the characteristic of this and can cause failure or burn out.
(1) Corrosive gas or deoxidizing gases (Cl 2, H2S, NH3, SOx, NOx etc.)
(2) Volatile, flammable gas
(3) Dusty place
(4) Place in a vacuum, reducing or putting pressure
(5) Place in splashed water, or high humidity and dewing place
(6) Salt water, oil, chemical liquid and solvent
(7) Vibratile place
(8) Other place equivalent to the above
2. Limitation of Applications
Please contact us before using our products for the under-mentioned applications requiring especially high
reliability in order to prevent defects which might directly cause damage to other party’s life body or property
(listed below).
(1) Aircraft equipment (2) Aerospace equipment (3) Undersea equipment
(4) Power plant control equipment (5) Medical equipment
(6) Transportation equipment (automobiles, trains, ships, etc.) (7) Traffic signal equipment
(8) Disaster prevention / Crime prevention equipment (9) Data-processing equipment
(10) Applications of similar complexity or with reliability requirements comparable to
the applications listed in the above
3. Be sure to provide an appropriate fail-safe function on your product to prevent a second damage that
may be caused by the abnormal function or the failure of our product.
Notice
1. Do not apply abnormal voltage/current exceeding the specified maximum value.
Because they may deteriorate or destroy PTC element.
2. Use this product within the specified temperature. A higher temperature may deteriorate
the characteristic or material.
3. The body of this product is not insulated. Please keep an adequate distance to surrounding
components and wiring.
4. Storage conditions
To keep solderability from declining, following storage condition is recommended.
(1) Condition Temperature : -10 to +40°C
Humidity
: Less than 75%RH (not dewing condition)
(2) Term: Please use this POSISTOR within 6 months after shipment by first-in and first-out stocking
system.
(3) Handling after seal open: After unpacking of the minimum package, reseal it promptly or store it
inside a sealed container with a drying agent.
(4) Place: Do not store this product in corrosive gas (SOx, Cl etc) or under sunlight.
This information may be changed without a previous notice.
Murata Manufacturing Co., Ltd.
CE-017O
5. Solder and Flux
(1) Solder Paste
Use Sn:Pb=60:40wt% ,Sn:Pb=63:37wt%, Sn:Ag:Cu=96.5:3.0:0.5wt% or equivalent type of solder paste.
Do not use strong acidic flux (with halide content exceeding 0.2wt%).
Use of the solder containing Zn may reduce adhesive strength.
When you use the solder containing Zn, please contact us in advance.
For your reference, we are using
‘63Sn/37Pb RMA9086 90-3-M18’, manufactured by Alpha Metals Japan Ltd.,
’96.5Sn/3.0Ag/0.5Cu M705-GRN360-K2-V’, manufactured by Senju Metal Industry Co.,LTD.
for any Internal tests of this product.
(2) Flux
Use rosin type flux in soldering process.
If below flux is used, some problems might be caused in the product characteristics and reliability.
Please do not use below flux.
• Strong acidic flux (with halide content exceeding 0.2wt%).
• Water-soluble flux(*Water-soluble flux can be defined as non rosin type flux including wash-type flux
and non-wash-type flux.)
6. For removing the flux after soldering, observe the following points in order to avoid deterioration of
the characteristics or any change of the external electrodes quality.
(1) Cleaning Conditions
Solvent
Dipping Cleaning
Ultrasonic Cleaning
Less than 5 min.
A sufficient cleaning shall
Less than 1 min.
at room temp.
be applied to remove flux
20W/L max.
2-propanol
or
completely.
Frequency of several 10 kHz
Less than 2 min.
to several 100 kHz.
at 40°C max.
(2) Drying : After cleaning, dry promptly this product.
7. In your mounting process, observe the following points in order to avoid deterioration of the
characteristics or destruction of this product. The mounting quality of this product may also be affected by
the mounting conditions, shown the points below.
This product is for only reflow soldering. Flow soldering shall not be allowed.
Please mount this product by soldering. When mounted by other methods, such as conductive adhesives,
please contact us in advance.
(1) Standard Land Size
Too big land size gives too much solder paste on the land. It may cause destruction of this product,
because of the mechanical stress especially in the case of board bending.
b
a
c
a
0.6~0.8
b
0.6~0.7
c
0.6~0.8
(mm)
(2) Printing Conditions of Solder Paste
i. Standard thickness of solder paste printing shall be from 0.15 to 0.20 mm.
ii.After soldering, the solder fillet shall be a height from 0.2 mm to the thickness of this product.
(See the figures below.)
iii.Too much solder gives too strong mechanical stress to this product, such stress may cause cracking
or any mechanical damage. And also, it can destroy the electrical performance of this product.
This information may be changed without a previous notice.
Murata Manufacturing Co., Ltd.
CE-017O
(3) Allowable Soldering Temperature and Time
i. Solder within the temperature and time combinations, indicated by the slanted lines in the following
graphs.
ii.The excessive soldering conditions may cause dissolution of metallization or deterioration of
solder-wetting on the external electrode.
iii. In case of repeated soldering, the total accumulated soldering time should be within the range shown
below figure.(For example, Reflow peak temperature : 250°C,twice → The total accumulated
soldering time at 250°C is within 20sec.)
Temperature ( °C )
270
260
250
240
230
220
210
200
0
10
20 30 40
Time (sec.)
50
60
(4) Standard Temperature Profile for Soldering
i. Insufficient preheating may cause a crack on ceramic body.
Difference between preheating temperature and maximum temperature in the profile shall be 100°C.
ii. Rapid cooling by dipping in solvent or by other means is not recommended.
Soldering
240°C
200
0
Gradual cooling
(in air)
Preheating: 150 +/- 10 °C
1min. to 2 min.
Soldering: 240 °C
20sec.
# : In case of repeated soldering, the total
accumulated soldering time should be
within the range shown above figure (3).
100
~
~
Temperature( °C )
Preheating (in air)
1~2 min.
#
20sec.
(5) There is a fear of unexpected failures (tombstone, insufficient solder-wetting, etc.) in your mounting
process, caused by the mounting conditions. Please evaluate if this product is
correctly mounted under your mounting conditions.
(6) Conditions with Soldering Iron
When hand soldering by iron is applied, be sure to keep following conditions.
Item
Conditions
Preheating
at 150°C for 1 to 2 minute
Temperature of Iron-tip
350°C max.
Soldering Iron Wattage
30W max.
Diameter of Iron-tip
3mm dia. max.
Soldering Time
5sec. max.
Solder
H60A (Sn:Pb=60:40wt%) type ,
H63A (Sn:Pb=63:37wt%) type,
Sn:Ag:Cu=96.5:3.0:0.5wt% or equivalent type.
Flux
Do not use strong acidic flux
(with halide content exceeding 0.2wt%).
Caution
・Do not allow the iron-tip to directly touch the ceramic body.
・Preheat the ceramic body and mounting board.
This information may be changed without a previous notice.
Murata Manufacturing Co., Ltd.
CE-017O
8. Do not give this product a strong press-force nor a mechanical shock.
Because such mechanical forces may cause cracking or chipping of this ceramic product.
9. Rapid cooling or heating during soldering is not recommended.
Such treatment may destroy the element.
10. When this product is operated, temperature of some area may be over 100 to 150°C. Be sure that
surrounding parts and inserting material can withstand the temperature. If the surrounding part and
material is kept under such condition, they may be deteriorated or may produce harmful gases (Cl2, H2S,
NH3, SOX, NOX etc.). And, such harmful gas may deteriorate the element.
11. Do not assemble this product with air-sealing or resin casting. Such sealing may deteriorate the
characteristic or destroy PTC element.
12. Location on Printed Circuit Board(PC Board)
Locate this product horizontal to
the direction in which stress acts.
(Worse)
(Better)
Put this product on the PC Board near the Slit,
not near the Perforation Holes.
Keep this product on the PC Board away from
the Separation Line.
Worst
”A”-“C”-“B”-“D”
Better
Perforation Holes
C
B
A
Slit
D
Separation Line
This information may be changed without a previous notice.
Murata Manufacturing Co., Ltd.
CE-017O
