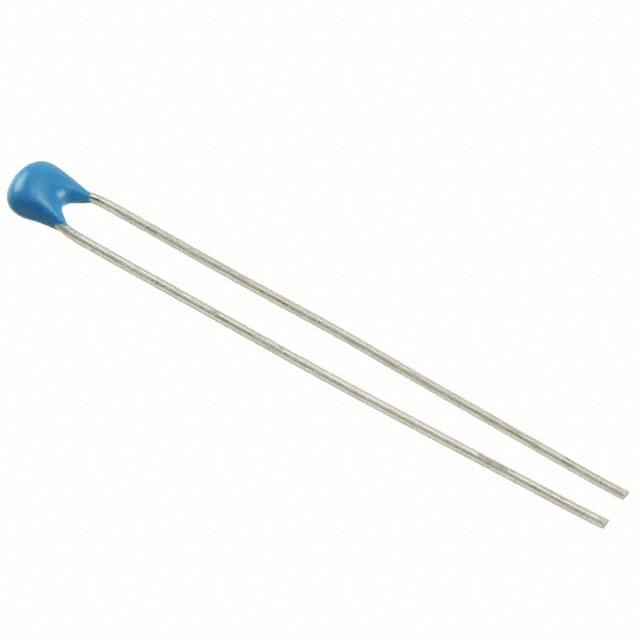

RCE5C2A7R0D0DBH03A

Reference Specification Leaded MLCC for Automotive with AEC-Q200 RCE Series Product specifications in this catalog are as of Mar. 2018, and are subject to change or obsolescence without notice. Please consult the approval sheet before ordering.Please read rating and Cautions first. Reference only CAUTION 1. OPERATING VOLTAGE When DC-rated capacitors are to be used in AC or ripple current circuits, be sure to maintain the Vp-p value of the applied voltage or the Vo-p which contains DC bias within the rated voltage range. When the voltage is started to apply to the circuit or it is stopped applying, the irregular voltage may be generated for a transit period because of resonance or switching. Be sure to use a capacitor within rated voltage containing these irregular voltage. When DC-rated capacitors are to be used in input circuits from commercial power source (AC filter), be sure to use Safety Recognized Capacitors because various regulations on withstand voltage or impulse withstand established for each equipment should be taken into considerations. Voltage DC Voltage Positional Measurement Vo-p DC+AC Voltage Vo-p AC Voltage Vp-p Pulse Voltage(1) Vp-p Pulse Voltage(2) Vp-p 2. OPERATING TEMPERATURE AND SELF-GENERATED HEAT Keep the surface temperature of a capacitor below the upper limit of its rated operating temperature range. Be sure to take into account the heat generated by the capacitor itself. When the capacitor is used in a high-frequency current, pulse current or the like, it may have the selfgenerated heat due to dielectric-loss. In case of Class 2 capacitors (Temp.Char. : X7R,X7S,X8L, etc.), applied voltage should be the load such as self-generated heat is within 20 C on the condition of atmosphere temperature 25 C. Please contact us if self-generated heat is occurred with Class 1 capacitors (Temp.Char. : C0G,U2J,X8G, etc.). When measuring, use a thermocouple of small thermal capacity-K of 0.1mm and be in the condition where capacitor is not affected by radiant heat of other components and wind of surroundings. Excessive heat may lead to deterioration of the capacitor’s characteristics and reliability. 3. Fail-safe Be sure to provide an appropriate fail-safe function on your product to prevent a second damage that may be caused by the abnormal function or the failure of our product. 4. OPERATING AND STORAGE ENVIRONMENT The insulating coating of capacitors does not form a perfect seal; therefore, do not use or store capacitors in a corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are present. And avoid exposure to moisture. Before cleaning, bonding, or molding this product, verify that these processes do not affect product quality by testing the performance of a cleaned, bonded or molded product in the intended equipment. Store the capacitors where the temperature and relative humidity do not exceed 5 to 40 C and 20 to 70%. Use capacitors within 6 months. 5. VIBRATION AND IMPACT Do not expose a capacitor or its leads to excessive shock or vibration during use. 6. SOLDERING When soldering this product to a PCB/PWB, do not exceed the solder heat resistance specification of the capacitor. Subjecting this product to excessive heating could melt the internal junction solder and may result in thermal shocks that can crack the ceramic element. 7. BONDING AND RESIN MOLDING, RESIN COAT In case of bonding, molding or coating this product, verify that these processes do not affect the quality of capacitor by testing the performance of a bonded or molded product in the intended equipment. In case of the amount of applications, dryness / hardening conditions of adhesives and molding resins containing organic solvents (ethyl acetate, methyl ethyl ketone, toluene, etc.) are unsuitable, the outer coating resin of a capacitor is damaged by the organic solvents and it may result, worst case, in a short circuit. The variation in thickness of adhesive or molding resin may cause a outer coating resin cracking and/or ceramic element cracking of a capacitor in a temperature cycling. 8. TREATMENT AFTER BONDING AND RESIN MOLDING, RESIN COAT When the outer coating is hot (over 100 C) after soldering, it becomes soft and fragile. So please be careful not to give it mechanical stress. EGLEDMNO03 1 / 23 Reference only Failure to follow the above cautions may result, worst case, in a short circuit and cause fuming or partial dispersion when the product is used. 9. LIMITATION OF APPLICATIONS Please contact us before using our products for the applications listed below which require especially high reliability for the prevention of defects which might directly cause damage to the third party’s life, body or property. 1. Aircraft equipment 2. Aerospace equipment 3. Undersea equipment 4. Power plant control equipment 5. Medical equipment 6. Transportation equipment (vehicles, trains, ships, etc.) 7. Traffic signal equipment 8. Disaster prevention / crime prevention equipment 9. Data-processing equipment exerting influence on public 10. Application of similar complexity and/or reliability requirements to the applications listed in the above. NOTICE 1. CLEANING (ULTRASONIC CLEANING) To perform ultrasonic cleaning, observe the following conditions. Rinse bath capacity : Output of 20 watts per liter or less. Rinsing time : 5 min maximum. Do not vibrate the PCB/PWB directly. Excessive ultrasonic cleaning may lead to fatigue destruction of the lead wires. 2. Soldering and Mounting Insertion of the Lead Wire • When soldering, insert the lead wire into the PCB without mechanically stressing the lead wire. • Insert the lead wire into the PCB with a distance appropriate to the lead space. 3. CAPACITANCE CHANGE OF CAPACITORS • Class 2 capacitors (Temp.Char. : X7R,X7S,X8L, etc.) Class 2 capacitors an aging characteristic, whereby the capacitor continually decreases its capacitance slightly if the capacitor leaves for a long time. Moreover, capacitance might change greatly depending on a surrounding temperature or an applied voltage. So, it is not likely to be able to use for the time constant circuit. Please contact us if you need a detail information. NOTE 1. Please make sure that your product has been evaluated in view of your specifications with our product being mounted to your product. 2. You are requested not to use our product deviating from this specification. EGLEDMNO03 2 / 23 Reference only 1. Application This specification is applied to Leaded MLCC RCE series in accordance with AEC-Q200 requirements used for Automotive Electronic equipment. 2. Rating  Part number configuration ex.) RCE 5C 1H Series Temperature Characteristic Rated voltage 102 J 0 K1 H03 B Capacitance Capacitance tolerance Dimension code Lead code Individual specification code Packing style code  Temperature characteristic Temp. Code Temp. Range Char. Temp. coeff.(ppm/C) C0G -55～25C  Rated voltage Code Rated voltage 1H DC50V 2A DC100V Operating Temp. Range 25C -55～125C 0+/-30 25～125C 5C Standard Temp. 0+30/-72  Capacitance The first two digits denote significant figures ; the last digit denotes the multiplier of 10 in pF. If there is a decimal point, it is expressed by the capital letter “R”. In this case, all figures are significant digits. ex.) In case of 102. 10102 = 1000pF In case of 5R0. 5.0pF  Capacitance tolerance Code C Capacitance Tolerance +/-0.25pF D +/-0.5pF J +/-5%  Dimension code Code Dimensions (LxW) mm max. 0 3.6 x 3.5 1 4.0 x 3.5 2 5.5 x 4.0 ETRCE02E 3 / 23 Reference only  Lead code Code Lead style Lead spacing (mm) A2 Straight type 2.5+/-0.8 DB Straight taping type 2.5+0.4/-0.2 K1 Inside crimp type 5.0+/-0.8 M1 Inside crimp taping type 5.0+0.6/-0.2 Lead wire is solder coated CP wire.  Individual specification code Murata’s control code Please refer to  Part number list .  Packing style code Code Packing style A Taping type of Ammo B Bulk type 3. Marking Temp. char. Capacitance : Letter code : A(C0G Char.) : Actual numbers (Less than 100pF) 3 digit numbers (100pF and over) Capacitance tolerance : Code Rated voltage : Letter code : 5 (DC50V only. Except dimension code : 0,1) Letter code : 1 (DC100V only. Except dimension code : 0,1) Company name code : Abbreviation : (Except dimension code : 0,1) (Ex.) Rated voltage 50V 100V Dimension code 0,1 A 102J A 332J 2 563 J5A 103 J1A ETRCE02E 4 / 23 Reference only 4. Part number list Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Volt. (V) Cap. Cap. tol. Dimension (mm) L W W1 F T Size Pack Lead qty. Code (pcs) RCE5C1H1R0C0A2H03B C0G 50 1pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H2R0C0A2H03B C0G 50 2pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H3R0C0A2H03B C0G 50 3pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H4R0C0A2H03B C0G 50 4pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H5R0C0A2H03B C0G 50 5pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H6R0D0A2H03B C0G 50 6pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H7R0D0A2H03B C0G 50 7pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H8R0D0A2H03B C0G 50 8pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H9R0D0A2H03B C0G 50 9pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H100J0A2H03B C0G 50 10pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H120J0A2H03B C0G 50 12pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H150J0A2H03B C0G 50 15pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H180J0A2H03B C0G 50 18pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H220J0A2H03B C0G 50 22pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H270J0A2H03B C0G 50 27pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H330J0A2H03B C0G 50 33pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H390J0A2H03B C0G 50 39pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H470J0A2H03B C0G 50 47pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H560J0A2H03B C0G 50 56pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H680J0A2H03B C0G 50 68pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H820J0A2H03B C0G 50 82pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H101J0A2H03B C0G 50 100pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H121J0A2H03B C0G 50 120pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H151J0A2H03B C0G 50 150pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H181J0A2H03B C0G 50 180pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H221J0A2H03B C0G 50 220pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H271J0A2H03B C0G 50 270pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H331J0A2H03B C0G 50 330pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H391J0A2H03B C0G 50 390pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H471J0A2H03B C0G 50 470pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H561J0A2H03B C0G 50 560pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H681J0A2H03B C0G 50 680pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H821J0A2H03B C0G 50 820pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H102J0A2H03B C0G 50 1000pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H122J0A2H03B C0G 50 1200pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H152J0A2H03B C0G 50 1500pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H182J0A2H03B C0G 50 1800pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H222J0A2H03B C0G 50 2200pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H272J0A2H03B C0G 50 2700pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H332J0A2H03B C0G 50 3300pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 5 / 23 Reference only Unit : mm Customer Part Number DC Rated T.C. Volt. (V) Cap. RCE5C1H392J0A2H03B C0G 50 3900pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C1H472J1A2H03B C0G 50 4700pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H562J1A2H03B C0G 50 5600pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H682J1A2H03B C0G 50 6800pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H822J1A2H03B C0G 50 8200pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H103J1A2H03B C0G 50 10000pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H123J1A2H03B C0G 50 12000pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H153J1A2H03B C0G 50 15000pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H183J1A2H03B C0G 50 18000pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H223J1A2H03B C0G 50 22000pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C1H273J2A2H03B C0G 50 27000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H333J2A2H03B C0G 50 33000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H393J2A2H03B C0G 50 39000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H473J2A2H03B C0G 50 47000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H563J2A2H03B C0G 50 56000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H683J2A2H03B C0G 50 68000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H823J2A2H03B C0G 50 82000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H104J2A2H03B C0G 50 0.1µF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C2A1R0C0A2H03B C0G 100 1pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A2R0C0A2H03B C0G 100 2pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A3R0C0A2H03B C0G 100 3pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A4R0C0A2H03B C0G 100 4pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A5R0C0A2H03B C0G 100 5pF ±0.25pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A6R0D0A2H03B C0G 100 6pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A7R0D0A2H03B C0G 100 7pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A8R0D0A2H03B C0G 100 8pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A9R0D0A2H03B C0G 100 9pF ±0.5pF 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A100J0A2H03B C0G 100 10pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A120J0A2H03B C0G 100 12pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A150J0A2H03B C0G 100 15pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A180J0A2H03B C0G 100 18pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A220J0A2H03B C0G 100 22pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A270J0A2H03B C0G 100 27pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A330J0A2H03B C0G 100 33pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A390J0A2H03B C0G 100 39pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A470J0A2H03B C0G 100 47pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A560J0A2H03B C0G 100 56pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A680J0A2H03B C0G 100 68pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A820J0A2H03B C0G 100 82pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A101J0A2H03B C0G 100 100pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 Murata Part Number 6 / 23 Cap. tol. Dimension (mm) L W W1 F T Size Pack Lead qty. Code (pcs) Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Volt. (V) Cap. Cap. tol. Dimension (mm) L W W1 F T Size Pack Lead qty. Code (pcs) RCE5C2A121J0A2H03B C0G 100 120pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A151J0A2H03B C0G 100 150pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A181J0A2H03B C0G 100 180pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A221J0A2H03B C0G 100 220pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A271J0A2H03B C0G 100 270pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A331J0A2H03B C0G 100 330pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A391J0A2H03B C0G 100 390pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A471J0A2H03B C0G 100 470pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A561J0A2H03B C0G 100 560pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A681J0A2H03B C0G 100 680pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A821J0A2H03B C0G 100 820pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A102J0A2H03B C0G 100 1000pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A122J0A2H03B C0G 100 1200pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A152J0A2H03B C0G 100 1500pF ±5% 3.6 3.5 - 2.5 2.5 0A2 500 RCE5C2A182J1A2H03B C0G 100 1800pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C2A222J1A2H03B C0G 100 2200pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C2A272J1A2H03B C0G 100 2700pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C2A332J1A2H03B C0G 100 3300pF ±5% 4.0 3.5 - 2.5 2.5 1A2 500 RCE5C2A392J2A2H03B C0G 100 3900pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C2A472J2A2H03B C0G 100 4700pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C2A562J2A2H03B C0G 100 5600pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C2A682J2A2H03B C0G 100 6800pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C2A822J2A2H03B C0G 100 8200pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C2A103J2A2H03B C0G 100 10000pF ±5% 5.5 4.0 - 2.5 3.15 2A2 500 RCE5C1H1R0C0K1H03B C0G 50 1pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H2R0C0K1H03B C0G 50 2pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H3R0C0K1H03B C0G 50 3pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H4R0C0K1H03B C0G 50 4pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H5R0C0K1H03B C0G 50 5pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H6R0D0K1H03B C0G 50 6pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H7R0D0K1H03B C0G 50 7pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H8R0D0K1H03B C0G 50 8pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H9R0D0K1H03B C0G 50 9pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H100J0K1H03B C0G 50 10pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H120J0K1H03B C0G 50 12pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H150J0K1H03B C0G 50 15pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H180J0K1H03B C0G 50 18pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H220J0K1H03B C0G 50 22pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H270J0K1H03B C0G 50 27pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H330J0K1H03B C0G 50 33pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 7 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Volt. (V) Cap. Cap. tol. Dimension (mm) L W W1 F T Size Pack Lead qty. Code (pcs) RCE5C1H390J0K1H03B C0G 50 39pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H470J0K1H03B C0G 50 47pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H560J0K1H03B C0G 50 56pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H680J0K1H03B C0G 50 68pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H820J0K1H03B C0G 50 82pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H101J0K1H03B C0G 50 100pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H121J0K1H03B C0G 50 120pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H151J0K1H03B C0G 50 150pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H181J0K1H03B C0G 50 180pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H221J0K1H03B C0G 50 220pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H271J0K1H03B C0G 50 270pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H331J0K1H03B C0G 50 330pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H391J0K1H03B C0G 50 390pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H471J0K1H03B C0G 50 470pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H561J0K1H03B C0G 50 560pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H681J0K1H03B C0G 50 680pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H821J0K1H03B C0G 50 820pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H102J0K1H03B C0G 50 1000pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H122J0K1H03B C0G 50 1200pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H152J0K1H03B C0G 50 1500pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H182J0K1H03B C0G 50 1800pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H222J0K1H03B C0G 50 2200pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H272J0K1H03B C0G 50 2700pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H332J0K1H03B C0G 50 3300pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H392J0K1H03B C0G 50 3900pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C1H472J1K1H03B C0G 50 4700pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H562J1K1H03B C0G 50 5600pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H682J1K1H03B C0G 50 6800pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H822J1K1H03B C0G 50 8200pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H103J1K1H03B C0G 50 10000pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H123J1K1H03B C0G 50 12000pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H153J1K1H03B C0G 50 15000pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H183J1K1H03B C0G 50 18000pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H223J1K1H03B C0G 50 22000pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C1H273J2K1H03B C0G 50 27000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C1H333J2K1H03B C0G 50 33000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C1H393J2K1H03B C0G 50 39000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C1H473J2K1H03B C0G 50 47000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C1H563J2K1H03B C0G 50 56000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C1H683J2K1H03B C0G 50 68000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 8 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Volt. (V) Cap. Cap. tol. Dimension (mm) L W W1 F T Size Pack Lead qty. Code (pcs) RCE5C1H823J2K1H03B C0G 50 82000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 RCE5C1H104J2K1H03B C0G 50 0.1µF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C2A1R0C0K1H03B C0G 100 1pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A2R0C0K1H03B C0G 100 2pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A3R0C0K1H03B C0G 100 3pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A4R0C0K1H03B C0G 100 4pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A5R0C0K1H03B C0G 100 5pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A6R0D0K1H03B C0G 100 6pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A7R0D0K1H03B C0G 100 7pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A8R0D0K1H03B C0G 100 8pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A9R0D0K1H03B C0G 100 9pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A100J0K1H03B C0G 100 10pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A120J0K1H03B C0G 100 12pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A150J0K1H03B C0G 100 15pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A180J0K1H03B C0G 100 18pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A220J0K1H03B C0G 100 22pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A270J0K1H03B C0G 100 27pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A330J0K1H03B C0G 100 33pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A390J0K1H03B C0G 100 39pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A470J0K1H03B C0G 100 47pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A560J0K1H03B C0G 100 56pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A680J0K1H03B C0G 100 68pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A820J0K1H03B C0G 100 82pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A101J0K1H03B C0G 100 100pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A121J0K1H03B C0G 100 120pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A151J0K1H03B C0G 100 150pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A181J0K1H03B C0G 100 180pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A221J0K1H03B C0G 100 220pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A271J0K1H03B C0G 100 270pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A331J0K1H03B C0G 100 330pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A391J0K1H03B C0G 100 390pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A471J0K1H03B C0G 100 470pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A561J0K1H03B C0G 100 560pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A681J0K1H03B C0G 100 680pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A821J0K1H03B C0G 100 820pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A102J0K1H03B C0G 100 1000pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A122J0K1H03B C0G 100 1200pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A152J0K1H03B C0G 100 1500pF ±5% 3.6 3.5 6.0 5.0 2.5 0K1 500 RCE5C2A182J1K1H03B C0G 100 1800pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C2A222J1K1H03B C0G 100 2200pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 9 / 23 500 Reference only Unit : mm Customer Part Number DC Rated T.C. Volt. (V) Cap. RCE5C2A272J1K1H03B C0G 100 2700pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C2A332J1K1H03B C0G 100 3300pF ±5% 4.0 3.5 5.0 5.0 2.5 1K1 500 RCE5C2A392J2K1H03B C0G 100 3900pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C2A472J2K1H03B C0G 100 4700pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C2A562J2K1H03B C0G 100 5600pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C2A682J2K1H03B C0G 100 6800pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C2A822J2K1H03B C0G 100 8200pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 RCE5C2A103J2K1H03B C0G 100 10000pF ±5% 5.5 4.0 6.0 5.0 3.15 2K1 500 Murata Part Number 10 / 23 Cap. tol. Dimension (mm) L W W1 F T Size Pack Lead qty. Code (pcs) Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Cap. Cap. tol. volt. (V) Dimension (mm) L W W1 F T H Size Pack Lead qty. Code (pcs) RCE5C1H1R0C0DBH03A C0G 50 1pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H2R0C0DBH03A C0G 50 2pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H3R0C0DBH03A C0G 50 3pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H4R0C0DBH03A C0G 50 4pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H5R0C0DBH03A C0G 50 5pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H6R0D0DBH03A C0G 50 6pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H7R0D0DBH03A C0G 50 7pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H8R0D0DBH03A C0G 50 8pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H9R0D0DBH03A C0G 50 9pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H100J0DBH03A C0G 50 10pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H120J0DBH03A C0G 50 12pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H150J0DBH03A C0G 50 15pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H180J0DBH03A C0G 50 18pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H220J0DBH03A C0G 50 22pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H270J0DBH03A C0G 50 27pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H330J0DBH03A C0G 50 33pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H390J0DBH03A C0G 50 39pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H470J0DBH03A C0G 50 47pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H560J0DBH03A C0G 50 56pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H680J0DBH03A C0G 50 68pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H820J0DBH03A C0G 50 82pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H101J0DBH03A C0G 50 100pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H121J0DBH03A C0G 50 120pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H151J0DBH03A C0G 50 150pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H181J0DBH03A C0G 50 180pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H221J0DBH03A C0G 50 220pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H271J0DBH03A C0G 50 270pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H331J0DBH03A C0G 50 330pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H391J0DBH03A C0G 50 390pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H471J0DBH03A C0G 50 470pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H561J0DBH03A C0G 50 560pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H681J0DBH03A C0G 50 680pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H821J0DBH03A C0G 50 820pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H102J0DBH03A C0G 50 1000pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H122J0DBH03A C0G 50 1200pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H152J0DBH03A C0G 50 1500pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H182J0DBH03A C0G 50 1800pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H222J0DBH03A C0G 50 2200pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H272J0DBH03A C0G 50 2700pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H332J0DBH03A C0G 50 3300pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 11 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Cap. Cap. tol. volt. (V) Dimension (mm) L W W1 F T H Size Pack Lead qty. Code (pcs) RCE5C1H392J0DBH03A C0G 50 3900pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C1H472J1DBH03A C0G 50 4700pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H562J1DBH03A C0G 50 5600pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H682J1DBH03A C0G 50 6800pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H822J1DBH03A C0G 50 8200pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H103J1DBH03A C0G 50 10000pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H123J1DBH03A C0G 50 12000pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H153J1DBH03A C0G 50 15000pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H183J1DBH03A C0G 50 18000pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H223J1DBH03A C0G 50 22000pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C1H273J2DBH03A C0G 50 27000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H333J2DBH03A C0G 50 33000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H393J2DBH03A C0G 50 39000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H473J2DBH03A C0G 50 47000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H563J2DBH03A C0G 50 56000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H683J2DBH03A C0G 50 68000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H823J2DBH03A C0G 50 82000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H104J2DBH03A C0G 50 0.1µF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C2A1R0C0DBH03A C0G 100 1pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A2R0C0DBH03A C0G 100 2pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A3R0C0DBH03A C0G 100 3pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A4R0C0DBH03A C0G 100 4pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A5R0C0DBH03A C0G 100 5pF ±0.25pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A6R0D0DBH03A C0G 100 6pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A7R0D0DBH03A C0G 100 7pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A8R0D0DBH03A C0G 100 8pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A9R0D0DBH03A C0G 100 9pF ±0.5pF 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A100J0DBH03A C0G 100 10pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A120J0DBH03A C0G 100 12pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A150J0DBH03A C0G 100 15pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A180J0DBH03A C0G 100 18pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A220J0DBH03A C0G 100 22pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A270J0DBH03A C0G 100 27pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A330J0DBH03A C0G 100 33pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A390J0DBH03A C0G 100 39pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A470J0DBH03A C0G 100 47pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A560J0DBH03A C0G 100 56pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A680J0DBH03A C0G 100 68pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A820J0DBH03A C0G 100 82pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A101J0DBH03A C0G 100 100pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 12 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Cap. Cap. tol. volt. (V) Dimension (mm) L W W1 F T Size Pack Lead qty. H/H0 Code (pcs) RCE5C2A121J0DBH03A C0G 100 120pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A151J0DBH03A C0G 100 150pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A181J0DBH03A C0G 100 180pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A221J0DBH03A C0G 100 220pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A271J0DBH03A C0G 100 270pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A331J0DBH03A C0G 100 330pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A391J0DBH03A C0G 100 390pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A471J0DBH03A C0G 100 470pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A561J0DBH03A C0G 100 560pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A681J0DBH03A C0G 100 680pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A821J0DBH03A C0G 100 820pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A102J0DBH03A C0G 100 1000pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A122J0DBH03A C0G 100 1200pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A152J0DBH03A C0G 100 1500pF ±5% 3.6 3.5 - 2.5 2.5 16.0 0DB 2000 RCE5C2A182J1DBH03A C0G 100 1800pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C2A222J1DBH03A C0G 100 2200pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C2A272J1DBH03A C0G 100 2700pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C2A332J1DBH03A C0G 100 3300pF ±5% 4.0 3.5 - 2.5 2.5 16.0 1DB 2000 RCE5C2A392J2DBH03A C0G 100 3900pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C2A472J2DBH03A C0G 100 4700pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C2A562J2DBH03A C0G 100 5600pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C2A682J2DBH03A C0G 100 6800pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C2A822J2DBH03A C0G 100 8200pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C2A103J2DBH03A C0G 100 10000pF ±5% 5.5 4.0 - 2.5 3.15 16.0 2DB 2000 RCE5C1H1R0C0M1H03A C0G 50 1pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H2R0C0M1H03A C0G 50 2pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H3R0C0M1H03A C0G 50 3pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H4R0C0M1H03A C0G 50 4pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H5R0C0M1H03A C0G 50 5pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H6R0D0M1H03A C0G 50 6pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H7R0D0M1H03A C0G 50 7pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H8R0D0M1H03A C0G 50 8pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H9R0D0M1H03A C0G 50 9pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H100J0M1H03A C0G 50 10pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H120J0M1H03A C0G 50 12pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H150J0M1H03A C0G 50 15pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H180J0M1H03A C0G 50 18pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H220J0M1H03A C0G 50 22pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H270J0M1H03A C0G 50 27pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H330J0M1H03A C0G 50 33pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 13 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Cap. Cap. tol. volt. (V) Dimension (mm) L W W1 F T Size Pack Lead qty. H0 Code (pcs) RCE5C1H390J0M1H03A C0G 50 39pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H470J0M1H03A C0G 50 47pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H560J0M1H03A C0G 50 56pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H680J0M1H03A C0G 50 68pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H820J0M1H03A C0G 50 82pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H101J0M1H03A C0G 50 100pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H121J0M1H03A C0G 50 120pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H151J0M1H03A C0G 50 150pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H181J0M1H03A C0G 50 180pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H221J0M1H03A C0G 50 220pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H271J0M1H03A C0G 50 270pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H331J0M1H03A C0G 50 330pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H391J0M1H03A C0G 50 390pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H471J0M1H03A C0G 50 470pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H561J0M1H03A C0G 50 560pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H681J0M1H03A C0G 50 680pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H821J0M1H03A C0G 50 820pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H102J0M1H03A C0G 50 1000pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H122J0M1H03A C0G 50 1200pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H152J0M1H03A C0G 50 1500pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H182J0M1H03A C0G 50 1800pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H222J0M1H03A C0G 50 2200pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H272J0M1H03A C0G 50 2700pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H332J0M1H03A C0G 50 3300pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H392J0M1H03A C0G 50 3900pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C1H472J1M1H03A C0G 50 4700pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H562J1M1H03A C0G 50 5600pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H682J1M1H03A C0G 50 6800pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H822J1M1H03A C0G 50 8200pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H103J1M1H03A C0G 50 10000pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H123J1M1H03A C0G 50 12000pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H153J1M1H03A C0G 50 15000pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H183J1M1H03A C0G 50 18000pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H223J1M1H03A C0G 50 22000pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C1H273J2M1H03A C0G 50 27000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C1H333J2M1H03A C0G 50 33000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C1H393J2M1H03A C0G 50 39000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C1H473J2M1H03A C0G 50 47000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C1H563J2M1H03A C0G 50 56000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C1H683J2M1H03A C0G 50 68000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 14 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Cap. Cap. tol. volt. (V) Dimension (mm) L W W1 F T Size Pack Lead qty. H0 Code (pcs) RCE5C1H823J2M1H03A C0G 50 82000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C1H104J2M1H03A C0G 50 0.1µF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C2A1R0C0M1H03A C0G 100 1pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A2R0C0M1H03A C0G 100 2pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A3R0C0M1H03A C0G 100 3pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A4R0C0M1H03A C0G 100 4pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A5R0C0M1H03A C0G 100 5pF ±0.25pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A6R0D0M1H03A C0G 100 6pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A7R0D0M1H03A C0G 100 7pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A8R0D0M1H03A C0G 100 8pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A9R0D0M1H03A C0G 100 9pF ±0.5pF 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A100J0M1H03A C0G 100 10pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A120J0M1H03A C0G 100 12pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A150J0M1H03A C0G 100 15pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A180J0M1H03A C0G 100 18pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A220J0M1H03A C0G 100 22pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A270J0M1H03A C0G 100 27pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A330J0M1H03A C0G 100 33pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A390J0M1H03A C0G 100 39pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A470J0M1H03A C0G 100 47pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A560J0M1H03A C0G 100 56pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A680J0M1H03A C0G 100 68pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A820J0M1H03A C0G 100 82pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A101J0M1H03A C0G 100 100pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A121J0M1H03A C0G 100 120pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A151J0M1H03A C0G 100 150pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A181J0M1H03A C0G 100 180pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A221J0M1H03A C0G 100 220pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A271J0M1H03A C0G 100 270pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A331J0M1H03A C0G 100 330pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A391J0M1H03A C0G 100 390pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A471J0M1H03A C0G 100 470pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A561J0M1H03A C0G 100 560pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A681J0M1H03A C0G 100 680pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A821J0M1H03A C0G 100 820pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A102J0M1H03A C0G 100 1000pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A122J0M1H03A C0G 100 1200pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A152J0M1H03A C0G 100 1500pF ±5% 3.6 3.5 6.0 5.0 2.5 16.0 0M1 2000 RCE5C2A182J1M1H03A C0G 100 1800pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C2A222J1M1H03A C0G 100 2200pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 15 / 23 Reference only Unit : mm Customer Part Number Murata Part Number DC Rated T.C. Cap. Cap. tol. volt. (V) Dimension (mm) L W W1 F T Size Pack Lead qty. H0 Code (pcs) RCE5C2A272J1M1H03A C0G 100 2700pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 RCE5C2A332J1M1H03A C0G 100 3300pF ±5% 4.0 3.5 5.0 5.0 2.5 16.0 1M1 2000 RCE5C2A392J2M1H03A C0G 100 3900pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C2A472J2M1H03A C0G 100 4700pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C2A562J2M1H03A C0G 100 5600pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C2A682J2M1H03A C0G 100 6800pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C2A822J2M1H03A C0G 100 8200pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 RCE5C2A103J2M1H03A C0G 100 10000pF ±5% 5.5 4.0 6.0 5.0 3.15 16.0 2M1 2000 16 / 23 2000 Reference only 5. AEC-Q200 Murata Standard Specifications and Test Methods No. 1 2 AEC-Q200 Test Item Pre-and Post-Stress Electrical Test Appearance High Temperature Capacitance Exposure Change (Storage) Q Specification AEC-Q200 Test Method - No defects or abnormalities Sit the capacitor for 1,00012h at 1503C. Let sit for 242h at *room condition, then measure. Within 3% or 0.3pF (Whichever is larger) 30pF  C : Q  350 10pF  C  30pF : Q  275+5C/2 10pF > C : Q  200+10C C : Nominal Capacitance (pF) More than 1,000M or 50 MF (Whichever is smaller) Temperature Appearance No defects or abnormalities Cycling Capacitance Within 5% or 0.5pF Change (Whichever is larger) Q 30pF  C : Q  350 10pF  C  30pF : Q  275+5C/2 10pF > C : Q  200+10C I.R. 3 Perform the 1,000 cycles according to the four heat treatments listed in the following table. Let sit for 24±2 h at *room condition, then measure. Step Temp. (C) Time (min.) C : Nominal Capacitance (pF) 1,000M or 50M·F min. (Whichever is smaller) Appearance No defects or abnormalities Capacitance Within 5% or  0.5pF Change (Whichever is larger) Q 30pF  C : Q  200 30pF > C : Q  100+10C/3 I.R. 4 Moisture Resistance 153 2 Room Temp. 1 3 125+3/-0 153 4 Room Temp. 1 Apply the 24h heat (25 to 65C) and humidity (80 to 98%) treatment shown below, 10 consecutive times. Let sit for 24±2 h at *room condition, then measure. Humidity Temperature 8098 Humidity Humidity C 9098 9098 70 65 60 55 50 45 40 35 30 25 +10 20 - 2 C 15 10 Initial measurement 5 0 -5 -10 One cycle 24 hours C : Nominal Capacitance(pF) 500M or 25M·F min. (Whichever is smaller) Humidity 8098 Humidity 9098 Temperature I.R. 1 -55+0/-3 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 5 Biased Humidity Hours Apply the rated voltage and DC1.3+0.2/-0 V (add 100k resistor) at 853C and 80 to 85% humidity for 1,00012h. Remove and let sit for 24±2 h at *room condition, then measure. The charge/discharge current is less than 50mA. Appearance No defects or abnormalities Capacitance Within 5% or  0.5pF Change (Whichever is larger) Q 30pF  C : Q  200 30pF > C : Q  100+10C/3 C : Nominal Capacitance(pF) 500M or 25M·F min. (Whichever is smaller) Operational Appearance No defects or abnormalities Life Capacitance Within 3% or 0.3pF Change (Whichever is larger) Q 30pF  C : Q  350 10pF  C  30pF : Q  275+5C/2 10pF > C : Q  200+10C I.R. 6 Apply 200% of the rated voltage for 1,00012h at 1253C. Let sit for 24±2 h at *room condition, then measure. The charge/discharge current is less than 50mA. C : Nominal Capacitance (pF) 1,000M or 50M·F min. (Whichever is smaller) * “room condition” Temperature:15 to 35°C, Relative humidity:45 to 75%, Atmosphere pressure:86 to 106kPa I.R. ESRCE02C 17 / 23 Reference only No. 7 8 9 10 AEC-Q200 Test Item External Visual Physical Dimension Marking Resistance Appearance to Solvents Capacitance Q I.R. 11 AEC-Q200 Test Method No defects or abnormalities Within the specified dimensions To be easily legible. No defects or abnormalities Within the specified tolerance 30pF  C : Q  1,000 30pF > C : Q  400+20C Visual inspection Using calipers and micrometers. Visual inspection Per MIL-STD-202 Method 215 Solvent 1 : 1 part (by volume) of isopropyl alcohol 3 parts (by volume) of mineral spirits Solvent 2 : Terpene defluxer Solvent 3 : 42 parts (by volume) of water 1part (by volume) of propylene glycol monomethyl ether 1 part (by volume) of monoethanolamine C : Nominal Capacitance (pF) More than 10,000M or 500 MF (Whichever is smaller) Three shocks in each direction should be applied along 3 mutually perpendicular axes of the test specimen (18 shocks). The specified test pulse should be Half-sine and should have a duration :0.5ms, peak value:1,500G and velocity change: 4.7m/s. Mechanical Appearance No defects or abnormalities Shock Capacitance Within the specified tolerance Q 12 Specification Vibration 30pF  C : Q  1,000 30pF > C : Q  400+20C C : Nominal Capacitance (pF) Appearance No defects or abnormalities The capacitor should be subjected to a simple harmonic motion having a total amplitude of 1.5mm, the frequency being varied uniformly between the approximate limits of 10 and 2,000Hz. The frequency range, from 10 to 2,000Hz and return to 10Hz, should be traversed in approximately 20 min. This motion should be applied for 12 items in each 3 mutually perpendicular directions (total of 36 times). Capacitance Within the specified tolerance Q 30pF  C : Q  1,000 30pF > C : Q  400+20C C : Nominal Capacitance( pF) 13-1 Resistance to Soldering Heat (NonPreheat) Appearance No defects or abnormalities Capacitance Change Dielectric Strength (Between terminals) Within 2.5% or 0.25pF (Whichever is larger) No defects 13-2 Resistance to Soldering Heat (OnPreheat) Appearance No defects or abnormalities Capacitance Change Dielectric Strength (Between terminals) Within 2.5% or 0.25pF (Whichever is larger) No defects Appearance No defects or abnormalities Capacitance Change Dielectric Strength (Between terminals) Within 2.5% or 0.25pF (Whichever is larger) No defects 13-3 Resistance to Soldering Heat (soldering iron method) 14 Thermal Shock The lead wires should be immersed in the melted solder 1.5 to 2.0mm from the root of terminal at 2605C for 101 seconds. • Post-treatment Capacitor should be stored for 242 hours at *room condition. First the capacitor should be stored at 120+0/-5C for 60+0/-5 seconds. Then, the lead wires should be immersed in the melted solder 1.5 to 2.0mm from the root of terminal at 2605C for 7.5+0/-1 seconds. • Post-treatment Capacitor should be stored for 242 hours at *room condition. Test condition Termperature of iron-tip : 35010C Soldering time : 3.50.5 seconds Soldering position Straight Lead:1.5 to 2.0mm from the root of terminal. Crimp Lead:1.5 to 2.0mm from the end of lead bend. • Post-treatment Capacitor should be stored for 242 hours at *room condition. Perform the 300 cycles according to the two heat treatments listed in the following table(Maximum transfer time is 20s.). Let sit for 24±2 h at *room condition, then measure. Appearance No defects or abnormalities Capacitance Within 5% or 0.5pF Change (Whichever is larger) Q 30pF  C : Q  350 10pF  C  30pF : Q  275+5C/2 10pF > C : Q  200+10C I.R. Step Temp. (C) Time (min.) C : Nominal Capacitance (pF) 1,000M or 50M·F min. (Whichever is smaller) * “room condition” Temperature:15 to 35°C, Relative humidity:45 to 75%, Atmosphere pressure:86 to 106kPa ESRCE02C 18 / 23 1 2 -55+0/-3 125+3/-0 153 153 Reference only AEC-Q200 Test Item No. 15 ESD Specifications AEC-Q200 Test Method Per AEC-Q200-002 Appearance No defects or abnormalities Capacitance Within the specified tolerance Q I.R. 16 Solderability 17 Electrical Characterization Apperance 30pF  C : Q  1,000 30pF > C : Q  400+20C C : Nominal Capacitance (pF) More than 10,000M or 500 MF (Whichever is smaller) Lead wire should be soldered with uniform coating on Should be placed into steam aging for 8h15 min. The terminal of capacitor is dipped into a solution of ethanol the axial direction over 95% of the circumferential (JIS K 8101) and rosin (JIS K 5902) (25% rosin in weight direction. propotion).Immerse in solder solution for 20.5 seconds. In both cases the depth of dipping is up to about 1.5 to 2mm from the terminal body. Temp. of solder : 2455C Lead Free Solder(Sn-3.0Ag-0.5Cu) 2355C H60A or H63A Eutectic Solder No defects or abnormalities Visual inspection. Capacitance Within the specified tolerance The capacitance, Q should be measured at 25C at the frequency and voltage shown in the table. Nominal Cap. Frequency Voltage C  1000pF 10.1MHz AC0.5 to 5V(r.m.s.) C > 1000pF 10.1kHz AC10.2V(r.m.s.) Q 30pF  C : Q  1,000 30pF > C : Q  400+20C I.R. Between Terminals Between Terminals 10,000M or 500MF min. (Whichever is smaller) No defects or abnormalities Body Insulation No defects or abnormalities C : Nominal Capacitance (pF) Dielectric Strength 18 Terminal Strength Tensile Strength Termination not to be broken or loosened The insulation resistance should be measured with a DC voltage not exceeding the rated voltage at 25 C within 2 min. of charging. The capacitor should not be damaged when DC voltage of 300% of the rated voltage is applied between the terminations for 1 to 5 seconds. (Charge/Discharge current  50mA.) The capacitor is placed in a container with metal balls of 1mm diameter so that each terminal, short-circuit is kept approximately 2mm from the balls, and 250% of the rated DC voltage is impressed for 1 to 5 seconds between capacitor terminals and metal balls. (Charge/Discharge current  50mA.) As in the figure, fix the capacitor body, apply the force gradually to each lead in the radial direction of the capacitor until reaching 10N and then keep the force applied for 101 seconds.  F Bending Strength 19 Capacitance Temperature Characteristics Termination not to be broken or loosened Within the specified Tolerance. 25C~125C : 030ppm/C -55C~25C : 0+30/-72ppm/C Each lead wire should be subjected to a force of 2.5N and then be bent 90° at the point of egress in one direction. Each wire is then returned to the original position and bent 90° in the opposite direction at the rate of one bend per 2 to 3 seconds. The capacitance change should be measured after 5min. at each specified temperature step. Step 1 2 3 4 5 Temperature(C) 252 -553 252 1253 252 The temperature coefficient is determind using the capacitance measured in step 3 as a reference. When cycling the temperature sequentially from step 1 through 5 (-55C to +125C) the capacitance should be within the specified tolerance for the temperature coefficient and capacitance change as Table A. The capacitance drift is caluculated by dividing the differences betweeen the maximum and minimum measured values in the step 1, 3 and 5 by the capacitance value in step 3. * “room condition” Temperature:15 to 35°C, Relative humidity:45 to 75%, Atmosphere pressure:86 to 106kPa ESRCE02C 19 / 23 Reference only 6. Packing specification Bulk type (Packing style code : B) 1 2 The number of packing = Packing quantity  n The size of packing case and packing way 1 : Please refer to [Part number list]. 2 : Standard n = 20 (bag) Polyethylene bag Partition Note) The outer package and the number of outer packing be changed by the order getting amount. 270 max. 125 max. 340 max. Unit : mm Ammo pack taping type (Packing style code : A)  A crease is made every 25 pitches, and the tape with capacitors is packed zigzag into a case.  When body of the capacitor is piled on other body under it. The size of packing case and packing way 240 max. Position of label Unit : mm 340 max. Hold down tape Capacitor 51 max. Base tape Hold down tape upper EKBCRPE01 20 / 23 Reference only 7. Taping specification 7-1. Dimension of capacitors on tape Inside crimp taping type < Lead code : M1 > Pitch of component 12.7mm / Lead spacing 5.0mm 0 P P2 h2 h1 S Marking t1 t2 W W0 L  D0 W1 d H0 F P1 W2 e P0 Unit : mm Item Code Dimensions Pitch of component P 12.7+/-1.0 Pitch of sprocket hole P0 12.7+/-0.2 Lead spacing F 5.0+0.6/-0.2 Length from hole center to component center P2 6.35+/-1.3 Length from hole center to lead P1 3.85+/-0.7 Deviation along tape, left or right defect S 0+/-2.0 Carrier tape width W 18.0+/-0.5 Position of sprocket hole W1 9.0+0/-0.5 H0 16.0+/-0.5 Lead distance between reference and bottom plane Remarks Deviation of progress direction They include deviation by lead bend . Deviation of tape width direction 0.5 max. Protrusion length Diameter of sprocket hole D0 4.0+/-0.1 Lead diameter d 0.50+/-0.05 Total tape thickness t1 0.6+/-0.3 Total thickness of tape and lead wire t2 1.5 max. h1 h2 2.0 max.（Dimension code：W） 1.0 max.（except as above） Portion to cut in case of defect L 11.0+0/-1.0 Hold down tape width W0 9.5 min. Hold down tape position W2 1.5+/-1.5 Coating extension on lead e Up to the end of crimp Deviation across tape ETP1M101 21 / 23 They include hold down tape thickness. Reference only Straight taping type < Lead code : DG > Pitch of component 12.7mm / Lead spacing 2.5mm P2 P h1 0 h2 S Marking e H d t1 t2 W W0 L  D0 W1 F W2 P1 P0 Unit : mm Item Code Dimensions Pitch of component P 12.7+/-1.0 Pitch of sprocket hole P0 12.7+/-0.2 Lead spacing F 2.5+0.4/-0.2 Length from hole center to component center P2 6.35+/-1.3 Length from hole center to lead P1 5.1+/-0.7 Deviation along tape, left or right defect S 0+/-2.0 Carrier tape width W 18.0+/-0.5 Position of sprocket hole Lead distance between reference and bottom plane W1 9.0+0/-0.5 H 20.0+/-0.5 Deviation of progress direction They include deviation by lead bend . Deviation of tape width direction 0.5 max. Protrusion length Diameter of sprocket hole D0 4.0+/-0.1 Lead diameter d 0.50+/-0.05 Total tape thickness t1 0.6+/-0.3 Total thickness of tape and lead wire t2 1.5 max. Deviation across tape Remarks h1 h2 1.0 max. Portion to cut in case of defect L 11.0+0/-1.0 Hold down tape width W0 9.5 min. Hold down tape position W2 1.5+/-1.5 Coating extension on lead e 1.5 max. ETP1DG01 22 / 23 They include hold down tape thickness. Reference only 7-2. Splicing way of tape 1) Adhesive force of tape is over 3N at test condition as below. W Hold down tape Base tape 2) Splicing of tape a) When base tape is spliced Base tape shall be spliced by cellophane tape. (Total tape thickness shall be less than 1.05mm.) Progress direction in production line Hold down tape Base tape About 30 to 50 Cellophane tape No lifting for the direction of progressing Unit : mm b) When hold down tape is spliced Hold down tape shall be spliced with overlapping. (Total tape thickness shall be less than 1.05mm.) ape are spliced Base tape and adhesive tape shall be spliced with splicing tape. 20 to 30 Hold down tape Progress direction in production line Base tape Unit : mm c) When both tape are spliced Base tape and hold down tape shall be spliced with splicing tape. ETP2R01 23 / 23 Appendix EU RoHS and Halogen Free This products of the following crresponds to EU RoHS and Halogen Free　 (1) RoHS 　EU RoHs 2011/65/EC compliance　 　maximum concentration values tolerated by weight in homogeneous materials 　・1000 ppm maximum Lead 　・1000 ppm maximum Mercury 　・100 ppm maximum Cadmium 　・1000 ppm maximum Hexavalent chromium 　・1000 ppm maximum Polybrominated biphenyls (PBB) 　・1000 ppm maximum Polybrominated diphenyl ethers (PBDE) (2) Halogen-Free 　The International Electrochemical Commission’s (IEC) Definition 　of Halogen-Free (IEC 61249-2-21) compliance 　 　・900 ppm maximum chlorine 　・900 ppm maximum bromine 　・1500 ppm maximum total chlorine and bromine
