SAFEA1G58KA0F00R15

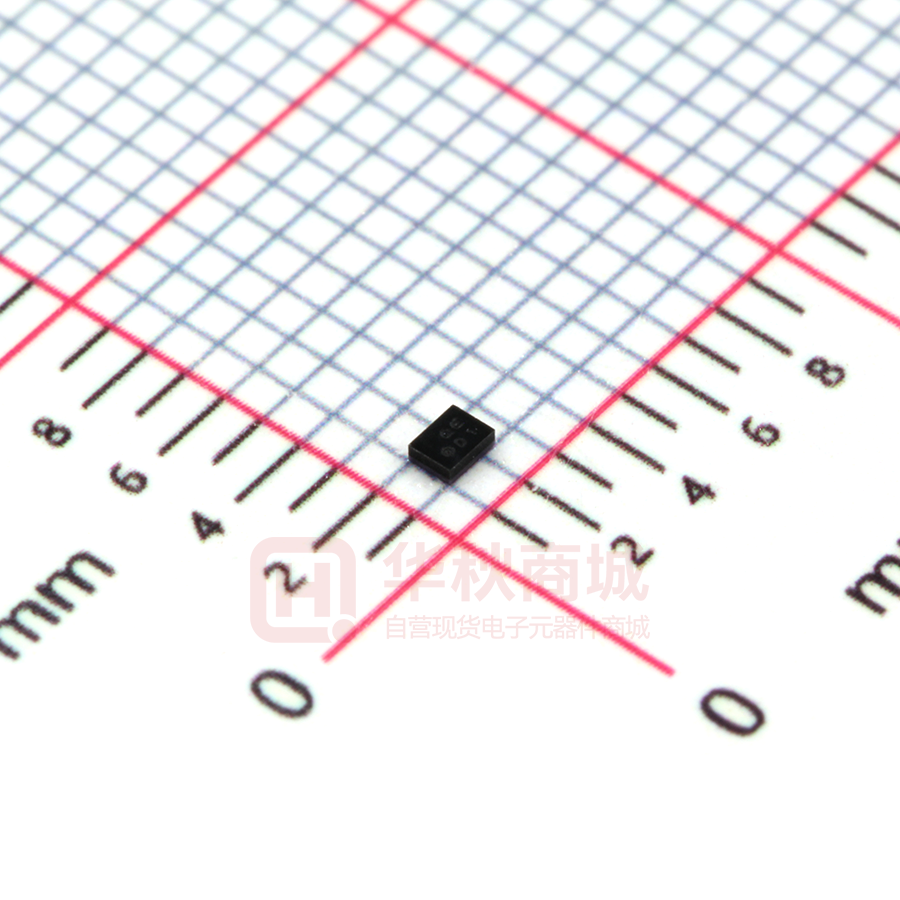

SAW FILTER FOR GPS/GLONASS Murata part number :SAFEA1G58KA0F00 Package Dimensions Specification Item Dot Marking(0.3) D1 (3) (0.17) (3) 2-0.25±0.05 (2) (0.075) 5-0.325±0.050 0.5max. (2) (1) (0.05) 2-0.25±0.05 (5) (4) typ. 1) 1565.42 to 1585.42MHz 1.8 dB max. 1.5 dB max. 1.3 dB 2) 1574.42 to 1576.42MHz 1.3 dB max. 1.1 dB max. 0.9 dB 3) 1597.55 to 1605.89MHz 1.7 dB max. 1.5 dB max. 1.3 dB Absolute Attenuation 1) 1 to 925 MHz 32 dB min. 32 dB min. 35 dB 2) 925 to 960 MHz 32 dB min. 32 dB min. 35 dB 3) 1427 to 1453 MHz 40 dB min. 40 dB min. 47 dB 4) 1453 to 1501 MHz 40 dB min. 40 dB min. 46 dB 5) 1501 to 1525 MHz 35 dB min. 35 dB min. 43 dB 6) 1626 to 1660 MHz 1.5 dB min. 4 dB min. 7 dB 7) 1710 to 1785 MHz 38 dB min. 38 dB min. 42 dB 8) 1850 to 1910 MHz 40 dB min. 40 dB min. 43 dB 9) 1920 to 1980 MHz 40 dB min. 40 dB min. 44 dB 10) 2110 to 2170 MHz 40 dB min. 40 dB min. 47 dB 11) 2400 to 2500 MHz 42 dB min. 42 dB min. 50 dB 12) 2500 to 2570 MHz 40 dB min. 40 dB min. 49 dB GDT Ripple Deviation (1597.55 to 1605.89MHz) 6.0 ns max. 5.0 ns max. 2.0 ns Ripple Deviation (1565.42 to 1605.89MHz) 1.5 dB max. 1.0 dB max. 0.5 dB 1) 1565.42 to 1585.42MHz 2.1 max. 2.0 max. 2) 1597.55 to 1605.89MHz 2.1 max. 2.0 max. 1.6 1.6 5-0.25±0.05 2-0.25±0.05 Marking : Laser Printing (1) : Unbalance Port (4) : Unbalance Port Others : Ground Unit : mm Jun. 4, 2010 25±2°C 1575.42/1602MHz Insertion Loss (4) 1.05±0.05 (1) -30 to 85°C Nominal Center Frequency(fc) 1.35±0.05 (5) Specification VSWR Unbalance Port Matching Impedance (nominal) Input Signal Level 50Ω 20mW (+13dBm), 2000 hours 1/5 SAW FILTER FOR GPS/GLONASS Murata part number :SAFEA1G58KA0F00 Frequency Performance Jun. 4, 2010 2/5 SAW FILTER FOR GPS/GLONASS 8.0±0.2 D1 D1 D1 +0.1 0.8-0.0 4.0±0.1 0.30±0.05 Direction of Feed 3°max. 1.6±0.1 +0.1 1.5-0.0 2.00±0.05 3°max. 4.0±0.1 3.50±0.05 Dimensions of Carrier Tape 1.75±0.10 Murata part number :SAFEA1G58KA0F00 0.70±0.10 Cover Tape 1.3±0.1 Unit: mm Trailer tape Dimensions of Tape Components 178 160...190 80...120 Leader Cavity 400...560 Unit: mm Dimensions of Reel 2.0 ± 0.5 ) 13.5max. ( 60) 9.0 ± 0.5 13.0 ± 0.5 Unit: mm SAFEA1G58KA0F00R14 … 4000pcs/reel SAFEA1G58KA0F00R12 … 2000pcs/reel Jun. 4, 2010 3/5 SAW FILTER FOR GPS/GLONASS Murata part number :SAFEA1G58KA0F00 Recommended Land Pattern 0.25 0.25 0.425 1.3 0.25 0.325 0.525 0.525 0.325 0.325 0.425 0.25 : Land Pattern Unit : mm 1.6 Test Circuit 2 3 5 4 1 50Ω Jun. 4, 2010 50Ω 4/5 SAW FILTER FOR GPS/GLONASS Murata part number :SAFEA1G58KA0F00 RoHS Compliance This component is compliant with RoHS directive. This component was always RoHS compliant from the first date of manufacture.  Caution - Limitation of Applications Please contact us before using our products for the applications listed below which require especially for the prevention of defects which might directly cause damage to the third party’s life, body or property. a. Aircraft equipment b. Aerospace equipment c. Undersea equipment d. Nuclear control equipment e. Medical equipment f. Transportation equipment (vehicles, trains, ships, etc.) g. Traffic signal equipment h. Disaster prevention / crime prevention equipment i. Data - processing equipment j. Application of similar complexity and / or reliability requirements to the applications listed in the above  This PDF Datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.  This PDF Datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. Jun. 4, 2010 5/5
