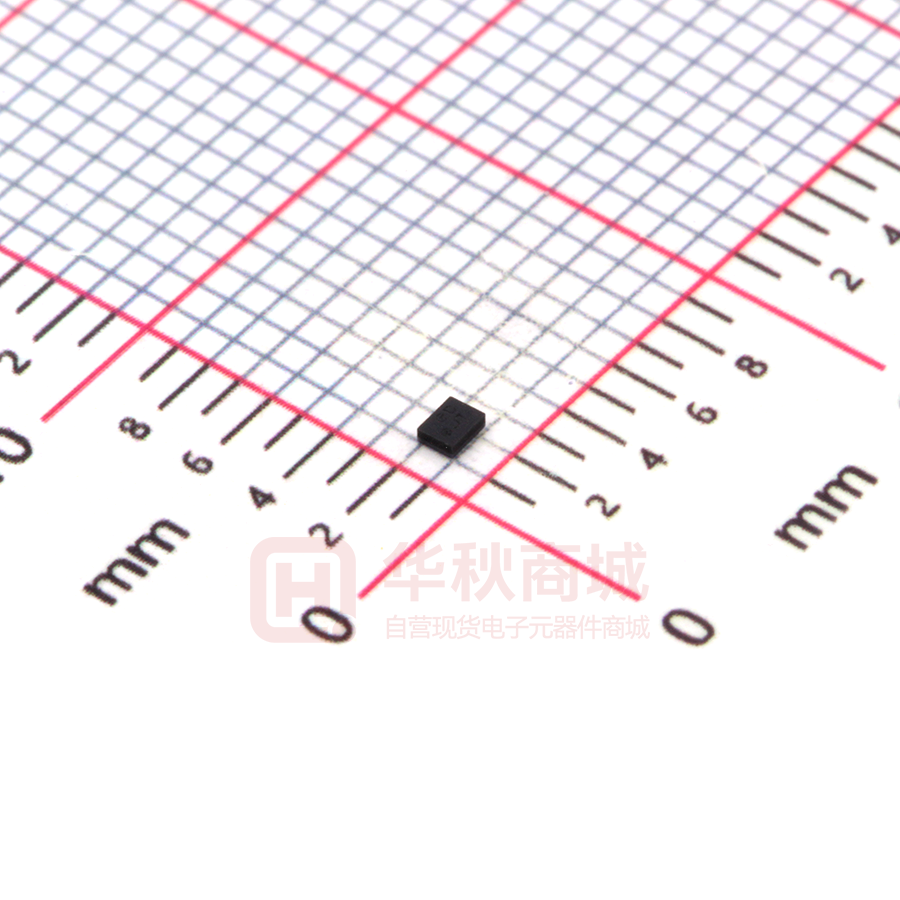

SAFEB1G57KE0F00R15

SAW FILTER FOR GPS Murata part number :SAFEB1G57KE0F00 Package Dimensions Specification Specif ication Item -30 to 85°C 1.05±0.05 Insertion Loss (1573.92 to 1576.92MHz) Dot Marking(φ0.3) J T 2-0.25±0.05 0.6max. (0.075) 5-0.325±0.050 (3) (1) (0.05) 2-0.25±0.05 (5) 1.3 dB max. 1.2 dB max. 0.95 dB A bsolute A ttenuation (0.20) (2) typ. 1575.5MHz Nominal Center Frequency(f c) 1.35±0.05 25±2°C (4) 5-0.25±0.05 2-0.25±0.05 Marking : Laser Printing (1) : Input (4) : Output Others : Ground 1) 0.1 to 250 MHz 40 dB min. 40 dB min. 48 dB 2) 250 to 810 MHz 41 dB min. 41 dB min. 42 dB 3) 810 to 960 MHz 40 dB min. 40 dB min. 42 dB 4) 960 to 1429 MHz 40 dB min. 40 dB min. 42 dB 5) 1429 to 1453 MHz 40 dB min. 40 dB min. 53 dB 6) 1453 to 1525.42 MHz 37 dB min. 37 dB min. 43 dB 7) 1525 to 1560 MHz 1.1 dB min. 1.1 dB min. 1.6 dB 8) 1625 to 1710 MHz 40 dB min. 40 dB min. 46 dB 9) 1710 to 1749.9 MHz 43 dB min. 43 dB min. 46 dB 10) 1749.9 to 1785 MHz 44 dB min. 44 dB min. 46 dB 11) 1785 to 1920 MHz 43 dB min. 43 dB min. 47 dB 12) 1920 to 1990 MHz 43 dB min. 43 dB min. 50 dB 13) 1990 to 2170 MHz 45 dB min. 45 dB min. 50 dB 14) 2170 to 2700 MHz 40 dB min. 40 dB min. 44 dB 15) 2700 to 6000 MHz 30 dB min. 30 dB min. 33 dB Ripple Deviation (1573.92 to 1576.92MHz) 0.6dB max. 0.5dB max. 0.03 dB V SWR (1573.92 to 1576.92MHz) 1.7 max. 1.5 max. Input/Output Impedance (nominal) Input Signal Level 1.2 5 0Ω 50mW (+17dBm), 2000 hours Unit : mm Sep. 27, 2006 1/4 SAW FILTER FOR GPS Murata part number :SAFEB1G57KE0F00 I.L.(dB) Frequency Performance 0 0 10 2 20 4 30 6 40 8 50 10 60 12 70 14 80 1370 1410 1450 1490 1530 1570 1610 1650 1690 1730 16 1770 600 1200 1800 2400 3000 3600 4200 4800 5400 6000 frequency(MHz) 0 10 20 I.L.(dB) 30 40 50 60 70 80 0 Sep. 27, 2006 frequency(MHz) 2/4 SAW FILTER FOR GPS JT JT JT +0.1 φ0.8-0.0 4.0±0.1 0.30±0.05 Direction of Feed 3°max. 1.6±0.1 8.0±0.2 +0.1 φ1.5-0.0 2.00±0.05 3°max. 4.0±0.1 1.75±0.10 Dimensions of Carrier Tape 3.50±0.05 Murata part number :SAFEB1G57KE0F00 0.70±0.10 Cover Tape 1.3±0.1 Dimensions of Tape Unit: mm Trailer tape 160...190 Components 80...120 Leader Cavity 400...560 Unit: mm Dimensions of Reel 2.0±0.5 (φ178) 13.5max. (φ60) 9.0±0.5 φ13.0±0.5 Unit: mm SAFEB1G57KE0F00R15 … 5000pcs/reel Sep. 27, 2006 3/4 SAW FILTER FOR GPS Murata part number :SAFEB1G57KE0F00 Recommended Land Pattern 0.25 0.25 0.425 0.325 0.25 1.3 0.25 0.525 0.525 0.325 0.325 0.425 : Land Pattern Unit : mm 1.6 Test Circuit 50Ω 2 5 S.S.G. 3 1 4 50Ω RF Voltmeter V1 • This PDF Datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. • This PDF Datasheet has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. Sep. 27, 2006 4/4
