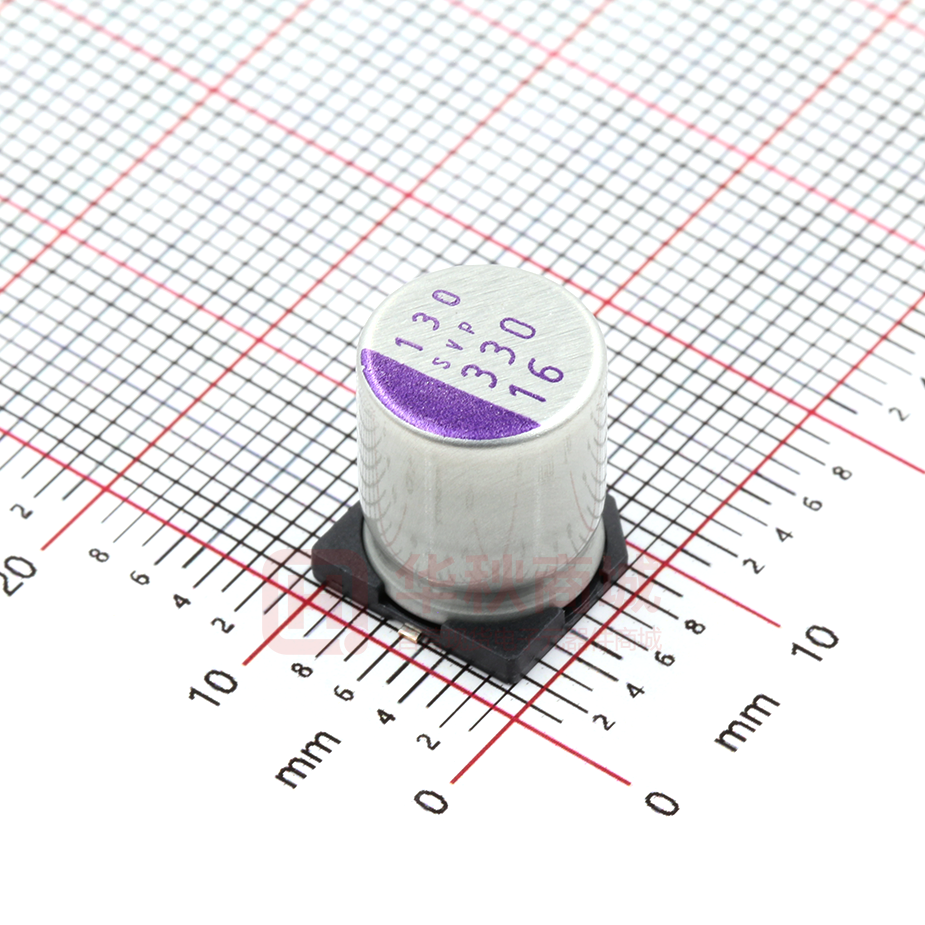

16SVP330M

Conductive Polymer Aluminum Solid Capacitors Surface Mount Type SVP series Features ● Standard ● RoHS compliance, Halogen free Specifications A5 B6 C6 Rated voltage range (V) 4.0 to 16 4.0 to 20 2.5 to 20 Nominal cap.range (μF) 3.3 to 33 10 to 68 22 to 220 Category temp. range Capacitance tolerance E7 E12 –55 ℃ to +105 ℃ 4.0 to 20 2.5 to 20 33 to 330 100 to 680 DC leakage current ±20 % (120 Hz / +20 ℃) Please see the attached characteristics list Dissipation factor (tan δ) Please see the attached characteristics list Endurance F12 4.0 to 20 2.5 to 20 56 to 680 150 to 1500 +105 ℃ 2000 h, rated voltage applied Capacitance change Within ±20 % of the initial value Dissipation factor (tanδ) DC leakage current Damp heat (Steady state) F8 ≦ 150 % of the initial limit Within the initial limit +60 ℃, 90 % to 95 % RH, 1000 h, No-applied voltage Capacitance change Within ±20 % of the initial value Dissipation factor (tanδ) DC leakage current Marking ≦ 150 % of the initial limit Within the initial limit (after voltage processing) Dimensions (not to scale) 0.2 max. P H øD Polarity marking (−) Lot No. W ⊖ C Size code Series code* ⊕ L R. voltage (V) * Depends on the case size. R. capacitance (μF) Size code A5 B6 C6 E7 E12 F8 F12 R Unit：ｍｍ øD±0.5 +0.1 L -0.4 W±0.2 H±0.2 C±0.2 R P*1 4.0 5.0 6.3 8.0 8.0 10.0 10.0 5.4 5.9 5.9 6.9 11.9 7.9 12.6 4.3 5.3 6.6 8.3 8.3 10.3 10.3 4.3 5.3 6.6 8.3 8.3 10.3 10.3 5.0 6.0 7.3 9.0 9.0 11.0 11.0 0.6 to 0.8 1.0 1.4 2.1 3.2 3.2 4.6 4.6 0.6 to 0.8 0.6 to 0.8 0.6 to 0.8 0.8 to 1.1 0.6 to 0.8 0.8 to 1.1 *1 : Reference Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 01-Nov-15 SVP series Characteristics list Rated Rated capacitance voltage (±20 %) (V) (μF) 2.5 4.0 6.3 220 680 1500 33 39 68 150 330 560 680 1200 22 47 82 100 120 220 330 470 10 820 4.7 6.8 10 15 33 47 56 120 150 270 330 16 560 3.3 15 22 39 56 82 100 150 180 20 330 10 22 27 33 47 56 68 100 150 Case size (mm) øD L Specifications Size code Ripple current*1 (mA rms) 6.3 8.0 10.0 4.0 5.0 5.0 6.3 8.0 8.0 10.0 10.0 4.0 5.0 6.3 6.3 6.3 8.0 10.0 10.0 10.0 8.0 10.0 4.0 4.0 4.0 4.0 5.0 6.3 6.3 8.0 8.0 10.0 10.0 10.0 8.0 10.0 4.0 5.0 5.0 6.3 8.0 8.0 10.0 10.0 10.0 8.0 10.0 5.0 6.3 6.3 8.0 8.0 10.0 10.0 8.0 10.0 5.9 11.9 12.6 5.4 5.9 5.9 5.9 6.9 11.9 7.9 12.6 5.4 5.9 5.9 5.9 5.9 6.9 7.9 7.9 7.9 11.9 12.6 5.4 5.4 5.4 5.4 5.9 5.9 5.9 6.9 6.9 7.9 7.9 7.9 11.9 12.6 5.4 5.9 5.9 5.9 6.9 6.9 7.9 7.9 7.9 11.9 12.6 5.9 5.9 5.9 6.9 6.9 7.9 7.9 11.9 12.6 C6 E12 F12 A5 B6 C6 E7 E12 F8 F12 A5 B6 C6 E7 F8 E12 F12 A5 B6 C6 E7 F8 E12 F12 A5 B6 C6 E7 F8 E12 F12 B6 C6 E7 F8 E12 F12 2390 4520 5440 740 1100 1400 1810 2560 4520 3700 5440 740 1100 1700 1810 2780 2560 3700 3700 3700 4210 5440 670 670 700 740 1100 1620 1700 2560 2560 3020 3700 3700 3950 5230 660 1020 1060 1620 1890 2120 2670 3020 3020 3640 4720 1020 1450 1450 1890 1890 2400 2400 3320 4320 ESR*2 (mΩ max.) 23 13 12 200 70 60 40 35 13 25 12 200 70 45 40 17 35 25 25 25 15 12 240 240 220 200 70 50 45 35 35 30 25 25 17 13 260 120 90 50 45 40 35 30 30 20 16 120 60 60 45 45 40 40 24 20 Standard（Reel size : ø380） *3 tan δ 0.12 0.15 0.18 0.15 0.12 0.12 0.12 0.12 0.15 0.12 0.18 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.15 0.15 0.08 0.09 0.10 0.10 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.12 0.15 0.15 0.07 0.10 0.10 0.10 0.12 0.12 0.12 0.12 0.12 0.15 0.15 0.10 0.10 0.10 0.12 0.12 0.12 0.12 0.15 0.15 LC*4 (μA） 110 340 750 66 78 136 120 264 448 544 960 69.3 148 103 126 151 277 277 416 592 592 775 23.5 34 50 75 165 94 112 240 300 300 540 660 660 840 26.4 120 176 125 179 262 320 480 576 576 792 100 88 108 132 188 224 272 400 600 Part number 2R5SVP220M 2R5SVP680M 2R5SVP1500M 4SVP33M 4SVP39M 4SVP68M 4SVP150MX 4SVP330M 4SVP560M 4SVP680M 4SVP1200M 6SVP22M 6SVP47M 6SVP82M 6SVP100M 6SVP120MV 6SVP220MX 6SVP220M 6SVP330M 6SVP470MX 6SVP470M 6SVP820M 10SVP4R7M 10SVP6R8M 10SVP10M 10SVP15M 10SVP33M 10SVP47M 10SVP56M 10SVP120M 10SVP150MX 10SVP150M 10SVP270M 10SVP330MX 10SVP330M 10SVP560M 16SVP3R3M 16SVP15M 16SVP22M 16SVP39M 16SVP56M 16SVP82M 16SVP100M 16SVP150M 16SVP180MX 16SVP180M 16SVP330M 20SVP10M 20SVP22M 20SVP27M 20SVP33M 20SVP47M 20SVP56M 20SVP68M 20SVP100M 20SVP150M *1: Ripple current (100 kHz / +105 ℃) *2: ESR (100 kHz to 300 kHz/+20 ℃) *3: tan δ (120 Hz / +20 ℃) ◆ Please refer to each page in this catarog for “Reflow conditions” and “Taping specifications”. Min. Packaging Q'ty (pcs) 1000 400 400 2000 1500 1500 1000 1000 400 500 400 2000 1500 1000 1000 1000 1000 500 500 500 400 400 2000 2000 2000 2000 1500 1000 1000 1000 1000 500 500 500 400 400 2000 1500 1500 1000 1000 1000 500 500 500 400 400 1500 1000 1000 1000 1000 500 500 400 400 *4: After 2 minutes Frequency correction factor for ripple current Frequency(f) Coefficient 120 Hz ≦ f < 1 kHz 0.05 1 kHz ≦ f < 10 kHz 0.3 10 kHz ≦ f < 100 kHz 0.7 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 100 kHz ≦ f < 500 kHz 1 01-Nov-15 Guidelines and precautions regarding the technical information and use of our products described in this online catalog. ■ If you want to use our products described in this online catalog for applications requiring special qualities or reliability, or for applications where the failure or malfunction of the products may directly jeopardize human life or potentially cause personal injury (e.g. aircraft and aerospace equipment, traffic and transportation equipment, combustion equipment, medical equipment, accident prevention, anti-crime equipment, and/or safety equipment), it is necessary to verify whether the specifications of our products fit to such applications. Please ensure that you will ask and check with our inquiry desk as to whether the specifications of our products fit to such applications use before you use our products. ■ The quality and performance of our products as described in this online catalog only apply to our products when used in isolation. Therefore, please ensure you evaluate and verify our products under the specific circumstances in which our products are assembled in your own products and in which our products will actually be used. ■ Please ensure the safety by means of protection circuit, redundant circuit etc. in your system design in order to prevent the occurrence of life crisis and other serious damages due to the failure of our products. ■ The products and product specifications described in this online catalog are subject to change for improvement without prior notice. Therefore, please be sure to request and confirm the latest product specifications which explain the specifications of our products in detail, before you finalize the design of your applications, purchase, or use our products. ■ The technical information in this online catalog provides examples of our products' typical operations and application circuits. We do not guarantee the non-infringement of third party's intellectual property rights and we do not grant any license, right, or interest in our intellectual property. ■ If any of our products, product specifications and/or technical information in this online catalog is to be exported or provided to non-residents, the laws and regulations of the exporting country, especially with regard to security and export control, shall be observed. ■ The switchover date for compliance with the RoHS Directive/REACH Regulations varies depending on the part number or series of our products. ■ When you use the inventory of our products for which it is unclear whether those products are compliant with the RoHS Directive/REACH Regulation, please select "Sales Inquiry" in the website inquiry form and contact us. Please note that we do not owe any liability and responsibility if our products are used beyond the description of this catalog or without complying with precautions in this catalog. 25-Nov-22 Notices / Items to be observed Notices ■ Applicable laws and regulations ・This product complies with the RoHS Directive (Restriction of the use of certain hazardous substances in electrical and electronic equipment (DIRECTIVE 2011/65/EU and（EU)2015/863)). ・ No Ozone Depleting Chemicals(ODC's), controlled under the Montreal Protocol Agreement, are used in producing this product. We do not use PBBs or PBDEs as brominated flame retardants. ・ Export procedure which followed export related regulations, such as foreign exchange and a foreign trade method, on the occasion of export of this product. ・ These products are not dangerous goods on the transportation as identified by UN(United Nations) numbers or UN classification. ■ Limited applications ・ This capacitor is designed to be used for electronics circuits such as audio/visual equipment, home appliances, computers and other office equipment, optical equipment, measuring equipment. ・ An advanced specification must be signed individually for high-reliability use that might threaten human life or property due to a malfunction of the capacitor. ■ Intellectual property rights and licenses ・ The technical information in this specification provides examples of our products' typical operations and application circuits. We do not guarantee the non-infringement of third party's intellectual property rights and we do not grant any license, right, or interest in our intellectual property. Items to be observed ■ For specification ・ This specification guarantees the quality and performance of the product as individual components. The durability differs depending on the environment and the conditions of usage. Before use, check and evaluate their compatibility with actual conditions when installed in the products. When safety requirements cannot be satisfied in your technical examination, inform us immediately. ・ Do not use the products beyond the specifications described in this document. ■ Upon application to products where safety is regarded as important Install the following systems for a fail-safe design to ensure safety if these products are to be used in equipment where a defect in these products may cause the loss of human life or other signification damage, such as damage to vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating appliances, combustion/ gas equipment, rotating rotating equipment, and disaster/crime prevention equipment. (1) The system is equipped with a protection circuit and protection device. (2) The system is equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault. ■ Conditions of use ・ Before using the products, carefully check the effects on their quality and performance, and determined whether or not they 　can be used. These products are designed and manufactured for general-purpose and standard use in general electronic equipment. These products are not intended for use in the following special conditions. (1) In liquid, such as Water, Oil, Chemicals, or Organic solvent. (2) In direct sunlight, outdoors, or in dust. (3) In vapor, such as dew condensation water of resistive element, or water leakage, salty air, or air with a high concentration corrosive gas, such as Cl2, H2S, NH3, SO2, or NOx. (4) In an environment where strong static electricity or electromagnetic waves exist. (5) Mounting or placing heat-generating components or inflammables, such as vinyl-coated wires, near these products. (6) Sealing or coating of these products or a printed circuit board on which these products are mounted, with resin and other material. (7) Using resolvent, water or water-soluble cleaner for flux cleaning agent after soldering. (In particular, when using water or a water-soluble cleaning agent, be careful not to leave water residues) (8) Using in the atmosphere where strays acid or alkaline. (9) Using in the atmosphere where there are excessive vibration and shock. (10) Using in the atmosphere where there are low pressure or decompression. ・ Please arrange circuit design for preventing impulse or transitional voltage. 　Do not apply voltage, which exceeds the full rated voltage when the capacitors receive impulse voltage, instantaneous high 　voltage, high pulse voltage etc. ・ Our products there is a product are using an electrolyte solution. Therefore, misuse can result in rapid deterioration of characteristics and functions of each product. Electrolyte leakage damages printed circuit and affects performance, characteristics, and functions of customer system. 16-Apr-21 Conductive Polymer Aluminum Solid Capacitors 　　Application Guidelines（OS-CON） 1. Circuit design 1.1 Prohibited circuits (1) Leakage current of the OS-CON may increase in the following conditions. (a) Soldering (b) When voltage is not applied : high temperature no-load test, high temperature and high humiditynoload test, 　rapidly changing temperature test, etc. (2) Avoid the use of the OS-CON in the following type of circuits because leakage current may increase. (a) High-impedance circuits (b) Coupling circuits (c) Time constant circuits (d) Other circuits that are significantly affected by leakage current. ✽ If you plan to use 2 or more OS-CONs in a series connection, please contact us before use。 1.2 Failure and life-span The failure rate is 0.5 % /1000 h (Confidence level : 60 %) based on JIS C 5003. The prospective failure is not zero. The mainly failure modes are as follows. 1.2-1 Contingency failure The most common failure mode is a short circuit. Mainly caused by the soldering or operating temperature environment, along with heat stresses, electrical stresses or mechanical stressesas follows. ・ Applying voltage over the rated voltage. ・ Applying reverse voltage ・ Excessive mechanical stress ・ Applying rush current by sudden charge or discharge out of the specification. (1) The following phenomenon is seen when short-current is applied to the OS-CON. (a) When current is relatively low. (ø10 : approx 1 A or less, ø8 : approx 0.5 A or less, ø6.3 : approx 0.2 A or less) The OS-CON becomes heated, but no effects are visible even when the current is continously carried. (b) When the short circuit currents exceed the mentioned value above. After internal temperature increase, sealing rubber may be turned over. In some cases, odorous gas may be produced. (2) In case a short circuit occurs, ensure safety by fully considering the followings. (a) If odorous gas is released, turn off the main power of the equipment. In this case, keep your face and hands away from the area. (b) Though it depends on the conditions, it takes seconds to minutes before odorant gas generates. Protective circuit should operate in this period. (c) If the gas comes into eyes, rinse immediately. If the gas is inhaled, gargle immediately. (d) Do not lick the electrolyte. If the electrolyte touches skin, wash it off with soap immediately. (e) The OS-CON contains combustible substances. In case a large current continues to flow after a short circuit, in the worst case, the shorted-out section may ignite. For safety, install a redundant circuit or a protective circuit, etc. 1.2-2 Wear-out failure (life time) When lifetime span exceeded the specified guarantee time of endurance and damp heat, electrolyte might insulate and cause electric characteristic changed. This is called an open circuit. The electric characteristics of capacitance and ESR may possibly change within the specified range in specifications even if it is used under the condition of the rated voltage, electric and mechanical performance. Please note it when designing. 1.3 Leakage current Mechanical stress may cause OS-CON’s leakage current increased. In such a case, leakage current will gradually decrease by applying voltage (withinthe category voltage and the upper limit of category temperature). 1.4 Rapid charge and discharge limitation Allowance of a large rush current to flow due to rapid charge and discharge may result in short circuit or large leakage current. The protection circuit, to maintain high reliability, is recommended when rush current to flow to the OS-CON is in the following cases. (1) Products which 10 times of allowable ripple current is less than 10 A : It is when 10 A or over of rush current is applied. (2) Products which 10 times of allowable ripple current is 10 A or over : It is when rush current, which the figure is over 10 times of allowable ripple current, is applied. 05-Mar-21 Conductive Polymer Aluminum Solid Capacitors 2. Mounting 2.1 Soldering with a soldering iron (1) When lead terminals for radial lead type must be processed because the lead pitch and the PCB holes do not match, process them without any stresses to the OS-CON before soldering. (2) Solder without any excessive stresses to the OS-CON itself. (3) When the OS-CON has been soldered once and needs to be removed, remove it after the solder has been completely melted. (4) Do not let the tip of the soldering iron touch the OS-CON itself. 2.2 Flow soldering (1) Do not apply flow soldering to OS-CON SMD type. (2) Do not solder the OS-CON itself by submerging it in melted solder. (3) Solder the opposite side that the OS-CON is mounted on. (4) Note that flux does not adhere to anywhere expect the lead terminal. (5) Note that other components do not fall over and touch the OS-CON when soldering. 2.3 Reflow soldering (1) Do not apply reflow soldering to OS-CON Radial Lead type. (2) Please contact us for setting VPS conditions. 2.4 Capacitor handling after soldering Do not subject the OS-CON to excessive stress as follows. (1) Do not tilt, bend or twist the OS-CON. (2) Do not move the PCB with holding the OS-CON itself. (3) Do not hit the OS-CON with objects. (4) When stacking PCBs, make sure that the OS-CON does not touch other PCBs or components. 2.5 Circuit board cleaning Check the following items before washing PC board with these detergents: high quality alcohol-based cleaning fluid such as Pine-a ST-100S, clean thru 750H, 750L, 710M, 750K or Techno Care FRW 14 through 17 or detergents including substitute freon as AK-225AES or IPA. (1) Use immersion or ultrasonic waves to clean within 2 minutes. (2) The temperature of the cleaning fluid should be less than 60 °C. (3) Watch the contamination of the detergent such as conductivity, pH, specific gravity, water content, etc. (4) Do not store the OS-CON in a location subject to gases from the cleaning fluid or in an airtight container after cleaning. (5) Dry the PCB or OS-CON with hot air that should be less than the upper category temperature. (6) Please note that indication may disappear when rubbing print side after washing depending on a cleaner. (7) Please contact us for details about detergents, cleaning methods and detergents other than those listed above. 2.6 Fixatives and coating materials (1) Select the appropriate covering and sealant materials for the OS-CON. In particular, don’t use acetone in the fixative, coating agent and diluent. (2) Before applying the fixative or coating, completely remove any flux residue and foreign matter from the area where the board and the OS-CON will be jointed together. (3) Allow any detergent to dry before applying the fixative or coating. (4) Please contact us for the fixative and coating heat curing conditions. 2.7 Capacitor insulation Be sure to completely separate the case, negative lead terminal, positive lead terminal and PC board patterns with each other due to the following reasons. (1) Insulation is not guaranteed at a part of resin on the surface of a case. (2) It offers inconstant resistance between a case and a negative lead terminal and it isn’t insulated. 05-Mar-21 Conductive Polymer Aluminum Solid Capacitors 3. Storage Open the bags just before mounting and use up all products once opened, For keeping a good solderability, store the OS-CON as follows. Before unsealing SMD type*1 Radial lead type Within 24 months after shipment Bag packing product Within 30 months after shipment Taping product Within 24 months after shipment After unsealing Within 30 days from opening (packaged with carrier tape) Within 7 days from opening *1 : The JEDEC J-STD-020 standard is not applicable ✽ Intellectual property right We, Panasonic Group are providing the product and service that customers can use without anxiety, and are working positively on the protection of our products underintellectual property rights. Representative patents relating to OS-CON are as follows: US Patent No.7158367 05-Mar-21
