2R5SVPE390MX

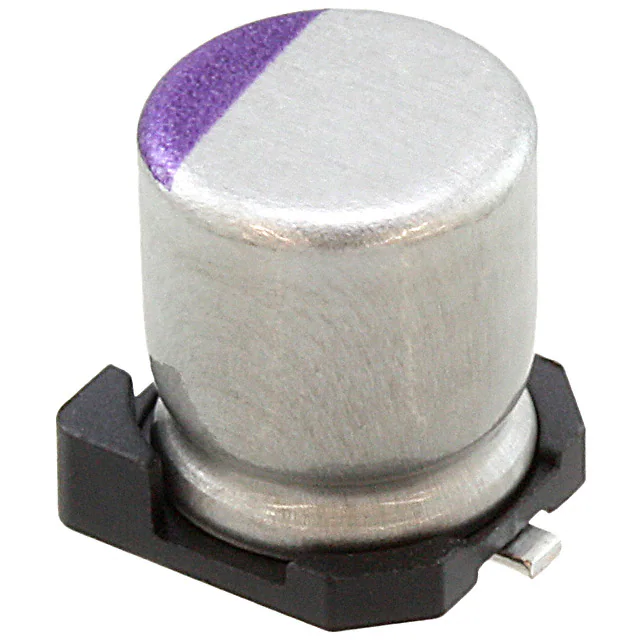

Conductive Polymer Aluminum Solid Capacitors Surface Mount Type Series : SVPE Features ● Super low ESR (8 mΩ to 18 mΩ) capacitance (1200 μF max.) ● RoHS compliance, Halogen free ● Large Specifications Size code B6 C6 C10 Category temperature range –55 °C to +105 °C Rated voltage range 2.5 V.DC to 6.3 V.DC 2.5 V.DC to 10 V.DC 2 V.DC to 16 V.DC Rated capacitance range 150 μF to 390 μF 220 μF to 390 μF 180 μF to 1200 μF Capacitance tolerance ±20 % (120 Hz / + 20 °C) Leakage current Please see the attached characteristics list Dissipation factor (tan d) Please see the attached characteristics list +105 °C, 2000 h, rated voltage applied Capacitance change Within ±20 % of the initial value Endurance tan d < 150 % of the initial limit DC leakage current Within the initial limit +60 °C, 90 % to 95 %, 1000 h, No-applied voltage Capacitance change Within ±20 % of the initial value Damp heat (Steady State) tan d < 150 % of the initial limit DC leakage current Within the initial limit (after voltage processing) Marking F12 16 V.DC 470 μF Dimensions (not to scale) 0.2 max. W H fD Polarity marking (−) Lot. No. + L Series Size code B6 C6 C10 F12 R. Capacitance R. Voltage fD±0.5 5.0 6.3 6.3 10.0 C P – L +0.1 −0.4 5.9 5.9 9.9 12.6 R Unit : mm W±0.2 H±0.2 C±0.2 R P±0.2 5.3 5.3 6.0 0.6 to 0.8 1.4 6.6 6.6 7.3 0.6 to 0.8 2.1 6.6 6.6 7.3 0.6 to 0.8 2.1 10.3 10.3 11.0 0.8 to 1.1 4.6 ✽ Externals of figure are the reference. Characteristics list Rated Rated Series voltage capacitance (V.DC) (μF) 2 2.5 1200 270 330 390 SVPE 6.3 150 180 220 10 16 220 180 470 Case size (mm) fD L 6.3 5.0 5.0 5.0 5.0 6.3 5.0 5.0 5.0 6.3 6.3 6.3 10.0 9.9 5.9 5.9 5.9 5.9 5.9 5.9 5.9 5.9 5.9 5.9 9.9 12.6 Specifications Size Ripple ✽1 ESR code current 100 kHz/20 °C 300 kHz/20 °C tan d ✽2 (mAr.m.s.) (mΩ max.) (mΩ max.) C10 5230 8 8 0.12 3860 10 9 0.12 3150 15 13 0.12 B6 3860 10 9 0.12 3860 10 9 0.12 C6 3900 10 9 0.12 3520 12 10 0.12 3150 15 13 0.12 B6 3150 15 13 0.12 3900 10 9 0.12 C6 2700 20 18 0.12 C10 4460 11 10 0.12 F12 6100 10 9 0.12 ✽3 LC (μA) 500 500 500 500 700 500 500 500 500 500 500 576 1504 Standard (Reel size : f380) Min. Packaging Q'ty Part number (pcs) 2SVPE1200M 500 2R5SVPE270M 1500 2R5SVPE330M 1500 2R5SVPE330MY 1500 2R5SVPE390MX 1500 2R5SVPE390M 1000 6SVPE150M 1500 6SVPE180M 1500 6SVPE220MW 1500 6SVPE220M 1000 10SVPE220M 1000 16SVPE180M 500 16SVPE470M 400 ✽1 Ripple current (100 kHz/ +105 °C ), ✽2 tan d (120 Hz/+20 °C) ✽3 After 2 minutes ◆ Please refer to each page in this catarog for “Reflow conditions” and “Taping specifications”. Frequency correction factor for ripple current Frequency Coefficient 120 Hz < f < 1 kHz 0.05 1 kHz < f < 10 kHz 0.3 10 kHz < f < 100 kHz 0.7 100 kHz < f < 500 kHz 1 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 01 Nov. 2015 Guidelines and precautions regarding the technical information and use of our products described in this online catalog. ■ If you want to use our products described in this online catalog for applications requiring special qualities or reliability, or for applications where the failure or malfunction of the products may directly jeopardize human life or potentially cause personal injury (e.g. aircraft and aerospace equipment, traffic and transportation equipment, combustion equipment, medical equipment, accident prevention, anti-crime equipment, and/or safety equipment), it is necessary to verify whether the specifications of our products fit to such applications. Please ensure that you will ask and check with our inquiry desk as to whether the specifications of our products fit to such applications use before you use our products. ■ The quality and performance of our products as described in this online catalog only apply to our products when used in isolation. Therefore, please ensure you evaluate and verify our products under the specific circumstances in which our products are assembled in your own products and in which our products will actually be used. ■ If you use our products in equipment that requires a high degree of reliability, regardless of the application, it is recommended that you set up protection circuits and redundancy circuits in order to ensure safety of your equipment. ■ The products and product specifications described in this online catalog are subject to change for improvement without prior notice. Therefore, please be sure to request and confirm the latest product specifications which explain the specifications of our products in detail, before you finalize the design of your applications, purchase, or use our products. ■ The technical information in this online catalog provides examples of our products' typical operations and application circuits. We do not guarantee the non-infringement of third party's intellectual property rights and we do not grant any license, right, or interest in our intellectual property. ■ If any of our products, product specifications and/or technical information in this online catalog is to be exported or provided to non-residents, the laws and regulations of the exporting country, especially with regard to security and export control, shall be observed. ■ The switchover date for compliance with the RoHS Directive/REACH Regulations varies depending on the part number or series of our products. ■ When you use the inventory of our products for which it is unclear whether those products are compliant with the RoHS Directive/REACH Regulation, please select "Sales Inquiry" in the website inquiry form and contact us. We do not take any responsibility for the use of our products outside the scope of the specifications, descriptions, guidelines and precautions described in this online catalog. 01-Apr-19
