Miniature SOP4-pin type
with high capacity
up to 1.6A
4.3
.169
4.4
.173
2.1
.083
mm inch
1
4
2
3

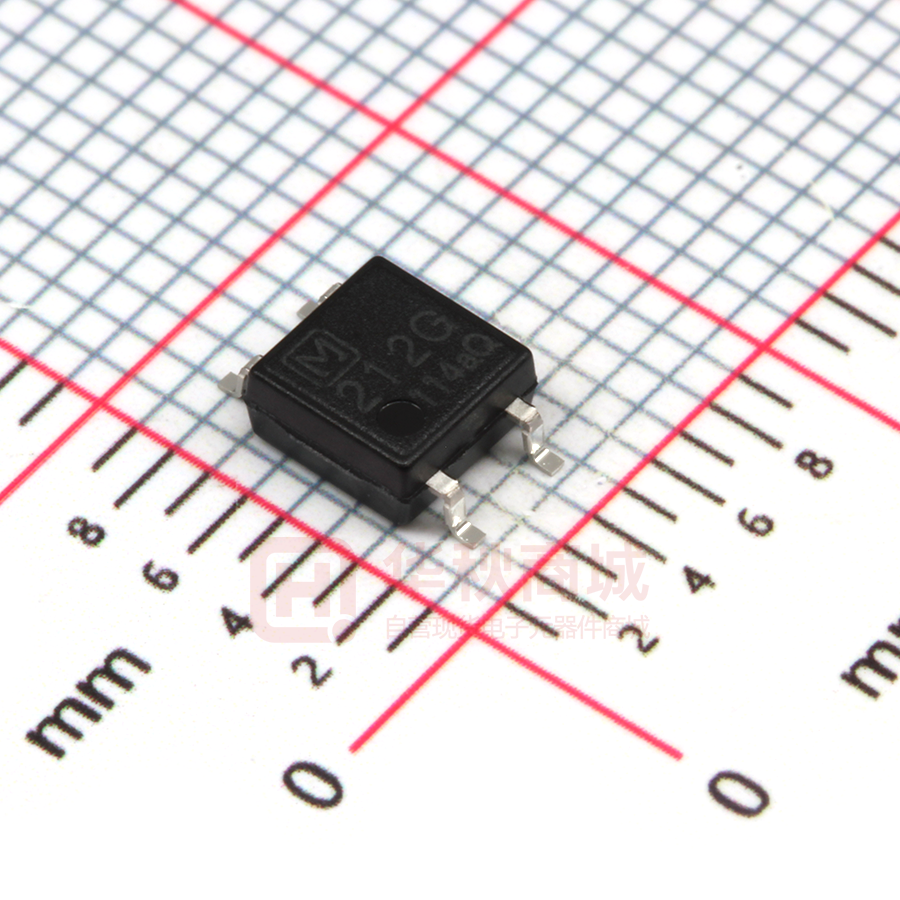

GU SOP 1 Form A High Capacity
(AQY21❍GS)
FEATURES
TYPICAL APPLICATIONS
1. Continuous load current: Max. 1.6A
high capacity (AQY211G2S)
2. Low on resistance: Typ. 0.1 Ω
(AQY211G2S)
3. Broad lineup of high capacity types
• Measuring instruments
Tester, etc.
• Security and disaster-preventing
system
Use in I/O for alarm and security devices,
etc.
RoHS compliant
TYPES
Output rating*
Load
voltage
40V
AC/DC
dual use
60V
Load
current
Part No.
Package
1.6A
1.25A
SOP4-pin
1.0A
Packing quantity
Tape and reel packing style
Picked from the
Picked from the
1/2-pin side
3/4-pin side
Tube packing style
AQY211G2S
AQY211G2SX
AQY211G2SZ
AQY212G2S
AQY212G2SX
AQY212G2SZ
AQY212GS
AQY212GSX
AQY212GSZ
Tube
Tape and reel
1 tube contains:
100 pcs.
1 batch contains:
2,000 pcs.
1,000 pcs.
* Indicate the peak AC and DC values.
Note: For space reasons, the three initial letters of the part number “AQY”, the surface mount terminal shape indicator “S” and the packing style indicator “X” or “Z” are not
marked on the device. (Ex. the label for product number AQY212G2SX is 212G2.)
RATING
1. Absolute maximum ratings (Ambient temperature: 25°C 77°F)
Item
LED forward current
LED reverse voltage
Input
Peak forward current
Power dissipation
Load voltage (peak AC)
Continuous load current
Output
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Ambient
temperature
Operating
Storage
Symbol
IF
VR
IFP
Pin
VL
IL
Ipeak
Pout
PT
Viso
Topr
Tstg
AQY211G2S
AQY212G2S
50 mA
5V
1A
75 mW
40 V
1.6 A
4A
AQY212GS
Remarks
f = 100 Hz, Duty factor = 0.1%
60 V
1.25 A
1.0 A
3A
400 mW
450 mW
1,500 Vrms
–40 to +85°C –40 to +185°F
–40 to +100°C –40 to +212°F
–1–
Peak AC, DC
100ms (1 shot), VL = DC
(Non-icing at low temperatures)
ASCTB133E 201703-T
GU SOP 1 Form A High Capacity (AQY21❍GS)
2. Electrical characteristics (Ambient temperature: 25°C 77°F)
Item
Symbol
Typical
Maximum
Minimum
Typical
Typical
Maximum
LED operate current
Input
LED turn off current
LED dropout voltage
AQY211G2S
0.9 mA
IFon
0.2 mA
0.8 mA
VF
Typical
Ron
Maximum
Output
Off state leakage current
Maximum
IL = 100mA
IL = 100mA
IF = 50 mA
0.1 Ω
0.2 Ω
0.34 Ω
0.15 Ω
0.5 Ω
0.7 Ω
IF = 5 mA
IL = Max.
Within 1 s
IF = 0 mA
VL = Max.
IF = 5 mA
IL = 100 mA
VL = 10 V
IF = 5 mA
IL = 100 mA
VL = 10 V
1 μA
1.0 ms
Typical
1.3 ms
Ton
Maximum
3.0 ms
5.0 ms
Typical
0.12 ms
0.1 ms
Turn off time*
Toff
Maximum
Transfer
characteristics
Condition
0.3 mA
1.0 mA
1.32 V (1.14 V at IF = 5 mA)
1.5 V
ILeak
Turn on time*
AQY212GS
1.1 mA
3 mA
IFoff
On resistance
AQY212G2S
0.5 ms
Typical
I/O capacitance
Initial I/O isolation resistance
Maximum
Minimum
Max. operating frequency
Maximum
0.8 pF
Ciso
f = 1 MHz
VB = 0 V
1.5 pF
1,000 MΩ
Riso
—
10 cps
5 cps
500 V DC
IF = 5 mA
duty = 50%
VL = Max.
IL = Max.
—
*Turn on/Turn off time
Input
90%
Output
10%
3. Recommended operating conditions (Ambient temperature: 25°C 77°F)
Please use under recommended operating conditions to obtain expected characteristics.
Item
LED current
Load voltage (Peak AC)
AQY211G2S
Continuous load current
Load voltage (Peak AC)
AQY212G2S
Continuous load current
Load voltage (Peak AC)
AQY212GS
Continuous load current
Symbol
IF
VL
IL
VL
IL
VL
IL
Min.
5
—
—
—
—
—
—
Max.
30
32
1.6
48
1.25
48
1.0
Ton
Toff
Unit
mA
V
A
V
A
V
A
