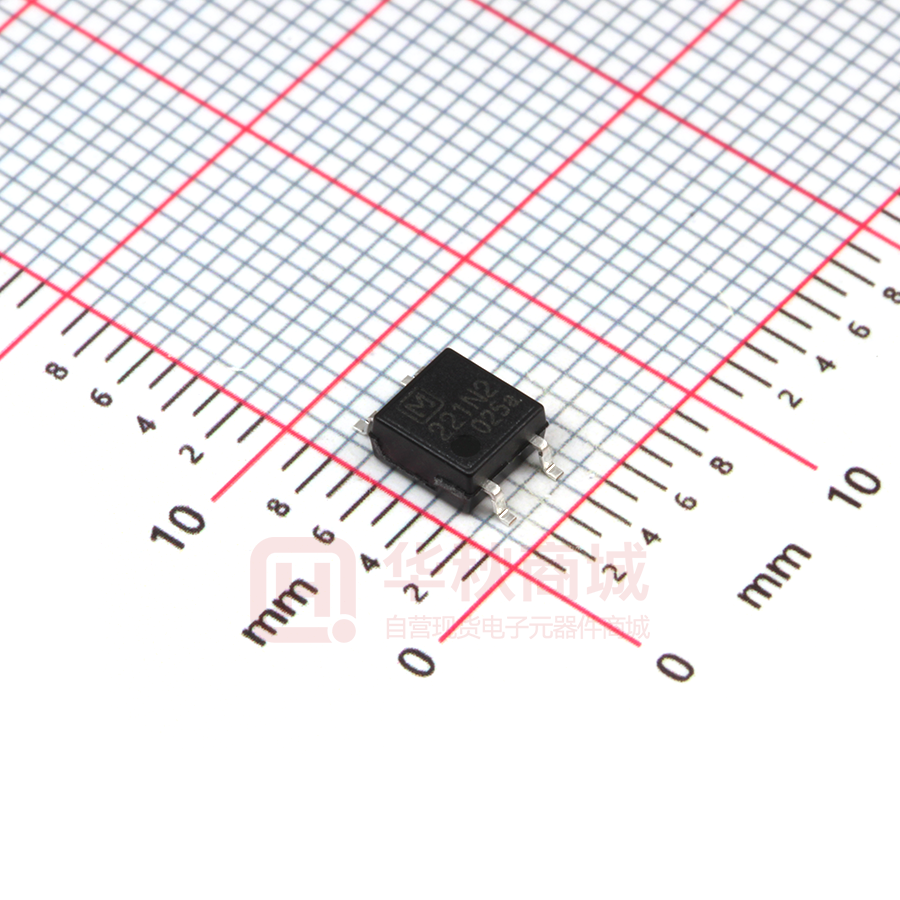

Miniature SOP4-pin
C×R10 40V load voltage
RF SOP 1 Form A C×R10
(AQY221❍2S)
4.3
.169
4.4
.173
2.1
.083
mm inch
3
2
TYPICAL APPLICATIONS
1. Both low on-resistance (R type) and
low capacitance (C type) available at
excellent characteristics of C×R10
1. Measuring and testing equipment
IC tester, Liquid crystal driver tester,
Semiconductor performance tester,
Bare board tester, In-circuit tester,
Function tester, etc.
2. Telecommunication and
broadcasting equipment
3. Medical equipment
Ultrasonic wave diagnostic machine
4. Multi-point recorder
Data logger, Warping and Thermocouple,
etc.
AQY221R2S
(R type)
AQY221N2S
(C type)
0.8Ω
9.5Ω
13pF
1pF
Low on
resistance: R
Low output
capacitance: C
4
1
FEATURES
2. High speed switching
Turn on time: Typ. 0.03ms
Turn off time: Typ. 0.03ms
(AQY221N2S)
3. Small profile of miniature SOP4-pin
4. Low-level off state leakage current
of Typ. 0.01nA (AQY221N2S)
RoHS compliant
TYPES
Output rating*
Type
AC/DC
dual use
Low on resistance (R type)
Load
voltage
Load
current
40V
250mA
Package
Tube packing
style
Part No.
Tape and reel packing style
Picked from the Picked from the
1/2-pin side
3/4-pin side
AQY221R2S
AQY221R2SX
AQY221R2SZ
AQY221N2S
AQY221N2SX
AQY221N2SZ
SOP4-pin
Low capacitance (C type)
40V
120mA
Packing quantity
Tube
Tape and reel
1 tube contains:
100 pcs.
1 batch contains:
2,000 pcs.
1,000 pcs.
* Indicate the peak AC and DC values.
Note: For space reasons, the initial letters of the part number “AQY”, the package (SOP) indicator “S” and the packing style indicator “X” or “Z” are not marked on the device.
(Ex. the label for product number AQY221R2SX is 221R2)
RATING
1. Absolute maximum ratings (Ambient temperature: 25°C 77°F)
Item
Input
Output
LED forward current
LED reverse voltage
Peak forward current
Power dissipation
Load voltage (peak AC)
Continuous load current
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Operating
Ambient temperature
Storage
Symbol
IF
VR
IFP
Pin
VL
IL
Ipeak
Pout
PT
Viso
Topr
Tstg
AQY221R2S
(R type)
AQY221N2S
(C type)
50mA
5V
1A
75mW
40V
0.25A
0.75A
Remarks
f=100 Hz, Duty factor=0.1%
0.12A
0.30A
Peak AC, DC
100 ms (1 shot), VL= DC
300mW
350mW
500Vrms
1,500Vrms
–40 to +85°C –40 to +185°F
–40 to +100°C –40 to +212°F
–1–
(Non-icing at low temperatures)
ASCTB156E 201703-T
RF SOP 1 Form A C×R10 (AQY221❍2S)
2. Electrical characteristics (Ambient temperature: 25°C 77°F)
Item
LED operate current
Input
LED turn off current
LED dropout voltage
Symbol
Typical
Maximum
Minimum
Typical
Typical
Maximum
AQY221R2S (R type)
0.5 mA
IFon
3.0 mA
0.1 mA
IFoff
VF
Typical
Output capacitance
Off state leakage current
0.8Ω
9.5Ω
1.25Ω
12.5Ω
13 pF
1.0 pF
Ron
Maximum
Output
Cout
IF = 50 mA
IF = 5 mA
IL = 250 mA (R type),
IL = 80 mA (C type)
Within 1 s
IF = 0 mA
VB = 0 V
f = 1 MHz
1.5 pF
Typical
Maximum
0.03 nA
0.01 nA
IF = 0 mA
VL = Max.
0.03 ms
IF = 5 mA
VL = 10V
RL = 40Ω (R type),
125Ω (C type)
IF = 5 mA
VL = 10V
RL = 40Ω (R type),
125Ω (C type)
ILeak
*10 nA
0.1 ms
Ton
Maximum
0.5ms
0.06 ms
Typical
Turn off time**
0.03 ms
Toff
Maximum
Initial I/O isolation resistance
IL = 250 mA (R type)
IL = 80 mA (C type)
18 pF
Typical
I/O capacitance
Condition
IL = 250 mA (R type)
IL = 80 mA (C type)
Maximum
Turn on time**
Transfer
characteristics
0.2 mA
0.4 mA
0.85 mA
1.25 V (1.14 V at IF = 5 mA)
1.5 V
Typical
On resistance
AQY221N2S (C type)
0.9 mA
Typical
Maximum
Minimum
0.2 ms
0.8 pF
Ciso
f = 1 MHz
VB = 0 V
1.5 pF
1,000MΩ
Riso
500 V DC
*Available as custom orders (1 nA or less)
**Turn on/Turn off time
Input
90%
10%
Output
Ton
Toff
3. Recommended operating conditions (Ambient temperature: 25°C 77°F)
Please use under recommended operating conditions to obtain expected characteristics.
Item
LED current
Load voltage (Peak AC)
AQY221R2S
Continuous load current
Load voltage (Peak AC)
AQY221N2S
Continuous load current
Symbol
IF
VL
IL
VL
IL
Min.
5
—
—
—
—
Max.
30
15
0.25
15
0.12
Unit
mA
V
A
V
A
■ These products are not designed for automotive use.
If you are considering to use these products for automotive applications, please contact your local Panasonic Corporation
technical representative.
–2–
ASCTB156E 201703-T
RF SOP 1 Form A C×R10 (AQY221❍2S)
REFERENCE DATA
1. Load current vs. ambient temperature
characteristics
2. Load current vs. Load voltage characteristics
Ambient temperature: 25°C 77°F
Allowable ambient temperature: –40 to +85°C
–40 to +185°F
3. On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 3 and 4
LED current: 5 mA; Load voltage: Max. (DC);
Load current: 250mA (DC) [R type], 80mA (DC)
[C type]
280
350
25
AQY221R2S
AQY221R2S
250
200
150
AQY221N2S
On resistance, Ω
240
Load current, mA
Load current, mA
300
200
160
AQY221N2S
120
100
80
50
40
20
AQY221N2S
15
10
5
AQY221R2S
0
-40
-20
0
20
40
60
0
8085 100
0
10
20
Ambient temperature, °C
30
40
0
50
-40
-20
Load voltage, V
0
20 40
60 8085
Ambient temperature, °C
4. Turn on time vs. ambient temperature
characteristics
5. Turn off time vs. ambient temperature
characteristics
6. LED operate current vs. ambient
temperature characteristics
Measured portion: between terminals 3 and 4
LED current: 5 mA; Load voltage: 10V (DC);
Continuous load current: 250mA (DC) [R type],
80mA (DC) [C type]
LED current: 5 mA; Load voltage: 10V (DC);
Continuous load current: 250mA (DC) [R type],
80mA (DC) [C type]
Load voltage: Max. (DC);
Continuous load current: 250mA (DC) [R type],
80mA (DC) [C type]
0.1
AQY221R2S
0.2
0.15
Turn off time, ms
Turn on time, ms
0.25
2
0.08
0.06
0.04
0.1
AQY221R2S
AQY221N2S
0
-40
-20
0
80 85
0
20 40
60
Ambient temperature, °C
AQY221N2S
1.5
1
AQY221R2S
0.5
0.02
0.05
LED operate current, mA
0.3
AQY221N2S
-40
-20
0
20 40
60 80 85
Ambient temperature, °C
0
-40
-20
0
20 40
60 8085
Ambient temperature, °C
7. LED turn off current vs. ambient temperature
characteristics
8. LED dropout voltage vs. ambient
temperature characteristics
9. Current vs. voltage characteristics of output
at MOS portion
Load voltage: Max. (DC); Continuous load current:
250mA (DC) [R type], 80mA (DC) [C type];
LED current: 5 to 50 mA
Measured portion: between terminals 3 and 4
Ambient temperature: 25°C 77°F
1.5
1
AQY221R2S
0.5
Current, mA
AQY221N2S
LED dropout voltage, V
LED turn off current, mA
300
1.5
2
1.4
1.3
-40
-20
0
20 40
60 8085
Ambient temperature, °C
AQY221N2S
100
-3.0 -2.5-2.0-1.5-1.0-0.5
1.2
1.1
1.0
0
AQY221R2S
200
0
-40 -20
-100
5mA
-200
0
20 40 60 80 85 100
Ambient temperature, °C
–3–
0.5 1,0 1.5 2.0 2.5 3.0
Voltage, V
50mA
30mA
20mA
10mA
-300
ASCTB156E 201703-T
RF SOP 1 Form A C×R10 (AQY221❍2S)
10. Off state leakage current vs. load voltage
characteristics
11. Turn on time vs. LED forward current
characteristics
12. Turn off time vs. LED forward current
characteristics
Measured portion: between terminals 3 and 4
Ambient temperature: 25°C 77°F
Measured portion: between terminals 3 and 4
Load voltage: 10V (DC); Continuous load current:
250mA (DC) [R type], 80mA (DC) [C type];
Ambient temperature: 25°C 77°F
Measured portion: between terminals 3 and 4
Load voltage: 10V (DC); Continuous load current:
250mA (DC) [R type], 80mA (DC) [C type];
Ambient temperature: 25°C 77°F
10 -6
10 -9
AQY221N2S
10-12
0.2
AQY221R2S
0.15
0.1
AQY221R2S
10
20
30
40
Load voltage, V
50
0.08
0.06
0.04
AQY221N2S
AQY221R2S
0.02
0.05
0
0
Turn off time, ms
0.25
Turn on time, ms
Off state leakage current, A
0.1
0.3
10 -3
AQY221N2S
0
10
50
20
30
40
LED forward current, mA
0
60
0
10
20
30
40
50
LED forward current, mA
60
13. Output capacitance vs. applied voltage
characteristics
14. Isolation vs. frequency characteristics
(50Ω impedance)
15. Insertion loss vs. frequency characteristics
(50Ω impedance)
Measured portion: between terminals 3 and 4
Frequency: 1 MHz, 30mVrms; Ambient temperature:
25°C 77°F
Measured portion: between terminals 3 and 4
Ambient temperature: 25°C 77°F
Measured portion: between terminals 3 and 4
Ambient temperature: 25°C 77°F
25
20
15
Insertion loss, dB
80
Isolation, dB
Output capacitance, pF
2
100
30
60
AQY221N2S
40
1.5
1
AQY221N2S
10
0.5
20
AQY221R2S
5
AQY221R2S
AQY221R2S
AQY221N2S
0
0
10
20
30
40
Applied voltage, V
50
0 4
10
105
106
107
Frequency, Hz
–4–
108
0
104
105
106
Frequency, Hz
107
ASCTB156E 201703-T
