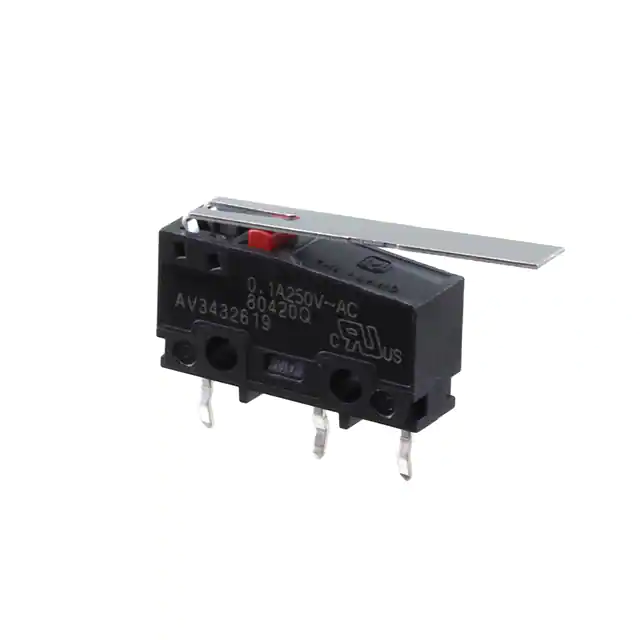

AV3215G3-A

Subminiature Size Door Inter-lock Switches AV3 (FS) SWITCHES CONTACT GAP 1 mm TYPE FEATURES • Complies with IEC60950-1 secondary circuit insulation distance standards • Subminiature size door interlock switches • Excellent operating position accuracy • Protection grade: IP40 6.4 19.8 11.1 TYPICAL APPLICATIONS (Unit: mm) • Office equiment (printers, copiers, etc.) RoHS compliant ORDERING INFORMATION AV 3 Terminals 2: Solder terminal without guard 5 G 3 G: Contact gap More than 1 mm type Actuators 0: Pin plunger Agency standard 3: UL/C-UL, TÜV, ENEC/VDE 1: Short hinge lever 4: Self-standing PC board terminal 2: Hinge lever 8: .110 Quick-connect terminal 3: Long hinge lever 4: Simulated roller lever Operating Force O.F. by pin plunger (max.) 5: 1.47 N 5: Roller lever PRODUCT TYPES ■ Ag alloy contact type Operating Force OP Max. Actuator Pin plunger Short hinge lever Hinge lever Long hinge lever Simulated roller lever Roller lever 1.47 N 0.59 N 0.54 N 0.44 N 1.54 N 1.59 N Solder terminal AV3205G3 AV3215G3 AV3225G3 AV3235G3 AV3245G3 AV3255G3 Part number Self-standing PC board terminal AV3405G3 AV3415G3 AV3425G3 AV3435G3 AV3445G3 AV3455G3 .110 Quick- connect terminal AV3805G3 AV3815G3 AV3825G3 AV3835G3 AV3845G3 AV3855G3 CONTACT FORM COM NO NC –1– AECTB11E 201408-T AV3 (FS) Subminiature Switches Contact Gap 1 mm Type SPECIFICATIONS ■ Contact rating AgNi alloy contact type Resistive road (cos φ ]1) 3A Contact voltage 30 V DC ■ Characteristics Item Mechanical (OT: Specified value) Expected life Electrical (OT max.) Between non-continuous terminals Dielectric Between each terminal and other exposed metal parts strength Between each terminal and ground Insulation resistance Contact resistance (Initial) Vibration resistance (malfunction vibration resistance) Shock resistance (malfunction shock resistance) Allowable operation speed (No load) Max. switching frequency (No load) Ambient temperature Unit weight Contact Contact material specifications Protection grade Specifications Min. 5 × 105 Min. 104 1,000 Vrms for 1 min. 2,000 Vrms for 1 min. 2,000 Vrms for 1 min. Min. 100MΩ Max. 50mΩ 10 to 55 Hz at single amplitude of 0.75 mm 294m/s2 (Pin plunger type) 147m/s2 (Lever type) 0.1 to 1,000 mm/s 300 cpm. –25°C to +85°C Approx. 2 g Test conditions at 60cpm at 20cpm at detection current of 10mA at detection current of 10mA at detection current of 10mA at 500 V DC by voltage drop 6 to 8 V DC 1A Contact opening: Max. 1 msec. Contact opening: Max. 1 msec. no freezing and condensing AgNi alloy IP40 Note: Test conditions are in accordance with NECA C4505. ■ Operating characteristics Actuator Pin plunger Short hinge lever Hinge lever Long hinge lever Simulated roller lever Roller lever Operating Force OF, Max. 1.47 N 0.59 N 0.54 N 0.44 N 0.54 N 0.59 N Release Force RF, Min. 0.064 N 0.015 N 0.013 N 0.0098 N 0.013 N 0.015 N Pretravel PT, Max. 0.7mm 2.5mm 2.8mm 3.5mm 2.8mm 2.5mm –2– Movement Differential MD, Max. 0.2mm 0.8mm 1.0mm 1.2mm 1.0mm 0.8mm Overtravel OT, Min. 0.3mm 0.6mm 0.8mm 1.2mm 0.8mm 0.6mm Operating Position OP 8.4±0.3mm 8.8±0.8mm 8.8±0.8mm 8.8±1.2mm 11.65±0.8mm 14.5±0.8mm AECTB11E 201408-T
