For board-to-board For board-to-FPC
P5KF
Narrow pitch connectors
(0.5mm pitch)
0.5 mm pitch and 1.5 to 2.5 mm mated height available
FEATURES
1. Wide lineup for pin counts
2. “TOUGH CONTACT” construction provides high
resistance to various environmental.
3. Simple lock mechanism provides tactile feedback to
ensure excellent mating/unmating operation feel.
4. Effective mating length 0.55 mm
APPLICATIONS
3.
3mm
5.
8mm
Mobile devices and industrial equipment
Header
Socket
DETAILED FEATURES
Simple lock mechanism
Superior mating operation with click feel
to indicate successful mating
The construction of prevents for
contact and shorts between the PC
board and metal terminals on the
bottom of connector. Benefits to
flexibility of pattern wiring and make
PC board’s smaller.
Simple lock mechanism
Effective mating length 0.55 mm
Low profile (from 1.5 to 2.5 mm between
PC boards).
The effective mating length is long and
there is enough space for mating.
0.55mm
Insulation
area
Insulation
area
Connector bottom: Create any thru-hole and pattern wiring.
ORDERING INFORMATION
AXK
5F: Socket
6F: Header
Mated height
(Socket)
3: For mated height
5: For mated height
(Header)
3: For mated height
5: For mated height
Number of pins
(2 digits)
4 7 Y G
Surface treatment
(Contact portion /
Terminal portion)
7: Base: Ni plating,
Surface: Au plating/
Base: Ni plating,
Surface: Au plating
1.5 mm
2.0 mm and 2.5 mm
1.5 mm and 2.0 mm
2.5 mm
Packing
G: 2,000 pieces embossed tape and
plastic reel × 2 reels
Y: (Fixed)
Functions
3: With positioning bosses
4: Without positioning bosses
–1–
ACCTB23E 201803-T
Narrow pitch connectors P5KF (0.5mm pitch)
PRODUCT TYPES
Mated height
1.5 mm
2.0 mm
2.5 mm
Number of pins
10
12
14
16
18
20
22
24
26
30
32
34
40
50
60
70
80
10
12
14
16
18
20
22
24
26
30
34
40
50
60
70
80
100
10
12
14
16
20
22
24
30
34
40
50
60
70
80
100
Part number
Socket
AXK5F10347YG
AXK5F12347YG
AXK5F14347YG
AXK5F16347YG
AXK5F18347YG
AXK5F20347YG
AXK5F22347YG
AXK5F24347YG
AXK5F26347YG
AXK5F30347YG
AXK5F32347YG
AXK5F34347YG
AXK5F40347YG
AXK5F50347YG
AXK5F60347YG
AXK5F70347YG
AXK5F80347YG
AXK5F10547YG
AXK5F12547YG
AXK5F14547YG
AXK5F16547YG
AXK5F18547YG
AXK5F20547YG
AXK5F22547YG
AXK5F24547YG
AXK5F26547YG
AXK5F30547YG
AXK5F34547YG
AXK5F40547YG
AXK5F50547YG
AXK5F60547YG
AXK5F70547YG
AXK5F80547YG
AXK5F00547YG
AXK5F10547YG
AXK5F12547YG
AXK5F14547YG
AXK5F16547YG
AXK5F20547YG
AXK5F22547YG
AXK5F24547YG
AXK5F30547YG
AXK5F34547YG
AXK5F40547YG
AXK5F50547YG
AXK5F60547YG
AXK5F70547YG

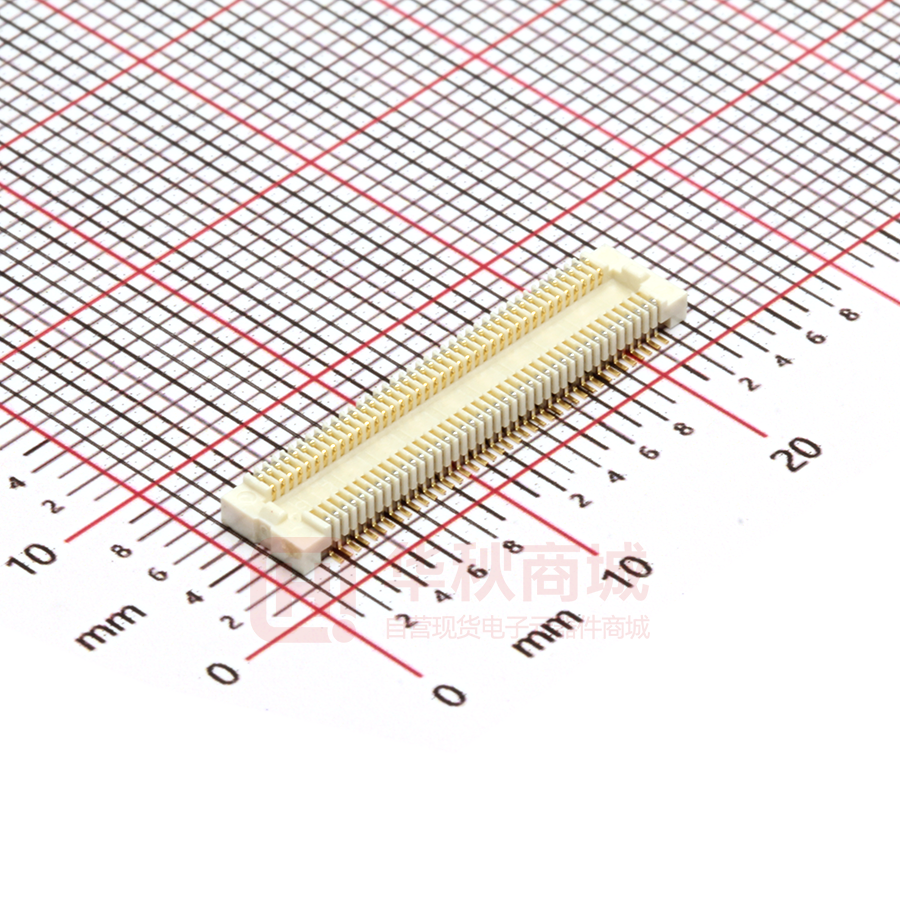

AXK5F80547YG
AXK5F00547YG
Packing
Header
AXK6F10347YG
AXK6F12347YG
AXK6F14347YG
AXK6F16347YG
AXK6F18347YG
AXK6F20347YG
AXK6F22347YG
AXK6F24347YG
AXK6F26347YG
AXK6F30347YG
AXK6F32347YG
AXK6F34347YG
AXK6F40347YG
AXK6F50347YG
AXK6F60347YG
AXK6F70347YG
AXK6F80347YG
AXK6F10347YG
AXK6F12347YG
AXK6F14347YG
AXK6F16347YG
AXK6F18347YG
AXK6F20347YG
AXK6F22347YG
AXK6F24347YG
AXK6F26347YG
AXK6F30347YG
AXK6F34347YG
AXK6F40347YG
AXK6F50347YG
AXK6F60347YG
AXK6F70347YG
AXK6F80347YG
AXK6F00347YG
AXK6F10547YG
AXK6F12547YG
AXK6F14547YG
AXK6F16547YG
AXK6F20547YG
AXK6F22547YG
AXK6F24547YG
AXK6F30547YG
AXK6F34547YG
AXK6F40547YG
AXK6F50547YG
AXK6F60547YG
AXK6F70547YG
AXK6F80547YG
AXK6F00547YG
Inner carton (1-reel)
Outer carton
2,000 pieces
4,000 pieces
Notes: 1. Order unit: Please make orders in outer carton units. For samples, please contact our sales office.
2. The standard type comes without positioning bosses. Connectors with positioning bosses are available for on-demand production.
–2–
ACCTB23E 201803-T
Narrow pitch connectors P5KF (0.5mm pitch)
SPECIFICATIONS
1. Characteristics
Electrical
characteristics
Mechanical
characteristics
Item
Rated current
Rated voltage
Specifications
0.5A/pin contact (Max. 10 A at total pin contacts)
60V AC/DC
Dielectric strength
150V AC for 1 minute
Insulation resistance
Min. 1,000MΩ (initial)
Contact resistance
Max. 90mΩ
Composite insertion force
Composite removal force
Ambient temperature
Max. 0.981N/pin contacts × pin contacts (initial)
Min. 0.0588N/pin contacts × pin contacts
–55 to +85°C
Conditions
No short-circuiting or damage at a detection current of 1 mA
when the specified voltage is applied for one minute.
Using 500V DC megger (applied for 1 min.)
Based on the contact resistance measurement method
specified by JIS C 5402.
No icing. No condensation.
Soldering heat resistance
The initial specification must be satisfied electrically
and mechanically.
Reflow soldering:
Peak temperature: 260°C or less
(on the surface of the PC board around the connector
terminals)
Soldering iron: 300°C within 5 sec. 350°C within 3 sec.
Storage temperature
–55 to +85°C (product only)
–40 to +50°C (emboss packing)
No icing. No condensation.
Conformed to MIL-STD-202F, method 107G
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
H2S resistance
(header and socket mated)
120 hours,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
24 hours,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
48 hours,
contact resistance max. 90mΩ
Insertion and removal life
50 times
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
Lifetime
characteristics
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
Order Temperature (°C)
1
–55 −30
2
3
85 +30
4
–55 −30
Time (minutes)
30
Max. 5
30
Max. 5
Conformed to IEC60068-2-78
Temperature 40±2°C, humidity 90 to 95% R.H.
Conformed to IEC60068-2-11
Temperature 35±2°C, saltwarter concentration 5±1%
Temperature 40±2°C, gas concentration 3±1 ppm,
humidity 75 to 80% R.H.
Repeated insertion and removal speed of max. 200 times/
hours
Mated height 1.5 mm
20 pins Socket: 0.06 g, Header: 0.04 g
Unit weight
2. Material and surface treatment
Part name
Molded portion
Material
LCP resin (UL94V-0)
Contact and Post
Copper alloy
Surface treatment
—
Contact portion: Base: Ni plating, Surface: Au plating
Terminal portion:
Base: Ni plating, Surface: Au plating (except the terminal tips)
The terminals close to the portion to be soldered have nickel barriers (exposed nickel portions).
–3–
ACCTB23E 201803-T
Narrow pitch connectors P5KF (0.5mm pitch)
DIMENSIONS (Unit: mm)
The CAD data of the products with a
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
Socket (Mated height: 1.5mm, 2.0mm and 2.5mm)
External dimensions
Dimension table
Terminal coplanarity
(0.80)
0.10
(0.80)
4.20
5.80
1.70
(Suction face)
4.80
0.50±0.05
C
A
B±0.1
0.50±0.05
0.20±0.03
0.12±0.03
General tolerance: ±0.2
Dimensions
Number
of pins
10
12
14
16
18
20
22
24
26
30
32
34
40
50
60
70
80
100
A
B
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.50
11.00
11.50
13.00
15.50
18.00
20.50
23.00
28.00
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
7.50
8.00
9.50
12.00
14.50
17.00
19.50
24.50
Dimensions
C
Mated height
1.5 mm
2.0 mm, 2.5 mm
Header (Mated height: 1.5mm, 2.0mm and 2.5mm)
External dimensions
Dimension table
Terminal coplanarity
1.80
3.30
(0.75)
0.10
0.12±0.03
(0.75)
2.50
0.96
(Suction face)
0.50±0.05
C
A
B±0.1
0.50±0.05
0.20±0.03
1.35
1.85
General tolerance: ±0.2
Dimensions
Number
of pins
10
12
14
16
18
20
22
24
26
30
32
34
40
50
60
70
80
100
A
B
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.50
11.00
11.50
13.00
15.50
18.00
20.50
23.00
28.00
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
7.00
7.50
8.00
9.50
12.00
14.50
17.00
19.50
24.50
Dimensions
C
Mated height
1.5 mm, 2.0 mm
2.5 mm
–4–
1.25
1.75
ACCTB23E 201803-T
Narrow pitch connectors P5KF (0.5mm pitch)
1.50±0.15
2.00±0.15
2.50±0.15
Socket and Header are mated
Mated height 1.5 mm
Mated height 2.0 mm
Mated height 2.5 mm
EMBOSSED TAPE DIMENSIONS (unit: mm)
Specifications for taping
In accordance with JIS C 0806-3:1999. However, not applied to
the mounting-hole pitch of some connectors.
Specifications for the plastic reel
In accordance with EIAJ ET-7200B.
Tape Il
Tape I
(A±0.3)
(A±0.3)
D±1
Label
(B)
Embossed carrier tape
φ380
(4.0)
Top cover tape
(C)
(1.75)
Embossed mounting-hole
(2.0)
Leading direction after packaging
Taping reel
(12.0)
(12.0)
(2.0)
Leading direction after packaging
(4.0)
(C)
(1.75)
φ1.5 +0.1
0
φ1.5 +0.1
0
Dimension table
Type/Mated height
No. of pins
Type of taping
A
B
C
D
Quantity per reel
Socket and header are common
1.5mm, 2.0mm, 2.5mm
10 to 58
60 to 70
72 to 100
Tape I
Tape II
Tape II
24.0
32.0
44.0
—
28.4
40.4
11.5
14.2
20.2
25.4
33.4
45.4
2,000 pcs.
2,000 pcs.
2,000 pcs.
Connector orientation with respect to embossed tape feeding direction
There is no indication on this product regarding top-bottom or left-right orientation.
Type
Direction
of tape progress
Common for P5KF
Socket
Header
–5–
ACCTB23E 201803-T
Narrow pitch connectors P5KF (0.5mm pitch)
NOTES (Unit: mm)
Design of PC board patterns
Conduct the recommended foot pattern design, in order to
preserve the mechanical strength of terminal solder areas.
As shown below, excess force during insertion may result
in damage to the connector or removal of the solder. Also,
to prevent connector damage please confirm the correct
position before mating connectors.
Keep the PC board warp no more than 0.03 mm in relation
to the overall length of the connector
Max. 0.03 mm
Recommended PC board and metal mask patterns
Connectors are mounted with high pitch density, intervals of 0.35
mm, 0.4 mm or 0.5 mm. In order to reduce solder and flux rise,
solder bridges and other issues make sure the proper levels of
solder is used.
Socket
Recommended PC board pattern
(TOP VIEW)
Max. 0.03 mm
The figures are recommended patterns. Please use them as a
reference.
Header
Recommended PC board pattern
(TOP VIEW)
B±0.05
0.50± 0.05
0.25±0.05
0.50± 0.05
B±0.05
0.50± 0.05
0.125±0.05
0.30±0.05
0.125±0.05
0.30±0.05
Recommended metal mask pattern
Metal mask thickness: When 150μm
(Opening area ratio: 58%)
Recommended metal mask pattern
Metal mask thickness: When 150μm
(Opening area ratio: 56%)
B±0.01
B±0.01
0.50± 0.01
0.23± 0.01
0.50± 0.01
0.50± 0.01
(0.85)
(0.85)
2.60±0.01
5.10±0.01
6.80±0.01
4.30±0.01
(0.85)
(0.85)
0.50± 0.01
0.23± 0.01
1.60±0.05
4.00±0.05
6.80±0.05
4.30±0.05
0.50± 0.05
0.25±0.05
Recommended metal mask pattern
Metal mask thickness: When 120μm
(Opening area ratio: 72%)
Recommended metal mask pattern
Metal mask thickness: When 120μm
(Opening area ratio: 69%)
B±0.01
B±0.01
0.50± 0.01
0.23± 0.01
0.50± 0.01
(1.05)
2.20±0.01
4.70±0.01
6.80±0.01
4.30±0.01
(1.05)
(1.05)
0.50± 0.01
(1.05)
0.50± 0.01
0.23± 0.01
Note: See the dimension table for more information
on the B dimension of the socket and header.
Please refer to the latest product specifications when
designing your product.
–6–
ACCTB23E 201803-T
For board-to-board/board-to-FPC
Notes on Using Narrow pitch Connectors/
High Current Connectors
About safety remarks
Observe the following safety remarks to prevent accidents and injuries.
3) Panasonic Corporation is consistently striving to improve
1) Do not use these connectors beyond the specification sheets.
quality and reliability. However, the fact remains that electrical
The usage outside of specified rated current, dielectric strength,
components and devices generally cause failures at a given
and environmental conditions and so on may cause circuitry
statistical probability. Furthermore, their durability varies with
damage via abnormal heating, smoke, and fire.
use environments or use conditions. In this respect, please
2) In order to avoid accidents, your thorough specification review
check for actual electrical components and devices under actual
is appreciated. Please contact our sales office if your usage is
conditions before use. Continued usage in a state of degraded
out of the specifications. Otherwise, Panasonic Corporation
condition may cause the deteriorated insulation, thus result in
cannot guarantee the quality and reliability.
abnormal heat, smoke or firing. Please carry out safety design
and periodic maintenance including redundancy design, design
for fire spread prevention, and design for malfunction prevention
so that no accidents resulting in injury or death, fire accidents, or
social damage will be caused as a result of failure of the
products or ending life of the products.
Regarding the design of devices and PC board patterns
1) When using the board to board connectors, do not connect a
pair of board with multiple connectors. Otherwise, misaligned
connector positions may cause mating failure or product
breakage.
2) With mounting equipment, there may be up to a ±0.2 to 0.3
mm error in positioning. Be sure to design PC boards and
patterns while taking into consideration the performance and
abilities of the required equipment.
3) Some connectors have tabs embossed on the body to aid in
positioning. When using these connectors, make sure that the
PC board is designed with positioning holes to match these tabs.
4) To ensure the required mechanical strength when soldering
the connector terminals, make sure the PC board meets
recommended PC board pattern design dimensions given.
5) PC board
Control the thicknesses of the cover lay and adhesive to prevent
poor soldering. This connector has no stand-off. Therefore,
minimize the thickness of the cover lay, etc. so as to prevent the
occurrence of poor soldering.
6) For all connectors of the narrow pitch series, to prevent the
PC board from coming off during vibrations or impacts, and to
prevent loads from falling directly on the soldered portions, be
sure to design some means to fix the PC board in place.
Example) Secure in place with screws
7) When mounting connectors on a FPC
• When the connector soldered to FPC is mated or unmated,
solder detachment may occur by the force to the terminals.
Connector handling is recommended in the condition when the
reinforcing plate is attached to the backside of FPC where the
connector is mounted. The external dimension of the reinforcing
plate is recommended to be larger than the dimension of
“Recommended PC board pattern” (extended dimension of one
side is approximately 0.5 to 1.0 mm). The materials and
thickness of the reinforcing plate are glass epoxy or polyimide
(thickness 0.2 to 0.3 mm) or SUS (thickness 0.1 to 0.2 mm).
• As this connector has temporary locking structure, the
connector mating may be separated by the dropping impact
depend on the size, weight or bending force of the FPC. Please
consider the measures at usage to prevent the mating
separation.
8) The narrow pitch connector series is designed to be compact
and thin. Although ease of handling has been taken into
account, take care when mating the connectors, as
displacement or angled mating could damage or deform the
connector.
Screw
↓
↓
Spacer
Connector
PC board
Spacer
When connecting PC boards, take appropriate measures to
prevent the connector from coming off.
–1–
ACCTB48E 201803-T
Notes on Using Narrow pitch Connectors/High Current Connectors
Regarding the selection of the connector placement machine and the mounting
procedures
1) Select the placement machine taking into consideration the
connector height, required positioning accuracy, and packaging
conditions.
2) Be aware that if the chucking force of the placement machine
is too great, it may deform the shape of the connector body or
connector terminals.
3) Be aware that during mounting, external forces may be
applied to the connector contact surfaces and terminals and
cause deformations.
4) Depending on the size of the connector being used, self
alignment may not be possible. In such cases, be sure to
carefully position the terminal with the PC board pattern.
5) The positioning bosses give an approximate alignment for
positioning on the PC board. For accurate positioning of the
connector when mounting it to the PC board, we recommend
using an automatic positioning machine.
6) In case of dry condition, please note the occurrence of static
electricity. The product may be adhered to the embossed carrier
tape or the cover tape in dry condition. Recommended humidity
is from 40 to 60%RH and please remove static electricity by
ionizer in manufacturing process.
Regarding soldering
Reflow soldering
1) Measure the recommended profile temperature for reflow
soldering by placing a sensor on the PC board near the
connector surface or terminals. (Please refer to the specification
for detail because the temperature setting differs by products.)
2) As for cream solder printing, screen printing is recommended.
3) When setting the screen opening area and PC board foot
pattern area, refer the recommended PC board pattern and
window size of metal mask on the specification sheet, and make
sure that the size of board pattern and metal mask at the base of
the terminals are not increased.
4) Please pay attentions not to provide too much solder. It
makes miss mating because of interference at soldering portion
when mating.
Terminal
Paste solder
PC board foot pattern
5) When mounting on both sides of the PC board and the
connector is mounting on the underside, use adhesives or other
means to ensure the connector is properly fixed to the PC board.
(Double reflow soldering on the same side is possible.)
6) The condition of solder or flux rise and wettability varies
depending on the type of solder and flux. Solder and flux
characteristics should be taken into consideration and also set
the reflow temperature and oxygen level.
Hand soldering
1) Set the soldering iron so that the tip temperature is less than
that given in the table below.
Table A
Product name
Soldering iron temperature
SMD type connectors all products
300°C within 5 sec.
350°C within 3 sec.
180℃
150℃
Peak temperature
Preheating
220℃
200℃
25 sec.
60 to 120 sec.
70 sec.
Upper limited
(Solder heat resistance)
Lower limited
(Solder wettability)
Time
For products other than the ones above, please refer to the
latest product specifications.
9) The temperature profiles given in this catalog are values
measured when using the connector on a resin-based PC
board. When performed reflow soldering on a metal board (iron,
aluminum, etc.) or a metal table to mount on a FPC, make sure
there is no deformation or discoloration of the connector before
mounting.
10) Please contact our sales office when using a screen-printing
thickness other than that recommended.
4) Be aware that soldering while applying a load on the
connector terminals may cause improper operation of the
connector.
5) Thoroughly clean the soldering iron.
6) Flux from the solder wire may get on the contact surfaces
during soldering operations. After soldering, carefully check the
contact surfaces and clean off any solder before use.
7) These connector is low profile type. If too much solder is
supplied for hand soldering, It makes miss mating because of
interference at soldering portion. Please pay attentions.
S
iro old
n eri
Apply the solder
wire here
Temperature
Peak temperature 260℃
230℃
ng
2) Do not allow flux to spread onto the connector leads or PC
board. This may lead to flux rising up to the connector inside.
3) Touch the soldering iron to the foot pattern. After the foot
pattern and connector terminal are heated, apply the solder wire
so it melts at the end of the connector terminals.
7) Do not use resin-containing solder. Otherwise, the contacts
might be firmly fixed.
8) Soldering conditions
Please use the reflow temperature profile conditions
recommended below for reflow soldering. Please contact our
sales office before using a temperature profile other than that
described below (e.g. lead-free solder)
Small angle as
possible up to
45 degrees
Terminal
PC board
Pattern
–2–
ACCTB48E 201803-T
Notes on Using Narrow pitch Connectors/High Current Connectors
Solder reworking
1) Finish reworking in one operation.
2) In case of soldering rework of bridges. Do not use
supplementary solder flux. Doing so may cause contact
problems by flux.
3) Keep the soldering iron tip temperature below the
temperature given in Table A.
Handling single components
1) Make sure not to drop or allow parts to fall from work bench.
2) Excessive force applied to the terminals could cause warping,
come out, or weaken the adhesive strength of the solder. Handle
with care.
3) Do not insert or remove the connector when it is not soldered.
Forcibly applied external pressure on the terminals can weaken
the adherence of the terminals to the molded part or cause the
terminals to lose their evenness.
Precautions for mating
This product is designed with ease of handling. However, in
order to prevent the deformation or damage of contacts and
molding, take care and do not mate the connectors as shown
right.
Press-fitting while the mating
Strongly pressed and
inlets of the socket and
twisted
header are not matched.
Tilted mating
Cleaning flux from PC board
There is no need to clean this product.
If cleaning it, pay attention to the following points to prevent the
negative effect to the product.
1) Keep the cleaning solvent clean and prevent the connector
contacts from contamination.
2) Some cleaning solvents are strong and they may dissolve the
molded part and characters, so pure water passed liquid solvent
is recommended.
Handling the PC board
Handling the PC board after mounting the connector
When cutting or bending the PC board after mounting the
connector, be careful that the soldered sections are subjected to
excessive force.
The soldered areas should not be subjected to force.
Storage of connectors
1) To prevent problems from voids or air pockets due to heat of
reflow soldering, avoid storing the connectors in areas of high
humidity.
2) Depending on the connector type, the color of the connector
may vary from connector to connector depending on when it is
produced. Some connectors may change color slightly if
subjected to ultraviolet rays during storage. This is normal and
will not affect the operation of the connector.
3) When storing the connectors with the PC boards assembled
and components already set, be careful not to stack them up so
the connectors are subjected to excessive forces.
4) Avoid storing the connectors in locations with excessive dust.
The dust may accumulate and cause improper connections at
the contact surfaces.
Other Notes
1) Do not remove or insert the electrified connector (in the state
of carrying current or applying voltage).
2) Dropping of the products or rough mishandling may bend or
damage the terminals and possibly hinder proper reflow
soldering.
3) Before soldering, try not to insert or remove the connector
more than absolutely necessary.
–3–
4) When coating the PC board after soldering the connector to
prevent the deterioration of insulation, perform the coating in
such a way so that the coating does not get on the connector.
5) There may be variations in the colors of products from
different production lots. This is normal.
6) The connectors are not meant to be used for switching.
7) Product failures due to condensation are not covered by
warranty.
ACCTB48E 201803-T
Notes on Using Narrow pitch Connectors/High Current Connectors
Regarding sample orders to confirm proper mounting
When ordering samples to confirm proper mounting with the
placement machine, connectors are delivered in 50-piece units
in the condition given right. Consult a sale representative for
ordering sample units.
Condition when delivered from manufacturing
Embossed tape
amount required
for the mounting
Required number
of products for
sample production
Reel
Delivery can also be made on a reel
by customer request.
(Unit 50 pcs.)
Please refer to the latest product specifications when
designing your product.
–4–
ACCTB48E 201803-T
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Panasonic:
AXK6F10347YG AXK5F40547YG AXK5F60347YG AXK5F00537YG AXK5F00547YG AXK5F10337YG
AXK5F10347YG AXK5F10537YG AXK5F10547YG AXK5F12337YG AXK5F12347YG AXK5F12537YG
AXK5F12547YG AXK5F14337YG AXK5F14347YG AXK5F14537YG AXK5F14547YG AXK5F16337YG
AXK5F16347YG AXK5F16537YG AXK5F16547YG AXK5F18337YG AXK5F18347YG AXK5F18537YG
AXK5F18547YG AXK5F20337YG AXK5F20347YG AXK5F20537YG AXK5F20547YG AXK5F22337YG
AXK5F22347YG AXK5F22537YG AXK5F22547YG AXK5F24337YG AXK5F24347YG AXK5F24537YG
AXK5F24547YG AXK5F26337YG AXK5F26347YG AXK5F26537YG AXK5F26547YG AXK5F30337YG
AXK5F30347YG AXK5F30537YG AXK5F30547YG AXK5F32337YG AXK5F32347YG AXK5F34337YG
AXK5F34347YG AXK5F34537YG AXK5F34547YG AXK5F36537YG AXK5F36547YG AXK5F40337YG
AXK5F40347YG AXK5F40537YG AXK5F44537YG AXK5F44547YG AXK5F50337YG AXK5F50347YG
AXK5F50537YG AXK5F50547YG AXK5F60337YG AXK5F60537YG AXK5F60547YG AXK5F70337YG
AXK5F70347YG AXK5F70537YG AXK5F70547YG AXK5F80337YG AXK5F80347YG AXK5F80537YG
AXK5F80547YG AXK6F00337YG AXK6F00347YG AXK6F00537YG AXK6F00547YG AXK6F10337YG
AXK6F10537YG AXK6F10547YG AXK6F12337YG AXK6F12347YG AXK6F12537YG AXK6F12547YG
AXK6F14337YG AXK6F14347YG AXK6F14537YG AXK6F14547YG AXK6F16337YG AXK6F16347YG
AXK6F16537YG AXK6F16547YG AXK6F18337YG AXK6F18347YG AXK6F20337YG AXK6F20347YG
AXK6F20537YG AXK6F20547YG AXK6F22337YG AXK6F22347YG
