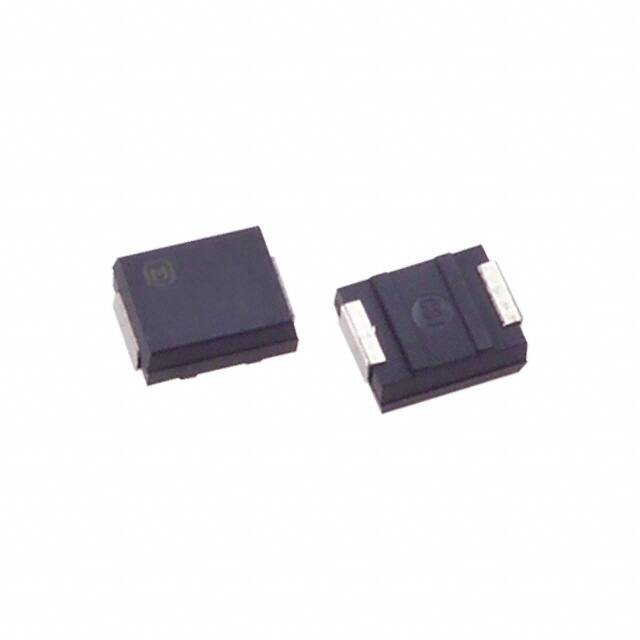

ECC-TFC100DG

Ceramic Capacitors (Safety Regulation SMD) Ceramic Capacitors (Safety Regulations) For Surface Mounting Types Discontinued Type HC (Sub-Class Y1) Type FC (Sub-Class Y2) Type BC (Sub-ClassY2 ) ■ Features ■ Recommended Application ● Resin molded SMD type for flow/reflow soldering (HC) and reflow soldering (FC,BC） ● High reliability ● Safety requirement approved by UL, SEMKO, NEMKO, FIMKO, DEMKO and KTL* * KTL: only Type FC ● Interference suppressors circuit and Isolation circuit of IT equipment such as MODEM. ● Interference suppressors circuit of small power supply machinery such as DC-DC converters and power modules. ● Interference suppressors circuit of AC primary side for general electronic equipment. ■ Explanation of Part Numbers Product Code Code Class ECC ECK Class1 Class2 1 2 3 4 5 6 7 8 9 10 11 E C K T H C 1 0 1 K B Packaging Style Code Style T Taped type Code HC FC BC Type Type Type HC Type FC Type BC ■ Construction Nominal Capacitance (Ex.) Capacitance 050 5 pF 100 10 pF 470 47 pF 101 100 pF 221 471 102 220 pF 470 pF 1000 pF Cap. Tolerance Code Tol. C ±0.25 pF D ±0.5 pF F ±1 pF J ±5 ％ K ±10 ％ M ±20 ％ 12 Temp. Char. Temp. Code Char. G SL B B E E F F Suffix ● Type FC,BC ● Type HC Molded Resin Molded Resin Ceramic Element Ceramic Element Terminal Terminal Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Ceramic Capacitors (Safety Regulation SMD) ■ Dimensions in mm (not to scale) 【Type HC:Y1】 Symbol Dim. L W H S E A Type HC 6.8±0.3 4.5±0.2 2.5 max 1.0±0.50 2.5±0.2 (1.7) B L1 L2 (3.1) 12.0±0.5 8.0 min ■ Specifications 【Type HC:Y1】 Characteristics Temp. Char. B/Y5P Operating Temperature Range –25 to 125 ℃ Rated Voltage 250 VAC Dielectric Withstanding Voltage 4000 VAC for 1 minute Capacitance Within the specified tolerance, when measured at 1kHz±20%, 1 to 5 Vrms. and 20 ℃ tan δ < 0.025at 1 kHz±20 %, 1 to 5 Vrms. and 20 ℃ Q or Dissipation Factor (tan δ) Insulation Resistance 10000 MΩmin. at 500 VDC and 1 minute electrification Char. Max. Cap. Change Temp. Range Temperature Characteristics B/Y5P ±10％ -25 ～ 85 ℃ ■ Dimensions in mm (not to scale) 【Type BC,FC:Y2】 Symbol Dim. A B Type FC 5.7±0.5 4.5±0.3 L W 2.3 max 0.85±0.30 2.5±0.2 H S E (1.7) (3.1) Type BC 7.1±0.5 6.3±0.3 2.5±0.3 1.45±0.30 2.5±0.2 (2.0) (3.7) ■ Specifications 【TypeBC,FC:Y2】 Characteristics Operating Temperature Range Rated Voltage Dielectric Withstanding Voltage Temp. Char. SL/GP Temp. Char. B/Y5P, E/Y5U, F/Y5V –25 to 100 ℃ 250 VAC 1500 VAC for 1 minute Within the specified tolerance, when measured Within the specified tolerance, when measured at 1 MHz±20 %, 1 to 5 Vrms. and 20 ℃ at 1 kHz±20 %, 1 to 5 Vrms. and 20 ℃ 30 pF or under Q > 200+10 C (C:Cap.pF) Q or Dissipation Factor tan δ < 0.025 over 30 pF Q > 500 (tan δ) at 1 kHz±20 %, 1 to 5 Vrms. and 20 ℃ at 1 MHz±20 %, 1 to 5 Vrms. and 20 ℃ Insulation Resistance 10000 MΩmin. at 500 VDC and 1 minute electrification Char. Max. Cap. Change Temp. Range B/Y5P ±10％ Temperature Temperature Coefficient:+350 to –1000 ppm/ ℃ Characteristics over the temperature range 20 to 85 ℃ E/Y5U +20,-55％ -25 ～ 85 ℃ F/Y5V +30,-80％ Capacitance Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Ceramic Capacitors (Safety Regulation SMD) ■ Related Standards and Certificate Number Certificate Number Certification Body Related Standard Type HC Type FC Type BC UL60384-14 E62674 E62674 E62674 CAN/CSA –E60384-14 SEMKO(Sweden) ------------1025027 ---------806189 E62674 1025267 FIMKO(Finland) FI 26683 FI 16588A1 FI 17348A2 FI 26770 D-00043 310914-01 310698-01 UL(USA) DEMKO(Denmark) EN60384-14 2005 NEMKO(Norway) KTL(Korea) Sub-Class Rated Voltage HC: 4000 VAC BC/FC: 1500 VAC 1500 VAC HC:Y1 BC/FC:Y2 Y2 250 VAC HC: 4000 VAC BC/FC: 1500 VAC Issuing certification HC:Y1 now BC/FC:Y2 P01100665 P11214054 P01101830 SU03013----------------------3001 P11213874 K60384-14 Dielectric Withstanding Voltage Operating Temperature Range HC: -25 ～ 125℃ BC/FC: -25 ～ 100℃ ■ Ratings and Characteristics Type Name Type HC Type FC Type BC Part Number ECKTHC101KB ECKTHC221KB ECKTHC471KB ECKTHC101MB ECKTHC221MB ECKTHC471MB ECCTFC100DG ECCTFC150JG ECCTFC220JG ECCTFC330JG ECKTFC470KB ECKTFC101KB ECKTFC151KB ECKTFC221KB ECKTFC331KB ECKTFC471KB ECKTFC102ME ECKTFC152MF ECKTFC222MF ECCTBC100DG ECCTBC150JG ECCTBC220JG ECCTBC330JG ECCTBC470JG ECCTBC680JG ECKTBC101KB ECKTBC151KB ECKTBC221KB ECKTBC331KB ECKTBC471KB ECKTBC681KB ECKTBC102ME ECKTBC152ME ECKTBC222ME Capacitance (pF) 100 220 470 100 220 470 10 15 22 33 47 100 150 220 330 470 1000 1500 2200 10 15 22 33 47 68 100 150 220 330 470 680 1000 1500 2200 Cap. Tolerance Temp. Char Dimensions in mm B/Y5P 6.8L×4.5W×2.5H ±10 ％ ±20 ％ ±0.5 pF ±5 ％ ±10 ％ SL/GP B/Y5P 5.7L×4.5W×2.3H E/Y5U ±20 ％ F/Y5V ±0.5 pF ±5 ％ ±10 ％ SL/GP B/Y5P 7.1L×6.3W×2.5H ±20 ％ E/Y5U Notes ✻ Other capacitance values are available by special order. Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Ceramic Capacitors (Safety Regulation SMD) ■ Packaging Methods (Taping) ● Minimum Quantity/Packing Unit Type Type HC Type FC Type BC Packaging style Embossed Carrier Taping Embossed Carrier Taping Embossed Carrier Taping Minimum Packing Packing Quantity Quantity in Carton Part Number Carton Dimensions in mm (LWH) 100～470pF 3000 pcs./reel 6000 pcs 350×350×62 EC□□TFC□□□□□ 10 to 2200pF 3000 pcs./reel 9000 pcs. 350×350×62 EC□□TBC□□□□□ 10 to 2200pF 2000 pcs./reel 6000 pcs. 350×350×62 EC□□THC□□□□□ ●Reel Symbol A B C D E Type HC Dim. (mm) Type FC Type BC W t r 2.0 ±0.5 R1.0 25.5 ±1.5 330 ±5 60 min 13.0 ±0.5 21.0 ±1.0 2.0 ±0.5 E P1 P2 P0 φD0 t1 1.75 ±0.10 8.0 ±0.1 2.00 ±0.05 4.1 ±0.1 1.5 +0.1 -0 0.3 ±0.1 13.5 ±1.5 ●Embossed carrier taping Symbol Type HC Dim. Type (mm) FC Type BC A 4.8 ±0.2 6.5 ±0.2 B 12.3 ±0.2 6.0 ±0.2 7.5 ±0.2 W 24.0 ±0.3 12.0 ±0.3 F 11.5 ±0.1 5.5 ±0.1 t2 2.8 ±0.3 3.2 ±0.3 ●Leader Part and Taped End Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Ceramic Capacitors (Safety Regulation SMD) ■ Typical Characteristics ● Temperature Characteristics Char. B/Y5P Temp.Range:–25 to 85 ℃ Max.Cap.Change:±10 % Char. SL/GP (Temp.Coeff.:+350 to –1000 ppm/℃) （ Char. E/Y5U Temp.Range:–25 to 85 ℃ max.Cap.Change:+20, –55 % ） Temp. Range :–25 to 85 ℃ （ max.Cap.Change:+30, –80 % Char. F/Y5V ） ● Impedance vs. Frequency Characteristics Type ＦC Type BC Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Ceramic Capacitors (Safety Regulation SMD) ■ Typical Characteristics ● Current vs. Voltage (Leakage Current Characteristics) Type HC 0.6 Type FC Current (mA) 0.5 0.4 470 pF 0.3 220 pF 0.2 100 pF 0.1 0 0 500 1000 1500 2000 2500 3000 Voltage (Vrms) Type BC ■ Application Examples ● MODEM ●Primary circuit of Switching Power Supply Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately.
