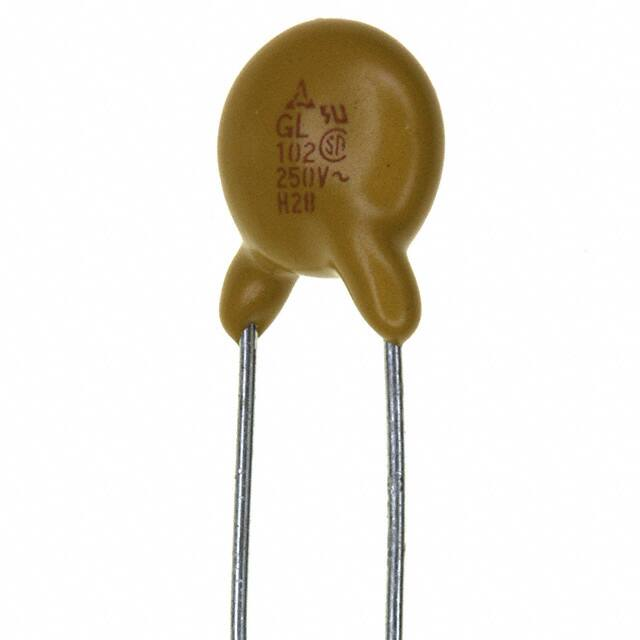

ECK-DGL102ME

Ceramic Disc Capacitors (Type GL) Ceramic Disc Capacitors for Safety Regulations Hi Volt., Disc, Radial Ld, Sfty GL/NS/RS ECK-DGL/DNS/DRS Type: GL ■ Recommended Applications • Line bypass and across-the-line • Switching surge killer, etc. ■ Features Ceramic disc capacitors, “Type GL,” rated 250 VAC, are recognized by UL. (Recognized type designation: Type GL). ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 11 E C K D G L 4 7 2 M E Capacitance Tolerance Temperature Characteristics Product Code Style Type Designation Nominal Capacitance 12 Suffix ■ Specifications Operating temperature range –25 to 85°C Rated voltage Applicable standard Rated voltage UL 250 VAC CSA 125 VAC Dielectric withstanding voltage 1500 VAC (50/60 Hz) for 1 minute Capacitance Within the tolerance, when measured at 1 kHz ± 20%, 1 Vrms and 20°C Dissipation factor (tan δ) B/Y5P/2B4: 0.025 max.; E/Y5U/2E4: 0.025 max., V: 0.05 max. Insulation resistance 10,000 MΩ min. at 500 VDC and 1 minute electrification Temperature characteristics (Reference temperature: 20°C) T.C. Capacitance Change Temperature Range B/Y5P/2B4 ±10% max. –25 to 85°C E/Y5U/2E4 +20/–55% max. –25 to 85°C V +30/–80% max. 0 to 70°C Design and specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety issues arises from this product, please inform us immediately for technical consultation. Ceramic Disc Capacitors (Type GL) ■ Related Standards and Certificate Numbers (Type NS-A) Related Standards Certificate Number/File Number UL 1414 E62674 (Rated 250 VAC) CSA C22.2 LR58064-7 (Rated 125 VAC) ■ Dimensions in mm (not to scale) ■ Typical Temperature Characteristics 7.5 max. D max. F Capacitance Change (%) 20 min. 3.0 max. +20 0 B B char –20 –40 E char E –60 –80 V char V –20 d ± 0.05 0 20 40 60 80 Temperature (°C) ■ Ratings and Characteristics Dimensions in mm Part Number Nominal Capacitance (pF) Tolerance (%) Temperature Characteristics D max. T max. F ECKDGL101MB 100 ±20 B 8.0 5.5 7.5±1.5 0.65 ECKDGL151MB 150 —20 B 8.0 5.5 7.5±1.5 0.65 CKDGL221MB 220 —20 B 8.0 5.5 7.5±1.5 0.65 CKDGL331MB 330 —20 B 8.0 5.5 7.5±1.5 0.65 CKDGL471MB 470 —20 B 9.0 5.5 7.5±1.5 0.65 CKDGL681MB 680 —20 B 9.0 5.5 7.5±1.5 0.65 CKDGL102MB 1000 —20 E 9.0 5.5 7.5±1.5 0.65 CKDGL152MB 1500 —20 E 11.0 5.5 7.5±1.5 0.65 CKDGL222MB 2200 —20 E 12.0 5.5 7.5±1.5 0.65 CKDGL332MB 3300 —20 E 15.0 5.5 10.0±1.5 0.65 CKDGL472MB 4700 —20 E 17.0 5.5 10.0±1.5 0.65 CKDGL472ZV 4700 +80, –20 V 12.0 5.5 7.5±1.5 0.65 CKDGL103ZV 10000 +80, –20 V 17.0 5.5 10.0±1.5 0.65 Note: Radial taped versions are available on request. Design and specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety issues arises from this product, please inform us immediately for technical consultation. d
