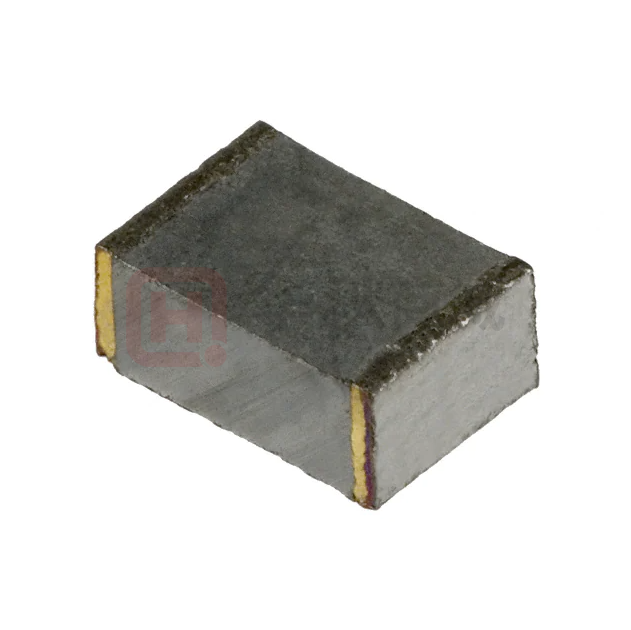

ECW-U4103V17

Film Chip Capacitor Type: ECWU(C) Stacked metallized PEN film dielectric with simple mold-less construction ■Features • Small in size • For reflow soldering ■Recommended Applications • DC Blockiing for xDSL ■Explanation of Part Numbers 1 2 3 4 E C W U Product code Dielectric & construction 5 6 7 8 9 10 11 V Rated voltage 2 4 Capacitance 250VDC 400VDC Suffix for xDSL,Withstand voltage:400VDC Cap.tol : ±5% for xDSL,Withstand voltage:600VDC V17 Cap.tol : ±5% V16 ■Specifications Category temp.range (Including temperature-rise on unit surface) Rated voltage Capacitance range Capacitance tolerance –55 to +85˚C 250VDC, (V16), 400VDC, (V17) 250VDC(V16) 400VDC(V17) ±5%(J) 0.001 to 0.12 µF (E12) 0.001 to 0.15 µF (E12) Withstand voltage Between terminals 250VDC(V16) : 400VDC 400VDC(V17) : 600VDC Dissipation factor < =1.0%(20˚C,1kHz) Insulation resistance >3000MΩ(20˚C,100VDC, 60s) = Soldering conditions ■Construction 60s 60s Reflow soldering 240˚C max. and 60 sec max. at more than 220˚C (Temp. at cap. surface) ■Dimensions in mm (not to scale) Size code E1 E2 E3a E3 D2 D3 D4 D5 B Z Y V U L 4.8 4.8 4.8 4.8 6.0 6.0 6.0 6.0 6.0 7.1 7.1 9.8 9.8 W 3.3 3.3 3.3 3.3 4.1 4.1 4.1 4.1 5.0 5.0 6.3 6.3 8.0 H 1.4 2.0 2.4 2.8 2.0 2.4 2.8 3.2 ❈ ❈Refer to the column “Rating, Dimensions & Quantity”. Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail. Mar. 2005 Plastic Film Capacitors ■Taping Specification for Automatic Mounting Refer to the taping specification. ■ Rating, Dimensions & Quantity/Reel ●Capacitance tolerance : ±5 % (J) Cap. (µF) 0.001 0.0012 0.0015 0.0018 0.0022 0.0027 0.0033 0.0039 0.0047 0.0056 0.0068 0.0082 0.01 0.012 0.015 0.018 0.022 0.027 0.033 0.039 0.047 0.056 0.068 0.082 0.1 0.12 0.15 Rated volt. 400VDC Rated volt. 250VDC Part No ECWU2102V16 ECWU2122V16 ECWU2155V16 ECWU2182V16 ECWU2222V16 ECWU2272V16 ECWU2332V16 ECWU2392V16 ECWU2472V16 ECWU2562V16 ECWU2682V16 ECWU2822V16 ECWU2103V16 ECWU2123V16 ECWU2153V16 ECWU2183V16 ECWU2223V16 ECWU2273V16 ECWU2333V16 ECWU2393V16 ECWU2473V16 ECWU2563V16 ECWU2683V16 ECWU2823V16 ECWU2104V16 ECWU2124V16 Dimensions (mm) L 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 6.0 6.0 6.0 6.0 6.0 6.0 6.0 W 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.1 4.1 4.1 4.1 5.0 5.0 5.0 H 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 2.0 2.0 2.4 2.8 2.0 2.4 2.8 3.2 3.2 3.8 4.5 Size code E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E1 E2 E2 E3a E3 D2 D3 D4 D5 B B B Q'ty 3,000 2,000 3,000 2,000 1,500 Part No ECWU4102V17 ECWU4122V17 ECWU4155V17 ECWU4182V17 ECWU4222V17 ECWU4272V17 ECWU4332V17 ECWU4392V17 ECWU4472V17 ECWU4562V17 ECWU4682V17 ECWU4822V17 ECWU4103V17 ECWU4123V17 ECWU4153V17 ECWU4183V17 ECWU4223V17 ECWU4273V17 ECWU4333V17 ECWU4393V17 ECWU4473V17 ECWU4563V17 ECWU4683V17 ECWU4823V17 ECWU4104V17 ECWU4124V17 ECWU4154V17 Dimensions (mm) L 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 4.8 6.0 6.0 6.0 6.0 6.0 6.0 7.1 7.1 7.1 7.1 9.8 9.8 9.8 9.8 W 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 4.1 4.1 4.1 4.1 5.0 5.0 5.0 5.0 6.3 6.3 6.3 6.3 8.0 8.0 H 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 1.4 2.0 2.0 2.4 2.8 2.0 2.4 2.8 3.2 3.0 3.6 3.2 3.8 3.6 4.4 3.4 4.0 3.8 4.6 Size code E1 E1 E1 E1 E1 E1 E1 E1 E1 E2 E2 E3a E3 D2 D3 D4 D5 B B Z Z Y Y V V U U Q'ty 3,000 2,000 3,000 2,000 1,500 1,000 ■Recommened for Land Dimensions (mm) Size code E1, E2, E3a, E3 D2, D3, D4, D5 B Z Y V U Land dimensions for reflow soldering A B C 2.6 3.8 3.8 4.5 4.5 7.2 7.2 6.6 7.8 7.8 9.0 9.0 11.9 11.9 3.0 3.8 4.6 4.6 5.7 5.7 7.2 Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use. Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail. Mar. 2005
