EEEFT1C221AP

厂商：
NAIS(松下)
封装：
SMD,D6.3xL5.8mm
描述：

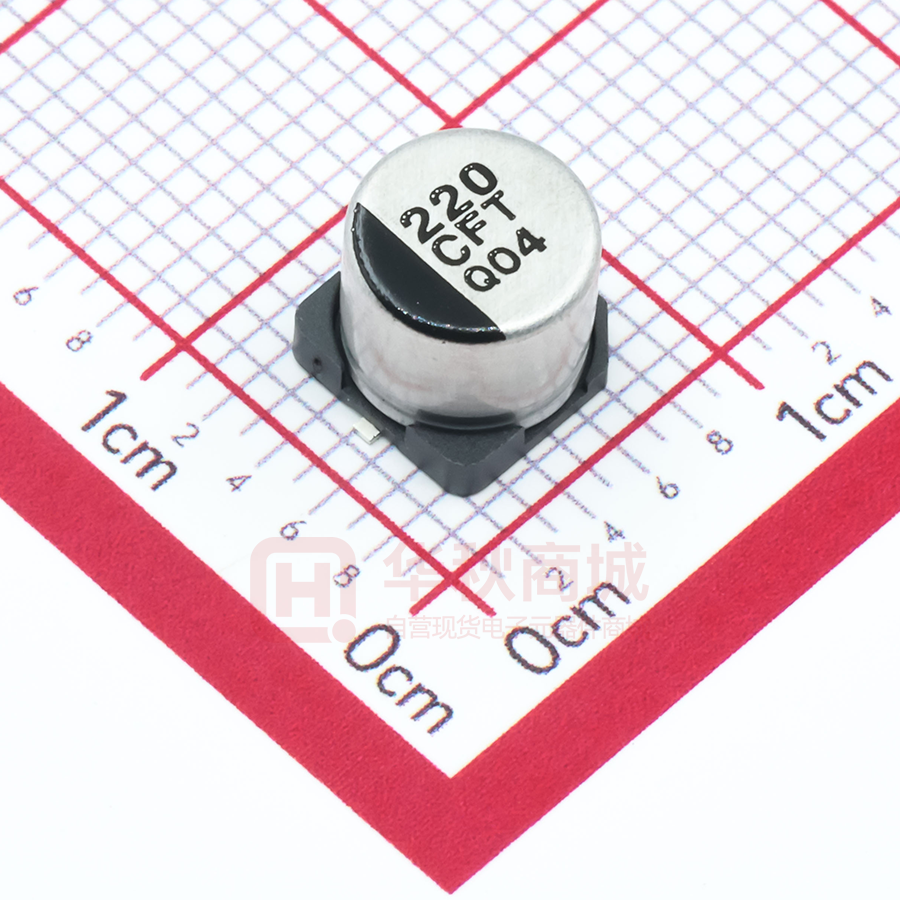

贴片铝电解电容 SMD,D6.3xL5.8mm 220µF ±20% 16V 2000Hrs@105℃

数据手册：

下载EEEFT1C221AP.pdf

立即购买

详情介绍
数据手册
价格&库存

EEEFT1C221AP 数据手册

Aluminum Electrolytic Capacitors (SMD Type) Surface Mount Type Series : FT Type : V High temperature Lead-Free reflow Features ● Endurance : 105 °C 2000 h to 5000 h Low ESR (1 size smaller than series FK) ● Vibration-proof product is available upon request. (08 mm and larger) ● RoHS compliant ● Miniaturized, Specifications Category temperature range Rated voltage range Capacitance range Capacitance tolerance Leakage current Dissipation factor (tan d) Endurance Shelf life Resistance to soldering heat AEC-Q200 –55 °C to +105 °C 6.3 V.DC to 50 V.DC 10 μF to 2200 μF ±20 % (120 Hz/+20 °C) I < 0.01 CV (μA) After 2 minutes Please see the attached characteristics list After applying rated working voltage for 2000 hours at +105 °C±2 °C and then being stabilized at +20 °C, Capacitors shall meet the following limits. (Sufﬁx “G” in 6.3 V.DC : 3000 hours, 10 V.DC to 50 V.DC : 5000 hours) Capacitance change Within ±30 % of the initial value (Sufﬁx “G” is ±35 %) tan d < 200 % of the initial limit (Sufﬁx “G” is < 300 %) DC leakage current Within the initial limit After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized at +20 °C, capacitors shall meet the limits speciﬁed in Endurance. (With voltage treatment) After reﬂow soldering and then being stabilized at +20 °C, capacitor shall meet the following limits. Capacitance change Within ±10 % of the initial value tan d Within the initial limit DC leakage current Within the initial limit AEC-Q200 compliant Frequency correction factor for ripple current Frequency (Hz) Capacitance (μF) 10 to 560 to 470 2200 120 1k 10 k 100 k to 0.65 0.70 0.85 0.90 0.95 0.95 1.00 1.00 22 E FT Capacitance (μF) L Series identiﬁcation K A±0.2 (P) + W Pressure Relief (010 and larger) ( ) Reference size (Unit : mm) Rated voltage code Lot number R. Voltage 6.3 (V.DC) Code j H 0D±0.5 Negative polarity marking (–) – (I) 0.3 max. Example : 25 V.DC 22 μF Marking color : BLACK (I) Dimensions B±0.2 Marking 10 16 25 35 50 A C E V H Size H L A, B 0D code B 4.0 5.8±0.3 4.3 5.5 max. C 5.0 5.8±0.3 5.3 6.5 max. D 6.3 5.8±0.3 6.6 7.8 max. D8 6.3 7.7±0.3 6.6 7.8 max. F 8.0 10.2±0.3 8.3 10.0 max. G 10.0 10.2±0.3 10.3 12.0 max. I W P K 1.8 2.2 2.6 2.6 3.4 3.5 0.65±0.1 0.65±0.1 0.65±0.1 0.65±0.1 0.90±0.2 0.90±0.2 1.0 1.5 1.8 1.8 3.1 4.6 0.35 +- 0.15 0.20 0.35 +- 0.15 0.20 0.35 +- 0.15 0.20 0.35 +- 0.15 0.20 0.70±0.20 0.70±0.20 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 05 Apr. 2017 Aluminum Electrolytic Capacitors (SMD Type) Characteristics list Endurance : 105 °C 2000 h Speciﬁcation Case size (mm) Rated Cap. voltage (±20 %) (V.DC) (μF) 6.3 10 16 25 35 100 220 330 470 680 1500 2200 68 150 220 330 470 1000 1500 47 68 100 150 220 330 680 820 1000 1200 22 33 47 68 100 150 220 470 560 820 1000 22 33 47 68 100 150 330 390 560 680 10 50 22 47 100 220 330 ✽ 0D L Size code 4 5 6.3 6.3 6.3 8 10 4 5 6.3 6.3 6.3 8 10 4 5 5 6.3 6.3 6.3 8 8 10 10 4 4 5 5 6.3 6.3 6.3 8 8 10 10 4 5 5 6.3 6.3 6.3 8 8 10 10 4 5 5 6.3 6.3 8 10 5.8 5.8 5.8 7.7 7.7 10.2 10.2 5.8 5.8 5.8 7.7 7.7 10.2 10.2 5.8 5.8 5.8 5.8 5.8 7.7 10.2 10.2 10.2 10.2 5.8 5.8 5.8 5.8 5.8 7.7 7.7 10.2 10.2 10.2 10.2 5.8 5.8 5.8 5.8 5.8 7.7 10.2 10.2 10.2 10.2 5.8 5.8 5.8 5.8 7.7 10.2 10.2 B C D D8 D8 F G B C D D8 D8 F G B C C D D D8 F F G G B B C C D D8 D8 F F G G B C C D D D8 F F G G (B) C C D D8 F G Ripple ESR tan d current Part No. (100 kHz) (120 Hz) (100 kHz) (+20 °C) (+20 °C) (+105 °C) (Ω) (mA r.m.s.) 160 0.85 0.26 EEEFT0J101AR 240 0.36 0.26 EEEFT0J221AR 300 0.26 0.26 EEEFT0J331AP 600 0.16 0.26 EEEFTJ471XAP 600 0.16 0.26 EEEFTJ681XAP 850 0.08 0.26 EEEFT0J152AP 1190 0.06 0.28 EEEFT0J222AP 160 0.85 0.19 EEEFT1A680AR 240 0.36 0.19 EEEFT1A151AR 300 0.26 0.19 EEEFT1A221AP 600 0.16 0.19 EEEFTA331XAP 600 0.16 0.19 EEEFTA471XAP 850 0.08 0.19 EEEFT1A102AP 1190 0.06 0.19 EEEFT1A152AP 160 0.85 0.16 EEEFT1C470AR 240 0.36 0.16 EEEFT1C680AR 240 0.36 0.16 EEEFT1C101AR 300 0.26 0.16 EEEFT1C151AP 300 0.26 0.16 EEEFT1C221AP 600 0.16 0.16 EEEFTC331XAP 850 0.08 0.16 EEEFT1C681AP 850 0.08 0.16 EEEFT1C821UP 1190 0.06 0.16 EEEFT1C102AP 1190 0.06 0.16 EEEFT1C122UP 160 0.85 0.14 EEEFT1E220AR 160 0.85 0.14 EEEFT1E330AR 240 0.36 0.14 EEEFT1E470AR 240 0.36 0.14 EEEFT1E680AR 300 0.26 0.14 EEEFT1E101AP 600 0.16 0.14 EEEFTE151XAP 600 0.16 0.14 EEEFTE221XAP 850 0.08 0.14 EEEFT1E471AP 850 0.08 0.14 EEEFT1E561UP 1190 0.06 0.14 EEEFT1E821AP 1190 0.06 0.14 EEEFT1E102UP 160 0.85 0.12 EEEFT1V220AR 240 0.36 0.12 EEEFT1V330AR 240 0.36 0.12 EEEFT1V470AR 300 0.26 0.12 EEEFT1V680AP 300 0.26 0.12 EEEFT1V101AP 600 0.16 0.12 EEEFTV151XAP 850 0.08 0.12 EEEFT1V331AP 850 0.08 0.12 EEEFT1V391UP 1190 0.06 0.12 EEEFT1V561AP 1190 0.06 0.12 EEEFT1V681UP 85 2.30 0.10 EEEFTH100UAR 165 0.88 0.10 EEEFT1H100AR 165 0.88 0.10 EEEFT1H220AR 195 0.68 0.10 EEEFT1H470AP 350 0.34 0.10 EEEFTH101XAP 670 0.18 0.10 EEEFT1H221AP 900 0.12 0.10 EEEFT1H331AP Min. Packaging Q'ty Reﬂow Taping (pcs) (5) (5) (5) (5) (5) (6) (6) (5) (5) (5) (5) (5) (6) (6) (5) (5) (5) (5) (5) (5) (6) (6) (6) (6) (5) (5) (5) (5) (5) (5) (5) (6) (6) (6) (6) (5) (5) (5) (5) (5) (5) (6) (6) (6) (6) (5) (5) (5) (5) (5) (6) (6) 2000 1000 1000 900 900 500 500 2000 1000 1000 900 900 500 500 2000 1000 1000 1000 1000 900 500 500 500 500 2000 2000 1000 1000 1000 900 900 500 500 500 500 2000 1000 1000 1000 1000 900 500 500 500 500 2000 1000 1000 1000 900 500 500 ✽ Size code( ) : Miniaturization product If Part number exceeds 12 digits, voltage code is abbreviated as follows; 0J → J, 1A → A, 1C → C, 1E → E, 1V → V, 1H → H · Please refer to the page of “Reﬂow Proﬁle” and “The Taping Dimensions”. · When requesting vibration-proof product, please put the last “V” instead to “P” Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 05 Apr. 2017 Aluminum Electrolytic Capacitors (SMD Type) Characteristics list (Endurance 5000 h) Endurance : 105 °C 5000 h (6.3 V.DC : 105 °C 3000 h) Case size (mm) Rated Cap. voltage (±20 %) (V.DC) (μF) 6.3 10 16 25 35 50 1500 2200 1000 1500 680 1000 470 820 330 560 220 330 Min. Packaging Q'ty Speciﬁcation 0D L Size code 8 10 8 10 8 10 8 10 8 10 8 10 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2 10.2 F G F G F G F G F G F G Ripple ESR tan d current (100 kHz) (120 Hz) (100 kHz) (+20 °C) (+20 °C) (+105 °C) (Ω) (mA r.m.s.) 850 0.08 0.26 1190 0.06 0.28 850 0.08 0.19 1190 0.06 0.19 850 0.08 0.16 1190 0.06 0.16 850 0.08 0.14 1190 0.06 0.14 850 0.08 0.12 1190 0.06 0.12 670 0.18 0.10 900 0.12 0.10 Part No. Reﬂow Taping (pcs) EEEFT0J152GP EEEFT0J222GP EEEFT1A102GP EEEFT1A152GP EEEFT1C681GP EEEFT1C102GP EEEFT1E471GP EEEFT1E821GP EEEFT1V331GP EEEFT1V561GP EEEFT1H221GP EEEFT1H331GP (6) (6) (6) (6) (6) (6) (6) (6) (6) (6) (6) (6) 500 500 500 500 500 500 500 500 500 500 500 500 · Please refer to the page of “Reﬂow Proﬁle” and “The Taping Dimensions”. · When requesting vibration-proof product, please put the last “V” instead to “P” Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. 05 Apr. 2017

下载 PDF

EEEFT1C221AP

1. 物料型号：文档列出了多种型号的电容器，例如EEEFT0J101AR、EEEFT0J221AR等，且每种型号都有其特定的尺寸、电容值、耐压值、漏电流、损耗因子（tan d）等参数。

2. 器件简介：电容器特点包括： - 高温无铅回流焊接兼容性 - 105°C 2000至5000小时的耐久性 - 尺寸最小化，低等效串联电阻（ESR） - 可应要求提供抗震产品 - 符合RoHS标准

3. 引脚分配：文档中通过符号表示了电容器的正负极性，如“+”和“-”。

4. 参数特性： - 温度范围：-55°C至+105°C - 额定电压范围：6.3 V.DC至50 V.DC - 电容范围：10μF至2200μF，电容公差±20%（120Hz/+20°C） - 漏电流：I < 0.01 CV（微安培） - 损耗因子：请参考附件特性列表

5. 功能详解：文档详细描述了电容器的耐久性测试条件和结果，包括在+105°C±2°C下应用额定工作电压2000小时后的电容变化、tan d和直流漏电流。

6. 应用信息：文档提供了电容器的尺寸、标记、安装类型等信息，以及在不同频率下的电容值。

7. 封装信息：提供了电容器的尺寸代码和物理尺寸，如0D、L、B、H、W等，以及不同尺寸的电容器的包装数量。
