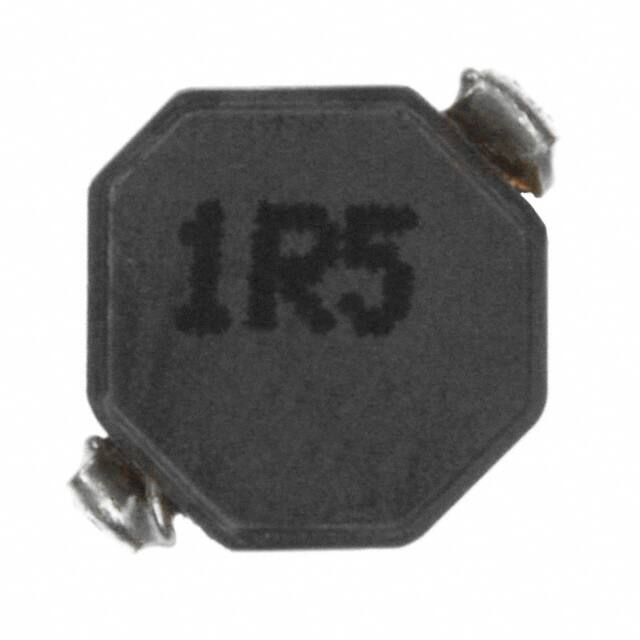

物料型号:ELL5PS系列,包括不同型号,如ELL5PS1R2N、ELL5PS1R5N等。
器件简介:这是松下生产的电感器,具有磁屏蔽结构、低直流电阻和大电流承载能力,符合RoHS标准。
引脚分配:文档未提供具体引脚分配信息,但通常电感器有2个引脚。
参数特性:包括电感值、公差、直流电阻(RDC)、饱和额定电流和温升电流等。
功能详解:推荐应用于电脑外设和手机的DC-DC转换器电路,以及DC-DC转换器电路的斩波电路解耦电感。
应用信息:适用于DC-DC转换器电路和斩波电路的解耦。
封装信息:提供了推荐的焊盘图案尺寸,以及元件的外形尺寸。
标准包装数量:每卷2000件。
焊接条件和安全注意事项:详见数据文件。
元件编号解释:提供了如何解读元件编号的方法。
