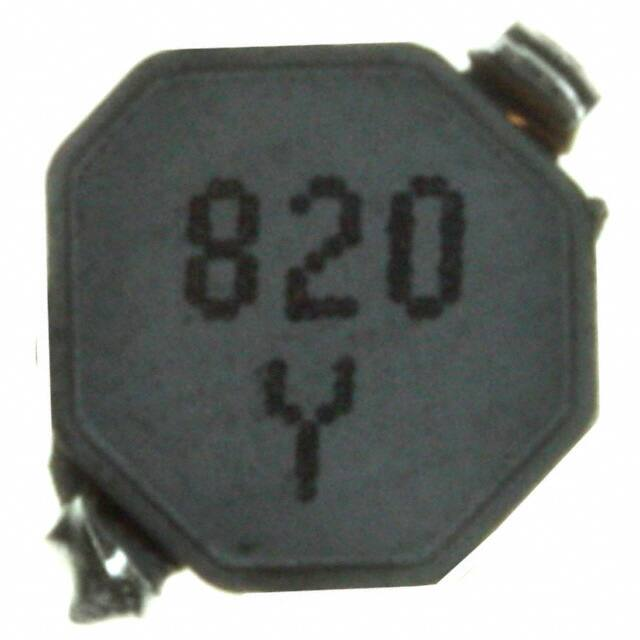

ELL-5PS820M

Choke Coils Power Inductors / Wire Wound type Series: Type: Discontinued S ELL5PS ■ Features ● Magnetic shielded structure ● Low DC resistance and large current capability ● RoHS compliant ■ Recommended Applications ● DC-DC converter circuitry for computer peripherals and cellular phones. ● Chopper circuit decoupling chokes for DC- DC converter circuitry ■ Standard Packing Quantity ■ Soldering Conditions and Safety Precautions ● 2000 pcs./Reel Please see Data Files ■ Explanation of Part Numbers 1 2 3 4 5 6 7 8 9 10 & - -  1 4    . Product Code ELL Outer size Height Structure Choke Coil (Magnetic shielded type) P Inductance 2.0 max. S ■ Dimensions in mm (not to scale) Series 11 Tolerance Design No. 2R2
