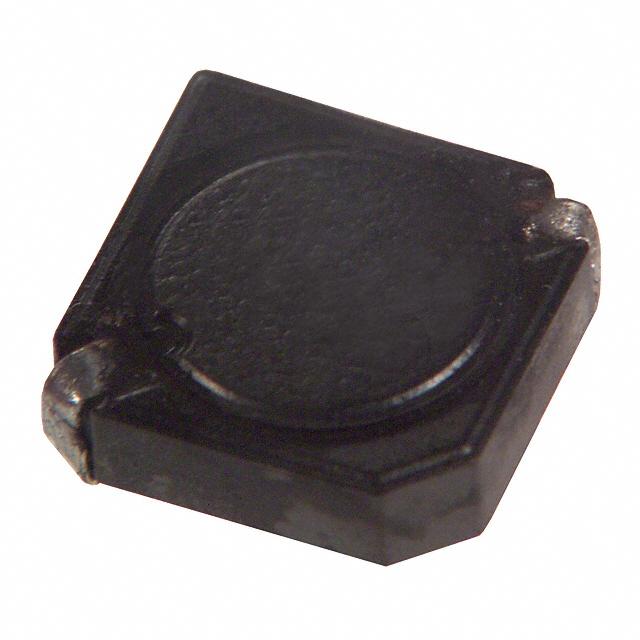

Choke Coils SMD Choke Coils Series: V Type: ELL6PV Singapore Type ELL6PV ■ Features ● Thin type (height, 1.8 mm) ● Large current capability ● Low DC resistance ■ Recommended Applications ● Video, Audio, Mobile communications, Electric battery driven equipment ● As a decoupling choke coil in DC/DC converters (S.M.P.S) ■ Cautionary Notes Regarding Usage in DC/DC converters ● Maximum Dissipation of 1 W. ● Maximum case temperature of 105 °C (Ambient & self-heating temperature) ■ Standard Packing Quantity ● 1000 pcs./Reel ■ Explanation of Part Numbers E
       L L 6 P V 2 2 0 M  !"# $ !   %" &'   *"#" $ / $ .  )# &.!! 0( 
   %( ) +)!"#)#, - .)# *& +)!"#)# - .)# ®

 ®

 3® 1
2 ® 1 2





 


 
   
       

 

 







    



  

 Mar. 2005 Choke Coils ■ Dimensions in mm (not to scale) ■ Connections (Top view)



 






   ■ Recommended Land Pattern in mm (not to scale)

 ■ Standard Parts Part No. ELL6PV1R0N ELL6PV1R5N ELL6PV1R8N ELL6PV2R4N ELL6PV3R3N ELL6PV3R9N ELL6PV4R7N ELL6PV5R6N ELL6PV6R8N ELL6PV8R2N ELL6PV9R1N ELL6PV100M ELL6PV120M ELL6PV150M ELL6PV180M ELL6PV220M ELL6PV270M ELL6PV330M ELL6PV390M ELL6PV470M ELL6PV560M ELL6PV680M ELL6PV820M ELL6PV101M Inductance (100kHz) (µH) 1.0 1.5 1.8 2.4 3.3 3.9 4.7 5.6 6.8 8.2 9.1 10.0 12.0 15.0 18.0 22.0 27.0 33.0 39.0 47.0 56.0 68.0 82.0 100.0 Tolerance ± 30 % ± 20 % RDC (at 20 °C) (mΩ) 16 19 24 27 32 38 44 49 55 70 76 85 90 120 140 200 220 280 330 370 410 570 650 750 Tolerance ± 20 % ✽ Current (mA) max. Marking 3000 2600 2500 2150 1900 1800 1700 1450 1250 1150 1100 1000 980 880 840 700 670 600 550 500 450 420 380 340 1R0 1R5 1R8 2R4 3R3 3R9 4R7 5R6 6R8 8R2 9R1 100 120 150 180 220 270 330 390 470 560 680 820 101 ✽ Current: This indicates the value of current when the inductance is 70% of nominal value or when the case temperature has risen 45 °C (at 20 °C)

 


 
   
       

 

 







    



  

 Mar. 2005
