Information of Discontinued Models
Adjustable long range &
fixed-focus reflective photoelectric sensor
MR3 series
Created November 2004
Stopping taking order date:
30, Sep, 2005
Date of production discontinuance: 31, Dec, 2005
Discontinued models
Recommended replacements
Adjustable long range & fixed-focus reflective
photoelectric sensor
MR3 series
Adjustable range reflective photoelectric sensor
EQ-500 series
mConfirm that table in
Main points of difference between recommended replacements and discontinued models for
details on model numbers for each type.
Refer to ‘Adjustable range reflective photoelectric sensor
EQ-500 series catalog’ for details.
Advantages of switching to recommended replacements
Stable sensing
The optical system has been advanced so that sensing is not
easily affected by variations in color and angle.
Complete installation interchangeability
Holes with the same size of mounting pitch ensure that the
recommended replacement are fully interchangeable.
Includes a BGS / FGS function
The DC voltage type in the EQ-500 series of recommended
replacements are equipped with a BGS / FGS function.
BGS (Background suppression): This is used when the objects
being sensed and the background are separate from each
other. This is useful when sensing objects on a conveyor line
from the side of the conveyor. Not affected if the background
color changes or someone passes behind the conveyor.
FGS (Foreground suppression): This is used when the objects
being sensed and the background are close together. This is
useful when sensing objects on a conveyor line from above the
conveyor. If there is an object on the conveyor that has been
set, sensing is not affected by the glossy, color or uneven in the
object.
Notes on using recommended replacements
Output Mounting
Enclosure
Recommended replacements Sensing
performance Specifications circuit dimensions Dimensions color
EQ-500 series
i
i: Highly interchangeable
m: Large differences
i
i
i
i
m
g: Almost no difference
: No corresponding item or model
High degree of interchangealibity in specifications, mounting
dimensions and operability, so that replacement of the MR3
series with the EQ-500 series can be carried out smoothly.
The sensors with a timer function in the MR3 series are provided
with ON-delay / OFF-delay / ONE SHOT timers, but the sensors
with a timer function in the EQ-500 series are only equipped with
an ON-delay / OFF-delay timer.
The sensor mounting bracket is not attached with EQ-500 series.
The recommended replacements have blind sectors.
Main points of difference between recommended replacements and discontinued models
Discontinued models
Recommended replacements
Model No.
MR3-M100A-DC12-24V
MR3-M100AT-DC12-24V
MR3-M200A-DC12-24V
MR3-M200AT-DC12-24V
Sensing range
0 to 1 m 0 to 3.281 ft
0 to 1 m 0 to 3.281 ft
0 to 2 m 0 to 6.562 ft
0 to 2 m 0 to 6.562 ft
Model No.
n
n
n
n
● Multi-voltage type
Relay contact output: 1a
Model No.
MR3-M100P-12-240VCE
MR3-M100PT-12-240VCE
MR3-M200P-12-240VCE
MR3-M200PT-12-240VCE
Sensing range
0 to 1 m 0 to 3.281 ft
0 to 1 m 0 to 3.281 ft
0 to 2 m 0 to 6.562 ft
0 to 2 m 0 to 6.562 ft
Main points of difference from discontinued models
● DC-voltage type (12 to 24 V DC10 %)
Transistor output (NPN and PNP)
● DC-voltage type (9.6 to 30 V DC)
Transistor output (NPN and PNP)
EQ-512
EQ-512T
EQ-511 (Note)
EQ-511T (Note)
Sensing range
0.1 to 1.0 m 0.328 to 3.281 ft
0.1 to 1.0 m 0.328 to 3.281 ft
0.1 to 2.5 m 0.328 to 8.202 ft
0.1 to 2.5 m 0.328 to 8.202 ft
● Multi-voltage type
Relay contact output: 1a
Model No.
n
n
n
n
EQ-502
EQ-502T
EQ-501 (Note)
EQ-501T (Note)
Sensing range
0.1 to 1.0 m 0.328 to 3.281 ft
0.1 to 1.0 m 0.328 to 3.281 ft
0.1 to 2.5 m 0.328 to 8.202 ft
0.1 to 2.5 m 0.328 to 8.202 ft
● Includes a BGS / FGS function.
● The recommended replacements have 0.1 m 0.328 ft
blind sectors.
Note: The recommended replacements have a sensing
range of 2.5 m 8.202 ft.
● The recommended replacements have 0.1 m 0.328 ft
blind sectors.
Note: The recommended replacements have a sensing
range of 2.5 m 8.202 ft.
Information of Discontinued Models
Created November 2004
Adjustable long range & fixed-focus reflective photoelectric sensor MR3 series
Dimensions (Unit: mm in)
Discontinued models
Recommended replacements
MR3 series
EQ-500 series
Stability indicator (Green)
Stability indicator (incident beam indicator
for types with timer) (Red)
Operation mode switch (Note 2)
OFF-delay timer adjuster (Note 1)
Distance adjuster (2-turn)
26
25.4
1.024 1.000
1.8
5
0.071 0.197
Operation indicator (Orange)
58
2.283
5
0.197
0.7
0.028
2-"5.1 "0.201 mounting holes
68
2.677
ON-delay timer adjuster (Note 1)
Adjuster indicator
Operation indicator (Red)
Distance adjuster
58
2.283
Beamreceiving part
26
1.024
Center of beamemitting
(Center of sensing)
3-M5 nut seats
(on both sides)
68
2.677
2
0.079
3-"5.1 "0.201
mounting holes
68
2.677
58
2.283
22
0.866
5
0.197
Conduit connector
5
0.197
30
1.181
58
2.283
5
0.197
Notes: 1) EQ-5T incorporate those.
2) The operation mode switch of the DC-voltage type is the DIP switch.
Assembly dimensions with sensor mounting bracket
(Accessory)
Assembly dimensions with sensor mounting bracket
MS-EQ5-01 (Optional)
Conduit connector
6.5
0.256
10
0.394
30.5
( 1.201
)
30.5
( 1.201
)
58
2.283
10
0.394
29
1.142
"6.5
"0.256
4
0.157
17.5
0.689
10
0.394
6.5
0.256
58
2.283
10
0.394
4
0.157
17.5
0.689
2-M5 (length 32 1.260) screws
2-M5 (length 32 1.260) screws
(
58
2.283
Center of
beamemitting
Center of
sensing
)
58
2.283 88
3.465
88
3.465
37
1.457
18
0.709
18
0.709
26
1.024
29
1.142
58
2.283
26
1.024
t2
t 0.079
29
1.142
5
0.197
58
2.283
78
3.071
t2
t 0.079
Information of Discontinued Models
Created November 2004
Adjustable long range & fixed-focus reflective photoelectric sensor MR3 series
Main rated specifications
Item
Type
Model No. (Note 1)
Discontinued models
MR3-M200P (T) MR3-M100P (T) MR3-M200A (T) MR3-M100A (T)
-12-240VCE
-12-240VCE
-DC12-24V
-DC12-24V

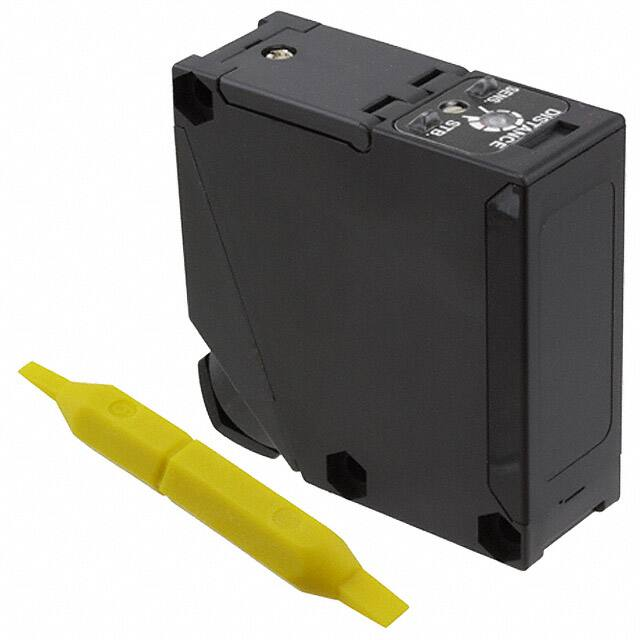

EQ-501 (T)
Recommended replacements
EQ-502 (T)
EQ-511 (T)
EQ-512 (T)
0.5 to 2 m
0.2 to 1.0 m
0.5 to 2 m
0.2 to 1.0 m
0.2 to 2.5 m
0.2 to 1.0 m
0.2 to 2.5 m
0.2 to 1.0 m
1.640 to 6.562 ft 0.656 to 3.281 ft 1.640 to 6.562 ft 0.656 to 3.281 ft 0.656 to 8.202 ft 0.656 to 3.281 ft 0.656 to 8.202 ft 0.656 to 3.281 ft
Adjustable range
0 to 2 m
0 to 6.562 ft
Sensing range
0 to 1.0 m
0 to 3.281 ft
0 to 2 m
0 to 6.562 ft
0 to 1.0 m
0 to 3.281 ft
0.1 to 2.5 m
0.1 to 1.0 m
0.1 to 2.5 m
0.1 to 1.0 m
0.328 to 8.202 ft 0.328 to 3.281 ft 0.328 to 8.202 ft 0.328 to 3.281 ft
10 % or less of operation distance
Hysteresis
21.6 to 264 V AC
or 10.8 to 264 V DC
Supply voltage
9.6 to 30 V DC
NPN open-collector transistor
• Maximum sink current:
100 mA
• Applied voltage:
Relay contact 1a
30 V DC or less
• Switching capacity:
(between output and 0 V)
250 V AC 3 A (resistive load)
• Residual voltage:
• Electrical life: 100,000 or
1.2 V or less
more switching operations
(at 100 mA sink current)
switching frequency 1,200
PNP open-collector transistor
operations/hour
• Maximum source current:
• Mechanical life: 50 million
100 mA
or more switching operations
• Applied voltage:
switching frequency 18,000
30 V DC or less
operations/hour
(between output and V)
• Residual voltage:
2 V or less
(at 100 mA source current)
Output
(
)
(
)
Timer function
Protection
Ambient temperature
20 ms or less (Response
frequency: 25 Hz or more)
1 ms or less (Response
frequency: 500 Hz or more)
NPN open-collector transistor
• Maximum sink current:
100 mA
• Applied voltage:
30 V DC or less
Relay contact 1a
(between output and 0 V)
• Switching capacity:
• Residual voltage:
250 V AC 3 A (resistive load)
1 V or less
30 V DC 3 A (resistive load)
(at 100 mA sink current)
• Electrical life: 100,000 or
0.4 V or less
more switching operations
(at 16 mA sink current)
switching frequency 1,200
PNP open-collector transistor
operations/hour
• Maximum source current:
• Mechanical life: 50 million
100 mA
or more switching operations
• Applied voltage: 30 V DC or less
switching frequency 18,000
(between output and V)
operations/hour
• Residual voltage:
1 V or less
(at 100 mA source current)
0.4 V or less
(at 16 mA source current)
(
)
(
)
20 ms or less (For EQ-50T
2 ms or less (For EQ-51T
depends on the setting timer period) depends on the setting timer period)
Incorporated with variable (0.1 to 5 sec.) ON-delay /
OFF-delay / ONE SHOT timer (type with timer only)
Incorporated with variable (0.1 to 5 sec.) ON-delay /
OFF-delay timer (EQ-50T only)
IP66 (IEC)
IP67 (IEC)
25 to55 C 13 to131 F (No dew condensation
20 to55 C 4 to131 F (No dew condensation
or icing allowed), Storage: 30 to70 C 22 to158 F or icing allowed), Storage: 30 to70 C 22 to158 F
Connection method
Accessory
12 to 24 V DC10 %
Ripple P-P 10 % or less
Switchable either Detection-ON or Detection-OFF
Output operation
Response time
24 to 240 V AC 10 %
or 12 to 240 V DC 10 %
Ripple P-P 10 % or less
Screw-on terminal connection
Sensor mounting bracket: 1 set
Note: (T) indicates types with timer.
Refer to ‘Adjustable range reflective photoelectric sensor EQ-500 series catalog’ for details.
Adjusting screwdriver: 1 pc.
