Micro Chip Fuse
ERB RD, RE, RG type
Features
●Small size
●Fast-acting and withstanding in-rush current characteristics
●RoHS compliant
Approved safety standards
UL248-14 : File No.E194052
c-UL C22.2 No.248-14 : File No.E194052
Explanation of part numbers
1
2
3
4
5
6
7
8
9
10
E
R
B
R
D
1
R
0
0
X
Structure
Product code
Micro chip fuse
R
Rectangular
type
Rated current (A)
Product shape
D
E
G
Packaging methods
0402 inch size
0R25
0.25A
1R40
1.4A
(1.0 mm×0.5 mm)
0R31
0.315A
1R50
1.5A
0603 inch size
0R37
0.375A
2R00
2.0A
(1.6 mm×0.8 mm)
0R50
0.50A
2R50
2.5A
1206 inch size
0R63
0.63A
3R00
3.0A
(3.2 mm×1.6 mm)
0R75
0.75A
3R15
3.15A
1R00
1.0A
4R00
4.0A
1R25
1.25A
5R00
5.0A
Construction
Code
Packaging
Part no.
X
Pressed carrier taping
2 mm pitch, 10,000 pcs

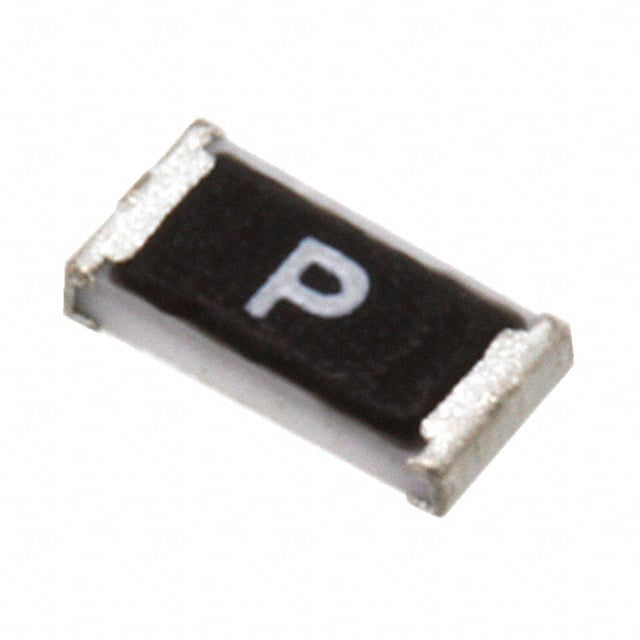

ERBRD
V
Punched carrier taping
4mm pitch, 5,000 pcs
ERBRE
ERBRG
Dimensions in mm (not to scale)
L
a
Protective Coating
W
Electrode (Base)
T
b
Fusing Element
Almina Substrate
Electrode
(Outer)
Part No.
(inch size)
ERBRD
(0402)
ERBRE
(0603)
ERBRG
(1206)
a
b
T
Mass
(Weight)
(g/1000 pcs)
Dimensions (mm)
L
W
1.00±0.10 0.50
+0.10
-0.05
0.15±0.10
025±0.10
0.39±0.10
0.7
1.60±0.15 0.80
+0.15
-0.05
0.24±0.15
0.30±0.15
0.54±0.10
2.2
1.60±0.15
0.30±0.20
0.55±0.20
0.65±0.10
10
3.20±0.20
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
2020/3/1
Micro Chip Fuse
Ratings
●0402 inch /1005 mm size : Type ERBRD
Part No.
Rated current (A)
Marking code
Internal R(mΩ)
at 25 ℃ max.
0R25
0.25
V
0R31
0.315
X
0R37
0.375
Y
0R50
0.5
F
0R63
0.63
6
0R75
0.75
G
700
520
440
310
220
190
ERBRD□R□□X
1R00
1R25
1.0
1.25
H
J
125
1R50
1.5
K
2R00
2.0
N
2R50
2.5
O
3R00
3.0
P
4R00
4.0
S
5R00
5.0
T
70
53
42
37
24
19.5
82
Rated current ×100 % /4 hours min.
Fusing current/
Fusing time (at 25 ℃)
Rated current ×200 % / 5 seconds max.
Rated current ×300 % /0.2 seconds max.
Rated voltage
(Open circuit voltage)
(V)DC
32
Interrupting rating at rated
voltage(A)
35
Category temp. range (℃)
-40 to +125
●0603 inch / 1608 mm size : Type ERBRE
Part No.
ERBRE□R□□V
0R50
0R75
1R00
1R25
1R40
1R50
2R00
2R50
3R00
3R15
4R00
5R00
Rated current (A)
0.5
0.75
1.0
1.25
1.4
1.5
2.0
2.5
3.0
3.15
4.0
5.0
Marking code
F
G
H
J
14
K
N
O
P
31
S
T
Internal R(mΩ)
at 25 ℃ max.
330
190
125
94
85
72
51
40
33
32
22
19
Rated current ×100 % /4 hours min.
Fusing current/
Fusing time (at 25 ℃)
Rated current ×200 % / 5 seconds max.
Rated current ×300 % /0.2 seconds max.
Rated voltage
(Open circuit voltage)
(V)DC
32
Interrupting rating at rated
voltage(A)
50
Category temp. range (℃)
-40 to +125
●1206 inch / 3216 mm size : Type ERBRG
Part No.
Rated current (A)
Marking code
Internal R(mΩ)
at 25 ℃ max.
0R50
0.5
F
0R75
0.75
G
1R00
1.0
H
1R25
1.25
J
560
340
210
175
115
85
2R50
2.5
O
3R00
3.0
P
4R00
4.0
S
65
45
35
Rated current ×100 % /4 hours min.
Fusing current/
Fusing time (at 25 ℃)
Rated voltage
(Open circuit voltage)
(V)DC
ERBRG□R□□V
1R50
2R00
1.5
2.0
K
N
Rated current ×200 % / 5 seconds max.
Rated current ×300 % /0.2 seconds max.
63
32
Interrupting rating at rated
voltage(A)
50
Category temp. range (℃)
-40 to +125
*The thin type is available about 1005 (0402 inch) size. Please contact us for details.
*Please contact us when another rated current is needed.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
2020/3/1
Micro Chip Fuse
10
10
Fusing Time(s)
1
Fusing time (s)
0.5 A
(Type ERBRE)
2.0 A
2.5 A
3.0 A
4.0 A
5.0 A
●0603 inch / 1608 mm size
(Type ERBRD)
0.25 A
0.315 A
0.375 A
0.5 A
0.63 A
0.75 A
1.0 A
1.25 A
1.5 A
●0402 inch / 1005 mm size
0.1
0.01
0.75 A
1.0 A
1.25 A
1.4 A
1.5 A
2.0 A
2.5 A
3.0 A
3.15 A
4.0 A
5.0 A
Fusing characteristics (25 ℃ typical)
1
0.1
0.01
0.001
0.001
0.0001
0.1
*Reference Only
1
Fusing current (A)
10
100
0.0001
0.1
*Reference Only
1
Fusing Current (A)
10
100
Fusing time (s)
2.0 A
2.5 A
3.0 A
4.0 A
10
0.75 A
1.0 A
1.25 A
1.5 A
(Type ERBRG)
0.5 A
●1206 inch / 3216mm size
1
0.1
0.01
0.001
0.0001
0.1
*Reference Only
1
Fusing current (A)
10
100
Perfomance
Test Item
Performance requirements
Test conditions
Resistance
Within specified tolerance
25 ℃
Resistance to oldering heat
±10 %
260 ℃±5 ℃, 10 s
Rapid change of temperature
±10 %
-40 ℃ (30 min.) / + 125 ℃ (30 min.), 5 cycles
Damp heat, Steady state
±10 %
60 ℃, 90 % to 95 %RH, 1000 h (no load)
Load life in humidity
±10 %
60 ℃, 90 % to 95 %RH, Load: 70 % rated current, 1000 h
Endurance at 70 ℃
±10 %
70 ℃, Load: 70 % rated current, 1000 h
Recommended soldering conditions
C
A
B
Part no.
(inch size)
ERBRD
(0402)
ERBRE
(0603)
ERBRG
(1206)
Dimensions (mm)
A
B
C
0.5 to 0.6
1.4 to 1.6
0.4 to 0.6
0.7 to 0.9
2.0 to 2.2
0.8 to 1.0
2.0 to 2.4
4.4 to 5.0
1.2 to 1.8
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
2020/3/1
Micro Chip Fuse
Packaging methods (Taping)
●Standard quantity
Part No.
Size (inch)
Kind of Taping
Pitch (P1)
Quantity
ERBRD
0402
Pressed Carrier Taping
2 mm
10,000 pcs / reel
ERBRE
0603
ERBRG
1206
Punched Carrier Taping
4 mm
5,000 pcs / reel
●Carrier taping
●Taping reel
Punched
carrier
T
T
P1
øD0
P2
P0
øC
øN
B
W
F
E
Pressed
W1
P1 (2mm pitch)
A
Unit : mm
Part no.
A
ERBRD
0.68
ERBRE
1.10
ERBRG
Part no.
ERBRD
ERBRE
ERBRG
2.00
±0.10
±0.10
±015
B
1.20
1.90
3.60
P1
2.00
4.00
W
F
E
±0.10
±0.10
8.00
±0.20
3.50
±0.05
1.75
±020
P2
P0
øD0
2.00
±0.05
4.00
±0.10
1.50
Part no.
ERBRD
ERBRE
ERBRG
øA
0
W2
øN
180.0 -1.5
60
+1.0
0
W1
øC
13.0
±0.2
Unit : mm
9.0
+1.0
0
W2
11.4
±1.0
T
±0.10
±0.10
±0.10
øA
0.67
+0.10
0
0.78
0.84
±0.07
±0.07
±0.07
Recommended soldering conditions
Recommendations and precautions are described below
● Recommended soldering conditions for reflow
・ Reflow soldering shall be performed a maximum of two times.
・ Please contact us for additional information when used in
conditions other than those specified.
・ Please measure the temperature of the terminals and study
every kind of solder and printed circuit board for solderability
before actual use.
For soldering (Example : Sn/Pb)
Temperature
Time
Preheating
140 ℃ to 160 ℃
60 s to 120 s
Main heating
Above 200 ℃
30 s to 40 s
Peak
235 ± 5 ℃
max. 10 s
Peak
For lead-free soldering (Example :Sn/Ag/Cu)
Temperature
Preheating
Heating
Temperature
Time
Preheating
150 ℃ to 180 ℃
60 s to 120 s
Main heating
Above 230 ℃
30 s to 40 s
Peak
max. 260 ℃
max. 10 s
Time
● Recommended soldering conditions for flow
For soldering
Preheating
Soldering
For lead-free soldering
Temperature
Time
Temperature
Time
140 ℃ to 160 ℃
60 s to 120 s
150 ℃ to 180 ℃
60 s to 120 s
20 s to 30 s
max. 260 ℃
max. 10 s
245±5 ℃
《Repair with hand soldering》
● Preheat with a blast of hot air or similar method. Use a soldering iron with a tip temperature of 350 °C or less.
Solder each electrode for 3 seconds or less.
● Never touch this product with the tip of a soldering iron.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
2020/3/1
Guidelines and precautions regarding the
technical information and use of our products
described in this online catalog.
■ If you want to use our products described in this online catalog for applications requiring special
qualities or reliability, or for applications where the failure or malfunction of the products may directly
jeopardize human life or potentially cause personal injury (e.g. aircraft and aerospace equipment,
traffic and transportation equipment, combustion equipment, medical equipment, accident prevention,
anti-crime equipment, and/or safety equipment), it is necessary to verify whether the specifications of
our products fit to such applications. Please ensure that you will ask and check with our inquiry desk
as to whether the specifications of our products fit to such applications use before you use our products.
■ The quality and performance of our products as described in this online catalog only apply to our
products when used in isolation. Therefore, please ensure you evaluate and verify our products under
the specific circumstances in which our products are assembled in your own products and in which our
products will actually be used.
■ If you use our products in equipment that requires a high degree of reliability, regardless of the
application, it is recommended that you set up protection circuits and redundancy circuits in order
to ensure safety of your equipment.
■ The products and product specifications described in this online catalog are subject to change for
improvement without prior notice. Therefore, please be sure to request and confirm the latest product
specifications which explain the specifications of our products in detail, before you finalize the design
of your applications, purchase, or use our products.
■ The technical information in this online catalog provides examples of our products' typical operations
and application circuits. We do not guarantee the non-infringement of third party's intellectual property
rights and we do not grant any license, right, or interest in our intellectual property.
■ If any of our products, product specifications and/or technical information in this online catalog is to
be exported or provided to non-residents, the laws and regulations of the exporting country,
especially with regard to security and export control, shall be observed.
■ The switchover date for compliance with the RoHS Directive/REACH Regulations varies depending
on the part number or series of our products.
■ When you use the inventory of our products for which it is unclear whether those products are
compliant with the RoHS Directive/REACH Regulation, please select "Sales Inquiry" in the website
inquiry form and contact us.
We do not take any responsibility for the use of our products outside the scope of the
specifications, descriptions, guidelines and precautions described in this online catalog.
16-Apr-21
Fuses
Application Guidelines
Precautions on the whole
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written agreement
on the specifications with us in advance. The design and specifications in this catalog are subject to change without
prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check and evaluate
their operations when installed in your products under the actual conditions for use.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment where a
defect in these products may cause the loss of human life or other significant damage, such as damage to vehicles
(automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating appliances,
combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.
✽ Systems equipped with a protection circuit and a protection device.
✽ Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault.
✽ Systems equipped with an arresting the spread of fire or preventing glitch.
1. Precautions for use
• These products are designed and manufactured for general and standard use in general elec tron ic equipment.
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
For applications in which special quality and reliability are required, or if the failure or malfunction of the
products may directly jeopardize life or cause threat of personal injury (such as for aircraft and aerospace
equipment, traffic and transport equipment, combustion equipment, medical equipment, accident prevention
and anti-theft devices, and safety equipment), please be sure to consult with our sales representative in
advance and to exchange product specifications which conform to such applications.
• These products are not intended for use in the following special conditions. Before using the products, carefully
check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent.
2. In direct sunlight, outdoors, or in dust.
3. In salty air or air with a high concentration of corrosive gas, such as Cl2,H2S,NH3,SO2,or NOX .
4. Electric Static Discharge (ESD) Environment.
These components are sensitive to static electricity and can be damaged under static shock (ESD).
Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic and Radioactive Environment.
Avoid any environment where strong electromagnetic waves and radiation exist.
6. In an environment where these products cause dew condensation.
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials.
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range due to
the effects of neighboring heat-generating components. Do not mount or place heat-generating components or
inflammables, such as vinyl-coated wires, near these products.
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the performance
or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the performance or
reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave water residues.
Otherwise, the insulation performance may be deteriorated.
• Do not apply flux to these products after soldering. The activity of flux may be a cause of failures in these
products.
• Refer to the recommended soldering conditions and set the soldering condition. High peak temperature or long
heating time may impair the performance or the reliability of these products.
• Recommended soldering condition is for the guideline for ensuring the basic characteristics of the products,
not for the stable soldering conditions. Conditions for proper soldering should be set up according to individual
conditions.
1-Oct-19
Fuses
• Do not reuse any products after removal from mounting boards.
• Do not drop these products. If these products are dropped, do not use them. Such products may have received
mechanical or electrical damage.
• If any doubt or concern to the safety on these products arise, make sure to inform us immediately and conduct
technical examinations at your side.
2. Precautions for storage
The performance of these products, including the solderability, is guaranteed for a year from the date of arrival
at your company, provided that they remain packed as they were when delivered and stored at a temperature
of 5 °C to 35 °C and a relative humidity of 45 % to 85 %.
The performance of Thermal Cutoffs is guaranteed for a year after our delivery, provided that they are stored
at a temperature of -10 °C to +40 °C and a relative humidity of 30 % to 75 %.
Even within the above guarantee periods, do not store these products in the following conditions.
Otherwise, their electrical performance and/or solderability may be deteriorated, and the packaging materials
(e.g. taping materials) may be deformed or deteriorated, resulting in mounting failures.
1. In salty air or in air with a high concentration of corrosive gas, such as Cl2,H2S,NH3,SO2,or NOX .
2. In direct sunlight.
<Package markings>
Package markings include the product number, quantity, and country of origin.
In principle, the country of origin should be indicated in English.
3. Precaution specific to this product
1. Set the rated current so that the current passing through the Micro Chip Fuses (hereafter called the fuses)
under normal conditions is within 70% of the rated current.
2. Do not continuously pass a current exceeding the rated current through the fuses.
3. If a pulse exceeding the rated current is applied, such as a rush current or surge current at power-on,
take care not to cause unwanted fusing. Calculate the I2t value of the pulse and check the tolerance to the number
of pulses according to the I2t-t characteristic curve before deciding to use the fuses.
Before checking the tolerance, consult our sales staff in advance.
4. The fuses are designed to be blown out by a current that is double or greater than the rated current.
Ensure that the abnormal current generated when a circuit abnormality occurs in your product is at least double
or greater than the rated current of the fuses. In addition, ensure that the abnormal current of your product
does not exceed the maximum interrupting current of the fuses.
5. The fuses are designed to be used on the secondary side of a power supply. Do not use them on the
primary side.
6. Ensure that the voltage applied to the fuses are within their rated voltage.
7. The fusing characteristics of the fuses are affected by the ambient temperature. Before use, mount the fuses
on your products and carefully check and evaluate their category temperature range.
1-Oct-19
