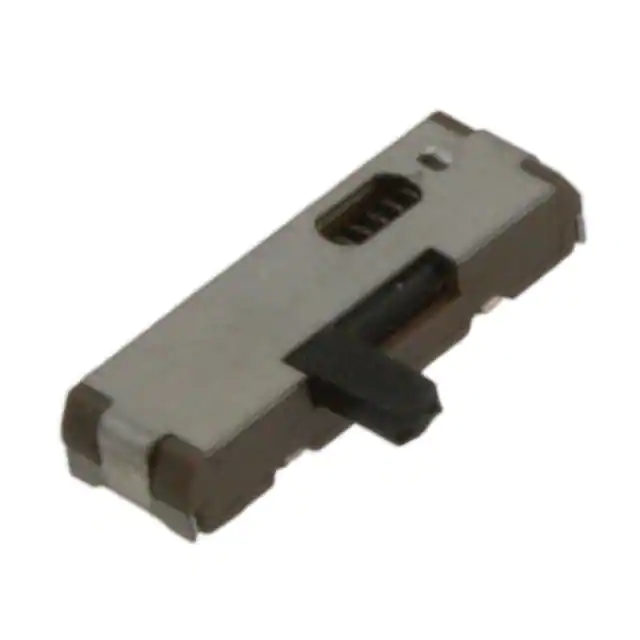

Slide Switches/ESD16 Japan 2 mm Size Slide Switches for Reflow Soldering Type: ESD16 Self-returning, SMD type ■ Features ● Dual application (detent and self-returning type) ● Available for reflow soldering ● Available for automatic mounting ■ Recommended Applications ● Signal switches for cordless telephones ● Power switches for digital still cameras and notebook personal computers ■ Explanation of Part Numbers 1 2 3 4 5 E S D 1 6 Product Code 6 7 8 9 Design No. Type ■ Standard Types and Part Numbers Boss with Boss without Boss Fig.-1 Boss Packaging Style Polyethylene Bag (Bulk) without Boss 2.0 mm 2.5 mm 2.0 mm 2.5 mm with Detent ESD165205 ESD165206 ESD165207 ESD165208 Self-returning (Right) ESD165225 ESD165226 ESD165227 ESD165228 Self-returning (Left) ESD165235 ESD165236 ESD165237 ESD165238 with Detent ESD165255 ESD165256 ESD165257 ESD165258 Self-returning (Right) ESD165275 ESD165276 ESD165277 ESD165278 Self-returning (Left) ESD165285 ESD165286 ESD165287 ESD165288 Type Embossed Taping (Reel Pack) Lever length with Boss Note: With/without Boss, See Fig.-1 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Nov. 2005 Slide Switches/ESD16 ■ Specifications Types Lever Position Rating Travel Mounting Height Poles and Throws Switching Mode Lever Length Minimum Quantity/Packing Unit Quantity/Carton with Detent Self-returning Horizontal 50 µA 3 Vdc to 0.2 A 5 Vdc (Resistive load) 2.0 mm 2.7 mm 2.0 mm 1-pole 2-throws Non-shorting 2.0 mm, 2.5 mm 200 pcs. Polyethylene Bag (Bulk) / 2000 pcs. Embossed Taping (Reel Pack) 4000 pcs. ■ Dimensions in mm (not to scale) No. 1 3.0 0.9 3.5 Part Number Lever length ESD165205 2.0 ESD165206 2.5 0.7 View from terminal side Recommended PWB piercing plan 0 1.30– 0.05 4-1 2-1.3 2.0±0.1 PWB mounting surface L=2.0, 2.5 C0.2 1.15 f0.80– 00.05 0 6.00±0.05 6.0 10.1 10.5 13.4 1.85 1.3 0.5 Operating Force b↔a 1.96 N±0.98 N 2.5 a b 4-1.3 3.0 1.5 3.0 2.0 Travel 0.85 1-pole 2-throws With Detent Circuit diagram 11.0 1.5 3.0 0.4 f0.95+0.05 0 (Hole) Tolerance: ±0.05 0.4 3.0 3.5 1-pole 2-throws Self-returning (Right) Circuit diagram 11.0 1.5 3.0 0.9 No. 2 View from terminal side Return direction 0 1.30– 0.05 3.0 1.5 3.0 ON Travel Full Travel L=2.0, 2.5 2-1.3 PWB mounting surface 2.5 a b 0.85 4-1 2.0±0.1 2.1 2.7 6.00±0.05 1.15 C0.2 f0.80– 00.05 0 6.0 10.1 10.5 13.4 1.85 1.3 0.5 Operating Force b↔a 2.16 N±0.98 N Recommended PWB piercing plan 4-1.3 Part Number Lever length ESD165225 2.0 ESD165226 2.5 f0.95+0.05 0 (Hole) Tolerance: ±0.05 Circuit diagram No. 3 11.0 1.5 3.0 3.5 0.9 0.4 View from terminal side 0.7 Recommended PWB piercing plan 3.0 1.5 3.0 0 1.30– 0.05 ON Travel Full Travel PWB mounting surface 2-1.3 2.5 a L=2.0, 2.5 1.85 1.3 b 4-1 0.85 2.1 2.7 C0.2 6.00±0.05 0 0 f0.80– 0.05 1.15 0.5 Operating Force b↔a 2.16 N±0.98 N Return direction 2.0±0.1 Part Number Lever length ESD165235 2.0 ESD165236 2.5 4-1.3 1-pole 2-throws Self-returning (Left) 3.0 6.0 10.1 10.5 13.4 f0.95+0.05 0 (Hole) Tolerance: ±0.05 ■ Packaging Specifications Standard Reel Dimensions in mm (not to scale) Taping Reel f330.0±2.0 24.4 2.0 Embossed Carrier Taping 24.0±0.3 11.5 1.75±0.10 2.0 f1 P=12.0±0.1 .5 + 0 4.0±0.1 0 .1 2.0±0.1 Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use. Should a safety concern arise regarding this product, please be sure to contact us immediately. Dec. 2005
