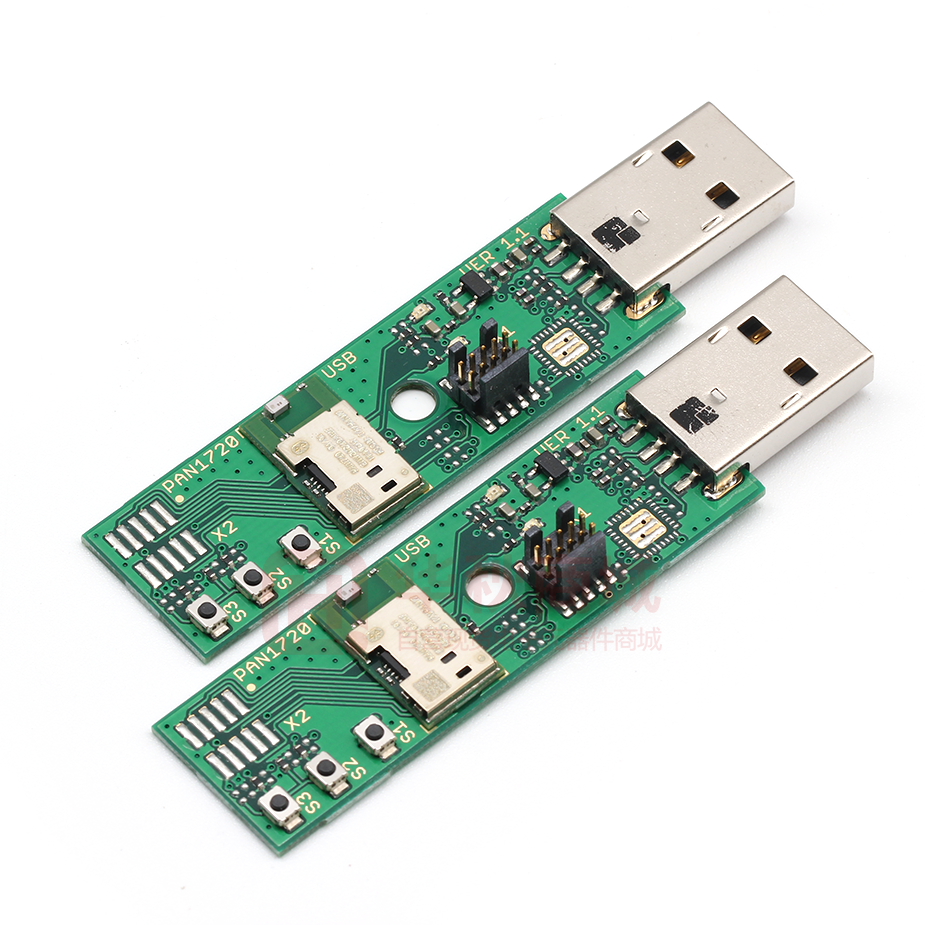

EVAL_PAN1720

CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 1 of 35 DATE 28.01.2013 Specification for Production Applicant / Manufacturer Panasonic Industrial Devices Europe GmbH Hardware Zeppelinstrasse 19 21337 Lüneburg Germany Applicant / Manufacturer Software Please refer to chapter 26 / 26.1 Information regarding Software Versions Software Version Please refer to chapter 26 / 26.1 Information regarding Software Versions Bluetooth QDL ID Qualified Design Listing (QDL) ID: B022941 As Controller Sub-System Listing for PAN17xx Series. By purchase of any of products described in this document the customer accepts the document's validity and declares their agreement and understanding of its contents and recommendations. Panasonic reserves the right to make changes as required without notification. Power Electronics R&D Center Wireless Connectivity Panasonic Industrial Devices Europe GmbH APPROVED genehmigt CHECKED geprüft DESIGNED erstellt CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 2 of 35 DATE 28.01.2013 TABLE OF CONTENTS 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. Scope of this Document .................................................................................................. 4 Difference PAN1720 / PAN1721 ..................................................................................... 4 Difference PAN172x / PAN171x ..................................................................................... 4 Key Features................................................................................................................... 4 Bluetooth Low Energy ..................................................................................................... 6 Applications for the Module............................................................................................. 6 Description for the Module .............................................................................................. 6 Detailed Description ........................................................................................................ 7 8.1. PAN172x Terminal Layout..................................................................................... 7 Bluetooth Features.......................................................................................................... 9 PAN1720 Block Diagram ................................................................................................ 9 PAN17x1 Block Diagram............................................................................................... 10 Test Conditions ............................................................................................................. 11 General Device Requirements and Operation .............................................................. 11 13.1. Absolute Maximum Ratings ................................................................................. 11 13.2. Recommended Operating Conditions.................................................................. 11 13.3. PAN1720 Current Consumption .......................................................................... 12 Bluetooth RF Performance............................................................................................ 13 14.1. PAN1720 Bluetooth Characteristics .................................................................... 13 14.2. PAN1721 Bluetooth Characteristics .................................................................... 13 14.3. PAN172X Spurious Emission .............................................................................. 13 Soldering Temperature-Time Profile (for reflow soldering) ........................................... 14 15.1. For lead solder..................................................................................................... 14 15.2. For leadfree solder............................................................................................... 14 PAN172x Module Dimension ........................................................................................ 15 PAN171x Module Dimension ........................................................................................ 16 PAN172x FootPrint of the Module................................................................................. 17 PAN171x FootPrint of the Module................................................................................. 18 Case Marking ................................................................................................................ 19 20.1. Example for Marking............................................................................................ 19 20.2. Marking Definition ................................................................................................ 19 Mechanical Requirements............................................................................................. 19 Development of Applications......................................................................................... 20 Reliability Tests ............................................................................................................. 20 Cautions ........................................................................................................................ 20 24.1. Design Notes ....................................................................................................... 20 24.2. Installation Notes ................................................................................................. 21 24.3. Usage Conditions Notes ...................................................................................... 21 24.4. Storage Notes...................................................................................................... 22 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT 25. 26. 27. 28. 29. 30. 31. 32. 33. 34. 35. 36. No. DS-17xx-2400-102 REV. 1.7 PAGE 3 of 35 DATE 28.01.2013 24.5. Safety Cautions ................................................................................................... 22 24.6. Other cautions ..................................................................................................... 22 Packaging ..................................................................................................................... 24 25.1. PAN172x Tape Dimension .................................................................................. 24 25.2. PAN171x Tape Dimension .................................................................................. 25 25.3. Packing in Tape ................................................................................................... 26 25.4. Component Direction ........................................................................................... 26 25.5. Reel Dimension ................................................................................................... 27 25.6. Label for Package................................................................................................ 28 25.7. Total Package...................................................................................................... 28 Ordering Information ..................................................................................................... 29 26.1. Information regarding Software Versions ............................................................ 29 RoHS and REACH Declaration..................................................................................... 30 Data Sheet Status ......................................................................................................... 31 History for this Document.............................................................................................. 31 Related Documents....................................................................................................... 31 General Information ...................................................................................................... 32 Regulatory Information.................................................................................................. 32 32.1. FCC Notice .......................................................................................................... 32 32.2. Caution ................................................................................................................ 32 32.3. Labeling Requirements........................................................................................ 33 32.4. Antenna Warning ................................................................................................. 33 32.5. Approved Antenna List ........................................................................................ 33 32.6. RF Exposure PAN172x........................................................................................ 33 Industry Canada Certification........................................................................................ 34 33.1. IC Notice .............................................................................................................. 34 33.2. Labeling Requirements........................................................................................ 34 Bluetooth Certification ................................................................................................... 34 European R&TTE Declaration of Conformity ................................................................ 35 Life Support Policy ........................................................................................................ 35 PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 4 of 35 DATE 28.01.2013 1. SCOPE OF THIS DOCUMENT This product specification applies to Panasonic’s, Class 2, Bluetooth® 1 low energy single mode module, series number: PAN1720 (CC2540 from Texas Instruments) and PAN1721 (CC2541 from Texas Instruments). 2. DIFFERENCE PAN1720 / PAN1721 Both the PAN1720 and PAN1721 are refered to as the PAN172x in this document. The PAN1721 is pin-compatible with the PAN1720, with the exception that USB is the hardware communication interface on the PAN1720 and I2C is the hardware communication interface on the PAN1720. Compared to the PAN1720, the PAN1721 provides lower RF current consumption. The PAN1721 does not have the USB interface found on the PAN1720, and provides lower maximum output power in TX mode. Additional details , which have an impact on the module can be found in the datasheets from Texas Instruments. CC2540 from Texas Instruments CC2541 from Texas Instruments Both ICs the CC2540 as well as the CC2541 come with an internal 256 KB flash memory. 3. DIFFERENCE PAN172X / PAN171X The PAN171x are the non antenna version where the PAN172x are the versions with antenna. 4. KEY FEATURES • • • • • • • • • • • • • • 1 Bluetooth Low Energy Single Mode 4.0 Surface mount type 15.6 x 8.7 x 1.8 mm³ Up to 4.0 dBm Tx power (typical) with transmit power control CC2541 has typically 0dBm Tx power High sensitivity (-94 dBm typ.) Texas Instrument’s CC2540/CC2541 Single Chip BLE Solution inside High performance low power 8051 Microcontroller core No external components needed Fast Connection Setup Internal crystal oscillator (26MHz) Internal 32khz crystal oscillator for Sleep Timer Two powerful USARTs USB or I2C interface Powerful five channel DMA Bluetooth is a registered trademark of the Bluetooth Special Interest Group. PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT • • • No. DS-17xx-2400-102 REV. 1.7 PAGE 5 of 35 DATE 28.01.2013 Latest Profiles included e.g. Battery Monitor and Temperature sensor Integrated shielding to resist EMI Manufactured in conformance with RoHS PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 6 of 35 DATE 28.01.2013 5. BLUETOOTH LOW ENERGY Bluetooth Low Energy (BLE), part of Bluetooth Ver. 4.0, specifies two types of implementation: Single mode and dual mode. Single mode devices implement the low energy specification and consume just a fraction of the power of classic Bluetooth, allowing the short-range wireless standard to extend to coin cell battery applications for the first time. Dual mode devices combine low energy with the power of classic Bluetooth and are likely to become a de facto feature in almost all new Bluetooth enabled cellular phones and computers. Single mode Bluetooth 4.0 Low Energy is not backwards compatible with previous Bluetooth standards. Dual mode Bluetooth 4.0 Low Energy is backwards compatible and well suited for gateway applications, but is not practical for low power devices. 6. APPLICATIONS FOR THE MODULE All Embedded Wireless Applications • • • • • • Access Points Industrial Control Medical Scanners Wireless Sensors Low Power • • • • • • Proximity Smart Phone Access Points Temperature Wellness Sports 7. DESCRIPTION FOR THE MODULE The PAN172x is a short-range, Class 2, BLE single mode module for implementing Bluetooth functionality into various electronic devices. A block diagram can be found in chapter 10. The PAN172x is a cost-effective, low-power, true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The PAN172x combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, insystem programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The PAN172x is suitable for systems where very low power consumption is required. Very lowpower sleep modes are available. Short transition times between operating modes further enable low power consumption. Panasonic offers Bluetooth low energy protocol stacks and applications from Texas Instruments and BlueRadios. The Bluetooth low energy protocol stack from Texas Instruments, is a flexible and costeffective single-mode Bluetooth low energy solution. The BlueRadios stack enables rapid and low cost development using an AT command set without the need for a complier. Additional advantages include UART programming, over-the-air-updates, easy integration “C” library framework, serial streaming of data, and smart phone libraries and applications. PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 7 of 35 DATE 28.01.2013 Refer to [1] PAN172xETU Design-Guide and chapter 26 Ordering Information. Please contact your local sales office for further details on additional options and services: www.panasonic.com/rfmodules for the US, http://industrial.panasonic.com/eu/i/29606/wireless_modules/wireless_modules.html for EU or write an e-mail to wireless@eu.panasonic.com. 8. DETAILED DESCRIPTION 8.1. PAN172X TERMINAL LAYOUT PAN17x1 I2C pins are marked with a blue circle. PAN171x antenna pin is marked with a blue circle. 8.70 mm 1.35 1.2 1.35 Top View, Application PCB PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 PAGE 8 of 35 DATE 28.01.2013 No Pin Name Pin Type Description A1 A2 A3 A4 A5 A6 A7 A8 A9 A11 A12 B1 B2 B3 B4 B5 B6 B7 B8 B9 C1 C2 C3 C4 C5 C6 C7 C8 C9 D1 D2 D3 D4 D5 D6 D7 D8 D9 E1 E2 E3 E4 E5 E6 E7 E8 E9 F1 F2 F3 F4 F5 F6 F7 F8 F9 F11 F12 GND P1.0 Reset VCC VCC VCC GND NC GND GND GND P1.3 P1.2 P1.1 P0.6 NC P0.1 P0.0 NC NC NC P1.4 P1.5 P0.7 NC NC NC GND GND DVDD_USB USB_N USB_P NC NC NC GND GND NC/RF P2.1/DD P2.2/DC DGND_USB NC NC P0.2/RX/MISO NC GND GND GND P1.6 P1.7 P2.0 P0.4/CTS/CS NC P0.3/TX/MOSI P0.5/RTS/CLK GND GND GND Ground Pin Digital I/O Digital Input Power Power Power Ground Pin Connect to Ground Port 1.0 – 20mA drive capability Reset, active-low 2V – 3.6V analog/digital power supply connection 2V – 3.6V analog/digital power supply connection 2V – 3.6V analog/digital power supply connection Connect to Ground Not Connected Connect to Ground Connect to Ground Connect to Ground Port 1.3 Port 1.2 Port 1.1 – 20mA drive capability Port 0.6 Not Connected Port 0.1 Port 0.0 Not Connected Not Connected Not Connected Port 1.4 / BR-SW UART CTS Port 1.5 / BR-SW UART RTS Port 0.7 Not Connected Not Connected Not Connected Connect to Ground Connect to Ground 2V – 3.6V digital power supply connection USB N / PAN17x1 I2C SDA // Leave floating if not used. USB P / PAN17x1 I2C SCL // Leave floating if not used. Not Connected Not Connected Not Connected Connect to Ground Connect to Ground PAN172x Not Connected/RF_Out PAN171x Port 2.1 / Programming Interface DD Port 2.2 / Programming Interface DC Connect to Ground Not Connected Not Connected Port 0.2 / TI-SW UART RX / SPI MISO Not Connected Connect to Ground Connect to Ground Connect to Ground Port 1.6 / BR-SW UART TX Port 1.7 / BR-SW UART RX Port 2.0 Port 0.4 / TI-SW UART CTS / SPI CS Not Connected Port 0.3 / TI-SW UART TX /SPI MOSI Port 0.5 / TI-SW UART RTS /SPI CLK Connect to Ground Connect to Ground Connect to Ground Ground Pin Ground Pin Ground Pin Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Ground Pin Ground Pin Power (digital) Digital I/O Digital I/O Ground Pin Ground Pin Digital I/O Digital I/O Ground Pin Digital I/O Ground Pin Ground Pin Ground Pin Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Ground Pin Ground Pin Ground Pin PANASONIC INDUSTRIAL DEVICES EUROPE GMBH REV. 1.7 www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 9 of 35 DATE 28.01.2013 9. BLUETOOTH FEATURES • • • • • • Bluetooth 4.0 single mode low energy technology. Class 2 TX power w/o external PA, improving link robustness. Excellent link budget (up to 96 dB), enabling long-range applications. Accurate digital received signal-strength indicator (RSSI) Integrates the new low power profiles and services Embedded BT-Stack available 10. PAN1720 BLOCK DIAGRAM Crystal 32.768kHz Vsupply ADC/PWM/Timer UART/SPI/USB CC2540 BT-LE from TI Filter Crystal 26 MHz Block Diagram of PAN17x1 is similar, but has I2C interface instead of USB. Refer to the next page as well as to chapter 8.1 PAN172x Terminal Layout. PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT No. DS-17xx-2400-102 REV. 1.7 PAGE 10 of 35 DATE 28.01.2013 11. PAN17X1 BLOCK DIAGRAM PANASONIC INDUSTRIAL DEVICES EUROPE GMBH www.pideu.panasonic.de CLASSIFICATION No. DS-17xx-2400-102 PRODUCT SPECIFICATION CLASS 2 BLUETOOTH LOW ENERGY SINGLE MODE MODULE CUSTOMER’S CODE PANASONIC’S CODE ENW89820AxKF / ENW89835AxKF PAN172x / PAN171x SUBJECT REV. 1.7 PAGE 11 of 35 DATE 28.01.2013 12. TEST CONDITIONS Measurements shall be made under operating free-air temperature range unless otherwise specified. Temperature Humidity Supply Voltage 25 ± 10°C 40 to 85%RH 3.3V 13. GENERAL DEVICE REQUIREMENTS AND OPERATION All specifications are over temperature and process, unless indicated otherwise. 13.1. ABSOLUTE MAXIMUM RATINGS No See 2 Value Unit –0.3 to 3.9 V V Ratings Over Operating Free-Air Temperature Range 1 Supply voltage All supply pins must have the same voltage 2 Voltage on any digital pin –0.3 to VDD+0.3
