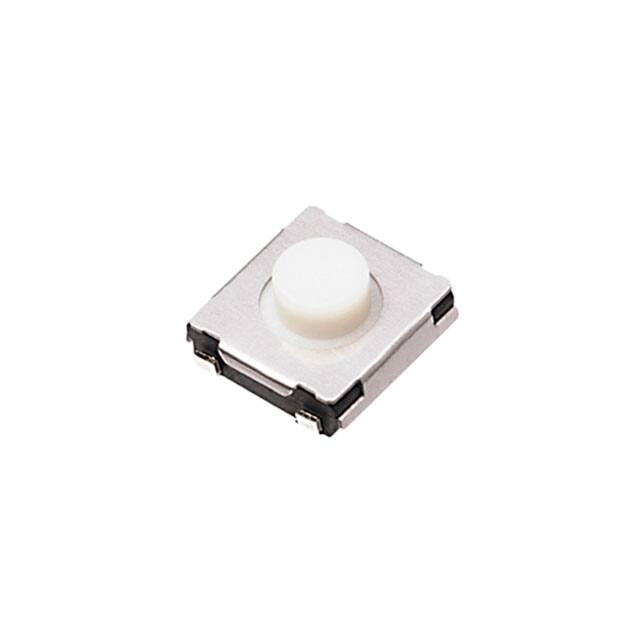

Light Touch Switches/EVQP0/Q2/6Q2/7Q2
6 mm Square Thin Type SMD
Light Touch Switches
Type:
EVQP0
EVQQ2
EVQ6Q2
EVQ7Q2
■ Features
● External dimensions : 6.5 mm× 6.0 mm, Height 1.8 mm
(Excluding the push plate)
● With or without ground terminal, height, operating force
● Overstroke travel
■ Recommended Applications
● Operating switches for other electronic equipment
● Operation switches for PC mouse
● Car audio systems
● Game
■ Explanation of Part Numbers
1
2
3
4
P
Q
6
Product Code
5
6
7
8
9
0/2
Q
7
Type Operating Force
Ground Terminal
Product Height
Push Plate Color
■ Specifications
Travel Type
Type
Electrical
Short Push Travel
Overstroke Travel
Snap action/Push-on type SPST
10 μA 2 V DC to 20 mA 15 V DC (Resistive load)
100 mΩ max.
100 MΩ min. (at 100 V DC)
250 V AC for 1 minute
10 ms max. (ON, OFF)
0.5 N, 0.8 N,1.0 N, 1.3 N,
0.6 N, 1.0 N
1.6 N, 2.6 N, 3.5 N
Rating
Contact Resistance
Insulation Resistance
Dielectric Withstanding Voltage
Bouncing
Operating Force
Mechanical
Travel
Endurance
Operating Life
Operating Temperature
Storage Temperature
Minimum Quantity/Packing Unit
Quantity/Carton
0.5 N, 0.8 N, 1.0 N
0.2mm
0.30 mm
1.3 N, 1.6 N, 2.6 N, 3.5 N 0.25mm
0.5 N, 0.8 N : 2,000,000 cycles min.
1.0 N, 1.3 N, 1.6 N : 1,000,000 cycles min.
0.6 N : 2,000,000 cycles min.
2.6 N : 200,000 cycles min.
1.0 N : 1,000,000 cycles min.
3.5 N : 100,000 cycles min.
–40 °C to +85 °C
–40 °C to +85 °C (Bulk)
–20 °C to +60 °C (Taping)
H=2.0 mm
4,000 pcs. Embossed Taping (Reel Pack)
H=2.5 mm, 3.1 mm
2,000 pcs. Embossed Taping (Reel Pack)
H=2.0 mm
20,000 pcs.
H=2.5 mm, 3.1 mm 10,000 pcs.
Note: Non washable
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
2018.11
industrial.panasonic.com/ac/e/
–1–
Panasonic Corporation 2018
ANCTB12E 201811-Fd
Light Touch Switches/EVQP0/Q2/6Q2/7Q2
■ Dimensions in mm (not to scale)
No. 1
EVQP0
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
Overstroke travel
With J-bent terminals
Without
Ground Terminal
φ3
6.5
B'
A
A'
0.8
4.0
6.0
B
(6.6)
B
B'
A
A'
4.0
(0.8)
1 min.
1.8
H
φ2
(3.2)
Circuit Diagram
Part Numbers
(3.6)
(3.2)
PWB land pattern for reference
Operating Force
H=Height
Push Plate Color Ground Terminal
Operating Life
EVQP0N02B
0.6 N
2.5 mm
Blue
Without
2,000,000 cycles
EVQP0Q02Q
1.0 N
2.5 mm
Gray
Without
1,000,000 cycles
No. 2
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
EVQP0
Overstroke travel
With J-bent terminals
With
Ground Terminal
(5.1)
(4.4)
(3.9)
6.5
Ⓐ
B
B'
(3.6)
0.8
4.0
6.0
φ3
A'
A
Operating
part
φ2
0.05±0.1
Ⓑ
Ground terminal
1 min.
3.3
(6.6)
(0.8)
1.8
H
The shape of the mounting base is
either Ⓐ or Ⓑ.
1 min.
B'
A
A'
1 min.
4.0
B
(3.3)
Circuit Diagram
(3.2)
(3.6)
(3.2)
PWB land pattern for reference
Part Numbers
Operating Force
H=Height
Push Plate Color Ground Terminal
Operating Life
EVQP0P02B
0.6 N
2.5 mm
Blue
With
2,000,000 cycles
EVQP0S02Q
1.0 N
2.5 mm
Gray
With
1,000,000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
–2–
Panasonic Corporation 2018
ANCTB12E 201811-Fd
Light Touch Switches/EVQP0/Q2/6Q2/7Q2
■ Dimensions in mm (not to scale)
No. 3
EVQQ2/6Q2
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
6.5
φ3.8
B
B'
A
A'
0.8
4.0
6.0
Short travel
With J-bent terminals
Without
Ground Terminal
B
B'
A
A'
1 min.
H
4.0
(6.6)
(0.8)
1.8
φ3
(3.2)
Circuit Diagram
Part Numbers
EVQQ2B01W
EVQQ2B02W
EVQQ2B03W
EVQ6Q201W
EVQ6Q202W
EVQ6Q203W
EVQQ2F01W
EVQQ2F02W
EVQQ2F03W
EVQQ2K01W
EVQQ2K02W
EVQQ2K03W
EVQQ2P01W
EVQQ2P02W
EVQQ2P03W
EVQQ2U01W
EVQQ2U02W
EVQQ2U03W
EVQQ2Y01W
EVQQ2Y02W
EVQQ2Y03W
Operating Force
0.5 N
0.5 N
0.5 N
0.8 N
0.8 N
0.8 N
1.0 N
1.0 N
1.0 N
1.3 N
1.3 N
1.3 N
1.6 N
1.6 N
1.6 N
2.6 N
2.6 N
2.6 N
3.5 N
3.5 N
3.5 N
(3.6)
(3.2)
PWB land pattern for reference
H=Height
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
Push Plate Color Ground Terminal
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
White
Without
Operating Life
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
200,000 cycles
200,000 cycles
200,000 cycles
100,000 cycles
100,000 cycles
100,000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
–3–
Panasonic Corporation 2018
ANCTB12E 201811-Fd
Light Touch Switches/EVQP0/Q2/6Q2/7Q2
■ Dimensions in mm (not to scale)
No. 4
(General dimension tolerance : ± 0.2)
( )dimensions are reference dimensions.
EVQQ2/7Q2
Short travel
With J-bent terminals
With
Ground Terminal
(5.1)
(4.4)
(3.9)
6.5
φ3.8
Ⓐ
B
(3.6)
0.8
4.0
6.0
B'
A'
A
Operating
part
φ3
0.05±0.1
Ⓑ
Ground terminal
1 min.
3.3
(6.6)
(0.8)
1.8
H
The shape of the mounting base is
either Ⓐ or Ⓑ.
1 min.
B'
A
A'
Circuit Diagram
1 min.
4.0
B
(3.3)
(3.2)
(3.6)
(3.2)
PWB land pattern for reference
Part Numbers
EVQQ2D01W
EVQQ2D02W
EVQQ2D03W
EVQ7Q201W
EVQ7Q202W
EVQ7Q203W
EVQQ2H01W
EVQQ2H02W
EVQQ2H03W
EVQQ2M01W
EVQQ2M02W
EVQQ2M03W
EVQQ2S01W
EVQQ2S02W
EVQQ2S03W
EVQQ2W01W
EVQQ2W02W
EVQQ2W03W
EVQQ2201W
EVQQ2202W
EVQQ2203W
Operating Force
0.5 N
0.5 N
0.5 N
0.8 N
0.8 N
0.8 N
1.0 N
1.0 N
1.0 N
1.3 N
1.3 N
1.3 N
1.6 N
1.6 N
1.6 N
2.6 N
2.6 N
2.6 N
3.5 N
3.5 N
3.5 N
H=Height
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
2.0 mm
2.5 mm
3.1 mm
Push Plate Color Ground Terminal
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
With
White
Operating Life
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
1,000,000 cycles
200,000 cycles
200,000 cycles
200,000 cycles
100,000 cycles
100,000 cycles
100,000 cycles
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
–4–
Panasonic Corporation 2018
ANCTB12E 201811-Fd
Light Touch Switches/EVQP0/Q2/6Q2/7Q2
■ Recommended Reflow Soldering Conditions
● Embossed Carrier Taping
Fan or Normal Temp.
Tape width=12.0 mm
230
180
Feeding hole
t1
φD0
Chip pocket
P2 P0
E
150
F
W
A
B
Operation Top (°C)
MAX.
260
t2
(Normal Temp.)
90±30
40±10
P1
Chip component
Tape running direction
Taping condition : Lack of products in the middle of taping should be
one MAX, but total quantity specified in the
specifications should be secured.
Peeling off strength of top tape : It should be within 0.2N to 1. ON at
165 degree in peeling off angle.
Joint of carrier tape : One joint per one reel may exist.
Soldering Time (s)
Unit: mm
Part No.
Height
EVQQ2
EVQ6Q2
EVQ7Q2
2.0
2.5/3.1
EVQP0
2.5
A
B
W
6.7±0.2
7.4±0.2
12.0±0.3
F
E
P2
P0
D0 Dia
2.0±0.1
4.0±0.1
1.5+0.1
‒0
t1
t2
2.2±0.2
5.5±0.1 1.75±0.10 8.0±0.1
0.30±0.05 3.2±0.2
2.8±0.2
■ Recommended Shape of Test Pole
2 mm Type
P1
■ Recommended Operating Conditions
2.5 mm, 3.1 mm Type
0.3 mm max.
φ3 +0
–0.5
φ4 +0.5
–0
Test pole
Leaning angle range
90 °±4 °
(vertical direction)
Switch
R0.1 mm±0.05 mm
R0.1 mm±0.05 mm
Mounting surface
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
–5–
Panasonic Corporation 2018
ANCTB12E 201811-Fd
Guidelines and cautions for using the product technical information and
the products displayed on this material
ƪThe products described on this material were designed and manufactured for standard applications such as
general electronics devices, office equipment, data and communications equipment, measuring instruments,
household appliances and audio-video equipment. For special applications in which quality and reliability are
required, or if the failure or malfunction of the products may directly jeopardize life or cause threat of personal
injury (such as for aircraft and aerospace equipment, traffic and transport equipment, combustion equipment,
medical equipment, accident prevention and anti-theft devices, and safety equipment), please use only after
your company has sufficiently tasted our products' suitability for that application.
ƪWhen using our products in equipment that requires a high degree of reliability, regardless of the application,
it is recommended that you use protection circuits and redundancy circuits for equipment safety and test for
safety.
ƪThe products and product specifications described on this material are subject to change for improvement
without prior notice. Therefore, be sure to request and confirm in advance the most current specifications,
which explain the specifications in detail, before the final stage of your design, purchasing or use for any
application.
ƪThe technical information on this material provides examples of the products' typical operations and
application circuits. It is not intended to guarantee the non-infringement of or grant license for intellectual
property rights of this company or any third party.
ƪPermission must be obtained from the Japanese government if products, products specifications and technical
information on this material that are subject to the "Foreign Exchange and Foreign Trade Law" are to be
exported or taken out of Japan.
ƪThe information contained on this material may not be reprinted or reproduced whether wholly or in part,
without the prior written permission of Panasonic Corporation.
Safety Precautions
When using our products, no matter what sort of equipment they might be used for, be sure to
confirm the applications and environmental conditions with our specifications in advance.
Please contact ..........
Electromechanical Control Business Division
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
industrial.panasonic.com/ac/e/
©Panasonic Corporation 2018
ANCTB12E-2 201811-Fd
Specifications are subject to change without notice.
