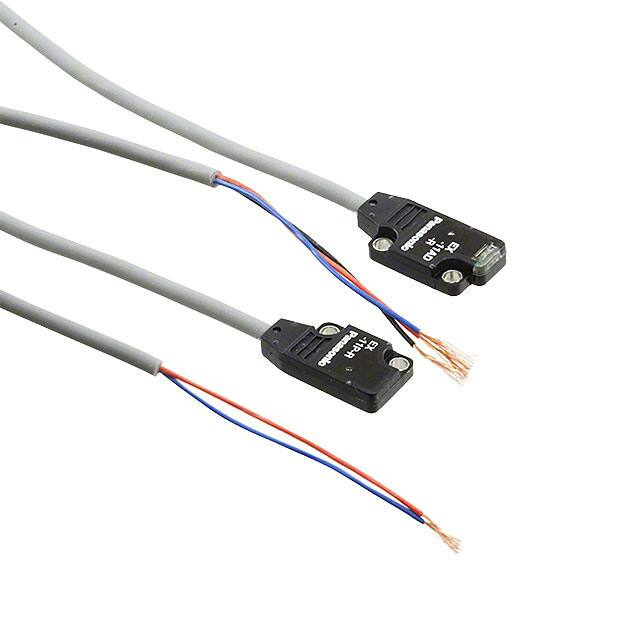

EX-10 SERIES Ultra-slim Photoelectric Sensor Amplifier Built-in Amplifier built-in extraordinarily small and slim size Conforming to EMC Directive (Excluding EX-15/17) UL Recognition (Excluding 5 m cable length type) Smallest body, just 3.5 mm 0.138 in thick High-speed response time: 0.5 ms Flexible mounting It can be mounted in a very small space as its size is just W10
H14.5
D3.5 mm W0.394
H0.571
D0.138 in (thrubeam, front sensing type). The sensor is suitable for detecting small and high-speed traveling objects. The diffuse reflective type sensor is front sensing and is so thin that it gives an impression of being just pasted on the mounting base. The thru-beam type is available as front sensing type, as well as, side sensing type, allowing flexible mounting. Diffuse reflective • Front sensing type Thru-beam • Front sensing type • Side sensing type Bright 2-color indicator Waterproof Operation mode switch A convenient 2-color indicator has been incorporated in the miniature body. The sensor can be hosed down because of its IP67 construction and the non-corrosive stainless steel mounting bracket. Thru-beam type sensor incorporated with an operation mode switch on the bifurcation is also available. It helps you to test the operability before startup. 2-color indicator Red: Operation indicator Green: Stability indicator ( ) Note: However, take care that if it is exposed to water splashes during operation, it may detect a water drop itself. Operation mode switch Ten times durable Red beam makes beam alignment easy Flexible cable on EX-10-R is 10 times as durable as conventional model. It is most suitable for moving parts, such as robot arm, etc. The red LED beam projected from the emitter helps you to align the sensor heads. 226 08/2005 Operation indicator (Orange) SENS. EX -17 Even for the thru-beam type sensor, only three wires have to be connected. EX-10 APPLICATIONS Verifying position of PCBs Detecting ICs Detecting PCB rack EX-19 Transparent stick IC EX-14 Detecting wafer cassette EX-15 Detecting thin ring Checking for absence of capacitor in tray EX-14 EX-13E Guide EX-14 Mountable with M3 screws Minimum sensing object: "1 mm "0.039 in Long sensing range: 1 m 3.281 ft (EX-19) Non-corrosive stainless steel type mounting bracket is also available. EX-11, EX-11E, EX-15 and EX-15E are incorporated with "1 mm "0.039 in slit masks so that "1 mm "0.039 in, or more, object can be detected. Hence, they are suitable for precise positioning or small parts detection. A sensing range of 1 m 3.281 ft has been realized with a slim size of just 3.5 mm 0.138 in. It can be used to detect even wide IC trays. • MS-EX10-1 [Cold rolled carbon steel (SPCC)] and MS-EX10-11 [Stainless steel (SUS304)] (mounting bracket for the front sensing type) 1m 3.281 ft M3 screws • MS-EX10-2 [Cold rolled carbon steel (SPCC)] and MS-EX10-12 [Stainless steel (SUS304)] (mounting bracket for the side sensing type) Background suppression (EX-14) • Not affected by background Even a specular background separated by 100 mm 3.937 in, or more, is not detected. However, the background should be directly opposite. ( M3 screws ) • MS-EX10-3 [Cold rolled carbon steel (SPCC)] and MS-EX10-13 [Stainless steel (SUS304)] (L-shaped mounting bracket) M3 screws • Black object reliably detected It can reliably detect dark color objects since it is convergent reflective type. The best distance is approx. 10 mm 0.394 in from the object. Background 100 mm 3.937 in 08/2005 227 EX-10 ORDER GUIDE Type Appearance Sensing range Model No. EX-11A Light-ON EX-11B Dark-ON EX-13A Light-ON EX-13B Dark-ON 1 m EX-19A 3.281 ft EX-19B Light-ON 500 mm 19.685 in With operation mode switch on the bifurcation Thru-beam EX-15 150 mm 5.906 in 500 mm 19.685 in Convergent reflective (Diffused beam type) 500 mm 19.685 in With operation mode switch on the bifurcation Side sensing 150 mm 5.906 in Front sensing NPN output Front sensing 150 mm 5.906 in Front sensing Front sensing Side sensing Thru-beam Convergent reflective (Diffused beam type) EX-17 500 mm 19.685 in Switchable either Light-ON or Dark-ON Light-ON EX-11EB Dark-ON EX-13EA Light-ON EX-13EB Dark-ON EX-17E Output Dark-ON EX-11EA EX-15E 150 mm 5.906 in NPN open-collector transistor Switchable either Light-ON or Dark-ON EX-14A Light-ON (Convergent point: 10 mm 0.394 in) EX-14B Dark-ON 2 to 25 mm 0.079 to 0.984 in (Note) EX-11A-PN Light-ON EX-11B-PN Dark-ON EX-13A-PN Light-ON EX-13B-PN Dark-ON 1m EX-19A-PN 3.281 in EX-19B-PN Light-ON 150 mm 5.906 in PNP output Output operation 500 mm 19.685 in Dark-ON EX-11EA-PN Light-ON EX-11EB-PN Dark-ON EX-13EA-PN Light-ON EX-13EB-PN Dark-ON EX-14A-PN Light-ON (Convergent point: 10 mm 0.394 in) EX-14B-PN Dark-ON 150 mm 5.906 in 500 mm 19.685 in PNP open-collector transistor 2 to 25 mm 0.079 to 0.984 in (Note) NOTE: Mounting bracket is not supplied with the sensor. Please select from the range of optional sensor mounting brackets (six types). Note: The sensor does not detect even a specular background if it is separated by 100 mm 3.937 in or more. (However, the background should be directly opposite.) 228 08/2005 EX-10 ORDER GUIDE Flexible cable type and 5 m 16.404 ft cable length type Flexible cable type and 5 m 16.404 ft cable length type (standard: 2 m 6.562 ft) are also available. • Table of model Nos. Type Standard Front sensing Thru-beam With operation mode switch on the bifurcation Side sensing With operation mode switch on the bifurcation Convergent reflective Front sensing (Diffused beam type) Flexible cable (2 m 6.562 ft) type 5 m 16.404 ft cable length type EX-11A EX-11A-R EX-11A-C5 EX-11B EX-11B-R EX-11B-C5 EX-13A EX-13A-R EX-13A-C5 EX-13B EX-13B-R EX-13B-C5 EX-19A EX-19A-R EX-19A-C5 EX-19B EX-19B-R EX-19B-C5 EX-15 EX-15-C5 EX-17 EX-17-C5 EX-11EA EX-11EA-R EX-11EA-C5 EX-11EB EX-11EB-R EX-11EB-C5 EX-13EA EX-13EA-R EX-13EA-C5 EX-13EB EX-13EB-R EX-13EB-C5 EX-15E EX-15E-C5 EX-17E EX-17E-C5 EX-14A EX-14A-R EX-14A-C5 EX-14B EX-14B-R EX-14B-C5 08/2005 229 EX-10 OPTIONS Sensor mounting bracket Designation Sensor mounting bracket Model No. Description MS-EX10-1 Mounting bracket for the front sensing type sensor [Cold rolled carbon steel (SPCC)] (The thru-beam type sensor needs two brackets.) MS-EX10-2 Mounting bracket for the side sensing type sensor [Cold rolled carbon steel (SPCC)] (The thru-beam type sensor needs two brackets.) MS-EX10-3 L-shaped mounting bracket sensor [Cold rolled carbon steel (SPCC)] (The thru-beam type sensor needs two brackets.) MS-EX10-11 Mounting bracket for the front sensing type sensor [Stainless steel (SUS304)] (The thru-beam type sensor needs two brackets.) MS-EX10-12 Mounting bracket for the side sensing type sensor [Stainless steel (SUS304)] (The thru-beam type sensor needs two brackets.) MS-EX10-13 L-shaped mounting bracket [Stainless steel (SUS304)] (The thru-beam type sensor needs two brackets.) Slit on one side  Sensing range: 600 mm 23.622 in [EX-19] 250 mm 9.843 in [EX-13, EX-17]  Min. sensing object: "2 mm "0.079 in Slit on both sides  Sensing range: 400 mm 15.748 in [EX-19] 200 mm 7.874 in [EX-13, EX-17]  Min. sensing object: "1.2 mm "0.047 in Slit on one side  Sensing range: 800 mm 31.496 in [EX-19] 350 mm 13.780 in [EX-13]  Min. sensing object: "2 mm "0.079 in Slit on both sides  Sensing range: 500 mm 19.685 in [EX-19] 300 mm 11.811 in [EX-13]  Min. sensing object: "1.5 mm "0.059 in Slit on one side  Sensing range: 250 mm 9.843 in [EX-13E, EX-17E]  Min. sensing object: "2 mm "0.079 in Slit on both sides  Sensing range: 200 mm 7.874 in [EX-13E, EX-17E]  Min. sensing object: "1.2 mm "0.047 in OS-EX10-12 (Slit size "1.2 mm "0.047 in) Slit mask OS-EX10-15 (Slit size "1.5 mm "0.059 in) OS-EX10E-12 (Slit size "1.2 mm "0.047 in) Sensor checker (Note) CHX-SC2 It is useful for beam alignment of thru-beam type sensors. The optimum receiver position is given by indicators, as well as an audio signal. Mounting screw MS-M2 Mounting screws with washers (50 pcs. lot). It can mount securely as it is spring washer attached. • MS-EX10-1 • MS-EX10-11 Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated) Two M2 (length 4 mm 0.157 in) pan head screws are attached. • MS-EX10-2 Material: Stainless steel (SUS304) Two M2 (length 4 mm 0.157 in) pan head screws [stainless steel (SUS304)] are attached. • MS-EX10-12 Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated) Two M2 (length 8 mm 0.315 in) pan head screws are attached. • MS-EX10-3 Material: Stainless steel (SUS304) Two M2 (length 8 mm 0.315 in) pan head screws [stainless steel (SUS304)] are attached. • MS-EX10-13 Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated) Two M2 (length 4 mm 0.157 in) pan head screws, and two M2 (length 8 mm 0.315 in) pan head screws are attached. Material: Stainless steel (SUS304) Two M2 (length 4 mm 0.157 in) pan head screws [stainless steel (SUS304)] and two M2 (length 8 mm 0.315 in) pan head screws [stainless steel (SUS304)] are attached. Slit mask • OS-EX10-12 • OS-EX10-15 • OS-EX10E-12 Example of mounting (OS-EX10E-12) Tighten along with the sensor mounting bracket. Sensor checker • CHX-SC2 PO W ER C H LE VE L Sensor checker 230 08/2005 X- SC 2 EX-10 SPECIFICATIONS Convergent reflective (Diffused beam type) Thru-beam • with operation mode switch on bifurcation Thru-beam Type Item Front sensing Side sensing Front sensing Side sensing Front sensing Front sensing Front sensing Side sensing Front sensing Side sensing Model Light-ON EX-11A(-PN) EX-11EA(-PN) EX-13A(-PN) EX-13EA(-PN) EX-19A(-PN) EX-14A(-PN) EX-15 EX-15E EX-17 EX-17E No. (Note 1) Dark-ON EX-11B(-PN) EX-11EB(-PN) EX-13B(-PN) EX-13EB(-PN) EX-19B(-PN) EX-14B(-PN) (Note 2) (Note 2) (Note 2) (Note 2) Sensing range Min. sensing object Hysteresis Repeatability (perpendicular to sensing axis) 2 to 25 mm 0.079 to 150 mm 5.906 in 500 mm 19.685 in 1 m 3.281 ft 0.984 in (Note 3) (Conv.point:10 mm 0.394 in) "2 mm "0.079 in "1 mm "0.039 in opaque object "2 mm "0.079 in opaque object "0.1 mm "0.004 in "1 mm "0.039 in opaque object "2 mm "0.079 in opaque object opaque object Setting distance between Setting distance between copper wire Setting distance between Setting distance between Setting distance between Setting distance: emitter and receiver: emitter and receiver: emitter and receiver: emitter and receiver: emitter and receiver: 10 mm 0.394 in 150 mm 5.906 in 500 mm 19.685 in 150 mm 5.906 in 500 mm 19.685 in 1 m 3.281 ft 15 % or less of operation distance 150 mm 5.906 in ( 500 mm 19.685 in )( )( ) ( )( 0.1 mm 0.004 in or less 0.05 mm 0.002 in or less ) 0.05 mm 0.002 in or less 12 to 24 V DC10 % Ripple P-P 10 % or less Supply voltage Current consumption )( Emitter: 10 mA or less, Receiver: 15 mA or less 20 mA or less 30 mA or less Output Utilization category NPN open-collector transistor • Maximum sink current: 50 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1 V or less (at 50 mA sink current) 0.4 V or less (at 16 mA sink current) PNP open-collector transistor • Maximum source current: 50 mA • Applied voltage: 30 V DC or less (between output andV) • Residual voltage: 1 V or less (at 50 mA source current) 0.4 V or less (at 16 mA source current) DC-12 or DC-13 Short-circuit protection Incorporated Response time Operation indicator 0.5 ms or less Orange LED (lights up when the output is ON), located on the bifurcation Red LED (lights up when the output is ON) Red LED (lights up under light received condition), located on the receiver Incident beam indicator Stability indicator Pollution degree Green LED (lights up under stable light received condition or stable dark condition) Environmental resistance IP67 (IEC) 25 to55 C 13 to131 F (No dew condensation or icing allowed), Storage:30 to70 C 22 to158 F Ambient humidity Ambient illuminance EMC Voltage withstandability Green LED (lights up under stable light received condition or stable dark condition), located on the receiver 3 (Industrial environment) Protection Ambient temperature NPN open-collector transistor • Maximum sink current: 100 mA • Applied voltage: 30 V DC or less (between output and 0 V) • Residual voltage: 1.5 V or less (at 100 mA sink current) • Residual voltage: 0.4 V or less (at 16 mA sink current) 35 to 85 % RH, Storage: 35 to 85 % RH Sunlight: 10,000 ?x at the light-receiving face, Incandescent light: 3,000 ?x at the light-receiving face EN 50081-2, EN 50082-2, EN 60947-5-2 1,000 V AC for one min. between all supply terminals connected together and enclosure Insulation resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each Shock resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions for three times each Red LED (modulated) Emitting element Material Cable (Note 4) Cable extension Weight Accessories Enclosure: Polyethylene terephthalate Lens: Polyalylate, Bifurcation: Polyalylate Enclosure: Polyethylene terephthalate Lens: Polyalylate 0.1 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (thru-beam type: emitter and receiver). 0.2 mm2 3-core cabtyre cable, 2 m 6.562 ft long (beyond bifurcation; from emitter / receiver to bifurcation: 0.5 m 1.640 ft long) Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. Emitter: 20 g approx., Receiver: 20 g approx. 20 g approx. 55 g approx. Mounting screws: 1 set Mounting screws: 1 set Mounting screws: 1 set, Adjusting screwdriver: 1 pc. Notes: 1) Model Nos. having the suffix ‘-PN’ are PNP output type. Notes: 2) Either Light-ON or Dark-ON can be selected by the operation mode switch (located on the bifurcation). Notes: 3) The sensing range of convergent reflective type sensor is specified for white non-glossy paper (50
50 mm 1.969
1.969 in) as the object. Notes: 4) The flexible cable type (model Nos. having suffix ‘-R’) has a 0.1 mm2 3-core (thru-beam type emitter : 2-core) flexible cabtyre cable, 2 m 6.562 ft long. 08/2005 231 EX-10 I/O CIRCUIT AND WIRING DIAGRAMS EX-11 EX-13 EX-19 EX-14 NPN output type I/O circuit diagram Wiring diagram Color code (Brown)V Sensor circuit D (Black) Output (Note) Tr ZD Load 50 mA max.   12 to 24 V DC Brown 10 % Load Black (Note) (Blue) 0 V Internal circuit  12 to 24 V DC  10 % Blue Users’ circuit Note: The emitter of the thru-beam type sensor does not incorporate the output. Note: The emitter of the thru-beam type sensor does not incorporate the black wire. Symbols … D : Reverse supply polarity protection diode ZD: Surge absorption zener diode Tr : NPN output transistor EX-11-PN EX-13-PN EX-19-PN EX-14-PN PNP output type I/O circuit diagram Wiring diagram Color code Sensor circuit (Brown)V ZD Tr 50 mA max. D (Black) Output (Note) Load (Blue) 0 V Internal circuit Users’ circuit  12 to 24 V DC  10 % Brown Black (Note) Load  12 to 24 V DC  10 % Blue Note: The emitter of the thru-beam type sensor does not incorporate the output. Note: The emitter of the thru-beam type sensor does not incorporate the black wire. Symbols … D : Reverse supply polarity protection diode ZD: Surge absorption zener diode Tr : PNP output transistor EX-15 EX-15E EX-17 EX-17E NPN output type I/O circuit diagram Wiring diagram Color code (Brown)V Sensor circuit D Load (Black) Output Tr ZD 100 mA max.   12 to 24 V DC 10 % (Blue) 0 V Internal circuit Users’ circuit Symbols … D : Reverse supply polarity protection diode ZD: Surge absorption zener diode Tr : NPN output transistor Brown Load Black Blue 232 08/2005   12 to 24 V DC 10 % EX-10 SENSING CHARACTERISTICS (TYPICAL) All models Thru-beam type Correlation between setting distance and excess gain 100 100 50 EX-13 EX-17 EX-19 Excess gain Excess gain 50 10 5 10 5 EX-11 EX-15 0 1 200 400 600 800 1,000 7.874 15.748 23.622 31.496 39.370 Setting distance L (mm in) EX-11 EX-11E EX-15 EX-15E Thru-beam type Parallel deviation Angular deviation 200 7.874 200 7.874 EX-11E EX-15E EX-11E EX-15E Emitter Emitter 50 1.969 # # L Receiver Receiver 0 100 3.937 $ $ L EX-11 EX-15 Receiver L EX-11E Receiver EX-15E 10 0 10 20 Center Left Right $ Operating angle ( ° ) 0 20 50 0 50 100 1.969 1.969 3.937 Center Left Right Operating point ?(mm in) EX-13 EX-13E EX-17 EX-17E EX-11E EX-15E Emitter Emitter 100 3.937 50 1.969 L EX-11 EX-15 Thru-beam type Parallel deviation Angular deviation Parallel deviation with slit masks ("1.2 mm "0.047 in) Parallel deviation with slit masks ("1.5 mm "0.059 in) 800 31.496 600 23.622 EX-13 EX-17 EX-13E EX-17E 400 15.748 Emitter Emitter 200 7.874 # # L L EX-13 EX-13E Receiver EX-17 EX-17E Receiver 0 100 50 0 50 100 3.937 1.969 1.969 3.937 Center Left Right Operating point ?(mm in) EX-19 400 15.748 Setting distance L (mm in) 600 23.622 Setting distance L (mm in) 800 31.496 400 15.748 200 7.874 0 20 300 11.811 EX-13 EX-17 EX-13E EX-17E Emitter Emitter $ $ L L EX-13 EX-13E EX-17 Receiver Receiver EX-17E 10 0 10 Center Left Right Operating angle $( ° ) 200 7.874 100 3.937 Angular deviation 300 11.811 200 7.874 Emitter # L 100 3.937 Slit on one side, sensing range: 350 mm 13.78 in Slit on both sides, sensing range: 300 mm 11.81 in Emitter # L Receiver 0 100 3.937 20 0 20 40 0.787 0.787 1.575 Center Left Right Operating point ?(mm in) 50 0 50 100 1.969 1.969 3.937 Center Left Right Operating point ?(mm in) Parallel deviation with slit masks ("1.2 mm "0.047 in) Parallel deviation with slit masks ("1.5 mm "0.059 in) Emitter # L 500 19.685 Slit on one side Slit on one side 1,000 39.370 600 23.622 400 15.748 Emitter $ L Emitter 200 7.874 Slit on both sides Receiver Receiver 100 0 100 200 3.937 3.937 7.874 Center Left Right Operating point ?(mm in) Setting distance L (mm in) 1,000 39.370 1,000 39.370 Setting distance L (mm in) Setting distance L (mm in) Slit on one side or both sides Receiver 0 40 1.575 20 800 31.496 0 200 7.874 400 15.748 Thru-beam type Parallel deviation 500 19.685 EX-13/17 Slit on one side EX-13/17 Slit on both sides EX-13E/17E Slit on one side EX-13E/17E Slit on both sides Setting distance L (mm in) EX-11 EX-15 100 3.937 150 5.906 # L Setting distance L (mm in) Setting distance L (mm in) EX-11 EX-15 150 5.906 Setting distance L (mm in) 2 1 3 4 5 3.281 6.562 9.843 13.123 16.404 Setting distance L (m ft) 0 Setting distance L (mm in) 1 Slit on both sides 500 19.685 # 20 0 20 Center Left Right Operating angle $(  ) 40 08/2005 0 200 7.874 100 0 100 200 3.937 3.937 7.874 Center Left Right Operating point ?(mm in) L Receiver Receiver 0 40 Emitter 0 200 7.874 100 0 100 200 3.937 3.937 7.874 Center Left Right Operating point ?(mm in) 233 EX-10 SENSING CHARACTERISTICS (TYPICAL) Convergent reflective type Sensing fields • Horizontal (left and right) direction • Vertical (up and down) direction 40 1.575 30 1.181 # L 20 0.787 10 0.394 0 10 0.394 5 0 5 10 0.197 0.197 0.394 Center Left Right Operating point ?(mm in) # 7.75 mm 0.305 in N4 0 10 0.394 5 0 5 0.197 0.197 Center Down Up Operating point ?(mm in) L 10 0.394 Correlation between lightness and sensing range The sensing region is represented by oblique lines in the left figure. However, the sensitivity should be set with enough margin because of slight variation in products. 30 1.181 20 0.787 Sensing region 10 0.394 0 N2 Dark N4 N6 Lightness N8 Light N1 N2 N3 N4 N5 N6 N7 N8 N9 Distance to convergent point Sensing range L (mm in) 40 1.575 ( Lightness shown on the left may differ slightly from the actual object condition. ) Correlation between material (50
50 mm 1.969
1.969 in) and sensing range 80 The bars in the graph indicate the 3.150 sensing range for the respective material. However, there is a 60 slight variation in the sensing 2.362 range depending on the product. Further, if there is a reflective 40 1.575 object (conveyor, etc.) in the background of the sensing object, 20 since it affects the sensing, 0.787 separate it by more than twice the 10 sensing range shown in the left 0.394 0 graph. Distance to convergent point N4 Aluminum-evaporated mirror 10 0.394 Aluminum plate (Hair line) White Stainless steel plate 20 0.787 50
50 mm 1.969
1.969 in Non-glossy paper White Black circuit board 30 1.181 7 mm 0.276 in Setting distance L (mm in) Setting distance L (mm in) 50
50 mm 1.969
1.969 in Non-glossy paper Black rubber sheet IC tray (Black) Glass epoxy printed circuit board (Green masked surface) Ceramic circuit board White non-glossy paper 40 1.575 Sensing range L (mm in) EX-14 PRECAUTIONS FOR PROPER USE This product is not a safety sensor. Its use is not intended or designed to protect life and prevent body injury or property damage from dangerous parts of machinery. It is a normal object detection sensor. Operation mode switch (EX-15, EX-15E, EX-17 and EX-17E only) Operation mode switch L : Light-ON D: Dark-ON Mounting • In case of mounting on tapped holes (Unit: mm in) Side sensing Front sensing Sensing direction Attached screw [M2 (length 10 0.394)] Operation indicator (Orange) Lights up when the output is ON. 11 0.433 M2
0.4 0.016 hole tapped, 6 0.157 deep Sensing direction Attached screw [M2 (length 8 0.315)] M2
0.4 0.016 hole tapped, 7 0.276 deep Switch position 11 0.433 Light-ON mode is set when the switch is turned fully clockwise (L side). The tightening torque should be 0.2 Nm or less. • In case of using attached screws and nuts (Unit: mm in) Side sensing Sensing direction Attached screw [M2 (length 10 0.394)] Thickness of mounting plate: 2 0.079 or less Dark-ON mode is set when the switch is turned fully counterclockwise (D side). Front sensing Flat washers 11 0.433 Nuts Spring washers Sensing direction Attached screw [M2 (length 8 0.315)] 11 0.433 Others • Do not use during the initial transient time (50ms) (EX-15, EX-15E, EX-17, EX-17E: 100 ms) after the power supply is switched on. Thickness of mounting plate: 2.5 0.098 or less The tightening torque should be 0.2 Nm or less. 234 Description 08/2005 EX-10 DIMENSIONS (Unit: mm in) EX-11A EX-11B EX-13A EX-13B EX-19A EX-19B Sensor 3.5 0.138 2.1 0.083 Stability indicator (Green) Operation indicator (Red) 1.75 1.5 0.069 0.059 10 0.394 6.45 5.5 0.254 0.217 1.75 0.069 10 0.394 5.5 0.217 1.75 0.069 1.75 0.069 14.5 11 0.571 0.433 4 0.157 4 0.157 Beamreceiving part Beamemitting part 4.5 0.177 2-"2.2 "0.087 mounting holes 6.5 0.256 6.5 0.256 2-"2.2 "0.087 mounting holes "2.5 "0.098 cable, 2 m 6.562 ft long Emitter Receiver Sensor 10 0.394 4.5 0.177 1.75 0.069 1.75 0.069 14.5 11 0.571 0.433 11 14.5 0.433 0.571 4.5 0.177 "2.5 "0.098 cable, 2 m 6.562 ft long EX-11EA EX-11EB EX-13EA EX-13EB 3.5 0.138 2.1 0.083 Stability indicator (Green) Operation indicator (Red) 4.5 0.177 2.25 0.089 2.25 0.089 1.75 1.5 0.069 0.059 4 0.157 Beamreceiving part Beamemitting part 4 0.157 10 0.394 6.45 0.254 1.75 0.069 11 14.5 0.433 0.571 4.5 0.177 4.5 0.177 6.5 0.256 2-"2.2 "0.087 mounting holes "2.5 "0.098 cable, 2 m 6.562 ft long 6.5 0.256 4.2 0.165 4.2 0.165 "2.5 "0.098 cable, 2 m 6.562 ft long Emitter EX-15 EX-17 10 0.394 3.5 0.138 2.1 0.083 Receiver EX-15E EX-17E Sensor Emitter 1.75 0.069 1.75 4 0.069 0.157 14.5 11 0.571 0.433 Receiver 5.5 0.217 10 0.394 6.45 0.254 5.5 0.217 1.75 0.069 1.5 1.75 0.069 0.059 1.75 0.069 1.75 0.069 4 0.157 3.5 0.138 2.1 0.083 4 0.157 11 14.5 0.433 0.571 4.5 0.177 4.5 0.177 2-"2.2 "0.087 mounting holes Sensor Emitter Stability indicator (Green) Incident beam indicator (Red) Beam- Beamemitting receiving part part "2.5 "0.098 cables 2-"2.2 "0.087 500 mounting holes 19.685 Receiver Stability indicator (Green) 10 0.394 4.5 0.177 2.25 0.089 4.5 0.177 2.25 0.089 Beamreceiving part Beamemitting part 14.5 11 0.571 0.433 6.45 0.254 1.75 0.069 1.5 4 1.75 0.059 0.157 0.069 11 14.5 0.433 0.571 4.5 0.177 4.5 0.177 2-"2.2 "0.087 mounting holes 4.2 0.165 4.2 0.165 500 19.685 2-"2.2 "0.087 mounting holes "2.5 "0.098 cables 15.2 0.598 Operation indicator (Orange) 19.2 0.756 19.2 0.756 38 1.496 38 1.496 Operation mode switch Operation mode switch "3.8 "0.150 cable, 2 m 6.562 ft long "3.8 "0.150 cable, 2 m 6.562 ft long 1 0.039 10 0.394 Incident beam indicator (Red) 15.2 0.598 Operation indicator (Orange) 7 0.276 2-"2.2 "0.087 mounting holes 8 0.315 7 0.276 08/2005 1 0.039 8 0.315 235 EX-10 DIMENSIONS (Unit: mm in) EX-14A EX-14B Sensor 13 0.512 6.45 0.254 5 0.197 Stability indicator (Green) 3.5 0.138 Operation indicator (Red) 2.75 0.108 1.75 0.069 2.1 0.083 1.75 1.5 0.069 0.059 4.5 0.177 Beamreceiving part 11 14.5 0.433 0.571 Beam-emitting part 4.5 0.177 8 0.315 MS-EX10-1 2-"2.2 "0.087 mounting holes "2.5 "0.098 cable, 2 m 6.562 ft long Sensor mounting bracket (Optional) t 1.2 t 0.047 Assembly dimensions Mounting drawing with EX-14 7.6 0.299 3.7 0.146 4-M2
0.4 0.016 thru-hole threads 20 0.787 (0.7) 7.6 (0.028) 0.299 t 1.2 t 0.047 (4.9) (0.193) 3.7 3.5 0.146 0.138 20 0.787 6.5 8 3.5 0.256 0.315 0.138 Beamemitting part 2-"3.4 "0.134 mounting holes 15 8 0.315 0.591 11 0.433 22.75 0.896 13 0.512 5 10.75 0.423 0.197 8 0.315 3.5 0.138 1.25 0.049 (8.8) (0.346) 3 0.118 11 15 8 0.315 0.433 0.591 Beamreceiving part 4.25 0.167 Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated) Two M2 (length 4 mm 0.157 in) pan head screws are attached. MS-EX10-2 2-"3.4 "0.134 mounting holes Sensor mounting bracket (Optional) t 1.2 t 0.047 Assembly dimensions Mounting drawing with EX-11E and EX-13E 7.6 0.299 6.25 4.5 0.246 0.177 20 0.787 3.2 0.126 1.4 0.055 4 0.157 8 15 0.315 0.591 11 0.433 2-M2
0.4 0.016 thru-hole threads 8 0.315 15 11 0.591 0.433 3.5 0.138 (1.3) (0.051) 0.25 0.010 08/2005 (2.3) (0.091) (7.45) (0.293) 10 0.394 3.2 0.126 1.25 0.049 1.4 0.055 Beam- 2.5 0.098 receiving part 8 0.315 8 0.315 20 0.787 Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated) Two M2 (length 8 mm 0.315 in) pan head screws are attached. 236 7.6 0.299 t 1.2 t 0.047 6.25 0.246 4.25 0.167 3.5 0.138 EX-10 DIMENSIONS (Unit: mm in) MS-EX10-3 Sensor mounting bracket (Optional) Assembly dimensions Mounting drawing with EX-14 15 0.591 7 0.276 10.8 0.425 (2.75) (0.108) 10.5 0.413 t 1.2 t 0.047 (0.7) (0.028) 3.2 0.126 1.4 0.055 8 0.315 t 1.2 t 0.047 10.8 0.425 3.5 0.138 4-M2
0.4 0.016 thru-hole threads 7 0.276 3.2 0.126 1.4 0.055 6.5 0.256 11 0.433 3 0.118 11 15 0.438 0.591 2 0.079 8 0.315 4.25 0.167 Material: Cold rolled carbon steel (SPCC) (Uni-chrome plated) Two M2 (length 4 mm 0.157 in) pan head screws, and two M2 (length 8 mm 0.315 in) pan head screws are attached. MS-EX10-11 10.5 0.413 1.75 0.069 Beam13 emitting part 0.512 1.25 5 6.25 0.049 0.197 0.246 Beamreceiving part Sensor mounting bracket (Optional) Assembly dimensions Mounting drawing with EX-14 8.1 0.319 t 1.2 t 0.047 20 0.787 t 1.2 t 0.047 (0.7) (0.028) 8.1 0.319 (4.9) (0.193) 3.7 0.146 4-M2
0.4 0.016 thru-hole threads 20 0.787 6.5 8 3.5 0.256 0.315 0.138 1.4 3.2 0.055 0.126 11 0.433 3.5 3.7 0.146 0.138 8 15 0.315 0.591 22.75 0.896 13 0.512 5 0.197 10.75 0.423 8 0.315 (9.3) (0.366) 3.5 0.138 3.2 1.4 0.126 0.055 1.25 0.049 Beam-emitting part 3.2 0.126 1.4 0.055 3 0.118 Material: Stainless steel (SUS304) Two M2 (length 4 mm 0.157 in) pan head screws [stainless steel (SUS304)] are attached. 8 11 15 0.315 0.433 0.591 Beam-receiving part 4.25 0.167 1.4 0.055 3.2 0.126 MS-EX10-12 Sensor mounting bracket (Optional) Assembly dimensions Mounting drawing with EX-11E and EX-13E 8.1 0.319 t 1.2 t 0.047 8.1 0.319 t 1.2 t 0.047 6.25 0.246 20 0.787 6.25 4.5 0.246 0.177 1.4 0.055 3.2 0.126 2-M2
0.4 0.016 thru-hole threads 8 0.315 (7.45) (0.293) (1.3) (0.051) 4 0.157 8 15 0.315 0.591 11 0.433 (2.3) (0.091) 1.4 0.055 3.2 0.126 3.5 0.138 15 11 0.591 0.433 Material: Stainless steel (SUS304) Two M2 (length 8 mm 0.315 in) pan head screws [stainless steel (SUS304)] are attached. 08/2005 0.25 0.010 10 0.394 1.4 1.25 0.055 0.049 3.2 0.126 Beam- 2.5 0.098 receiving part 8 0.315 8 0.315 20 0.787 1.4 0.055 3.2 0.126 3.5 0.138 4.25 0.167 237 EX-10 DIMENSIONS (Unit: mm in) MS-EX10-13 Sensor mounting bracket (Optional) Assembly dimensions Mounting drawing with EX-14 7 0.276 10.5 0.413 3.2 0.126 1.4 0.055 t 1.2 t 0.047 8 0.315 15 0.591 10.8 0.425 (2.75) (0.108) 1.4 0.055 3.2 0.126 4-M2
0.4 0.016 thru-hole threads 13 0.512 5 6.25 0.197 0.246 2 0.079 1.75 0.069 3.5 0.138 1.25 0.049 Beam-emitting part Beam-receiving part Material: Stainless steel (SUS304) Two M2 (length 4 mm 0.157 in) pan head screws [stainless steel (SUS304)] and two M2 (length 8 mm 0.315 in) pan head screws [stainless steel (SUS304)] are attached. 238 t 1.2 t 0.047 (0.7) (0.028) 6.5 0.256 11 0.433 10.8 0.425 10.5 0.413 7 0.276 1.4 3.2 0.055 0.126 3 0.118 11 15 0.433 0.591 4.25 0.167 8 0.315 1.4 0.055 3.2 0.126 08/2005
