Amplifier built-in extraordinarily small and slim size
Smallest body, just 3.5 mm 0.138 in thick
Flexible mounting
It can be mounted in a very
small space as its size is just
W10 × H14.5 × D3.5 mm
W0.394 × H0.571 × D0.138 in
(thru-beam, front sensing type).
The diffuse reflective type sensor is front sensing and is
so thin that it gives an impression of being just pasted
on the mounting base. The thru-beam type is available
as front sensing type, as well as, side sensing type,
allowing flexible mounting.
Thru-beam
• Front sensing type
UV CURING
SYSTEMS
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
EX-Z
CX-400
CY-100
EX-10
EX-20
EX-30
PNP output
type available
• Side sensing type
A wide variety of narrow-beam type! Light diffusion is approx. 1/2 of standard type.
Less interference with no slit,
narrow-pitch can be set.
The pitch of installation is 1/2 of
conventional models, so that the
close-installation is possible. No cost
is necessary to purchase or install
a slit.
Possible to sense a minute object
less than ø0.5 mm ø0.039 in with
no slit.
The series is applicable to sense a
minute object without any cost.
A long 1 m 3.281 ft sensing range is
possible with narrow beam.
EX-11□ / EX-11E□
EQ-30
ø0.5mm
EX-11S□
EQ-500
MQ-W
EX-11S□ / EX-11SE□
RX-LS200
RX
RT-610
EX-□S□
Long sensing range of 1 m 3.281
ft with narrow beam
EX-40
CX-440
Diffuse reflective
• Front sensing type
EX-19S□
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
APPLICATIONS
280
FIBER
SENSORS
Positioning of PCBs
Detecting ICs
Detecting PCB rack
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
EX-19S□
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
Transparent stick
IC
EX-15□
EX-14□
Detecting wafer cassette
Detecting thin ring
AREA
SENSORS
Checking for absence of capacitor in tray
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
EX-14□
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
EX-13E□
Guide
EX-14□
LASER
MARKERS
PLC
BASIC PERFORMANCE
HUMAN MACHINE
INTERFACES
Electric power saving *
High-speed response time: 0.5 ms
The EX-10 series
achieves reductions
in power consumption
of up to 65 %. These
sensors contribute
to environmental
friendliness.
The sensor is suitable for detecting small and highspeed traveling objects.
35
A maximum
% reduction
compared to conventional
sensors
FA COMPONENTS
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
* Effective from production
in October 2010.
Minimum sensing object: ø1 mm ø0.039 in EX-11(E)□, EX-15(E)□
Long sensing range: 1 m 3.281 ft EX-19(E)□
EX-11□, EX-11E□, EX-15 and
EX-15E are incorporated
with ø1 mm ø0.039 in
slit masks so that ø1 mm
ø0.039 in, or more, object
can be detected. Hence,
they are suitable for precise
positioning or small parts
detection.
A sensing range of 1 m
3.281 ft has been realized
with a slim size of just 3.5
mm 0.138 in. It can be used
to detect even wide IC trays.
1m
3.281 ft
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
EX-Z
CX-400
CY-100
EX-10
EX-20
EX-14□
Background suppression
Hardly affected by background
Even a specular background
separated by 100 mm 3.937
in, or more, is not detected.
(However, the background
should be directly opposite.
A spherical or curved
background may be
detected.)
ENERGY
MANAGEMENT
SOLUTIONS
Background
Black object reliably detected
100 mm
3.937 in
It can reliably detect dark
color objects since it is
convergent reflective type.
The best distance
is approx. 10 mm
0.394 in from the
object.
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
281
Ultra-slim Photoelectric Sensor
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
EX-10 SERIES Ver.2
ENVIRONMENTAL RESISTANCE
Incorporated an inverter countermeasure circuit *
The EX-10 series become
significantly stronger
against inverter light and
other extraneous light.
The sensors features an IP67 rating to allow their use
in process lines where water is used or splashed.
Rust-resistant stainless steel sensor mounting brackets
are available.
Fluorescent light
* Effective from production in
October 2010.
Note: If water splashes on the sensor during sensing operation, it may
sense water as an object.
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
Waterproof IP67
EX-□-R
Bending durability
Bending-resistant cable type EX-□-R is available. It is
most suitable for moving parts, such as robot arm, etc.
MOUNTING / SIZE
Mountable with M3 screws
Non-corrosive stainless steel type sensor mounting bracket is also available.
• MS-EX10-1
[Cold rolled carbon steel (SPCC)]
MS-EX10-11
[Stainless steel (SUS304)]
mounting bracket for the front
sensing type
• MS-EX10-2
[Cold rolled carbon steel (SPCC)]
MS-EX10-12
[Stainless steel (SUS304)]
mounting bracket for the side
sensing type
• MS-EX10-3
[Cold rolled carbon steel (SPCC)]
MS-EX10-13
[Stainless steel (SUS304)]
(L-shaped mounting bracket)
M3 screws
LASER
MARKERS
PLC
M3 screws
HUMAN MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
FA COMPONENTS
MACHINE VISION
SYSTEMS
UV CURING
SYSTEMS
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
M3 screws
Note: Sensor mounting brackets can not be used for
the narrow beam type (EX-□S□).
Red beam makes beam alignment easy
The red LED beam projected from the emitter helps you
to align the sensor heads.
FUNCTIONS
VARIETIES
Bright 2-color indicator
Operation mode switch
A convenient 2-color
indicator has been
incorporated in the
miniature body.
Thru-beam type sensor incorporated with an operation
mode switch on the bifurcation is also available. It helps
you to test the operability before start-up.
2-color indicator
Orange: Operation indicator
Green: Stability indicator
EX-Z
CX-400
CY-100
EX-10
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
Operation mode switch
Operation indicator
(Orange)
OTHERS
Less resources used *
Based on environmental
considerations, simplified
packaging is used in order
to reduce waste.
In addition, the bag is
made from polyethylene
which produces no toxic
gases even when burned.
* Effective from production in
October 2010.
EX-15□/17□
SENS.
EX
-17
Even for the thru-beam
type sensor, only three
wires have to be connected.
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
ORDER GUIDE
Type
Appearance
FIBER
SENSORS
Sensing range
1m
3.281 ft
150 mm 5.906 in
500 mm
19.685 in
500 mm
19.685 in
1m
3.281 ft
With operation mode
switch on the bifurcation
Side sensing
150 mm 5.906 in
Front sensing
Convergent reflective
(Diffused beam type)
500 mm
19.685 in
With operation mode
switch on the bifurcation
Thru-beam
Standard type
Front sensing
150 mm 5.906 in
Front sensing
Side sensing
Thru-beam
Model No.(Note 2)
NPN output
500 mm
19.685 in
PNP output
Output
operation
LASER
SENSORS
Output
EX-11A-PN
Light-ON
EX-11B
EX-11B-PN
Dark-ON
EX-13A
EX-13A-PN
Light-ON
AREA
SENSORS
EX-13B
EX-13B-PN
Dark-ON
EX-19A
EX-19A-PN
Light-ON
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
EX-19B
EX-19B-PN
Dark-ON
PRESSURE /
FLOW
SENSORS
EX-15
EX-15 -PN
INDUCTIVE
PROXIMITY
SENSORS
EX-17
EX-17-PN
Switchable
either
Light-ON or
Dark-ON
EX-11EA
EX-11EA-PN
EX-11EB
EX-11EB-PN
Dark-ON
EX-13EA
EX-13EA-PN
Light-ON
EX-13EB
EX-13EB-PN
Dark-ON
EX-19EA
EX-19EA-PN
Light-ON
EX-19EB
EX-19EB-PN
Dark-ON

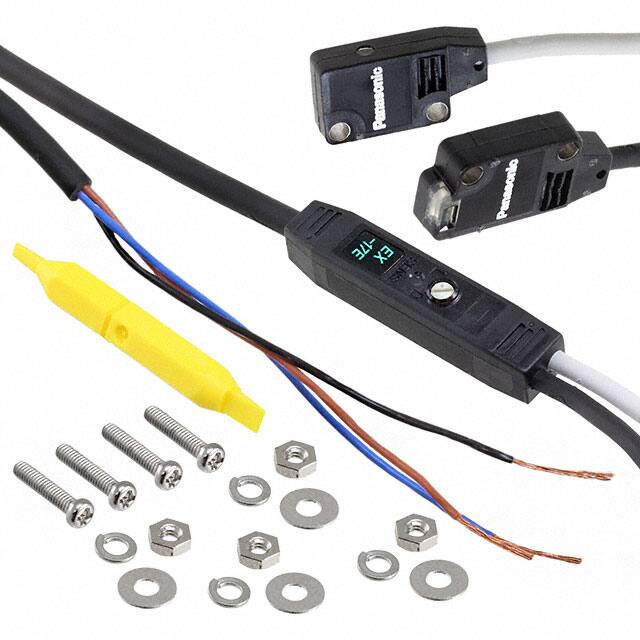

EX-17E
-
Light-ON
MICRO
PHOTOELECTRIC
SENSORS
PARTICULAR
USE
SENSORS
NPN opencollector
transistor
or
PNP opencollector
transistor
500 mm
19.685 in
1m
3.281 ft
150 mm 5.906 in
500 mm
19.685 in
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
Switchable
either
Light-ON or
Dark-ON
LASER
MARKERS
PLC
EX-14A
EX-14A-PN
Light-ON
HUMAN
MACHINE
INTERFACES
EX-14B
EX-14B-PN
Dark-ON
ENERGY
MANAGEMENT
SOLUTIONS
EX-11SA
EX-11SA-PN
Light-ON
FA
COMPONENTS
EX-11SB
EX-11SB-PN
Dark-ON
EX-13SA
EX-13SA-PN
Light-ON
MACHINE
VISION
SYSTEMS
EX-13SB
EX-13SB-PN
Dark-ON
EX-19SA
EX-19SA-PN
Light-ON
EX-19SB
EX-19SB-PN
Dark-ON
EX-11SEA
EX-11SEA-PN
Light-ON
EX-11SEB
EX-11SEB-PN
Dark-ON
EX-13SEA
EX-13SEA-PN
Light-ON
EX-13SEB
EX-13SEB-PN
Dark-ON
2 to 25 mm 0.079 to 0.984 in (Note 1)
(Convergent point: 10 mm 0.394 in)
PHOTOELECTRIC
SENSORS
EX-11A
EX-15E
150 mm 5.906 in
150 mm 5.906 in
Narrow beam type
282
NPN opencollector
transistor
or
PNP opencollector
transistor
NOTE: Mounting bracket is not supplied with the sensor. Please select from the range of optional sensor mounting brackets
(MS-EX10-□). Sensor mounting brackets (MS-EX10-□) can not be used for the narrow beam type (EX-□S□).
Notes: 1) The sensor does not detect even a specular background if it is separated by 100 mm 3.937 in or more. (However, the background should be directly
opposite. A spherical or curved background may be detected.)
2) The model No. with “P” shown on the label affixed to the thru-beam type sensor is the emitter, “D” shown on the label is the receiver.
Bending-resistant cable type
Bending-resistant cable type is also available for NPN output type. (excluding narrow beam type EX-□S□ and sensor with operation mode switch on the
bifurcation EX-15□/17□)
When ordering this type, suffix “-R” to the model No.
(e.g.) Bending-resistant cable type of EX-11A is “EX-11A-R”.
5 m 16.404 ft cable length type
5 m 16.404 ft cable length type (standard: 2 m 6.562 ft) is also available for NPN output type. (excluding narrow beam type EX-□S□ and bending-resistant cable type)
When ordering this type, suffix “-C5” to the model No.
(e.g.) 5 m 16.404 ft cable length type of EX-11A is “EX-11A-C5”.
UV
CURING
SYSTEMS
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
EX-Z
CX-400
CY-100
EX-10
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
283
FIBER
SENSORS
LASER
SENSORS
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
OPTIONS
NOTE: Sensor mounting brackets can not be used for the narrow beam type (EX-□S□).
MICRO
PHOTOELECTRIC
SENSORS
Designation
Model No.
MS-EX10-1
Mounting bracket for the front sensing type sensor [Cold rolled carbon steel (SPCC)]
(The thru-beam type sensor needs two brackets.)
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
MS-EX10-2
Mounting bracket for the side sensing type sensor [Cold rolled carbon steel (SPCC)]
(The thru-beam type sensor needs two brackets.)
Sensor mounting MS-EX10-3
bracket
(Note 1)
L-shaped mounting bracket sensor [Cold rolled carbon steel (SPCC)]
(The thru-beam type sensor needs two brackets.)
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE
SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MS-EX10-11
Mounting bracket for the front sensing type sensor [Stainless steel (SUS304)]
(The thru-beam type sensor needs two brackets.)
MS-EX10-12
Mounting bracket for the side sensing type sensor [Stainless steel (SUS304)]
(The thru-beam type sensor needs two brackets.)
MS-EX10-13
L-shaped mounting bracket [Stainless steel (SUS304)]
(The thru-beam type sensor needs two brackets.)
Slit on one side
Slit on both sides
• Sensing range: 400 mm 15.748 in [EX-19□]
200 mm 7.874 in [EX-13□, EX-17□]
• Min. sensing object: ø1.2 mm ø0.047 in
Slit on one side
• Sensing range: 800 mm 31.496 in [EX-19□]
350 mm 13.780 in [EX-13□]
• Min. sensing object: ø2 mm ø0.079 in
Slit on both sides
• Sensing range: 500 mm 19.685 in [EX-19□]
300 mm 11.811 in [EX-13□]
• Min. sensing object: ø1.5 mm ø0.059 in
Slit on one side
• Sensing range: 400 mm 15.748 in [EX-19E□] (Note 3)
250 mm 9.843 in [EX-13E□, EX-17E□]
• Min. sensing object: ø2 mm ø0.079 in
Slit on both sides
• Sensing range: 200 mm 7.874 in [EX-13E□, EX-17E□]
• Min. sensing object: ø1.2 mm ø0.047 in
(Slit size ø1.2 mm ø0.047 in)
STATIC
CONTROL
DEVICES
LASER
MARKERS
Slit mask
PLC
OS-EX10-15
(Slit size ø1.5 mm ø0.059 in)
HUMAN
MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
OS-EX10E-12
(Slit size ø1.2 mm ø0.047 in)
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
Sensor checker
(Note 2)
CHX-SC2
It is useful for beam alignment of thru-beam type sensors. The optimum
receiver position is given by indicators, as well as an audio signal.
UV
CURING
SYSTEMS
Mounting screw
MS-M2
Mounting screws with washers (50 pcs. lot). It can mount
securely as it is spring washer attached.
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
Notes: 1) Can not be used for the narrow beam type (EX-□S□).
2) Refer to p.959~ for the sensor checker CHX-SC2.
3) Since EX-19E□ has a built-in ø1 mm ø 0.039 in slit in the emitter, be sure to mount it in the
receiver.
Sensor checker
Slit mask
• OS-EX10-12
• OS-EX10-15
• OS-EX10E-12
Example of mounting
(OS-EX10E-12)
W
ER
C
H
LE
VE
L
EX-Z
CX-400
Sensor checker
CY-100
EX-10
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
Tighten along with the sensor
mounting bracket.
X-
Two M2 (length 4 mm
0.157 in) pan head
screws are attached.
Material: Cold rolled
carbon steel (SPCC)
(Uni-chrome plated)
Two M2 (length 8 mm
0.315 in) pan head
screws are attached.
• MS-EX10-3
Material: Cold rolled
carbon steel (SPCC)
(Uni-chrome plated)
Two M2 (length 4 mm
0.157 in) pan head
screws, and two M2
(length 8 mm 0.315 in)
pan head screws are
attached.
• CHX-SC2
PO
Material: Cold rolled
carbon steel (SPCC)
(Uni-chrome plated)
• MS-EX10-2
• Sensing range: 600 mm 23.622 in [EX-19□]
250 mm 9.843 in [EX-13□, EX-17□]
• Min. sensing object: ø2 mm ø0.079 in
OS-EX10-12
MEASUREMENT
SENSORS
• MS-EX10-11
Description
AREA
SENSORS
PRESSURE /
FLOW
SENSORS
Sensor mounting bracket
• MS-EX10-1
PHOTOELECTRIC
SENSORS
SC
2
Material: Stainless
steel (SUS304)
Two M2 (length 4 mm
0.157 in) pan head
screws [stainless
steel (SUS304)] are
attached.
• MS-EX10-12
Material: Stainless
steel (SUS304)
Two M2 (length 8 mm
0.315 in) pan head
screws [stainless
steel (SUS304)] are
attached.
• MS-EX10-13
Material: Stainless steel
(SUS304)
Two M2 (length 4 mm
0.157 in) pan head
screws [stainless
steel (SUS304)] and
two M2 (length 8 mm
0.315 in) pan head
screws [stainless steel
(SUS304)] are attached.
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
SPECIFICATIONS
FIBER
SENSORS
Item
Front sensing
Side sensing
Front sensing
Side sensing
Front sensing
Side sensing
Light-ON
EX-11A(-PN)
EX-11EA(-PN)
EX-13A(-PN)
EX-13EA(-PN)
EX-19A(-PN)
EX-19EA(-PN)
Dark-ON
EX-11B(-PN)
EX-11EB(-PN)
EX-13B(-PN)
EX-13EB(-PN)
EX-19B(-PN)
EX-19EB(-PN)
CE marking directive compliance
Sensing range
Min. sensing object
Hysteresis
Repeatability (perpendicular to sensing axis)
EMC Directive, RoHS Directive
150 mm 5.906 in
500 mm 19.685 in
ø1 mm ø0.039 in opaque object
(Completely beam interrupted object)
Setting distance
between emitter
and receiver:
150 mm 5.906 in
ø2 mm ø0.079 in opaque object
(Completely beam interrupted object)
Setting distance
between emitter
and receiver:
500 mm 19.685 in
Current consumption
Emitter: 10 mA or less, Receiver: 10 mA or less
Utilization category
Short-circuit protection
Response time
Operation indicator
Incident beam indicator
Stability indicator
Pollution degree
Protection
Ambient temperature
Ambient humidity
Ambient illuminance
Voltage withstandability
ø2 mm ø0.079 in
opaque object
Completely beam
interrupted object
Setting distance between
emitter and receiver:
1 m 3.281 ft
0.05 mm 0.002 in or less
12 to 24 V DC ±10 % Ripple P-P 10 % or less
Output
1 m 3.281 ft
–
Supply voltage
Environmental resistance
LASER
SENSORS
Thru-beam • standard type
Type
Model No.
(Note 2)
284
NPN open-collector transistor
• Maximum sink current: 50 mA
• Applied voltage: 30 V DC or less (between output and 0 V)
• Residual voltage: 2 V or less (at 50 mA sink current)
1 V or less (at 16 mA sink current)
PNP open-collector transistor
• Maximum source current: 50 mA
• Applied voltage: 30 V DC or less (between output and +V)
• Residual voltage:2
V or less (at 50 mA source current)
1 V or less (at 16 mA source current)
DC-12 or DC-13
Incorporated
0.5 ms or less
Orange LED (lights up when the output is ON)
–
Green LED
(lights up under stable light received condition or stable dark condition)
3 (Industrial environment)
IP67 (IEC)
−25 to +55 °C −13 to +131 °F (No dew condensation or icing allowed), Storage: −30 to +70 °C −22 to +158 °F
35 to 85 % RH, Storage: 35 to 85 % RH
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE
SENSORS
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
PLC
HUMAN
MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
UV
CURING
SYSTEMS
Incandescent light: 3,000 ℓx or less at the light-receiving face
1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance
20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Selection
Guide
Vibration resistance
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude in X, Y and Z directions for two hours each
Amplifier
Built-in
500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Power Supply
Built-in
Red LED [Peak emission wavelength: 680 nm 0.027 mil (EX-19E□: 624 nm 0.025 mil), modulated]
Amplifierseparated
Shock resistance
Emitting element
Material
Cable (Note 3)
Cable extension
Weight
Accessories
Enclosure: Polyethylene terephthalate, Lens: Polyalylate
0.1 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (thru-beam type: emitter and receiver).
Net weight (each emitter and receiver): 20 g approx., Gross weight: 50 g approx.
Mounting screws: 1 set
Notes: 1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 °C +73.4 °F.
2) Model Nos. having the suffix “-PN” are PNP output type.
3) The bending-resistant cable type (model Nos. having suffix “-R”) has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable,
2 m 6.562 ft long.
EX-Z
CX-400
CY-100
EX-10
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
285
Ultra-slim Photoelectric Sensor
SPECIFICATIONS
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
Type
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
PRESSURE /
FLOW
SENSORS
Item
Model No.
(Note 2)
Light-ON
EX-11SA(-PN) EX-11SEA(-PN) EX-13SA(-PN) EX-13SEA(-PN) EX-19SA(-PN) EX-14A(-PN)
Dark-ON
EX-11SB(-PN) EX-11SEB(-PN) EX-13SB(-PN) EX-13SEB(-PN) EX-19SB(-PN) EX-14B(-PN)
CE marking directive compliance
Sensing range
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE
SENSORS
Min. sensing object
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
Hysteresis
Repeatability (perpendicular to sensing axis)
Supply voltage
Current consumption
Output
PLC
ENERGY
MANAGEMENT
SOLUTIONS
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
UV
CURING
SYSTEMS
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
EX-Z
CX-400
Utilization category
Incident beam indicator
Stability indicator
Pollution degree
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
500 mm 19.685 in
Ambient illuminance
Voltage withstandability
EX-17
(Note 3)
2 to 25 mm 0.079
1 m 3.281 ft to 0.984 in (Note 4)
(Conv. point: 10 mm 0.394 in)
150 mm 5.906 in
500 mm 19.685 in
–
15 % or less of operation
distance (Note 4)
–
0.05 mm 0.002 in or less
0.1 mm 0.004 in or less
0.05 mm 0.002 in or less
12 to 24 V DC ±10 % Ripple P-P 10 % or less
13 mA or less
Emitter: 10 mA or less, Receiver: 10 mA or less
25 mA or less
PNP open-collector transistor
NPN open-collector transistor
• M
aximum source current: 50 mA
• M
aximum sink current: 50 mA
• A pplied voltage: 30 V DC or less (between output and 0 V) • A pplied voltage: 30 V DC or less (between output and +V)
• R esidual voltage: 2 V or less (at 50 mA sink current) • R esidual voltage: 2 V or less (at 50 mA source current)
1 V or less (at 16 mA source current)
1 V or less (at 16 mA sink current)
NPN open-collector transistor
• Maximum sink current: 100 mA
• Applied voltage: 30 V DC or less (between output and 0 V)
• R
esidual voltage: 2 V or less
(at 100 mA sink current)
1 V or less (at 16 mA sink current)
DC-12 or DC-13
–
Incorporated
0.5 ms or less
Orange LED (lights up when the output is ON), located on the bifurcation
Orange LED (lights up when the output is ON)
Orange LED (lights up under light received
condition), located on the receiver
–
Green LED
(lights up under stable light received condition or stable dark condition)
Green LED (lights up under stable light received
condition or stable dark condition), located on the
receiver
3 (Industrial environment)
–
IP67 (IEC)
−25 to +55 °C −13 to +131 °F (No dew condensation or icing allowed), Storage: −30 to +70 °C −22 to +158 °F
35 to 85 % RH, Storage: 35 to 85 % RH
Incandescent light: 3,000 ℓx or less at the light-receiving face
1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance
20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance
10 to 500 Hz frequency, 3 mm 0.118 in double amplitude in X, Y and Z directions for two hours each
Shock resistance
Emitting element
Material
Cable (Note 6)
Cable extension
Weight
Accessories
EX-17E
(Note 3)
ø0.5 mm
ø1 mm ø0.039 in opaque object ø2 mm ø0.079 in opaque object
ø0.002 in
ø1 mm ø0.039 in opaque object ø2 mm ø0.079 in opaque object ø0.1 mm ø0.004 (Completely beam interrupted object) (Completely beam interrupted object)
opaque object
Setting distance
Setting distance
(Completely beam interrupted object) (Completely beam interrupted object) in copper wire
(Completely
between emitter
between emitter
(Note 5)
(Note 5)
Setting distance:
beam interrupted
and receiver:
and receiver:
10 mm 0.394 in
object)
150 mm 5.906 in
500 mm 19.685 in
(Note 5)
Ambient humidity
CY-100
EX-10
150 mm 5.906 in
Protection
Ambient temperature
EX-15E
(Note 3)
–
Short-circuit protection
Operation indicator
EX-15
(Note 3)
EMC Directive, RoHS Directive
Response time
Environmental resistance
HUMAN
MACHINE
INTERFACES
Convergent reflective
Thru-beam · with operation mode switch on bifurcation
(Diffused beam type)
Thru-beam • narrow beam type
Front sensing Side sensing Front sensing Side sensing Front sensing Front sensing Front sensing Side sensing Front sensing Side sensing
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
EX-10 SERIES Ver.2
500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Red LED (Peak emission wavelength: 650 nm 0.026 mil, modulated)
Red LED (Peak emission wavelength: 680 nm 0.027 mil, modulated)
Enclosure: Polyethylene terephthalate
Lens: Polyalylate
Enclosure: Polyethylene terephthalate
Lens: Polyalylate, Bifurcation: Polyalylate
0.1 mm2 3-core (thru-beam type emitter: 2-core) cabtyre cable,
2 m 6.562 ft long
0.2 mm2 3-core cabtyre cable, 2 m 6.562 ft long (beyond bifurcation;
from emitter / receiver to bifurcation: 0.5 m 1.640 ft long)
Extension up to total 50 m 164 ft is possible with 0.3 mm2, or more, cable (thru-beam type: emitter and receiver).
Extension up to total 100 m 328 ft is possible with 0.3 mm2, or more, cable.
Net weight (each emitter and receiver): 20 g approx.,
Gross weight: 50 g approx.
Net weight: 20 g approx.
Net weight: 55 g approx., Gross weight: 80 g approx.
Gross weight: 40 g approx.
Mounting screws: 1 set
Mounting screws: 1 set Mounting screws: 1 set, Adjusting screwdriver: 1 pc.
Notes: 1) Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +23 °C +73.4 °F.
2) Model Nos. having the suffix “-PN” are PNP output type.
3) Either Light-ON or Dark-ON can be selected by the operation mode switch.
4) The sensing range and the hysteresis of convergent reflective type sensor are specified for white non-glossy paper (50 × 50 mm 1.969 × 1.969 in) as the object.
5) The min. sensing objects are specified in case the emitter / reciever sensing range is to set the maximum.
6) The bending-resistant cable type (model Nos. having suffix “-R”) has a 0.1 mm2 3-core (thru-beam type emitter: 2-core) bending-resistant cabtyre cable,
2 m 6.562 ft long.
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
I/O CIRCUIT AND WIRING DIAGRAMS
FIBER
SENSORS
EX-11□ EX-11S□ EX-13□ EX-13S□ EX-19□ EX-19S□ EX-14□
I/O circuit diagram
NPN output type
Wiring diagram
Sensor circuit
Tr
MICRO
PHOTOELECTRIC
SENSORS
(Brown) +V
D2
(Black)
Output (Note)
Load
+
−
50 mA max.
ZD
12 to 24 V DC
±10 %
AREA
SENSORS
Brown
Black (Note)
Load
+
−
(Blue) 0 V
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
12 to 24 V DC
±10 %
PRESSURE /
FLOW
SENSORS
Blue
Internal circuit
Users’ circuit
Note: The emitter of the thru-beam type sensor does not incorporate the
output.
Note: The emitter of the thru-beam type sensor does not incorporate the
black wire.
Symbols … D1: Reverse supply polarity protection diode
D2: Reverse output polarity protection diode
ZD: Surge absorption zener diode
Tr : NPN output transistor
PNP output type
Wiring diagram
STATIC
CONTROL
DEVICES
Sensor circuit
(Brown) +V
50 mA max.
D1
(Black) Output (Note)
Load
(Blue) 0 V
Internal circuit
Users’ circuit
+
12 to 24 V DC
±10 %
−
LASER
MARKERS
Brown
+
Black (Note)
Blue
Note: The emitter of the thru-beam type sensor does not incorporate the
output.
Load
−
PLC
12 to 24 V DC
±10 %
HUMAN
MACHINE
INTERFACES
Note: The emitter of the thru-beam type sensor does not incorporate the
black wire.
MACHINE
VISION
SYSTEMS
EX-15□ EX-15E□ EX-17□ EX-17E□
NPN output type
I/O circuit diagram
Color code
Sensor circuit
Tr
ZD
UV
CURING
SYSTEMS
EX-15□, EX-15E□, EX-17□, EX-17E□ wiring diagram
Selection
Guide
(Brown) +V
D2
ENERGY
MANAGEMENT
SOLUTIONS
FA
COMPONENTS
Symbols … D1: Reverse supply polarity protection diode
D2: Reverse output polarity protection diode
ZD: Surge absorption zener diode
Tr : PNP output transistor
D1
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
Color code
D2
PARTICULAR
USE
SENSORS
SIMPLE
WIRE-SAVING
UNITS
I/O circuit diagram
ZD
INDUCTIVE
PROXIMITY
SENSORS
SENSOR
OPTIONS
EX-11□-PN EX-11S□-PN EX-13□-PN EX-13S□-PN EX-19□-PN EX-19S□-PN EX-14□-PN
Tr
LASER
SENSORS
PHOTOELECTRIC
SENSORS
Color code
D1
286
(Black) Output
Load
100 mA max.
Amplifier
Built-in
+
−
Power Supply
Built-in
12 to 24 V DC
±10 %
Amplifierseparated
(Blue) 0 V
EX-Z
Internal circuit
Users’ circuit
CX-400
CY-100
Symbols … D1: Reverse supply polarity protection diode
D2: Reverse output polarity protection diode
ZD: Surge absorption zener diode
Tr : NPN output transistor
EX-10
EX-20
EX-30
EX-40
Brown
Black
Load
CX-440
+
−
Blue
12 to 24 V DC
±10 %
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
287
Ultra-slim Photoelectric Sensor
SENSING CHARACTERISTICS (TYPICAL)
FIBER
SENSORS
LASER
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
100
3.937
150
5.906
EX-11□
EX-15□
Emitter
50
1.969
ℓ
EX-11E□
EX-15E□
Emitter
ℓ
L
L
SENSOR
OPTIONS
Emitter 2
Receiver 1
Emitter 1
Receiver 2
Emitter 1
Receiver 1
EX-11E□
EX-15E□
Emitter
Emitter
50
1.969
0
20
θ
θ
L
EX-11□
EX-15□ Receiver
L
EX-11E□
Receiver EX-15E□
10
0
10
20
Center
Left
Right
Operating angle θ ( ° )
Emitter 2
Thru-beam type
Parallel deviation
Angular deviation
Parallel deviation with slit
masks (ø1.2 mm ø0.047 in)
Parallel deviation with slit
masks (ø1.5 mm ø0.059 in)
800
31.496
800
31.496
400
15.748
400
15.748
HUMAN
MACHINE
INTERFACES
400
15.748
EX-13E□
EX-17E□
Emitter
Emitter
200
7.874
ℓ
ℓ
L
L
EX-13□
EX-13E□
Receiver EX-17□
EX-17E□ Receiver
0
100
50
0
50
100
3.937
1.969
1.969
3.937
Center
Left
Right
Operating point ℓ (mm in)
ENERGY
MANAGEMENT
SOLUTIONS
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
600
23.622
EX-13□
EX-17□
300
11.811
EX-13□
EX-17□
EX-13E□
EX-17E□
Emitter
400
15.748
200
7.874
0
20
200
7.874
Emitter
θ
L
EX-13E□
Receiver EX-17E□
θ
L
EX-13□
EX-17□ Receiver
10
0
10
Center
Left
Right
Operating angle θ ( ° )
Parallel deviation
Angular deviation
0
200
7.874
CY-100
Parallel deviation
MQ-W
RX-LS200
RX
RT-610
Setting distance L (mm in)
20
0
20
Center
Left
Right
Operating angle θ ( ° )
150
5.906
Emitter
ℓ
0
200
7.874
L
Receiver
100
0
100
200
3.937
3.937
7.874
Left
Center
Right
Operating point ℓ (mm in)
100
3.937
50
1.969
Emitter
L
Receiver
EX-11SE□
EX-11S□
Emitter
EX-11SE□
L
L
EX-13S□/EX-13SE□ Thru-beam type
Parallel deviation
EX-11S□
ℓ
ℓ
Emitter
ℓ
L
Receiver
Receiver
0
50
25
0
25
50
0.984
0.984
1.969
1.969
Left
Center
Right
Operating point ℓ (mm in)
200
7.874
ℓ
L
Receiver
EX-13S□
0
50
1.969
ℓ
L
Receiver
100
0
100
200
3.937
3.937
7.874
Center
Left
Right
Operating point ℓ (mm in)
Thru-beam type
Parallel deviation
EX-13SE□
400
15.784 Emitter
Emitter
EX-19S□
EX-13S□
600
23.622
Slit on both sides
0
200
7.874
100
0
100
200
3.937
3.937
7.874
Center
Left
Right
Operating point ℓ (mm in)
800
31.496
Slit on one side
500
19.685
Receiver
0
200
7.874
40
Parallel deviation
1,000
39.370
500
19.685
ℓ
50
0
50
100
1.969
1.969
3.937
Center
Left
Right
Operating point ℓ (mm in)
1,000
39.370
200
7.874 Slit on both sides
Setting distance L (mm in)
EQ-30
EQ-500
L
Receiver
200
7.874
Setting distance L (mm in)
CX-440
θ
EX-11S□/EX-11SE□ Thru-beam type
Thru-beam type
Slit on one side
400
15.748
Emitter
0
40
100
0
100
200
3.937
3.937
7.874
Center
Left
Right
Operating point ℓ (mm in)
EX-30
EX-40
Setting distance L (mm in)
L
Receiver
EX-19E□
Emitter
Parallel deviation with slit
masks (ø1.5 mm ø0.059 in)
600
23.622
500
19.685
Emitter
ℓ
CX-400
EX-20
0
100
3.937
Parallel deviation with slit
masks (ø1.2 mm ø0.047 in)
1,000
39.370
500
19.685
EX-Z
EX-10
Receiver
20
0
20
40
0.787
0.787
1.575
Center
Left
Right
Operating point ℓ (mm in)
800
31.496
Setting distance L (mm in)
Amplifierseparated
100
3.937
Slit on one side,
sensing range: 350 mm 13.78 in
Slit on both sides,
sensing range: 300 mm 11.81 in
Thru-beam type
Setting distance L (mm in)
Power Supply
Built-in
L
200
7.874
EX-19□
1,000
39.370
Amplifier
Built-in
Emitter
ℓ
0
40
1.575
20
Slit on one side
or both sides
300
11.811
100
3.937
UV
CURING
SYSTEMS
Selection
Guide
EX-13□/17□
Slit on one side
EX-13□/17□
Slit on both sides
EX-13E□/17E□
Slit on one side
EX-13E□/17E□
Slit on
both sides
Setting distance L (mm in)
PLC
600
23.622
Setting distance L (mm in)
LASER
MARKERS
Receiver 2
L
EX-13□ EX-13E□ EX-17□ EX-17E□
Setting distance L (mm in)
STATIC
CONTROL
DEVICES
There is no problem when
sensors are installed in
parallel
(although the distance
between sensors should be
ℓ × 2 or more).
ℓ × 2 or more
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
Beam from Emitter 1
may be caught by Receiver 2.
EX-11□
EX-15□
100
3.937
Receiver
Receiver
0
50
25
0
25
50
1.969
1.969
0.984
0.984
Center
Left
Right
Operating point ℓ (mm in)
PARTICULAR
USE
SENSORS
SIMPLE
WIRE-SAVING
UNITS
EX-11E□
EX-15E□
150
5.906
Setting distance L (mm in)
PRESSURE /
FLOW
SENSORS
200
7.874
EX-11□
EX-15□
Setting distance L (mm in)
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
Angular deviation
200
7.874
*Optical properties of side sensing types (EX-□E□)
Due to the optical properties of side sensing types, note that sensing may
be affected if multiple sensors are positioned in such a way that optical
axes intersect as shown in the diagram below.
Emitter
ℓ
L
Receiver
EX-13SE□
25
0
25
50
0.984
0.984
1.969
Left
Center
Right
Operating point ℓ (mm in)
Setting distance L (mm in)
AREA
SENSORS
Thru-beam type
Parallel deviation
Setting distance L (mm in)
MICRO
PHOTOELECTRIC
SENSORS
EX-11□ EX-11E□ EX-15□ EX-15E□
Setting distance L (mm in)
PHOTOELECTRIC
SENSORS
EX-10 SERIES Ver.2
1,000
39.370
500
19.685
Emitter
ℓ
0
100
3.937
L
Receiver
50
0
50
100
1.969
1.969
3.937
Left
Center
Right
Operating point ℓ (mm in)
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
288
SENSING CHARACTERISTICS (TYPICAL)
FIBER
SENSORS
EX-14□
Convergent reflective type
PHOTOELECTRIC
SENSORS
Sensing fields
• Horizontal (left and right) direction
40
1.575
• Vertical (up and down) direction
30
1.181
ℓ
L
20
0.787
10
0.394
50 × 50 mm
1.969 × 1.969 in
Non-glossy paper
White
20
0.787
White
7.75
mm
0.305 in
N4
0
10
0.394
5
0
5
10
0.197
0.197
0.394
Center
Left
Right
Operating point ℓ (mm in)
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
PRESSURE /
FLOW
SENSORS
10
0.394
N4
0
10
0.394
AREA
SENSORS
Setting distance L (mm in)
Setting distance L (mm in)
30
1.181 7 mm
0.276 in
MICRO
PHOTOELECTRIC
SENSORS
40
1.575
50 × 50 mm 1.969 × 1.969 in
Non-glossy paper
INDUCTIVE
PROXIMITY
SENSORS
ℓ
5
0
5
0.197
0.197
Center
Down
Up
Operating point ℓ (mm in)
L
PARTICULAR
USE
SENSORS
10
0.394
SENSOR
OPTIONS
Correlation between lightness and sensing range
Correlation between material (50 × 50 mm 1.969 × 1.969 in) and sensing range
40
1.575
80
3.150
N1 N2 N3 N4 N5 N6 N7 N8 N9
Lightness shown on the left
may differ slightly from the
actual object condition.
PRECAUTIONS FOR PROPER USE
• Never use this product as a sensing device
for personnel protection.
• In case of using sensing devices for
personnel protection, use products which
meet laws and standards, such as OSHA,
ANSI or IEC etc., for personnel protection
applicable in each region or country.
Side sensing
Sensing
direction
Attached screw
[M2 (length 10 0.394)]
Front sensing
Attached screw
[M2 (length 8 0.315)]
M2 × 0.4 0.016 hole
tapped, 7 0.276 deep
M2 × 0.4 0.016 hole
tapped, 6 0.157 deep
• In case of using attached screws and nuts (Unit: mm in)
Side sensing
Front sensing
Flat washers
11
0.433
Sensing
direction
Attached screw
[M2 (length 10 0.394)]
Thickness of
mounting plate: 2 0.079 or less
Sensing
direction
Nuts
Spring washers
Attached screw
[M2 (length 8 0.315)]
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
PLC
HUMAN
MACHINE
INTERFACES
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
UV
CURING
SYSTEMS
Operation mode switch
L: Light-ON
D: Dark-ON
Operation indicator (Orange)
Lights up when the output is
ON.
Switch
position
11
0.433
The tightening torque should be 0.2 N·m or less.
SIMPLE
WIRE-SAVING
UNITS
ENERGY
MANAGEMENT
SOLUTIONS
Operation mode switch
(EX-15□, EX-15E□, EX-17□ and EX-17E□ only)
Sensing
direction
11
0.433
The bars in the graph indicate
the sensing range (typical)
for the respective material.
However, there is a slight
variation in the sensing range
depending on the product.
Further, if there is a reflective
object (conveyor, etc.) in the
background of the sensing
object, since it affects the
sensing, separate it by more
than twice the sensing range
shown in the left graph.
Refer to p.1552~ for general precautions.
Mounting
• In case of mounting on tapped holes (Unit: mm in)
Aluminum-evaporated mirror
N8
Light
Distance to convergent point
N4
N6
Lightness
Aluminum plate
(Hair line)
N2
Dark
20
0.787
10
0.394
0
Stainless steel plate
0
Distance to
convergent point
10
0.394
40
1.575
Black circuit board
Sensing region
Black rubber sheet
IC tray (Black)
Glass epoxy printed circuit board
(Green masked surface)
Ceramic circuit board
White non-glossy paper
Sensing range L (mm in)
20
0.787
60
2.362
Sensing range L (mm in)
The sensing region (typical) is
represented by oblique lines
in the left figure. However, the
sensitivity should be set with
enough margin because of
slight variation in products.
30
1.181
LASER
SENSORS
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
Description
EX-Z
Light-ON mode is set when the switch is turned fully
clockwise (L side).
CX-400
Dark-ON mode is set when the switch is turned fully
counterclockwise (D side).
EX-10
Others
• Do not use during the initial transient time (50 ms)
after the power supply is switched on.
• Excess bending of the cable or stress applied to the
cable may disconnect the internal lead wire.
CY-100
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
11
0.433
Thickness of
mounting plate: 2.5 0.098 or less
The tightening torque should be 0.2 N·m or less.
RX-LS200
RX
RT-610
289
FIBER
SENSORS
LASER
SENSORS
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
DIMENSIONS (Unit: mm in)
The CAD data can be downloaded from our website.
EX-11□ EX-11S□ EX-13□ EX-13S□ EX-19□ EX-19S□
Sensor
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
3.5
0.138
2.1
0.083
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
10
0.394
5.5
0.217
1.75 0.069
1.75 0.069
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
14.5 11
0.571 0.433
PARTICULAR
USE
SENSORS
4
0.157
2-ø2.2 ø0.087
mounting holes
SIMPLE
WIRE-SAVING
UNITS
ø2.5 ø0.098 cable, 2 m 6.562 ft long
6.5
0.256
6.5
0.256
EX-11E□ EX-11SE□ EX-13E□ EX-13SE□ EX-19E□
HUMAN
MACHINE
INTERFACES
10
0.394
1.75 0.069
4.5
0.177
1.75 0.069
ENERGY
MANAGEMENT
SOLUTIONS
FA
COMPONENTS
14.5 11
0.571 0.433
MACHINE
VISION
SYSTEMS
Sensor
Stability
indicator (Green)
Operation
indicator (Orange)
4.5
0.177
2.25
0.089
Beamemitting
part
4
0.157
2-ø2.2 ø0.087
mounting holes
6.5
0.256
EX-20
EX-30
EX-40
Emitter
6.5
0.256
3.5
0.138
2.1
0.083
14.5 11
0.571 0.433
Receiver
5.5
0.217
Stability indicator (Green)
Incident beam indicator (Orange)
10 0.394
6.45 0.254
5.5
0.217
1.75
0.069
4.5
0.177
2-ø2.2 ø0.087
mounting holes
EQ-30
2-ø2.2 ø0.087
500
mounting holes 19.685
ø2.5 ø0.098 cable, 2 m 6.562 ft long
2.1
0.083
Stability indicator (Green)
10
1.75 0.394
0.069
1.75
0.069 4
0.157
14.5 11
0.571 0.433
4.5
0.177
2-ø2.2 ø0.087
mounting holes
Beamemitting
part
4.2
0.165
4.5
0.177
2.25
0.089
4.5
0.177
2.25
0.089
Beamreceiving
part
4.2
0.165
7
0.276
1 0.039
8
0.315
4.5 0.177
2-ø2.2 ø0.087
mounting holes
Operation mode switch
ø3.8 ø0.150 cable,
2 m 6.562 ft long
RX
500
19.685
11 14.5
0.433 0.571
19.2
0.756
38
1.496
Operation mode switch
RX-LS200
Receiver
6.45 0.254
1.75 0.069
1.5
4 1.75 0.059
0.157 0.069
15.2 0.598
Operation indicator
(Orange)
38
1.496
10
0.394
Incident beam indicator (Orange)
ø2.5 ø0.098 cables
19.2
0.756
MQ-W
Sensor
Emitter
3.5
0.138
15.2 0.598
Operation indicator
(Orange)
EQ-500
1.5
1.75
0.069 0.059
4 0.157 11
14.5
0.433 0.571
4.5 0.177
Beam- Beamemitting receiving
part
part
ø2.5 ø0.098 cables
2-ø2.2 ø0.087
mounting holes
EX-15E EX-17E
Sensor
10
0.394
1.75
0.069
1.75 4
0.069 0.157
CX-440
RT-610
11 14.5
0.433 0.571
Receiver
EX-15 EX-17
Amplifierseparated
EX-10
4
0.157
4.2
0.165
4.2
0.165
Emitter
Selection
Guide
CY-100
Beamreceiving
part
1.75 1.5
0.069 0.059
4.5
0.177
ø2.5 ø0.098 cable, 2 m 6.562 ft long
CX-400
2.25
0.089
10
0.394
6.45
0.254
1.75
0.069
4.5
0.177
UV
CURING
SYSTEMS
EX-Z
2-ø2.2 ø0.087
mounting holes
Receiver
PLC
Power Supply
Built-in
11 14.5
0.433 0.571
ø2.5 ø0.098 cable, 2 m 6.562 ft long
LASER
MARKERS
Amplifier
Built-in
3.5
0.138
2.1
0.083
4.5
0.177
Beamemitting
part
Emitter
WIRE-SAVING
SYSTEMS
STATIC
CONTROL
DEVICES
4
0.157
Beamreceiving
part
4.5
0.177
SENSOR
OPTIONS
MEASUREMENT
SENSORS
Stability
indicator
(Green)
Operation
indicator
(Orange)
1.75 1.5
0.069 0.059
10
0.394
6.45
5.5 0.254
0.217
1.75
0.069
ø3.8 ø0.150 cable,
2 m 6.562 ft long
7
0.276
1 0.039
8
0.315
EX-10 SERIES Ver.2
Ultra-slim Photoelectric Sensor
DIMENSIONS (Unit: mm in)
290
The CAD data can be downloaded from our website.
EX-14□
Sensor
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
13
0.512
6.45
0.254
5
0.197
Stability indicator
(Green)
3.5
0.138
Operation
indicator (Orange)
2.75
0.108
1.75
0.069
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
2.1
0.083
1.75 1.5
0.069 0.059
4.5
0.177
Beamreceiving
part
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
11 14.5
0.433 0.571
Beam-emitting part
PARTICULAR
USE
SENSORS
4.5
0.177
8
0.315
SENSOR
OPTIONS
2-ø2.2 ø0.087 mounting holes
SIMPLE
WIRE-SAVING
UNITS
ø2.5 ø0.098 cable,
2 m 6.562 ft long
WIRE-SAVING
SYSTEMS
MS-EX10-1
Sensor mounting bracket (Optional)
Assembly dimensions
t 1.2
t 0.047
STATIC
CONTROL
DEVICES
Mounting drawing with EX-14□
7.6
0.299
LASER
MARKERS
20 0.787
(0.7)
7.6 (0.028)
0.299
t 1.2
t 0.047
PLC
3.7
0.146
4-M2 × 0.4 0.016
thru-hole threads
20
0.787
6.5
8
3.5
0.256 0.315 0.138
15
8
0.315 0.591
11
0.433
Beamemitting
part
22.75 0.896
13
0.512
5 10.75
0.423
0.197
8
0.315
ENERGY
MANAGEMENT
SOLUTIONS
3.5
0.138
FA
COMPONENTS
1.25
0.049
(8.8)
(0.346)
MACHINE
VISION
SYSTEMS
UV
CURING
SYSTEMS
3 0.118
11 15
8
0.315 0.433 0.591
Beamreceiving
part
Material: Cold rolled carbon steel (SPCC)
(Uni-chrome plated)
HUMAN
MACHINE
INTERFACES
(4.9)
(0.193)
3.7 3.5
0.146 0.138
2-ø3.4 ø0.134 mounting holes
4.25 0.167
Two M2 (length 4 mm 0.157 in) pan head screws are attached.
2-ø3.4 ø0.134 mounting holes
MS-EX10-2
Selection
Guide
Sensor mounting bracket (Optional)
Assembly dimensions
t 1.2
t 0.047
7.6
0.299
7.6
0.299
t 1.2
t 0.047
20
0.787
3.2
0.126
4.5
6.25
0.246 0.177
1.4
0.055
4
0.157
(1.3)
(0.051)
10
0.25
0.394
0.010
8
15
0.315 0.591
11
0.433
15
11
0.591 0.433
8
0.315
Two M2 (length 8 mm 0.315 in) pan head screws are attached.
Power Supply
Built-in
(2.3)
(0.091)
EX-Z
(7.45)
(0.293)
CY-100
3.2
0.126 1.25
0.049
1.4
0.055
Beam- 2.5 0.098
receiving
part
8
0.315
3.5
0.138
Material: Cold rolled carbon steel (SPCC)
(Uni-chrome plated)
Amplifier
Built-in
Amplifierseparated
Mounting drawing with EX-11E□ and EX-13E□
6.25
0.246
2-M2 × 0.4 0.016
thru-hole threads
MEASUREMENT
SENSORS
4.25
0.167
8
0.315
20
0.787
3.5
0.138
CX-400
EX-10
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
291
FIBER
SENSORS
LASER
SENSORS
Ultra-slim Photoelectric Sensor
EX-10 SERIES Ver.2
DIMENSIONS (Unit: mm in)
The CAD data can be downloaded from our website.
MS-EX10-3
Sensor mounting bracket (Optional)
PHOTOELECTRIC
SENSORS
Assembly dimensions
15
0.591
MICRO
PHOTOELECTRIC
SENSORS
Mounting drawing with EX-14□
7 0.276
10.5
0.413
AREA
SENSORS
1.4
0.055
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
8
0.315
t 1.2
t 0.047
PRESSURE /
FLOW
SENSORS
3.2
0.126
6.5
0.256
PARTICULAR
USE
SENSORS
11
0.433
t 1.2
t 0.047
(0.7)
(0.028)
4-M2 × 0.4 0.016
thru-hole threads
10.8
0.425
INDUCTIVE
PROXIMITY
SENSORS
10.8
0.425
(2.75)
(0.108)
3.5
0.138
Beam1.75 0.069
13
emitting part
0.512
1.25
5 6.25
0.049
0.197 0.246
Beamreceiving part
Material: Cold rolled carbon steel (SPCC)
(Uni-chrome plated)
SIMPLE
WIRE-SAVING
UNITS
Two M2 (length 4 mm 0.157 in) pan head screws and two M2 (length 8 mm 0.315 in) pan
head screws are attached.
7
0.276
3.2
0.126
1.4
0.055
3 0.118
11 15
0.438 0.591
2
0.079
SENSOR
OPTIONS
10.5
0.413
8
0.315
4.25
0.167
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
MS-EX10-11
Sensor mounting bracket (Optional)
Assembly dimensions
STATIC
CONTROL
DEVICES
Mounting drawing with EX-14□
8.1
0.319
t 1.2
t 0.047
LASER
MARKERS
PLC
HUMAN
MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
20
0.787
t 1.2
t 0.047
3.7
0.146
4-M2 × 0.4 0.016
thru-hole threads
FA
COMPONENTS
(4.9)
(0.193)
20
0.787
6.5
8
3.5
0.256 0.315 0.138 1.4 3.2
0.055 0.126
11
0.433
3.5
3.7
0.146 0.138
8
15
0.315 0.591
MACHINE
VISION
SYSTEMS
3.2
0.126
UV
CURING
SYSTEMS
1.4
0.055
(0.7)
(0.028)
8.1
0.319
22.75
0.896
13
0.512
5
0.197 10.75 0.423
8 0.315
(9.3)
(0.366)
3.5
0.138
3.2
1.4 0.126
0.055
Beam-emitting part
3 0.118
8 11 15
0.315 0.433 0.591
Beam-receiving part
Material: Stainless steel (SUS304)
Two M2 (length 4 mm 0.157 in) pan head screws [stainless steel (SUS304)] are attached.
3.2
0.126
Amplifier
Built-in
Amplifierseparated
MS-EX10-12
Sensor mounting bracket (Optional)
Assembly dimensions
8.1
0.319
t 1.2
t 0.047
Mounting drawing with EX-11E□ and EX-13E□
EX-Z
CX-400
20
0.787
EX-10
EX-20
1.4
0.055
3.2
0.126
EQ-30
EQ-500
2-M2 × 0.4 0.016
thru-hole threads
MQ-W
RX-LS200
RX
RT-610
Material: Stainless steel (SUS304)
8
15
0.315 0.591
11
0.433
8
0.315
1.4
0.055
3.2
0.126
3.5
0.138
Two M2 (length 8 mm 0.315 in) pan head screws [stainless steel (SUS304)] are attached.
EX-30
CX-440
W
W
6.25
0.246
CY-100
EX-40
4.25
0.167
1.4
0.055
Selection
Guide
Power Supply
Built-in
1.25
0.049
%HDP
UHFHLYLQJ
SDUW
Ultra-slim Photoelectric Sensor
DIMENSIONS (Unit: mm in)
EX-10 SERIES Ver.2
292
The CAD data can be downloaded from our website.
MS-EX10-13
Sensor mounting bracket (Optional)
7
0.276
1.4
0.055
t 1.2
t 0.047
8
0.315
15
0.591
10.8
0.425
1.4 0.055
3.2 0.126
Mounting drawing with EX-14□
(2.75)
(0.108)
MICRO
PHOTOELECTRIC
SENSORS
t 1.2
t 0.047
AREA
SENSORS
(0.7)
(0.028)
SAFETY LIGHT
CURTAINS /
SAFETY
COMPONENTS
4-M2 × 0.4 0.016
thru-hole threads
PRESSURE /
FLOW
SENSORS
13
0.512
5 6.25
0.197 0.246
6.5 0.256
11
0.433
10.8
0.425
2
0.079
Material: Stainless steel (SUS304)
Two M2 (length 4 mm 0.157 in) pan head screws [stainless steel (SUS304)] and two M2
(length 8 mm 0.315 in) pan head screws [stainless steel (SUS304)] are attached.
LASER
SENSORS
PHOTOELECTRIC
SENSORS
Assembly dimensions
10.5
0.413 3.2 0.126
FIBER
SENSORS
1.75
0.069
3.5
0.138
1.25
0.049
Beam-emitting
part
Beam-receiving
part
10.5
0.413
7
0.276
INDUCTIVE
PROXIMITY
SENSORS
1.4 3.2
0.055 0.126
SENSOR
OPTIONS
3 0.118
11 15
0.433 0.591
4.25
0.167
PARTICULAR
USE
SENSORS
8
0.315
1.4
0.055
3.2
0.126
SIMPLE
WIRE-SAVING
UNITS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
PLC
HUMAN
MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
FA
COMPONENTS
MACHINE
VISION
SYSTEMS
UV
CURING
SYSTEMS
Selection
Guide
Amplifier
Built-in
Power Supply
Built-in
Amplifierseparated
EX-Z
CX-400
CY-100
EX-10
EX-20
EX-30
EX-40
CX-440
EQ-30
EQ-500
MQ-W
RX-LS200
RX
RT-610
工商网监
湘ICP备2023018690号
