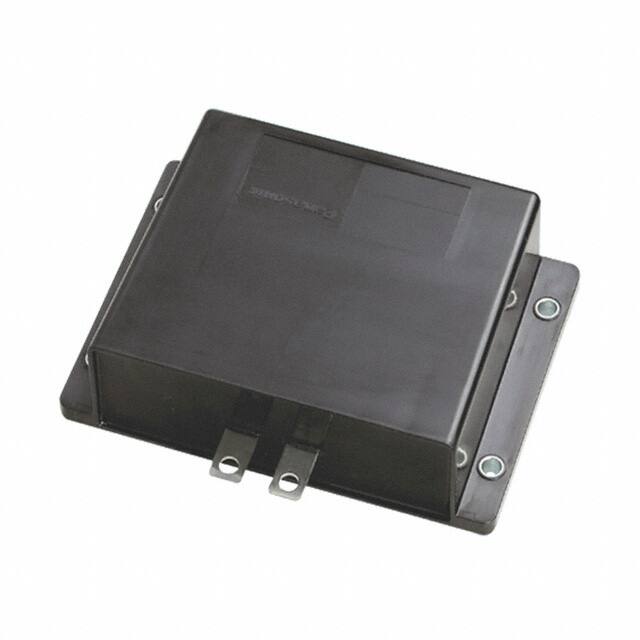

EZT-VKCTYP1HA

Metallized Polypropylene Film Capacitor - Power electronic capacitor DC-Link Film Capacitor Standard TYPE1 ■Features 　●High safety, Self-healing and Self-protecting function built in. 　●No catastrophic failure upon natural end of life due to inbuilt fuse function. 　●Open circuit failure mode by fuse function patterned electrode 　●Can replace Electrolytic Capacitor 　●Low ESR, High Ripple Current capability 　●Low ESL ■Application Any automotive and/or other application requiring DC Linkage ※Verify the usage and fitting environments, and make sure to observe the rated performance specified in the corresponding specifications. ■Construction 　●Dielectric 　●Electrode 　●Plastic Case 　●Sealing 　●Terminal : Polypropylene : Metallized dielectric with Segment pattern : PPS. equivalent to UL94 V-0 : Epoxy Resin equivalent to UL94 HB : Copper with Tin plating ■Product Part Number 　● EZTVKCTYP1HA ■Specification Item Specification Operating Temperature on the Surface of the Case -40 ºC to +105 ºC including self heat generation Capacitance 581uF +10%/-5% Rated Voltage 450 VDC @1kHz, 25 ºC Maximum Voltage 600 VDC for 60 sec in life time Rated Ripple Current Continuous 80 Arms at 10kHz Current Derating Refer Fig.1 ESR 0.8mΩ or less at 10KHz ESL 20 nH or less at 1MHz Insulation Resistance between Terminals and Case 1 GΩ or more Measure after applying DC500+50/-0V for 2+2/-0 seconds. Dimensions L x W x H (Typical data) 164 x 115 x 43.1 mm : Excluding terminals Weight (Typical data) 980 g Note: 1) Voltage includes ripple voltage 2) Derate the current when the maximum surface temperature exceeds 95degC, as shown in Fig.1. ■Current Derating 100 95ºC 95℃ 80 許容リプル電流　（Arms@10kHz） Ripple current (Arms@10kHz) 90 70 60 50 40 30 20 10 0 -40 55 60 65 70 75 80 85 90 95 100 Temperature on コンデンサ　ケース壁面温度　（℃） the surface of the capacitor housing (℃) Fig.1　Current derating curve ■Dimensions (in mm) 105 110 ■Characteristics Change of Capacitance Equivalent Series Resistance Equivalent Series Resistance * Expected life: 15,000 hours * Failure in Time: 300 Fits The above values are reference calculated under an pre-assumed average operating condition
