Doc No. TT4-EA-15080
Revision. 1
Product Standards
MOS FET

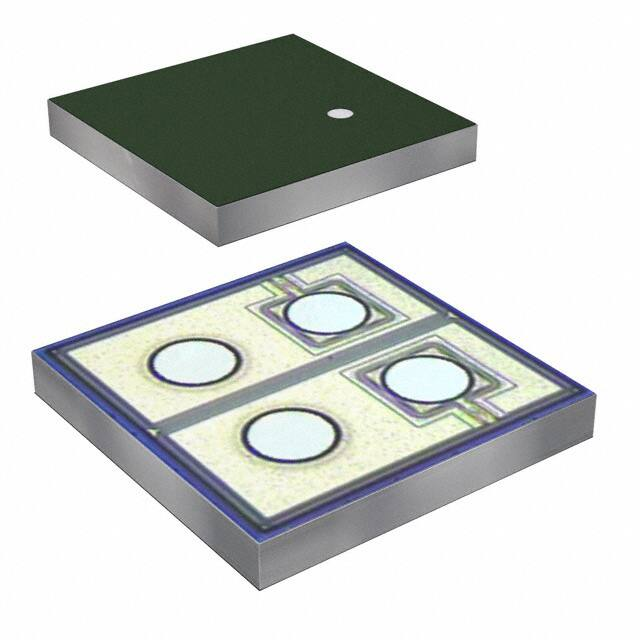

FC4B21300L1
FC4B21300L1
Gate resistor installed Dual N-channel MOS FET
Unit: mm
For lithium-ion secondary battery protection circuits
0.6
3
1
2
Features
Source-source ON resistance:Rss(on) typ. = 80 mW(VGS = 3.8 V)
CSP(Chip Size Package)
RoHS compliant (EU RoHS / MSL:Level 1 compliant)
0.1
0.6
4
φ0.15
0.3
Marking Symbol: 29
Packaging
Embossed type (Thermo-compression sealing) : 1 000 pcs / reel (standard)
(0.15)
0.3
(0.15)
1. Source1 (FET1) 3. Gate2 (FET2)
2. Gate1 (FET1) 4. Source2 (FET2)
Absolute Maximum Ratings Ta = 25 C
Parameter
Symbol
Source-source Voltage
Gate-source Voltage
Source Current (DC)
Source Current (Pulsed)
Total Power Dissipation
Channel Temperature
Storage Temperature Range
Thermal Resistance (ch-a)
Note
VSS
VGS
IS *1
IS *2
ISp *3
PD *1
PD *2
Tch
Tstg
Rth *1
Rth *2
Rating
Unit
12
8
1.5
2
15
0.32
0.6
150
-55 to +150
390
208
V
V
A
A
A
W
W
C
C
C/W
C/W
*1 Mounted on FR4 board ( 25.4 mm 25.4 mm t1.0 mm )
using the minimum recommended pad size (36mm Copper ).
*2 Mounted on Ceramic substrate (70 mm 70 mm t1.0 mm).
*3 t = 10 ms, Duty Cycle 1 %
Panasonic
JEITA
Code
ALGA004-W-0606-RA
―
―
Equivalent circuit
FET2
FET1
Page 1 of 5
Established : 2015-10-23
Revised
: ####-##-##
Doc No. TT4-EA-15080
Revision. 1
Product Standards
MOS FET
FC4B21300L1
Electrical Characteristics Ta = 25 C 3 C
Parameter
Symbol
Source-source Breakdown Voltage
Zero Gate Voltage Source Current
VSSS
ISSS
Gate-source Leakage Current
IGSS
Gate-source Threshold Voltage
Vth
RSS(on)1
RSS(on)2
RSS(on)3
RSS(on)4
VF(s-s)
Ciss
Coss
Crss
td(on)
tr
td(off)
tf
Qg
Qgs
Qgd
Source-source On-state Resistance
Body Diode Forward Voltage
Input Capacitance *1
Output Capacitance *1
Reverse Transfer Capacitance
Turn-on delay Time *1,*2
Rise Time *1,*2
Turn-off delay Time *1,*2
Fall Time *1,*2
Total Gate Charge *1
Gate-source Charge *1
Gate-drain Charge *1
Note
*1
Conditions
Min
IS = 1 mA, VGS = 0 V
VSS = 12 V, VGS = 0 V
VGS = 8 V, VSS = 0 V
VGS = 5 V, VSS = 0 V
IS = 0.03 mA, VSS = 10 V
IS = 0.75 A, VGS = 4.5 V
IS = 0.75 A, VGS = 3.8 V
IS = 0.75 A, VGS = 3.1 V
IS = 0.75 A, VGS = 2.5 V
IF = 0.75 A, VGS = 0 V
Typ
Max
Unit
12
0.35
55
60
65
70
VSS = 10 V, VGS = 0 V, f = 1 MHz
VDD = 10 V, VGS = 0 to 4.0 V
IS = 0.75 A
VDD = 10 V, VGS = 4.0 to 0 V
IS = 0.75 A
VDD = 10 V
VGS = 0 to 4.0 V,
IS = 0.75 A
0.90
70
80
90
115
0.6
115
25
18
0.10
0.20
0.27
0.22
1.7
0.5
0.45
V
mA
1.0
10
1.0
1.4
95
110
150
225
1.2
mA
V
mW
V
pF
ms
ms
nC
Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 Measuring methods for transistors.
*1 Guaranteed by design, not subject to production testing
*2 Measurement circuit for Turn-on Delay Time / Rise Time / Turn-off Delay Time / Fall Time
Note2 : Measurement circuit
VDD = 10 V
IS = 0.75 A
RL = 13.3 W
Vout
S2
90 %
Vin
10 %
Rg
G2
90 %
Rg
G1
Vin
4V
90 %
Vout
10 %
10 %
50 W
0V
PW = 10 ms
D.C. 1 %
S1
td(on) tr
td(off)
tf
Page 2 of 5
Established : 2015-10-23
Revised
: ####-##-##
Doc No. TT4-EA-15080
Revision. 1
Product Standards
MOS FET
FC4B21300L1
Technical Data ( reference )
IS - VSS
RSS(on) - IS
Source-source ON-state Resistance
RSS (on) ( mW )
5
Source Current IS ( A )
VGS = 4.5 V
4
3.8 V
3
3.1 V
2.5 V
2
1
※Pulse measurement
0
0
0.2
0.4
0.6
0.8
400
※Pulse measurement
350
300
250
200
2.5 V
150
3.1 V
100
50
0.5
1
1
IS - VGS
Source-source ON-state Resistance
RSS (on) ( mW )
※Pulse measurement
1.E-03
Ta = 85 C
1.E-04
25 C
-40 C
1.E-05
1.E-06
0.2
0.7
1.2
1.7
250
200
150
Ta = 85 C
100
IS = 0.75A
50
1
Gate-source Leakage Current IGS ( A )
※Pulse measurement
Ta = 85 C
25 C
-40 °C
0.01
1
1.5
Body Diode Forward Voltage VF ( V )
-40 C
2
3
4
5
Gate-source Voltage VGS ( V )
IF - VF
0.5
25 C
0
2.2
10
0.1
2.5
※Pulse measurement
Gate-source Voltage VGS ( V )
1
2
RSS(on) - VGS
300
1.E-02
Source Current IS ( A )
1.5
Source Current IS (A)
Source-source Voltage VSS (V)
Diode Forward Current IF ( A )
VGS = 4.5 V
3.8 V
0
2
IGS - VGS
1.E-03
1.E-04
※Pulse measurement
Ta = 85 C
1.E-05
1.E-06
25 C
1.E-07
1.E-08
-40 C
1.E-09
1.E-10
0
2
4
6
8
10
Gate-source Voltage VGS (V)
Page 3 of 5
Established : 2015-10-23
Revised
: ####-##-##
Doc No. TT4-EA-15080
Revision. 1
Product Standards
MOS FET
Technical Data ( reference )
ISS - VSS
Dynamic Input/Output Characteristics
1.E-03
Gate - source Voltage VGS ( V )
Zero Gate Voltage Source Current ISS ( A )
FC4B21300L1
1.E-04
1.E-05
Ta = 85 C
1.E-06
1.E-07
25 C
1.E-08
-40 C
1.E-09
1.E-10
0
5
10
15
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
20
10 V
0
Source-source Voltage VSS ( V )
Rth - tsw
1
2
3
Safe Operating Area
100
limited by
RSS(on) (VGS = 3.8 V)
Source Current IS ( A )
Thermal Resistance Rth ( C/W )
VDD = 12 V
Gate Charge ( nC )
1000
100
10
Ta = 25 C,
Mounted on FR4 board ( 25.4 mm ͯ 25.4 mm ͯ t1.0 mm )
using the minimum recommended pad size (36mm Copper ).
1
0.001
0.01
0.1
1
10
100
1000
Pulse Width tsw ( s )
Normalized Effective Transient Thermal Impedance
8V
IS = 0.75 A
PW = 10 ms
10
500 ms
1 ms
1
0.1
0.01
10 ms
100 ms
1s
DC
Ta = 25 C,
Mounted on FR4 board
( 25.4 mm ͯ 25.4 mm ͯ t1.0 mm )
using the minimum recommended
pad size (36mm Copper ).
0.1
1
10
100
Source-source Voltage VSS ( V )
Thermal Response
10
1
Duty Cycle = 0.5
0.2
0.1
0.1
0.05
0.02
Single Pulse
0.01
Ta = 25 C,
Mounted on FR4 board ( 25.4 mm ͯ 25.4 mm ͯ t1.0 mm )
using the minimum recommended pad size (36mm Copper ).
0.001
0.0001
0.001
0.01
0.1
1
10
100
Square Wave Pulse Duration ( s )
Page 4 of 5
Established : 2015-10-23
Revised
: ####-##-##
Doc No. TT4-EA-15080
Revision. 1
Product Standards
MOS FET
FC4B21300L1
Outline (ALGA004-W-0606-RA)
Unit: mm
0.60±0.03
3
1
2
0.10±0.02
0.60±0.03
4
(0.15)
0.3
Land Pattern (Reference)
(0.15)
0.3
φ0.15±0.03
Unit: mm
0.335
φ0.2
0.335
Page 5 of 5
Established : 2015-10-23
Revised
: ####-##-##
