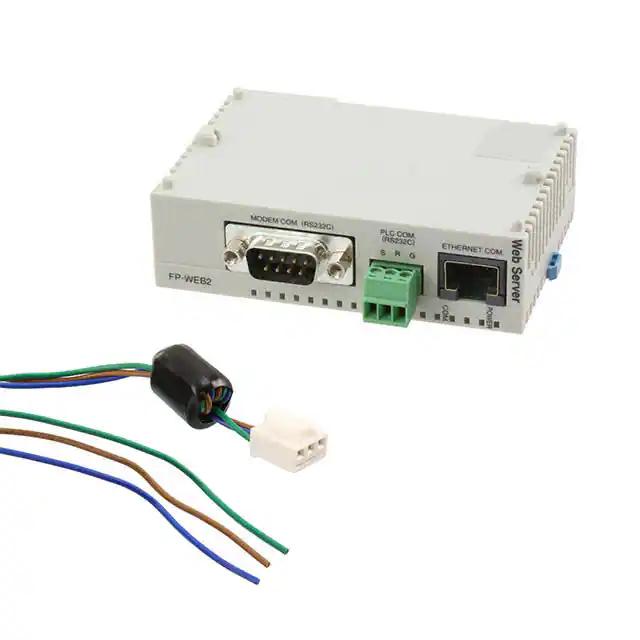

FPWEB2

FP Web-Server FP Web-Server and Expansion Unit FPWEB2 & FPWEBEXP The FP Web-Server enables a Panasonic PLC to communicate via Internet, Intranet, Ethernet or modem. This makes it simple to communicate to an FP-series PLC using the local Ethernet network or WAN. For use with Internet or Intranet (Ethernet LAN or WAN) The PLC connects to the FP Web-Server via RS232C (or USB/RS485 using the FP Web expansion unit) and MEWTOCOL; the FP Web-Server uses an Ethernet (10Base-T / 100Base-TX) connection to access the TCP/IP network Use for dialing up a network The PLC is connected via RS232C and MEWTOCOL to the FP Web-Server. A modem is connected to the FP Web-Server's second RS232C port. The modem can be reached from a normal telephone network. The modem can also be used to dial up the Internet and send e-mails via an Internet server. Combinations: LAN plus dial-up gateway Each of these combinations for LAN or dial-up is possible. For example, an Ethernet network can be used to connect several FP Web-Servers, and another FP Web-Server can be configured as a gateway for dial-up connections and to send e-mails using Web mail services. 07/02/2012 FP Web-Server Features s Web-Server: – Display PLC data on HTML or XML pages – Access via standard Internet browser or smartphone – Modify PLC data via HTML input fields or Java Applets s E-mail: – PLC can send e-mails – E-mail via LAN, e-mail server or Web mail – E-mail text, predefined or PLC-defined – PLC data array as e-mail attachment – Data saved on SD memory card as attachment s Ethernet RS232C Conversation (MEWTOCOL) s Transparent RS232C data circuit via Ethernet s Programming and visualization access via TCP or UDP s Dial-up via modem (dial-up networking): – A modem can dial up the FP Web-Server – One remote gateway for multiple FP Web-Servers in a local network s Internet dial-up via modem: – The FP Web-Server can establish an Internet connection (and stay online) – Various wireless communication methods via GPRS supported s Modbus-TCP protocol: – Communication using industrial Ethernet standard protocol (server and client) – Gateway for Modbus RTU stations (master and slave) s IEC 60870-5-101 and IEC 60870-5-104 protocol: – Communication via RS232C, RS485 adapter, leased-line modem, PSTN modem or Ethernet s Time synchronization using network server: – Update of the PLC real-time clock using NTP server s SNMPv1 agent: – Data exchange with SNMP management system s FTP client: – Current or logged data can be sent to a remote FTP server s Data logger: – Logging of PLC data and saving it on an SD memory card or transmitting it via FTP (only possible when FPWEBEXP is attached) Item Current consumption: Operating voltage: Communication port: Storage space: Data logging: Digital output: Communication protocols: FP Web-Server FP Web Expansion 65mA Additional 20mA on FP Web-Server 24V DC (10.8 – 26V DC) Internally powered by FP-WEB2 RS232C to connect to the PLC,RS232C to connect to a modem, 100Base-TX/10Base-T Ethernet USB host port (supports GT series and FP-X PLCs), RS485 Built-in Flash ROM SD/SDHC card slot Via FP Web Expansion Logging on SD/SDHC Card Via FP Web Expansion High speed photo coupler MEWTOCOL, DNS, HTTP, HTTPS, SMTP, FTP, TELNET, TCP/IP, UDP/IP, PPP, SNTP, Modbus RTU, Modbus-TCP, SNMPv1, IEC 60870-5101, IEC 60870-5-104 Security: Password protection, IP lock Ambient temperature: 0°C to +55°C Storage temperature: -20°C to +70°C Dimensions: Weight: Part number: Software Part number 25 W x 90 H x 60 D (mm) 0.11kg 0.07kg FPWEB2 FPWEBEXP FP Web Configurator IEC60870LIS-license for FPWEB2 FP Web Designer FPWEBTOOL2D IEC60870LIS AFPS36510-E You can find further information on our homepage: www.panasonic-electric-works.com Panasonic Electric Works Europe AG s2UDOLF $IESEL 2INGs(OLZKIRCHENs4EL   07/02/2012 Copyright © 2011 Panasonic Electric Works Europe AG Specifications
