Link digital sensors directly to open networks
To minimize life cycle cost
The continuously shortened life cycle of equipment has highlighted the importance of reduced costs during
manufacturing and initial installation. Panasonic Industrial Devices SUNX offers a line of devices, the SC-GU3
series communication units for open network, that maximize the capabilities of open networks, streamline regular
maintenance and preventive maintenance, and reduce wiring and installation work. We offer solutions that minimize
costs during the life cycle of equipment.
Traceability
It is useful to keep track of the sensor configurations at equipment start-up so that failures can be quickly
identified and the user alerted.
Before
Upper
Communication Unit
MIL Connector
Plug-in
When a failure occurs
After
It is hard to identify “what went wrong”. Checking on the
settings of each sensor one by one requires a great number
of man-hours.
It is easy to identify “what went wrong”. By having the
information of each sensor saved as “Configuration file”,
the traceability of the workload is reduced and incorrect
input or setting loss is prevented.
Difficult to identity the failure
Easy to identify the failure by checking
Other Products
SC-GU3
When a failure occurs
1ch
Sensor
Threshold value Current value
90
65
9ch
Threshold value Current value
0
0
2ch
50
0
10ch
0
0
3ch
40
70
11ch
0
0
4ch
0
0
12ch
0
0
5ch
0
0
13ch
0
0
6ch
0
0
14ch
0
0
7ch
0
0
15ch
0
0
8ch
0
0
16ch
0
0
Configuration
file
Touch panel
Failure!
Light intensity
decrease
Digital sensor
Max. 16 units (Note)
W2
V4L
U4L
W4L
W2
V4L
U4L
W4L
End unit
Communication
unit
Note: Maximum of 12 units in case of including the FX-500 series.
/ LS-500 series.
Communication Unit for Open Network
SC-GU3 SERIES
Remote monitoring of equipment
FIBER
SENSORS
Since the sensor settings can be checked over the network, it is possible to minimize the man-hours spent by
field workers to resolve failures of equipment or line.
Before
972
Current situation
After
Confirmation of sensor condition in detail via telephone or
e-mail is required.
LASER
SENSORS
PHOTOELECTRIC
SENSORS
Connecting to network
Monitoring can be done via existing system or PC.
Accurate situations can be confirmed so that actions can
be taken correctly and swiftly.
Network
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
Office
Inquiry desk
PARTICULAR
USE SENSORS
Checked remotely
via network
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
Consumes time to confirm the configuration condition.
WIRE-SAVING
SYSTEMS
In the worst case, a trip down
to the actual worksite may necessary.
Worksite
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
Streamline maintenance work
PLC
By saving the default settings as “Configuration file” when equipment was shipped out, sensor replacement
can be smoothly performed by downloading via an open network. Replacement work is also easy, for sensor is
equipped with connector that require no tools.
At equipment shipment
When replacing sensors
MACHINE VISION
SYSTEMS
Configuration
file
UV CURING
SYSTEMS
Current values
of connected
sensors are
shown.
1ch
Threshold value Current value
90
65
9ch
Threshold value Current value
0
0
2ch
50
0
10ch
0
0
3ch
40
70
11ch
0
0
4ch
0
0
12ch
0
0
5ch
0
0
13ch
0
0
6ch
0
0
14ch
0
0
7ch
0
0
15ch
0
0
8ch
0
0
16ch
0
0
End unit
Threshold value Current value
90
65
9ch
Threshold value Current value
0
0
2ch
50
0
10ch
0
0
3ch
40
70
11ch
0
0
4ch
0
0
12ch
0
0
5ch
0
0
13ch
0
0
6ch
0
0
14ch
0
0
7ch
0
0
15ch
0
0
8ch
0
0
16ch
0
0
Download
setting
values via
open
network
Replacement
[Touch panel display example]
Threshold values of
connected sensors are
shown.
Communication
unit
Digital fiber sensor
Digital fiber sensor
Digital laser sensor
Digital pressure sensor
FX-501/502
FX-301/305
LS-501/403
DPS-401/402
ENERGY
MANAGEMENT
SOLUTIONS
FA COMPONENTS
Download
1ch
HUMAN MACHINE
INTERFACES
Replacement is so easy
Upper
Communication Unit
MIL Connector
Plug-in
Other Products
SC-GU3
973
FIBER
SENSORS
LASER
SENSORS
PHOTOELECTRIC
SENSORS
MICRO
PHOTOELECTRIC
SENSORS
AREA
SENSORS
Communication Unit for Open Network
SC-GU3 SERIES
Preventive maintenance
Observe digital data such as incident light intensity or pressure value of sensors and graph them for preventive
maintenance.
Example: Decrease in incident light intensity due to dirt on fiber sensor.
Before
Current situation
After
It is hard to keep track of the long-term fluctuations in
sensors just with regular checking.
By obtaining data and making them into a graph, it is
possible to view long-term fluctuation patterns from which
prediction of changes can be made.
Incident light intensity
SAFETY LIGHT
CURTAINS /
SAFETY COMPONENTS
PRESSURE /
FLOW
SENSORS
INDUCTIVE
PROXIMITY
SENSORS
PARTICULAR
USE SENSORS
WIRE-SAVING
SYSTEMS
MEASUREMENT
SENSORS
STATIC
CONTROL
DEVICES
LASER
MARKERS
Changes in threshold value
Time
SENSOR
OPTIONS
SIMPLE
WIRE-SAVING
UNITS
Monitoring through network
If the light intensity continues to decrease, then it is time to replace the sensor.
* To make a graph, it is necessary to compose a ladder separately.
Easy maintenance with the memory function
Store Settings of the connected digital sensors into the SC-GU3 series. Just press the “Setting extension (EXT.)” key
and setting data can be transmitted and restored to original status. Maintenance such as sensor replacement can
be performed smoothly. Also, the settings stored in the SC-GU3 series is checked against the settings of the digital
sensors when the power is turned on. When the setting is different, memory function indicator (MEM.) will flash, and
warning signal sent, preventing the equipment from operating with settings changed.
During normal operation
Replace the sensor
The memory function
indicator flashes
POWER off
PLC
Replace the sensor
Sensor
failure
HUMAN MACHINE
INTERFACES
ENERGY
MANAGEMENT
SOLUTIONS
Sensor
replaced
POWER on
FA COMPONENTS
MACHINE VISION
SYSTEMS
Revert to the
stored settings
Return
Press
UV CURING
SYSTEMS
Upper
Communication Unit
MIL Connector
Plug-in
Other Products
SC-GU3
Memory
(setting)
Setting
mismatch
Press the EXT. key to
send the settings
stored in the internal
memory to the sensor.
*The memory function can also be used with open
network communications.
Flashing
The memory function indicator
flashes because the settings of
the newly installed sensor differ
from those stored in the SC-GU3
unit.
Reduction of wiring, construction, and space
Installation space for slave devices is eliminated. Cascade connection is simply done with connectors so that the
time taken for wiring and construction can be reduced.
Before
Current system composition
After
System we offer
Construction procedures
Space for
installing
slave
devices is
eliminated
Affix mark tubes
Wiring
Construction procedures
No need for cable processing
No need to clamp screw onto
terminal block
No need for wiring
No need for mark tubes
Easy removal without any tools
Reduction in installation space
No wasted material when
replacing sensors
W2
V4L
U4L
Mark
tubes
W4L
W2
V4L
Affix crimping
terminal
U4L
Remove
insulation
W4L
Remove cable insulation
Process on terminal
Clamp screw onto terminal block;
in case of connector terminal block,
connector processing is required for as
many as the number of sensors used.
Cascade connection
by connector
SC-71

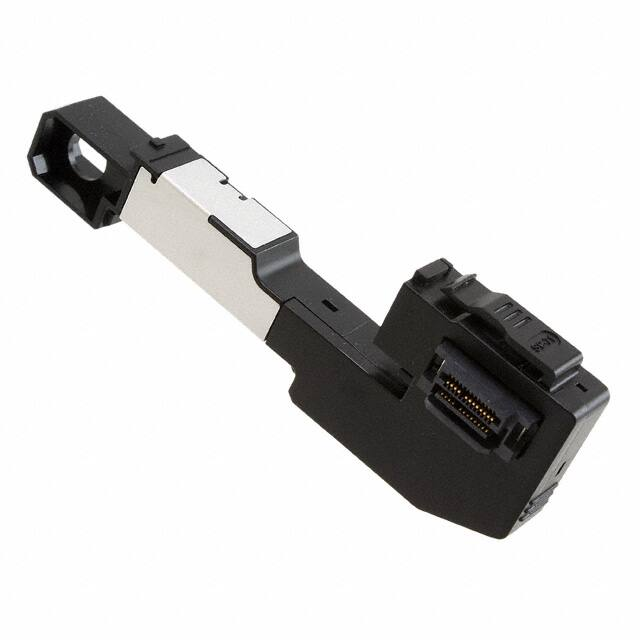

Connector unit for power
