Slim type safety relays
SF RELAYS
Slim type
FEATURES
TYPICAL APPLICATIONS
1. Acquisition of Korean safety
certification (“S” mark)
1. Machine tools
2. Robots
3. Safety PLCs
4. Circuits with stringent safety
standard requirements such as those
in motor vehicle production
equipment.
Excluding with diode type
RoHS compliant
Protective construction: Flux-resistant
type
2. Forcibly guided contact structure
3. Slim profile (mm inch)
40/50 (L) × 13 (W) × 24 (H)
1.575/1.969 (L) × .512 (W) × .945 (H)
4. Fast response time is achieved
(8 ms or less).
5. With diode and LED indication type
available
6. Sockets and terminal sockets
(spade and ring tongue terminal
compatible) are available.
ORDERING INFORMATION
SF S
S: Slim type
Contact arrangement
2: 2 Form A 2 Form B
3: 3 Form A 1 Form B
4: 4 Form A 2 Form B
5: 5 Form A 1 Form B
6: 3 Form A 3 Form B
Operation indication
Nil: Without LED indication
L: With LED indication
Nominal coil voltage
12, 24, 48V DC
Function
Nil: None
D: With diode
Notes: 1. Please consult us about other coil voltages.
2. LED indication color is green.
–1–
ASCTB119E 201507-T
SFS
TYPES
1. Standard type
Contact arrangement
2 Form A 2 Form B
4 poles
3 Form A 1 Form B
4 Form A 2 Form B
6 poles
Without LED indication
Part No.

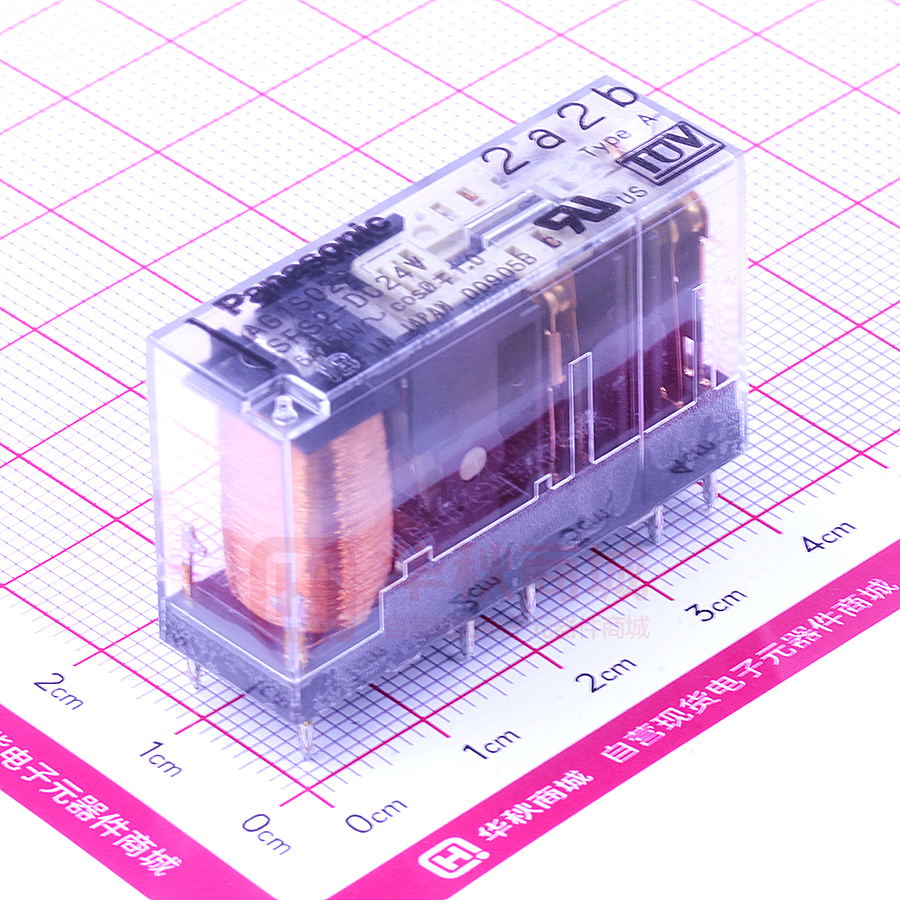

SFS2-DC12V
SFS2-DC24V
SFS2-DC48V
SFS3-DC12V
SFS3-DC24V
SFS3-DC48V
SFS4-DC12V
SFS4-DC24V
SFS4-DC48V
SFS5-DC12V
SFS5-DC24V
SFS5-DC48V
SFS6-DC12V
SFS6-DC24V
SFS6-DC48V
Nominal coil voltage
5 Form A 1 Form B
3 Form A 3 Form B
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
With LED indication
Part No.
SFS2-L-DC12V
SFS2-L-DC24V
SFS2-L-DC48V
SFS3-L-DC12V
SFS3-L-DC24V
SFS3-L-DC48V
SFS4-L-DC12V
SFS4-L-DC24V
SFS4-L-DC48V
SFS5-L-DC12V
SFS5-L-DC24V
SFS5-L-DC48V
SFS6-L-DC12V
SFS6-L-DC24V
SFS6-L-DC48V
Standard packing: Carton: 50 pcs.; Case: 200 pcs.
* Sockets and terminal sockets available.
2. With diode and LED indication type
Contact arrangement
2 Form A 2 Form B
4 poles
3 Form A 1 Form B
4 Form A 2 Form B
6 poles
5 Form A 1 Form B
3 Form A 3 Form B
Nominal coil voltage
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
12 V DC
24 V DC
48 V DC
Part No.
SFS2-L-DC12V-D
SFS2-L-DC24V-D
SFS2-L-DC48V-D
SFS3-L-DC12V-D
SFS3-L-DC24V-D
SFS3-L-DC48V-D
SFS4-L-DC12V-D
SFS4-L-DC24V-D
SFS4-L-DC48V-D
SFS5-L-DC12V-D
SFS5-L-DC24V-D
SFS5-L-DC48V-D
SFS6-L-DC12V-D
SFS6-L-DC24V-D
SFS6-L-DC48V-D
Standard packing: Carton: 50 pcs.; Case: 200 pcs.
* Sockets and terminal sockets available.
RATING
1. Coil data
Contact arrangement
2 Form A 2 Form B
4 poles
3 Form A 1 Form B
4 Form A 2 Form B
6 poles
5 Form A 1 Form B
3 Form A 3 Form B
12V DC
Nominal
operating current
[±10%]
(at 20°C 68°F)
30 mA
24V DC
48V DC
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
12V DC
24V DC
48V DC
15 mA
7.5mA
30 mA
15 mA
7.5mA
41.7mA
20.8mA
10.4mA
41.7mA
20.8mA
10.4mA
41.7mA
20.8mA
10.4mA
Nominal coil
voltage
Pick-up voltage
(at 20°C 68°F)
75%V or less of
nominal voltage
(Initial)
Drop-out voltage
(at 20°C 68°F)
10%V or more of
nominal voltage
(Initial)
Coil resistance
[±10%]
(at 20°C 68°F)
Nominal
operating power
(at 20°C 68°F)
Max. applied
voltage
(at 20°C 68°F)
400Ω
1,600Ω
6,400Ω
400Ω
1,600Ω
6,400Ω
288Ω
1,152Ω
4,608Ω
288Ω
1,152Ω
4,608Ω
288Ω
1,152Ω
4,608Ω
Approx. 360mW
110%V of
nominal voltage
Approx. 500mW
Note: The nominal operating current will increase by approximately 2mA due to the LED on the LED indication type.
–2–
ASCTB119E 201507-T
SFS
2. Specifications (relay)
Characteristics
Contact
Rating
Electrical
characteristics
Item
Contact arrangement
Contact resistance (Initial)
Contact material
Nominal switching capacity (resistive load)
Max. switching power (resistive load)
Max. switching voltage
Max. switching current
Min. switching capacity (Reference value)*1
Nominal operating power
Insulation resistance (Initial)
Between open contacts
Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
1,500 Vrms for 1 min. (Detection current: 10mA)
Breakdown
voltage
(Initial)
2,500 Vrms for 1 min.
(Detection current: 10mA);
7-8/9-10 between open contacts
Between contact sets
Between contact and coil
Operate time (at 20°C 68°F)
Response time (at 20°C 68°F)*2
Release time (at 20°C 68°F)
Mechanical
characteristics
Shock
resistance
Functional
Destructive
Vibration
resistance
Functional
Destructive
Mechanical
Expected life
Conditions
Unit weight
Specifications
4 poles
6 poles
2 Form A 2 Form B 3 Form A 1 Form B 4 Form A 2 Form B 5 Form A 1 Form B 3 Form A 3 Form B
Max. 100 mΩ (By voltage drop 6 V DC 1A)
Au flashed AgSnO2 type
6A 250V AC, 6A 30V DC
1,500VA, 180W
250V AC, 125V DC
6 A (Reduce by 0.1 A/°C for temperatures 70 to 85°C 158 to 185°F)
1mA 5V DC
Approx. 360mW
Approx. 500mW
Electrical
Conditions for operation, transport and
storage*3
Max. operating speed
2,500 Vrms for 1 min. (Detection current: 10mA);
7-8/11-12 between open contacts
9-10/13-14 between open contacts
11-12/13-14 between open contacts
4,000 Vrms for 1 min.
(Detection current: 10mA);
3-4/5-6 between open contacts
3-4/7-8 between open contacts
5-6/9-10 between open contacts
4,000 Vrms for 1 min. (Detection current: 10mA);
3-4/5-6 between open contacts
3-4/7-8 between open contacts
5-6/9-10 between open contacts
7-8/9-10 between open contacts
4,000 Vrms for 1min (Detection current: 10mA)
Max. 20ms (Nominal coil voltage applied to the coil, excluding contact bounce time)
Max. 8ms (Nominal coil voltage applied to the coil, excluding contact bounce time and without diode)*4
Max. 20ms (Nominal coil voltage applied to the coil, excluding contact bounce time)
200 m/s2 (Half-wave pulse of sine wave: 11 ms; detection time: 10μs)
1,000 m/s2 (Half-wave pulse of sine wave: 6 ms)
10 to 55 Hz at double amplitude of 1.5 mm (Detection time: 10μs)
10 to 55 Hz at double amplitude of 1.5 mm
Min. 107 (at 180 times/min.)
250 V AC 6 A resistive load: Min. 105 (at 20 times/min.)
30 V DC 6 A resistive load: Min. 105 (at 20 times/min.)
250 V AC 1 A resistive load: Min. 5×105 (at 30 times/min.)
30 V DC 1 A resistive load: Min. 5×105 (at 30 times/min.)
[AC 15] 240 V AC 2 A inductive load: Min. 105 (at 20 times/min., cosϕ = 0.3)
[DC 13] 24 V DC 1 A inductive load: Min. 105 (at 20 times/min., L/R = 48 ms)
Ambient temperature: –40°C to +85°C –40°F to +185°F
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
20 times/min. (at max. rating)
Approx. 20 g .71 oz
Approx. 23 g .81 oz
Notes: *1. This value can change due to the switching frequency, environmental conditions, and desired reliability level, therefore it is recommended to check this with the
actual load.
*2. Response time is the time after the coil voltage turns off until the time when “a” contact turns off.
*3. The upper limit of the ambient temperature is the maximum temperature that can satisfy the coil temperature rise value. Refer to Usage, transport and storage
conditions in NOTES.
*4. Response time of built-in diode type is 12 ms or less (excluding contact bounce time when nominal coil voltage is applied to the coil).
–3–
Downloaded from Arrow.com.
ASCTB119E 201507-T
SFS
REFERENCE DATA
1. Operate/response/release time
2. Coil temperature rise
3. Malfunctional shock
Tested sample: SFS4-DC24V (4 Form A 2 Form B),
20pcs. (a contacts: 80, b contacts: 40)
Tested sample: SFS4-DC24V (4 Form A 2 Form B),
3pcs.
Measured portion: Inside the coil
Ambient temperature: Room temperature
(27°C 80.6°F), 70°C 158°F, 85°C 185°F
Tested sample: SFS4-DC24V (4 Form A 2 Form B),
3pcs.
50
Z
Temperature rise, °C
40
No. of contacts
50
Operate time
Release time
Response time
30
20
10
0
Z'
40
X'
Y
Deenergized condition
Energized condition
Y
200m/s2
Y'
30
20
10
0
90
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
X
100
Time, ms
0A Room temperature
6A Room temperature
0A 70°C 158°F
6A 70°C 158°F
0A 85°C 185°F
4.5A 85°C 185°F
110
120
130
X
200m/s2
Z
200m/s2
200m/s2
Z'
200m/s2
X'
200m/s2
Y'
Coil applied voltage, %V
4. Max, switching capacity
10
Contact current, A
8
7
AC resistive load
6
5
4
3
2
DC resistive load
1
0.7
0.5
0.3
0.2
0.1
10
20 30
50 70 100 200 300 500
125 250
Contact voltage, V
1000
Other contact gaps when contacts are welded
Sample: SFS4-DC24V (4 Form A 2 Form B)
The table below shows the state of the other contacts.
In case of form “NO” contact weld the coil applied voltage is 0 V.
In case of form “NC” contact weld the coil applied voltage is nominal.
Welded contact No.
3-4 (NC)
5-6 (NC)
7-8 (NO)
9-10 (NO)
11-12 (NO)
13-14 (NO)
3-4 (NC)
5-6 (NC)
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5
>0.5
State of other contacts
7-8 (NO)
9-10 (NO)
>0.5
>0.5
>0.5
>0.5
11-12 (NO)
>0.5
>0.5
13-14 (NO)
>0.5
>0.5
>0.5: contact gap is kept at min. 0.5 mm .020inch
Empty cells: either ON or OFF
Note: Contact gaps are shown at the initial state.
If the contact transfer is caused by load switching, it is necessary to check the actual loading.
–4–
Downloaded from Arrow.com.
ASCTB119E 201507-T
SFS
DIMENSIONS (mm inch)
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
1. 4 poles (2 Form A 2 Form B, 3 Form A 1 Form B)
External dimensions
CAD Data
PC board pattern (Bottom view)
Max. 40
Max. 1.575
10.16
.400
10-1.4 .055 dia.
Max. 13
Max. .512
13.97
.550
(1.83)
(.072)
5.08 .200
Max. 24
Max. .945
3.5
.138
1.83
.072
1.0
.039
10.16
.400
5.08
.200
11.43 .450
Tolerance: ±0.1 ±.004
0.5
.020
13.97
.550
5.08
.200
11.43 .450
5.08 .200
General tolerance: ±0.3 ±.012
Schematic (Bottom view)
1
3
4
7
8
1
3
4
7
8
1
3
4
7
8
2
5
6
9 10
1
3
4
7
8
2
5
6
9 10
With diode and
LED indication type
Standard
5
2
6
9 10
2
(2 Form A 2 Form B)
5
6
9 10
(3 Form A 1 Form B)
1
3
4
7
8
2
5
6
9 10
(2 Form A 2 Form B)
1
3
4
7
2
5
6
9 10
(3 Form A 1 Form B)
8
With LED indication
(2 Form A 2 Form B)
(3 Form A 1 Form B)
2. 6 poles (4 Form A 2 Form B, 5 Form A 1 Form B, 3 Form A 3 Form B)
External dimensions
CAD Data
PC board pattern (Bottom view)
Max. 50
Max. 1.969
10.16
.138
14-1.4 .055 dia.
Max. 13
Max. .512
13.97
.550
(1.83)
(.072)
5.08 .200
11.43 .450
Max. 24
Max. .945
3.5
.138
5.08
.200
5.08 .200
5.08 .200
Tolerance: ±0.1 ±.004
1.0
.039
10.16
.400
1.83
.072
0.5
.020
13.97
.550
5.08
.200
5.08 .200
5.08 .200
5.08 .200
11.43 .450
General tolerance: ±0.3 ±.012
Schematic (Bottom view)
1
3
4
7
8 11 12
1
5
6
9 10 13 14
2
3
4
7
8 11 12
1
5
6
9 10 13 14
2
3
4
7
8 11 12
5
6
9 10 13 14
Standard
2
(4 Form A 2 Form B)
1
(5 Form A 1 Form B)
3
4
7
8 11 12
1
5
6
9 10 13 14
2
(3 Form A 3 Form B)
3
4
7
8 11 12
1
5
6
9 10 13 14
2
3
4
7
8 11 12
5
6
9 10 13 14
With LED indication
2
(4 Form A 2 Form B)
1
(5 Form A 1 Form B)
3
4
7
8 11 12
1
5
6
9 10 13 14
2
(3 Form A 3 Form B)
3
4
7
8 11 12
1
5
6
9 10 13 14
2
3
4
7
8 11 12
5
6
9 10 13 14
With diode and
LED indication type
2
(4 Form A 2 Form B)
(5 Form A 1 Form B)
(3 Form A 3 Form B)
SAFETY STANDARDS
Certification authority
UL/C-UL
TÜV
File No.
E43149*
B 15 05 13461 346
6A 277V AC, 6A 30V DC
6A 250V AC (cosφ =1.0), 6A 30V DC (0ms), AC15: 2A 240V AC (cosφ =0.3), DC13: 1A 24V DC (L/R 48ms)
* CSA standard: Certified by C-UL
–5–
Downloaded from Arrow.com.
ASCTB119E 201507-T
SFS
NOTES
1. For cautions for use, please read “GENERAL
APPLICATION GUIDELINES”.
2. Coil operating power
Pure DC current should be applied to the coil. If it includes
ripple, the ripple factor should be less than 5%. However, check
it with the actual circuit since the characteristics may be slightly
different.
The wave form should be rectangular.
3. Coil connection
When connecting coils, refer to the wiring diagram to prevent
mis-operation or malfunction.
4. Cleaning
This relay is not sealed, therefore, immersion may cause failure.
Be careful that flux does not overflow onto the PC board or
penetrate inside the relay.
5. Soldering
When using automatic soldering, the following conditions are
recommended
1) Preheating: 120°C 248°F, within 120 Sec (PC board solder
surface)
2) Soldering: 260°C±5°C 500°F±41°F, within 6 Sec
6. Other
1) If the relay has been dropped, the appearance and
characteristics should always be checked before use.
2) The switching lifetime is defined under the standard test
condition specified in the JIS* C 5442-1996 standard
(temperature 15 to 35°C 59 to 95°F, humidity 25 to 75%). Check
this with the actual product as it is affected by the coil driving
circuit, load type, activation frequency, activation phase, ambient
conditions and other factors.
Also, be especially careful with loads such as those listed below.
(1) When used for AC load-operation and the operating phase is
synchronous. Rocking and fusing can easily occur due to
contact shifting.
(2) During high frequency on/off operation with certain loads,
arcing may occur at the contacts. This can cause fusion to
Oxygen and Nitrogen gas in the air creating Nitric Acid (HNO3)
which can cause corrosion to the contacts.
Please see the following countermeasure examples:
1. Incorporate an arc-extinguishing circuit.
2. Lower the operating frequency
3. Lower the ambient humidity
3) For secure operations, nominal coil voltage should be applied.
In addition, please note that pick-up and drop-out voltage will
vary according to the ambient temperature and operating
conditions.
4) Heat, smoke, and/or fire may occur if the relay is used outside
the allowable ranges for the coil ratings, contact ratings,
operating cycle lifetime, and other specifications. Therefore, do
not use the relay if these ratings are exceeded. Also, make sure
that the relay is wired correctly.
5) Incorrect wiring may cause false operation or generate heat or
flames.
6) Check the ambient conditions when storing or transporting
the relays and devices containing the relays. Freezing or
condensation may occur in the relay causing damage. Avoid
exposing the relays to heavy loads, or strong shock and
vibration.
7. Usage, transport and storage conditions
1) Ambient temperature, humidity, and atmospheric pressure
during usage, transport, and storage of the relay:
(1) Temperature: –40 to +85°C –40 to +185°F
(When the temperature is 70 to 85°C 158 to 185°F, reduce the 6
A max. switching current by 0.1 A/°C.)
(2) Humidity: 5 to 85% RH (Avoid freezing and condensation.)
The humidity range varies with the temperature. Use within the
range indicated in the graph below.
(3) Atmospheric pressure: 86 to 106 kPa
Temperature and humidity range for usage, transport, and
storage
Humidity, %RH
85
Tolerance range
(Avoid freezing
when used at
temperatures
lower than
0°C 32°F)
5
–40
–40
0
+32
Temperature, °C °F
85
+185
2) Condensation
Condensation forms when there is a sudden change in
temperature under high temperature and high humidity
conditions. Condensation will cause deterioration of the relay
insulation.
3) Freezing
Condensation or other moisture may freeze on the relay when
the temperatures is lower than 0°C 32°F. This causes problems
such as sticking of movable parts or operational time lags.
4) Low temperature and low humidity
At low temperature, low humidity environments, the plastic
becomes brittle.
Please note corrections.
8. Please connect DC coil types with LED and built-in diode
correctly by verifying the coil polarity (“+” and “–”).
Connecting with reverse polarity will cause the LED not to
light and damage the built-in diode due to its specification.
–6–
Downloaded from Arrow.com.
(Avoid
condensation
when used at
temperatures
higher than
0°C 32°F)
ASCTB119E 201507-T
SF RELAYS
ACCESSORIES
Slim type
(Sockets and DIN rail terminal sockets)
TYPES
1. Sockets
Type
PC board sockets
No. of poles
4 poles
Part No.
SFS4-PS
6 poles
SFS6-PS
Standard packing: Carton: 10 pcs.; Case: 100 pcs.
2. DIN rail terminal socket
Type
No. of poles
Part No.
Terminal sockets
for spade and ring tongue terminals
4 poles
6 poles
SFS4-SFD-R
SFS6-SFD-R
New
Standard packing: Carton: 10 pcs.; Case: 100 pcs.
Note: For previous products (spade tongue terminal dedicated terminal sockets), please order SFS4-SFD for 4 poles and SFS6-SFD for 6 poles.
RATING
Specifications
Item
Breakdown voltage (Initial)
Insulation resistance (Initial)
Max. carrying current
Specifications
Between each terminal: 2,500 Vrms for 1 min. (Detection current: 10mA)
Min. 1,000MΩ (at 500V DC) Measurement at same location as “Breakdown voltage” section.
6 A (Reduce by 0.1 A/°C for temperatures 70 to 85°C 158 to 185°F)
DIMENSIONS (mm inch)
The CAD data of the products with a
1. PC board sockets (4 poles)
(SFS4-PS)
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
External dimensions
CAD Data
PC board pattern (Bottom view)
50.0
1.969
10.16 4.1
.400 .161
15.0
.591
(6.93)
(.273)
40.0
1.575
39.9
1.571
24.8
.976
3-3.2 .126 dia.
(For M3 screw)
Please use the screw
with a stem length of
8 mm .315 inch.
10-1.1 .043 dia.
13.97
.550
5.08 .200
5.08
.200
11.43 .450
Tolerance: ±0.1 ±.004
(13)
(.512)
(13)
(.512)
6.93
.273
0.8
.031
10.16
.400
0.4
.016
5.08
.200
11.43 .450
13.97
.550
5.08 .200
General tolerance: ±0.3 ±.012
Schematic (Bottom view)
1
3
4
7
8
2
5
6
9 10
1
3
4
7
8
2
5
6
9 10
Standard
(When 2 Form A 2 Form B mounted)
1
3
4
7
8
2
5
6
9 10
(When 3 Form A 1 Form B mounted)
1
3
4
7
8
2
5
6
9 10
With LED indication
(When 2 Form A 2 Form B mounted)
1
3
4
7
8
2
5
6
9 10
(When 3 Form A 1 Form B mounted)
1
3
4
7
8
2
5
6
9 10
With diode and
LED indication type
(When 2 Form A 2 Form B mounted)
(When 3 Form A 1 Form B mounted)
–1–
Downloaded from Arrow.com.
ASCTB111E 201407-T
SFS ACCESSORIES
2. PC board sockets (6 poles)
(SFS6-PS)
External dimensions
CAD Data
PC board pattern (Bottom view)
60.0
2.362
10.16 4.1
.400 .161
24.8
.976
49.9
1.965
3-3.2 .126 dia.
(For M3 screw)
Please use the screw
with a stem length of
8 mm .315 inch.
15.0
.591
14-1.1 .043 dia.
(6.93)
(.273)
13.97
.550
5.08
.200
5.08 .200
5.08 .200
5.08 .200
11.43 .450
40.0
1.575
Tolerance: ±0.1 ±.004
(13)
(.512)
6.93
.273
0.8
.031
10.16
.400
(13)
(.512)
0.4
.016
5.08
.200
5.08 .200
5.08 .200
13.97
.550
5.08 .200
11.43 .450
General tolerance: ±0.3 ±.012
Schematic (Bottom view)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
1
3
4
7
8 11 12
2
5
6
9 10 13 14
1
3
4
7
8 11 12
2
5
6
9 10 13 14
Standard
(When 4 Form A 2 Form B mounted)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
(When 5 Form A 1 Form B mounted)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
(When 3 Form A 3 Form B mounted)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
With LED indication
(When 4 Form A 2 Form B mounted)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
(When 5 Form A 1 Form B mounted)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
(When 3 Form A 3 Form B mounted)
1
3
4
7
8 11 12
2
5
6
9 10 13 14
With diode and
LED indication type
(When 4 Form A 2 Form B mounted)
(When 5 Form A 1 Form B mounted)
(When 3 Form A 3 Form B mounted)
3. Terminal socket for spade and ring tongue terminals (For 4 poles finger protect type)
External dimensions
CAD Data
Mounting hole dimensions
6.5
.256
2-M3.5 or 4 dia. hole
2-M.138 or .157 dia. hole
R2.0 .079
14.5±0.2
.571±.008
M3 .118 screw
6.2±0.3 dia.
.244±.012 dia.
75.0
2.953
80.0±0.2
3.150±.008
2-4×5 hole
6.3
.248
6.5
.256
+0.3
0
+.012
0
Tolerance: ±0.1 ±.004
Schematic (Top view)
*62.4 58.9
*2.457 2.319
10
7
8
2
1
9
6
35.4
1.394
4.0
.157
22.4
.882
General tolerance: ±0.5 ±.020
* Reference value (when using DIN rail ATA48011)
5
4
3
Note: Ring tongue terminals cannot be used with conventional DIN rail terminal socket (SFS4-SFD).
In use of a ring tongue terminals, please use SFS4-SFD-R.
–2–
Downloaded from Arrow.com.
ASCTB111E 201407-T
SFS ACCESSORIES
4. Terminal socket for spade and ring tongue terminals (For 6 poles finger protect type)
External dimensions
CAD Data
Mounting hole dimensions
2-M3.5 or 4 dia. hole
2-M.138 or .157 dia. hole
6.5
.256
22.0±0.2
.866±.008
R2.0 .079
M3 .118 screw
6.2±0.3 dia.
.244±.012 dia.
75.0
2.953
2-4×5 hole
80.0±0.2
3.150±.008
6.5
.256
Tolerance: ±0.1 ±.004
6.3 +0.3
0
.248 +.012
0
Schematic (Top view)
*62.4 58.9
*2.457 2.319
4.0
.157
35.4
1.394
29.8
1.173
General tolerance: ±0.5 ±.020
14
12
13
11
10
8
9
7
6
4
5
2
1
3
* Reference value (when using DIN rail ATA48011)
Note: Ring tongue terminals cannot be used with conventional DIN rail terminal socket (SFS6-SFD).
In use of a ring tongue terminals, please use SFS6-SFD-R.
NOTES
Installation
1) Attach directly to the chassis or use a DIN rail.
(1) When attaching directly to chassis
• Use a M3.5 screw, spring washer, and hex nut.
• For the mounting pitch, refer to the dimensions.
(2) When installing on a DIN rail
• Use a 35 mm 1.378 inch wide DIN rail (DIN46277).
• Install and remove as shown in the figures below.
Pull
Push
Screwdriver
DIN rail
2) Refer to the figure below for applicable wire-pressed terminals.
Spade tongue terminal
6.3 mm max.
3 mm min.
.248 inch max. .118 inch min.
Ring tongue terminal
6.3 mm max.
3 mm min.
.248 inch max. .118 inch min.
–3–
Downloaded from Arrow.com.
ASCTB111E 201407-T
GUIDELINES FOR POWER, HIGH-CAPACITY DC CUT OFF AND SAFETY RELAYS USAGE
For cautions for use, please read “GUIDELINES FOR RELAY USAGE”.
https://industrial.panasonic.com/ac/e/control/relay/cautions_use/index.jsp
Precautions for Coil Input
Long term current carrying
A circuit that will be carrying a current continuously for long periods
without relay switching operation. (circuits for emergency lamps, alarm
devices and error inspection that, for example, revert only during
malfunction and output warnings with form B contacts) Continuous,
long-term current to the coil will facilitate deterioration of coil insulation
and characteristics due to heating of the coil itself.
For circuits such as these, please use a magnetic-hold type latching
relay. If you need to use a single stable relay, use a sealed type relay
that is not easily affected by ambient conditions and make a failsafe
circuit design that considers the possibility of contact failure or
disconnection.
DC Coil operating power
Steady state DC current should be applied to the coil. The wave form
should be rectangular. If it includes ripple, the ripple factor should be
less than 5%.
However, please check with the actual circuit since the electrical
characteristics may vary. The rated coil voltage should be applied to
the coil and the set/reset pulse time of latching type relay differs for
each relays, please refer to the relay's individual specifications.
Maximum allowable voltage and temperature rise
Proper usage requires that the rated coil voltage be impressed on the
coil. Note, however, that if a voltage greater than or equal to the
maximum continuous voltage is impressed on the coil, the coil may
burn or its layers short due to the temperature rise. Furthermore, do
not exceed the usable ambient temperature range listed in the catalog.
perate voltage change due to coil temperature rise
O
(Hot start)
In DC relays, after continuous passage of current in the coil, if the
current is turned OFF, then immediately turned ON again, due to the
temperature rise in the coil, the pick-up voltage will become somewhat
higher. Also, it will be the same as using it in a higher temperature
atmosphere. The resistance/temperature relationship for copper wire
is about 0.4% for 1°C, and with this ratio the coil resistance increases.
That is, in order to operate of the relay, it is necessary that the voltage
be higher than the pick-up voltage and the pick-up voltage rises in
accordance with the increase in the resistance value. However, for
some polarized relays, this rate of change is considerably smaller.
Coil connection
When connecting coils of polarized relays, please check coil polarity
(+,-) at the internal connection diagram (Schematic). If any wrong
connection is made, it may cause unexpected malfunction, like
abnormal heat, fire and so on, and circuit do not work. Avoid
impressing voltages to the set coil and reset coil at the same time.
Ambient Environment
●Usage, Transport, and Storage Conditions
During usage, storage, or transportation, avoid locations subjected to
direct sunlight and maintain normal temperature, humidity and
pressure conditions.
●Temperature/Humidity/Pressure
When transporting or storing relays while they are tube packaged,
there are cases the temperature may differ from the allowable range.
In this case be sure to check the individual specifications.
Also allowable humidity level is influenced by temperature, please
check charts shown below and use relays within mentioned conditions.
(Allowable temperature values differ for each relays, please refer to
the relay's individual specifications.)
1) Temperature:
The tolerance temperature range differs for each relays, please
refer to the relay’s individual specifications
2) Humidity: 5 to 85 % RH
3) Pressure: 86 to 106 kPa
Humidity（％RH）
85
Allowable range
Avoid icing
when used at
temperatures
lower than 0°C
5
Avoid condensation when
used at temperatures higher
than 0°C
0
-40
Ambient temperature（℃）
85
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
Downloaded from Arrow.com.
●Dew condensation
Condensation occurs when the ambient temperature drops suddenly
from a high temperature and humidity, or the relay is suddenly
transferred from a low ambient temperature to a high temperature and
humidity. Condensation causes the failures like insulation deterioration,
wire disconnection and rust etc.
Panasonic Corporation does not guarantee the failures caused by
condensation.
The heat conduction by the equipment may accelerate the cooling of
device itself, and the condensation may occur.
Please conduct product evaluations in the worst condition of the actual
usage. (Special attention should be paid when high temperature
heating parts are close to the device. Also please consider the
condensation may occur inside of the device.)
●Icing
Condensation or other moisture may freeze on relays when the
temperature become lower than 0°C.This icing causes the sticking of
movable portion, the operation delay and the contact conduction failure
etc. Panasonic Corporation does not guarantee the failures caused by
the icing.
The heat conduction by the equipment may accelerate the cooling of
relay itself and the icing may occur. Please conduct product
evaluations in the worst condition of the actual usage.
●Low temperature and low humidity
The plastic becomes brittle if the switch is exposed to a low
temperature, low humidity environment for long periods of time.
●High temperature and high humidity
Storage for extended periods of time (including transportation periods)
at high temperature or high humidity levels or in atmospheres with
organic gases or sulfide gases may cause a sulfide film or oxide film to
form on the surfaces of the contacts and/or it may interfere with the
functions. Check out the atmosphere in which the units are to be
stored and transported.
c Panasonic Corporation 2019
ASCTB412E 201906
GUIDELINES FOR POWER, HIGH-CAPACITY DC CUT OFF AND SAFETY RELAYS USAGE
●Package
In terms of the packing format used, make every effort to keep the
effects of moisture, organic gases and sulfide gases to the absolute
minimum.
●Silicon
When a source of silicone substances (silicone rubber, silicone oil,
silicone coating materials and silicone filling materials etc.) is used
around the relay, the silicone gas (low molecular siloxane etc.) may be
produced.
This silicone gas may penetrate into the inside of the relay. When the
relay is kept and used in this condition, silicone compound may adhere
to the relay contacts which may cause the contact failure. Do not use
any sources of silicone gas around the relay (Including plastic seal
types).
●NOx Generation
When relay is used in an atmosphere high in humidity to switch a load
which easily produces an arc, the NOx created by the arc and the
water absorbed from outside the relay combine to produce nitric acid.
This corrodes the internal metal parts and adversely affects operation.
Avoid use at an ambient humidity of 85%RH or higher (at 20°C). If use
at high humidity is unavoidable, please contact our sales
representative.
Others
Cleaning
1) Although the environmentally sealed type relay (plastic sealed type,
etc.) can be cleaned, avoid immersing the relay into cold liquid (such
as cleaning solvent) immediately after soldering. Doing so may
deteriorate the sealing performance.
2) Cleaning with the boiling method is recommended(The temperature
of cleaning liquid should be 40°C or lower ).
Avoid ultrasonic cleaning on relays. Use of ultrasonic cleaning may
cause breaks in the coil or slight sticking of the contacts due to
ultrasonic energy.
Please refer to "the latest product specifications"
when designing your product.
•Requests to customers:
https://industrial.panasonic.com/ac/e/salespolicies/
Panasonic Corporation Electromechanical Control Business Division
industrial.panasonic.com/ac/e/
Downloaded from Arrow.com.
c Panasonic Corporation 2019
ASCTB412E 201906
Please contact ..........
Electromechanical Control Business Division
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
industral.panasonic.com/ac/e/
©Panasonic Corporation 2019
ASCTB119E 201907
Downloaded from Arrow.com.
Specifications are subject to change without notice.
