NCE01H10D

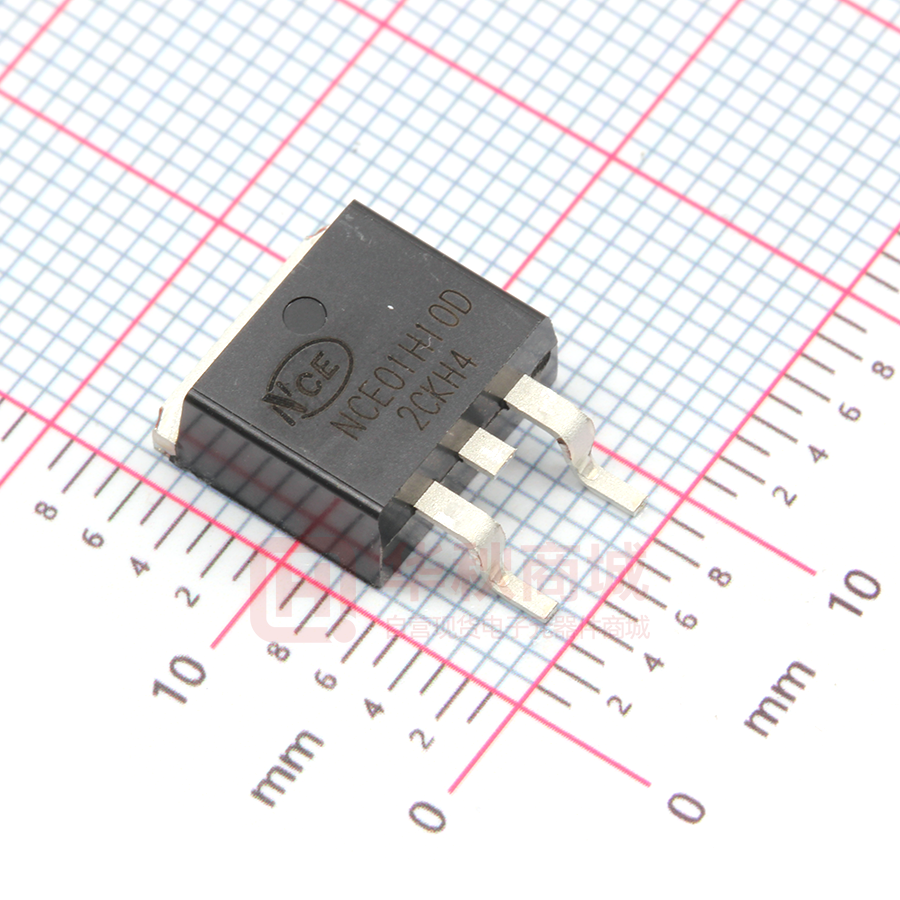

Pb Free Product NCE01H10D http://www.ncepower.com NCE N-Channel Enhancement Mode Power MOSFET Description The NCE01H10D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. General Features ● VDS = 100V,ID =100A RDS(ON) < 13mΩ @ VGS=10V (Typ:9.9mΩ) Schematic diagram ● Special process technology for high ESD capability ● High density cell design for ultra low Rdson ● Fully characterized avalanche voltage and current ● Good stability and uniformity with high EAS ● Excellent package for good heat dissipation Application ● Power switching application ● Hard switched and high frequency circuits Marking and pin assignment ● Uninterruptible power supply 100% UIS TESTED! 100% ∆Vds TESTED! TO-263-2L top view Package Marking and Ordering Information Device Marking Device Device Package Reel Size Tape width Quantity NCE01H10D NCE01H10D TO-263-2L - - - Absolute Maximum Ratings (TC=25℃unless otherwise noted) Symbol Parameter Limit Unit VDS Drain-Source Voltage 100 V VGS Gate-Source Voltage ±20 V Drain Current-Continuous 100 A Drain Current-Continuous(TC=100℃) 80 A IDM Pulsed Drain Current 380 A PD Maximum Power Dissipation 200 W Derating factor 1.33 W/℃ Single pulse avalanche energy (Note 5) 800 mJ -55 To 175 ℃ ID ID (100℃) EAS TJ,TSTG Operating Junction and Storage Temperature Range Wuxi NCE Power Semiconductor Co., Ltd Page 1 v1.1 Pb Free Product NCE01H10D http://www.ncepower.com Thermal Characteristic RθJC Thermal Resistance,Junction-to-Case (Note 2) 0.75 ℃/W Electrical Characteristics (TC=25℃unless otherwise noted) Symbol Parameter Condition Min Typ Max Unit Off Characteristics BVDSS Drain-Source Breakdown Voltage VGS=0V ID=250μA 100 110 - V IDSS Zero Gate Voltage Drain Current VDS=100V,VGS=0V - - 1 μA IGSS Gate-Body Leakage Current VGS=±20V,VDS=0V - - ±100 nA On Characteristics (Note 3) VGS(th) Gate Threshold Voltage VDS=VGS,ID=250μA 2 3 4 V RDS(ON) Drain-Source On-State Resistance VGS=10V, ID=40A - 9.9 13 mΩ Forward Transconductance VDS=10V,ID=20A 50 - - S - 4800 - PF - 340 - PF - 150 - PF - 15 - nS gFS Dynamic Characteristics (Note4) Clss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance VDS=50V,VGS=0V, F=1.0MHz Switching Characteristics (Note 4) td(on) Turn-on Delay Time tr Turn-on Rise Time VDD=50V,ID=40A - 50 - nS Turn-Off Delay Time VGS=10V,RGEN=2.5Ω - 40 - nS - 55 - nS - 85 - nC - 18 - nC - 28 - nC td(off) tf Turn-Off Fall Time Qg Total Gate Charge Qgs Gate-Source Charge Qgd Gate-Drain Charge VDS=80V,ID=40A, VGS=10V Drain-Source Diode Characteristics VSD Diode Forward Voltage (Note 3) VGS=0V,IS=40A - - 1.2 V IS Diode Forward Current (Note 2) - - - 57 A trr Reverse Recovery Time TJ = 25°C, IF = 40A - 38 80 nS Qrr Reverse Recovery Charge di/dt = 100A/μs(Note3) - 53 100 nC ton Forward Turn-On Time Intrinsic turn-on time is negligible (turn-on is dominated by LS+LD) Notes: 1. Repetitive Rating: Pulse width limited by maximum junction temperature. 2. Surface Mounted on FR4 Board, t ≤ 10 sec. 3. Pulse Test: Pulse Width ≤ 300μs, Duty Cycle ≤ 2%. 4. Guaranteed by design, not subject to production 5. EAS condition:Tj=25℃,VDD=50V,VG=10V,L=0.5mH,Rg=25Ω Wuxi NCE Power Semiconductor Co., Ltd Page 2 v1.1 Pb Free Product http://www.ncepower.com NCE01H10D Test Circuit 1) EAS test Circuit 2) Gate charge test Circuit 3) Switch Time Test Circuit Wuxi NCE Power Semiconductor Co., Ltd Page 3 v1.1 Pb Free Product NCE01H10D http://www.ncepower.com ID- Drain Current (A) Normalized On-Resistance Typical Electrical and Thermal Characteristics (Curves) TJ-Junction Temperature(℃) Vds Drain-Source Voltage (V) Figure 4 Rdson-JunctionTemperature ID- Drain Current (A) Vgs Gate-Source Voltage (V) Figure 1 Output Characteristics Qg Gate Charge (nC) Figure 2 Transfer Characteristics Figure 5 Gate Charge Is- Reverse Drain Current (A) Rdson On-Resistance(mΩ) Vgs Gate-Source Voltage (V) ID- Drain Current (A) Vsd Source-Drain Voltage (V) Figure 3 Rdson- Drain Current Wuxi NCE Power Semiconductor Co., Ltd Figure 6 Source- Drain Diode Forward Page 4 v1.1 Pb Free Product NCE01H10D C Capacitance (pF) http://www.ncepower.com TJ-Junction Temperature(℃) Vds Drain-Source Voltage (V) Figure 9 BVDSS vs Junction Temperature ID- Drain Current (A) Figure 7 Capacitance vs Vds TJ-Junction Temperature(℃) Vds Drain-Source Voltage (V) Safe Operation Area Figure 10 VGS(th) vs Junction Temperature r(t),Normalized Effective Transient Thermal Impedance Figure 8 Square Wave Pluse Duration(sec) Figure 11 Normalized Maximum Transient Thermal Impedance Wuxi NCE Power Semiconductor Co., Ltd Page 5 v1.1 Pb Free Product NCE01H10D http://www.ncepower.com TO-263-2L Package Information Symbol Dimensions In Millimeters Dimensions In Inches Min. Max. Min. Max. A 4.470 4.670 0.176 0.184 A1 0.000 0.150 0.000 0.006 B 1.170 1.370 0.046 0.054 b 0.710 0.910 0.028 0.036 b1 1.170 1.370 0.046 0.054 c 0.310 0.530 0.012 0.021 c1 1.170 1.370 0.046 0.054 D 10.010 10.310 0.394 0.406 E 8.500 8.900 0.335 0.350 e 2.540 TYP. 0.100 TYP. e1 4.980 5.180 0.196 0.204 L 15.050 15.450 0.593 0.608 L1 5.080 5.480 0.200 0.216 L2 2.340 2.740 0.092 0.108 L3 1.300 1.700 0.051 0.067 V Wuxi NCE Power Semiconductor Co., Ltd 5.600 REF Page 6 0.220 REF v1.1 Pb Free Product http://www.ncepower.com NCE01H10D Attention: ■ ■ ■ ■ ■ ■ ■ ■ ■ Any and all NCE power products described or contained herein do not have specifications that can handle applications that require extremely high levels of reliability, such as life-support systems, aircraft's control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your NCE power representative nearest you before using any NCE power products described or contained herein in such applications. NCE power assumes no responsibility for equipment failures that result from using products at values that exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other parameters) listed in products specifications of any and all NCE power products described or contained herein. Specifications of any and all NCE power products described or contained herein stipulate the performance, characteristics, and functions of the described products in the independent state, and are not guarantees of the performance, characteristics, and functions of the described products as mounted in the customer’s products or equipment. To verify symptoms and states that cannot be evaluated in an independent device, the customer should always evaluate and test devices mounted in the customer’s products or equipment. NCE power Semiconductor CO.,LTD. strives to supply high-quality high-reliability products. However, any and all semiconductor products fail with some probability. It is possible that these probabilistic failures could give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire, or that could cause damage to other property. When designing equipment, adopt safety measures so that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective circuits and error prevention circuits for safe design, redundant design, and structural design. In the event that any or all NCE power products(including technical data, services) described or contained herein are controlled under any of applicable local export control laws and regulations, such products must not be exported without obtaining the export license from the authorities concerned in accordance with the above law. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or any information storage or retrieval system, or otherwise, without the prior written permission of NCE power Semiconductor CO.,LTD. Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not guaranteed for volume production. NCE power believes information herein is accurate and reliable, but no guarantees are made or implied regarding its use or any infringements of intellectual property rights or other rights of third parties. Any and all information described or contained herein are subject to change without notice due to product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification" for the NCE power product that you intend to use. This catalog provides information as of Sep.2010. Specifications and information herein are subject to change without notice. Wuxi NCE Power Semiconductor Co., Ltd Page 7 v1.1
