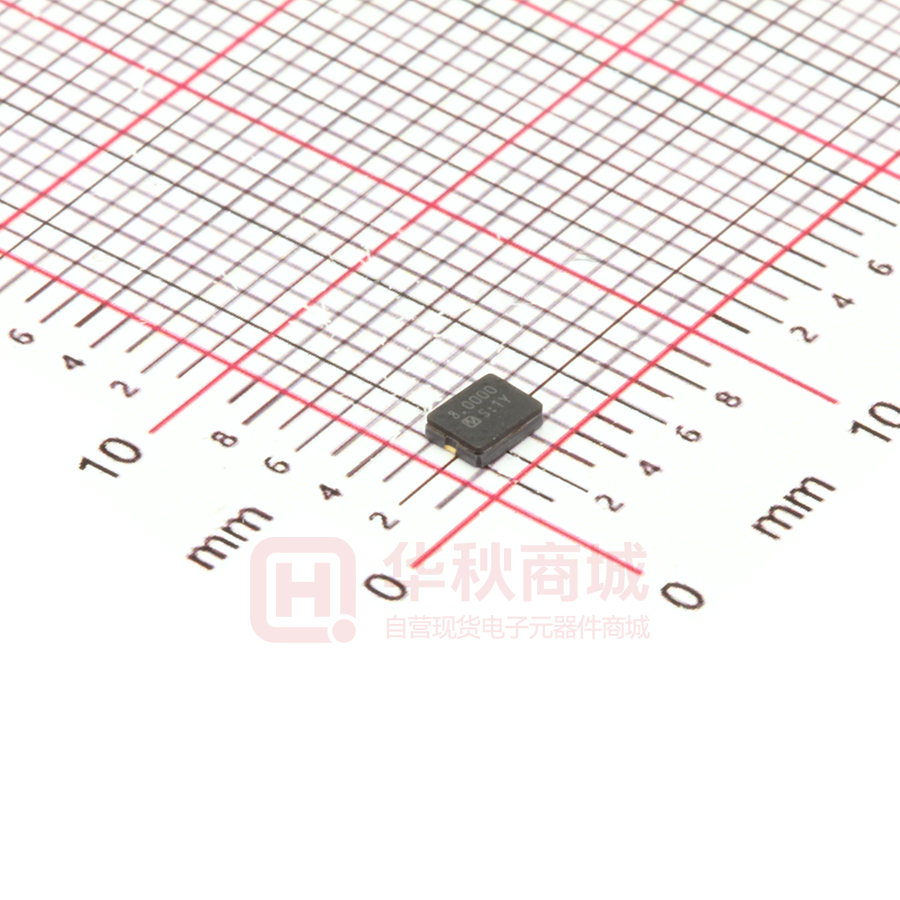

NX3225GD-8MHZ-STD-CRA-3 数据手册
Crystal Units
NX3225GD
For Automotive
■ Features
A small surface-mount type crystal unit, ideal for an engine control CPU clock;
delivering the high reliability that is particularly demanded by automotive.
Compatible with low frequency range starting from 7.98 MHz.
●Compact and thin. (3.2x2.5mm typ., t1.0mm max.)
●High resistance to solder cracking.
●Stable start-up characteristics even under extremely severe environmental conditions.
●Excellent environment-resistant performance, including heat, vibration and shock
resistance.
●Meets the requirements for re-flow profiling using lead-free solder.
●Conforms to AEC-Q200.
■ Specifications
Model
Item
Nominal Frequency
NX3225GD
7.98 to 12 MHz
Overtone Order
Fundamental
Frequency Tolerance (25 ±3 °C)
±50 × 10−6
Frequency versus Temperature Characteristics (with reference to +25 °C)
±150 × 10−6
Operating Temperature Range
−40 to +150 °C
Storage Temperature Range
−40 to +150 °C
Equivalent Series Resistance
Refer to *1
Level of Drive
10 μW (Max. 200 μW)
Load Capacitance
8 pF
Specifications Number
STD-CRA-3
■ Dimensions
Terminal land connections
(TOP VIEW)
*1 Equivalent Series Resistance
Nominal frequency
(MHz)
Equivalent Series
Resistance max. [Ω]
7.98 to 9.8
500
9.8 to 12
300
0.18
Land pattern (Typical)
2.7
1.2±0.1
2.5±0.1
C 0.20
(Index)
2.3±0.1
0.5±0.1
0.3±0.1
1.00 max
2.5±0.1
3.2±0.1
mm
0.6
1.3
R 0.10
1.5
1.9
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
- 24 -
120306_NX3225GD_e
