NHD-C12864A1Z-FS(RGB)-FBW-HT1

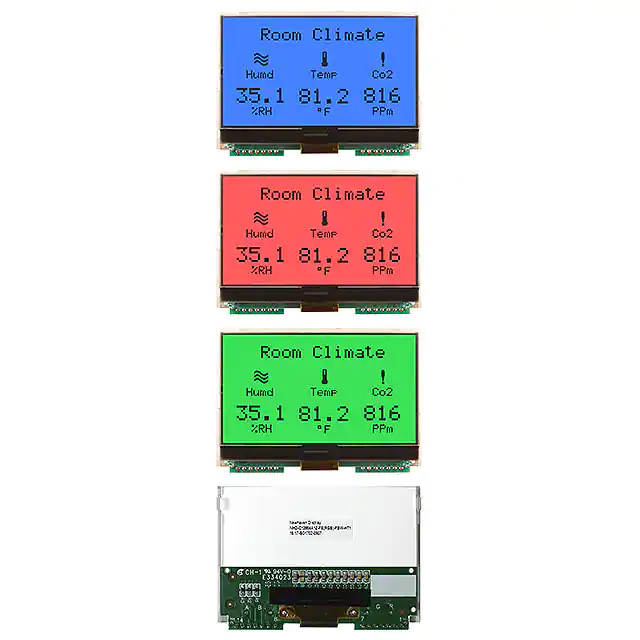

NHD-C12864A1Z-FS(RGB)-FBW-HT1 COG (Chip-On-Glass) Liquid Crystal Display Module NHDC12864A1ZFSRGBFBWHT1- Newhaven Display 128 x 64 Pixels Model Transflective Side LED Backlight (Red, Green, Blue) FSTN (+) 6:00 Optimal View Wide Temp Pin Length 7.6mm; With Built-In 12V Heater (-40°C to +70°C) RoHS Compliant Newhaven Display International, Inc. 2661 Galvin Ct. Elgin IL, 60124 Ph: 847-844-8795 Fax: 847-844-8796 www.newhavendisplay.com nhtech@newhavendisplay.com nhsales@newhavendisplay.com Document Revision History Revision 0 1 2 3 4 5 6 7 8 Date 9/1/2010 12/1/2010 12/3/2010 5/24/2011 7/30/2012 8/28/15 3/8/18 6/24/19 10/9/20 9 10 3/26/21 4/7/21 11 4/8/22 Description Initial Release User Guide Reformat Backlight current updated Mechanical drawing updated Electrical characteristics updated Electrical characteristics, Mechanical drawing updated Electrical Characteristics Updated Added PCB Footprint Drawing Updated LCD Contrast Range from 8.7V/9.0V/9.3V to 8.8V/9.0V/9.2V & Quality Information Part Revision Upgraded to Rev1B Updated MAX Supply Voltage Updated Electrical & Optical Characteristics, Mechanical drawing, Quality Information, Table of Commands. Part Revision Upgraded to Rev1C Updated Electrical Characteristics Functions and Features • • • • • • 128 x 64 pixels Built-in ST7565P controller +3.0V power supply 1/65 duty cycle; 1/9 bias Built-in Heater RoHS Compliant [2] Changed by BE BE AK AK SB SB AS AS AS JT CJ 1 A 2 Mechanical Drawing 3 4 5 6 SYMBOL 7 8 REVISION DATE A B B C C D D Backlight Circuit E F Notes: 1. Driver: 2. Voltage: 3. Display Mode: 4. Op�mal View: 5. Backlight: 6. Driver IC: 7. Built-In Heater 1 E 1/65 Duty, 1/9 Bias 3.0V VDD, 9.0V VLCD FSTN Posi�ve / Transflec�ve 6:00 Red, Green, Blue LED ST7565P 2 3 STANDARD TOLERANCE: (UNLESS OTHERWISE SPECIFIED) LINEAR: ±0.3mm NHD-C12864A1Z-FS(RGB)-FBW-HT1 DRAWN BY: UNLESS OTHERWISE SPECIFIED: - DIMENSIONS ARE IN MILLIMETERS DRAWN DATE: - THIRD ANGLE PROJECTION 4 5 6 REVISION: DRAWING/PART NUMBER: J.Thomas 4/7/21 APPROVED BY: APPROVED DATE: DO NOT SCALE DRAWING 1C SIZE: A3 J.Thomas SCALE: NS 4/7/21 SHEET 1 OF 1 THIS DRAWING IS SOLELY THE PROPERTY OF NEWHAVEN DISPLAY INTERNATIONAL, INC. THE INFORMATION IT CONTAINS IS NOT TO BE DISCLOSED, REPRODUCED OR COPIED IN WHOLE OR PART WITHOUT WRITTEN APPROVAL FROM NEWHAVEN DISPLAY. 7 8 F 1 2 3 4 5 6 SYMBOL A 7 8 REVISION DATE Recommended PCB Footprint A B B C C D D E E STANDARD TOLERANCE: (UNLESS OTHERWISE SPECIFIED) LINEAR: ±0.3mm NHD-C12864A1Z-RGB-Footprint DRAWN BY: UNLESS OTHERWISE SPECIFIED: F - DIMENSIONS ARE IN MILLIMETERS 1 2 DRAWN DATE: - THIRD ANGLE PROJECTION Applicable Displays: 1) NHD-C12864A1Z-FS(RGB)-FBW-HT1 3 4 5 6 REVISION: DRAWING/PART NUMBER: A. Shah 6/3/19 APPROVED BY: APPROVED DATE: DO NOT SCALE DRAWING 1.0 SIZE: A3 A. Khan SCALE: NS 6/3/19 SHEET 1 OF 1 THIS DRAWING IS SOLELY THE PROPERTY OF NEWHAVEN DISPLAY INTERNATIONAL, INC. THE INFORMATION IT CONTAINS IS NOT TO BE DISCLOSED, REPRODUCED OR COPIED IN WHOLE OR PART WITHOUT WRITTEN APPROVAL FROM NEWHAVEN DISPLAY. 7 8 F Pin Description and Wiring Diagram Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Symbol HSCL SI VDD A0 /RESET /CS VSS NC K-RED K-GREEN K-BLUE LED + H+ External Connection Power Supply MPU MPU Power Supply MPU MPU MPU Power Supply Power Supply Power Supply Power Supply Power Supply Power Supply Function Description Ground for Heater Serial Clock input Serial Data input Supply voltage for LCD and logic (+3.0V) Register Select. 0: instruction; 1: data Operation Active LOW Reset signal Active LOW Chip Select Signal Ground No Connect Cathode Red (Ground) Cathode Green (Ground) Cathode Blue (Ground) Common Anode for LEDs (3.3V) Power for Heater (+12V) Recommended LCD connector: 2.54mm pitch thru-hole connection on PCB. Backlight connector: --Mates with: --Recommended Breakout Board: NHD-PCB40 [5] Electrical Characteristics Item Operating Temperature Range Storage Temperature Range Supply Voltage Supply Current Supply for LCD (contrast) “H” Level input “L” Level input “H” Level output “L” Level output Backlight Supply Voltage – RED Backlight Supply Current – RED Backlight Supply Voltage – GREEN Backlight Supply Current – GREEN Backlight Supply Voltage – BLUE Backlight Supply Current – BLUE Heater panel resistance Heater Voltage Supply Heater Current Symbol TOP TST VDD IDD VLCD VIH VIL VOH VOL Condition Absolute Max Absolute Max VDD = 3.0V TOP = 25°C - Min. -40 -30 2.8 0.1 8.8 0.8*VDD VSs 0.8 * VDD VSS Typ. 3.0 0.2 9.0 - Max. +70 +80 3.3 1.0 9.2 VDD 0.2 * VDD VDD 0.2 * VDD Unit ⁰C ⁰C V mA V V V V V VR IR VG IG VB IB VR = 3.3V VG = 3.3V VB = 3.3V 3.2 15 3.2 10 3.2 10 3.3 30 3.3 25 3.3 25 3.4 35 3.4 30 3.4 30 V mA V mA V mA RH+/VH IH TOP = 25°C VH=12.0V 5 0.48 20 12 0.6 35 15 1 Ω V A 1 Heater MUST be activated when operating temperature drops below -20°C 2 Heater measured using digital multi-meter Optical Characteristics Optimal Viewing Angles Item Top Bottom Left Right Contrast Ratio Response Time Rise Fall Symbol ϕY+ ϕYθXθX+ CR TR TF Condition CR ≥ 2 - Min. 15 30 30 30 2 - Typ. 20 40 40 40 4 135 235 Controller Information Built-in ST7565P controller. Please download specification at https://www.newhavendisplay.com/resources_dataFiles/datasheets/LCDs/ST7565P.pdf [6] Max. 25 50 50 50 10 240 325 Unit ° ° ° ° ms ms Timing Characteristics [7] Table of Commands [8] Example Initialization Program '''''''''''''''''''''''''''''''''''''''''''''''''''''''''' Sub Command Reset P3.7 Reset P3.4 For Writecount = 1 To 8 Rotate A , Left , 1 Reset P3.1 P1 = A Set P3.1 Next Writecount Set P3.7 End Sub '''''''''''''''''''''''''''''''''''''''''''''''''''''''''' Sub Write Reset P3.7 Set P3.4 For Writecount = 1 To 8 Rotate A , Left , 1 Reset P3.1 P1 = A Set P3.1 Next Writecount Set P3.7 End Sub '''''''''''''''''''''''''''''''''''''''''''''''''''''''''' Sub Init Waitms 100 A = &HA0 Call Command A = &HAE Call Command A = &HC0 Call Command A = &HA2 Call Command A = &H2F Call Command A = &H26 Call Command A = &H81 Call Command A = &H11 Call Command A = &HAF Call Command End Sub '''''''''''''''''''''''''''''''''''''''''''''''''''''''''' [9] Quality Information Test Item Content of Test High Temperature storage Endurance test applying the high storage temperature for a long time. Endurance test applying the low storage temperature for a long time. Endurance test applying the electric stress (voltage & current) and the high thermal stress for a long time. Endurance test applying the electric stress (voltage & current) and the low thermal stress for a long time. Endurance test applying the electric stress (voltage & current) and the high thermal with high humidity stress for a long time. Endurance test applying the electric stress (voltage & current) during a cycle of low and high thermal stress. Endurance test applying vibration to simulate transportation and use. Endurance test applying electric static discharge. Low Temperature storage High Temperature Operation Low Temperature Operation High Temperature / Humidity Operation Thermal Shock resistance Vibration test Static electricity test Test Condition 2 -30⁰C , 96hrs 1,2 +70⁰C , 96hrs 2 -40°C / -20°C, 96hrs 1,2 +50⁰C , 90% RH , 96hrs 1,2 -20℃, 60min~70℃, 60min, 20 cycles 10-50Hz, Acceleration of Gravity:5G 30 min for each directions X,Y,Z. Air: ±8kV 150pF/330Ω, 5 Times Contact: ±4kV 150pF/330Ω, 5 Times Note 1: No condensation to be observed. Note 2: Conducted after 4 hours of storage at 25⁰C, 0%RH. Note 3: Test performed on product itself, not inside a container. Precautions for using LCDs/LCMs See Precautions at www.newhavendisplay.com/specs/precautions.pdf Warranty Information and Terms & Conditions http://www.newhavendisplay.com/index.php?main_page=terms [10] Note +80⁰C , 96hrs 3
