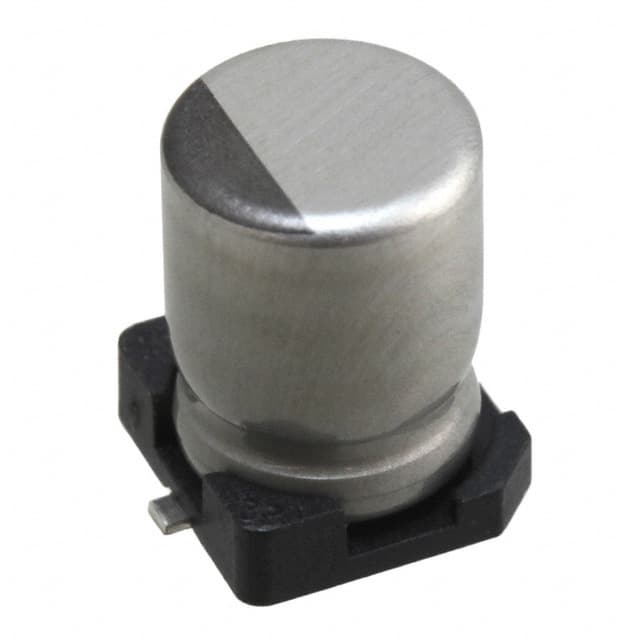

UCW0J470MCL1GS

ALUMINUM  ELECTROLYTIC  CAPACITORS CW Chip Type,  Low Impedance, Long Life Assurance series Chip type with load life of 7000 hours at +105°C. Low impedance temperature range up to +105°C. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU). CW Low Impedance CB Specifications Item Performance Characteristics Category Temperature Range –25 to +105°C Rated Voltage Range 6.3 to 50V Rated Capacitance Range 10 to 470µF Capacitance Tolerance ± 20% at 120Hz, 20°C Leakage Current After 2 minutes' application of rated voltage, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater. Measurement frequency : 120Hz at 20°C Rated voltage (V) tan δ (MAX.) Tangent of loss angle (tan δ) 6.3 0.32 10 0.28 16 0.26 25 0.16 35 0.14 50 0.14 Measurement frequency : 120Hz Rated voltage (V) Stability at Low Temperature Impedance ratio ZT / Z20 (MAX.) 6.3 10 16 25 35 50 4 3 2 2 2 2 Z– 25°C / Z+20°C The specifications listed at right shall be met when the capacitors are restored to 20°C after the rated voltage is applied for 7000 hours at 105°C. Endurance Capacitance change tan δ Leakage current Within ±30% of the initial capacitance value 300% or less than the initial specified value Less than or equal to the initial specified value After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. The capacitors are kept on a hot plate for 30 seconds, which is Capacitance change Within ±10% of the initial capacitance value maintained at 250°C. The capacitors shall meet the Less than or equal to the initial specified value tan δ characteristic requirements listed at right when they are Less than or equal to the initial specified value Leakage current removed from the plate and restored to 20°C. Shelf Life Resistance to soldering heat Black print on the case top. Marking Chip Type Type numbering system (Example : 10V 150µF) (φ5 to φ6.3 ) Positive L±0.3 Capacitance Lot No. 3 4 5 6 7 8 9 10 11 12 13 14 Taping code E B±0.2 φD±0.5 A2 150C CW C±0.2 2 A±0.2 A±0.2 0.3MAX. Series 1 U CW 1 A 1 5 1 MC L 1 G S 0.5MAX. Plastic platform Voltage ( C : 16V ) Configuration Capacitance tolerance (±20%) Rated capacitance (150µF) Rated voltage (10V) Negative H φD 5 • 6.3 8 • 10 Code CL NL Series name Type Positive 0.3MAX. C±0.2 E B±0.2 A2 220V CW φD±0.5 Series Trade mark L±0.5 Lot No. Voltage V 6.3 Code j Capacitance 10 A 16 C Pressure relief vent 25 E 35 V H (mm) φD A±0.2 A±0.2 Plastic platform 0.5MAX. (φ8 to φ10 ) Voltage ( V : 35V ) Negative ×L 10 × 10 5×7 6.3 × 7 6.3 × 8.7 8 × 10 A 2.1 2.4 2.4 2.9 3.2 B 5.3 6.6 6.6 8.3 10.3 C 5.3 6.6 6.6 8.3 10.3 E 1.3 2.2 2.2 3.1 4.5 L 7.0 7.0 8.7 10 10 H 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 50 H Dimension table in next page. CAT.8100D ALUMINUM  ELECTROLYTIC  CAPACITORS CW series Dimensions Cap. (µF) V 6.3 10 16 25 35 50 Code 0J 1A 1C 1E 1V 1H 10 100 22 220 33 330 47 470 5 × 7 2.2 95 100 101 6.3 × 7 1.1 140 150 151 220 221 6.3 × 8.7 1.0 230 6.3 × 8.7 1.0 230 8 × 10 0.22 600 330 331 6.3 × 8.7 1.0 230 8 × 10 0.22 600 8 × 10 0.22 600 10 × 10 470 471 8 × 10 0.22 600 8 × 10 0.22 600 10 × 10 5×7 6.3 × 7 2.2 1.1 5×7 2.2 95 5×7 5×7 2.2 95 2.2 95 5×7 2.2 95 6.3 × 7 1.1 140 6.3 × 8.7 1.0 230 6.3 × 7 1.1 140 6.3 × 7 1.1 140 6.3 × 8.7 1.0 230 8 × 10 0.53 350 6.3 × 7 1.1 140 6.3 × 8.7 1.0 230 8 × 10 0.53 350 0.22 600 10 × 10 0.35 670 95 140 6.3 × 8.7 1.0 230 0.16 850 8 × 10 0.16 850 Case size φ D × L (mm) Impedance Rated ripple Max. impedance (Ω) at 20°C 100kHz, Rated ripple current (mArms) at 105°C 100kHz Frequency coefficient of rated ripple current Frequency Coefficient 50 Hz 0.35 120 Hz 0.50 300 Hz 0.64 1 kHz 0.83 10 kHz or more 1.00 Taping specifications are given in page 23. Recommended land size, soldering by reflow are given in page 18, 19. Please refer to page 3 for the minimum order quantity. CAT.8100D
