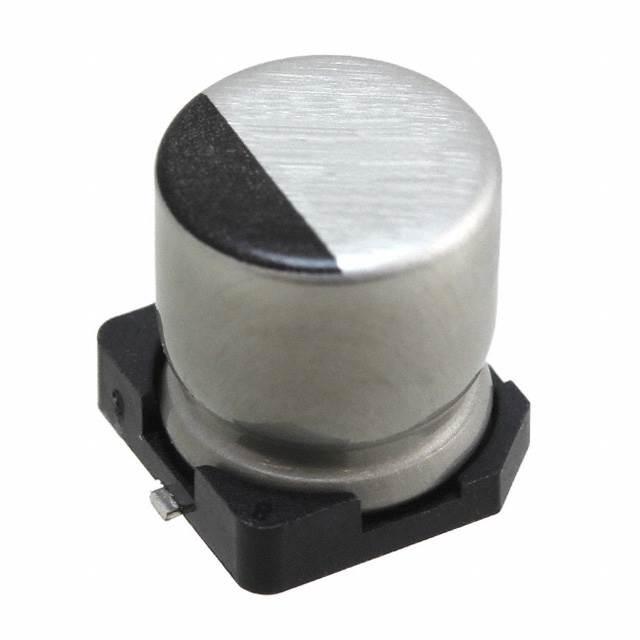

ALUMINUM  ELECTROLYTIC  CAPACITORS UCW Chip Type,  Low Impedance, Long Life Assurance Chip type with load life of 7000 hours at +105°C. Low impedance temperature range up to +105°C. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU,(EU)2015/863). AEC-Q200 Qualified. Please contact us for details. UCW Low Impedance UCB Specifications Item Performance Characteristics Category Temperature Range –25 to +105°C Rated Voltage Range 6.3 to 50V Rated Capacitance Range 10 to 470µF Capacitance Tolerance ± 20% at 120Hz, 20°C Leakage Current After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater. Measurement frequency : 120Hz at 20°C 6.3 0.32 Rated voltage (V) tan δ (max.) Tangent of loss angle (tan δ) 10 0.28 16 0.26 25 0.16 35 0.14 50 0.14 Measurement frequency : 120Hz Rated voltage (V) Stability at Low Temperature Impedance ratio ZT / Z20 (max.) Z(– 25°C) / Z(+20°C) 6.3 10 16 25 35 50 4 3 2 2 2 2 The specifications listed at right shall be met when the capacitors are restored to 20°C after the rated voltage is applied for 7000 hours at 105°C. Endurance Capacitance change tan δ Leakage current Within ±30% of the initial capacitance value 300% or less than the initial specified value Less than or equal to the initial specified value After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. The capacitors are kept on a hot plate for 30 seconds, which is Capacitance change Within ±10% of the initial capacitance value maintained at 250°C. The capacitors shall meet the Less than or equal to the initial specified value tan δ characteristic requirements listed at right when they are Less than or equal to the initial specified value Leakage current removed from the plate and restored to 20°C. Shelf Life Resistance to soldering heat Black print on the case top. Marking ※ I : Leakage Current (μA), C : Rated Capacitance (μF), V : Rated Voltage (V) Chip Type Type numbering system (Example : 10V 150µF) (φ5,φ6.3 ) Positive C±0.2 B±0.2 φD±0.5 A2 150C CW 0.3max. H L±0.3 3 4 5 6 7 8 9 10 11 12 13 14 Taping code Configuration Capacitance tolerance (±20%) φD 5 • 6.3 8 • 10 Rated capacitance (150µF) Rated voltage (10V) Negative Capacitance Lot No. 2 A±0.2 E A±0.2 Series 1 U CW 1 A 1 5 1 MC L 1 G S 0.5max. Plastic platform Voltage ( C : 16V ) Code CL NL Series name Type Plastic platform C±0.2 B±0.2 A2 220V CW φD±0.5 0.3max. H L±0.5 Lot No. Voltage V 6.3 Code j Capacitance Pressure relief vent (mm) φD A±0.2 E A±0.2 Series Trade mark 0.5max. Positive (φ8,φ10 ) Voltage ( V : 35V ) Negative ×L 10 × 10 5×7 6.3 × 7 6.3 × 8.7 8 × 10 A 2.1 2.4 2.4 2.9 3.2 B 5.3 6.6 6.6 8.3 10.3 C 5.3 6.6 6.6 8.3 10.3 E 1.3 2.2 2.2 3.1 4.5 L 7.0 7.0 8.7 10 10 H 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 Frequency coefficient of rated ripple current 10 A 16 C 25 E 35 V 50 H Frequency Coefficient 50 Hz 0.35 120 Hz 0.50 300 Hz 0.64 1 kHz 0.83 10 kHz or more 1.00 Dimension table in next page. CAT.8100M ALUMINUM  ELECTROLYTIC  CAPACITORS UCW Dimensions Rated Voltage （V） （code） 6.3 （0J） 10 （1A） 16 （1C） 25 （1E） 35 （1V） 50 （1H） Rated Capacitance （µF） Case Size φD×L（mm） tan δ 47 5× 7 0.32 100 6.3× 7 220 6.3× 8.7 330 470 Leakage Current Impedance（Ω） Rated Ripple （µA） （mArms） max. at 20℃ after （20℃/100kHz） （105℃/100kHz） 2 minutes （ ） Part Number 3 2.20 95 UCW0J470MCL1GS 0.32 6.3 1.10 140 UCW0J101MCL1GS 0.32 13.86 1.00 230 UCW0J221MCL1GS 6.3× 8.7 0.32 20.79 1.00 230 UCW0J331MCL1GS 8× 10 0.32 29.61 0.22 600 UCW0J471MNL1GS 33 5× 7 0.28 3.3 2.20 95 UCW1A330MCL1GS 150 6.3× 7 0.28 22 5× 7 0.26 15 1.10 140 UCW1A151MCL1GS 3.52 2.20 95 UCW1C220MCL1GS 7.52 47 6.3× 7 0.26 1.10 140 UCW1C470MCL1GS 100 6.3× 7 0.26 16 1.10 140 UCW1C101MCL1GS 150 6.3× 8.7 0.26 24 1.00 230 UCW1C151MCL1GS 220 6.3× 8.7 0.26 35.2 1.00 230 UCW1C221MCL1GS 330 8× 10 0.26 52.8 0.22 600 UCW1C331MNL1GS 470 8× 10 0.26 75.2 0.22 600 UCW1C471MNL1GS 22 5× 7 0.16 5.5 2.20 95 UCW1E220MCL1GS 33 6.3× 7 0.16 8.25 1.10 140 UCW1E330MCL1GS 47 6.3× 7 0.16 11.75 1.10 140 UCW1E470MCL1GS 100 6.3× 8.7 0.16 25 1.00 230 UCW1E101MCL1GS 220 8× 10 0.16 55 0.22 600 UCW1E221MNL1GS 330 8× 10 0.16 82.5 0.22 600 UCW1E331MNL1GS 470 10× 10 0.16 117.5 0.16 850 UCW1E471MNL1GS 10 5× 7 0.14 3.5 2.20 95 UCW1V100MCL1GS 22 5× 7 0.14 7.7 2.20 95 UCW1V220MCL1GS 33 6.3× 8.7 0.14 11.55 1.00 230 UCW1V330MCL1GS 47 6.3×8.7 0.14 16.45 1.00 230 UCW1V470MCL1GS 220 8× 10 0.14 77 0.22 600 UCW1V221MNL1GS 330 10× 10 0.14 115.5 0.16 850 UCW1V331MNL1GS 47 8× 10 0.14 23.5 0.53 350 UCW1H470MNL1GS 100 8× 10 0.14 50 0.53 350 UCW1H101MNL1GS 220 10× 10 0.14 110 0.35 670 UCW1H221MNL1GS For taping specifications, recommended land size/soldering by reflow and minimum order quantity, please refer to the Guidelines for Aluminum Electrolytic Capacitors. CAT.8100M
