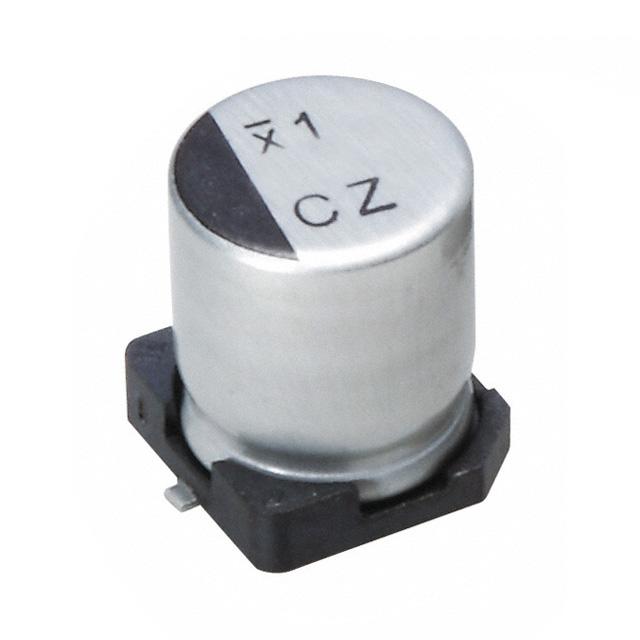

UCZ1J470MCL6GS

ALUMINUM ELECTROLYTIC CAPACITORS UCZ Chip Type, High Reliability. Low temperature ESR specification. Chip type, high temperature range, for +125°C use. Added ESR specification after the test at -40°C. Applicable to automatic mounting machine fed with carrier tape. UCX Compliant to the RoHS directive (2011/65/EU,(EU)2015/863). High AEC-Q200 Qualified. Please contact us for details. Temperature UCH UCZ Low ESR Specifications Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Leakage Current Tangent of loss angle (tan δ) Low ESR Long Life UCJ Performance Characteristics –40 to +125°C 10 to 100V 10 to 3300µF ± 20% at 120Hz, 20°C After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01CV (µA). Rated voltage (V) tan δ (max.) 10 0.30 16 0.23 25 0.18 35 0.16 50 0.16 63 0.12 80 0.12 100 0.10 Measurement frequency : 120Hz at 20°C For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. ( φ12.5 to φ18) Stability at Low Temperature Rated voltage (V) 10 16 25 35 50 63 80 100 Impedance ratio Z(–40°C) / Z(+20°C) (max.) 12 8 6 4 4 3 3 3 After continuous application of rated voltage at 125°C and then restoring down to 20°C, the readings of measurements shall meet below. φ6.3 × 5.8L φ6.3 × 7.7L φ8 to φ12.5 φ16,18 × 16.5L φ16,18 × 21.5L Case size 1000hrs. 2000hrs. 3000hrs. 3500hrs. 4000hrs. Endurance time Endurance Capacitance change tan δ Leakage current φD×L 9 10 11 12 13 14 Rated voltage (35V) Type φD×L Trade mark 10×10 3.2 10.3 10.3 4.5 10 1.1 to 1.5 Voltage A±0.2 E A±0.2 Positive Plastic platform C±0.2 0.3 max Lot No. φ12.5 φ16 φ18 4.8 5.4 6.4 13.6 17.1 19.1 13.6 17.1 19.1 (4.0) (6.3) (6.3) 13.5 16.5, 21.5 16.5, 21.5 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 Negative Vibration Resistance Negative 8×10 2.9 A 8.3 B 8.3 C 3.1 E 10 L H 1.1 to 1.5 H A±0.2 E A±0.2 (φ12.5 to φ18) L±1.0 Series Capacitance Series 6.3×5.8 6.3×7.7 8×10 10×10 12.5×13.5 16×16.5, 21.5 18×16.5, 21.5 2.4 2.4 2.9 3.2 5.15 5.65 6.65 6.6 8.3 10.3 6.6 13.6 17.1 19.1 13.6 17.1 19.1 6.6 8.3 10.3 6.6 (3.3) (5.8) (5.8) 2.2 2.2 3.1 4.5 5.8 7.7 10 10 13.5 16.5, 21.5 16.5, 21.5 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 Code CL (φ10 or less) N J (φ12.5 or more) Positive C±0.2 L±1.0 Capacitance H Negative Pressure relief vent Aid electrode Voltage V Code 10 A 16 C 25 E 35 V 50 H Code GS MS Vibration CS(φ10 or less) Resistance NS(φ12.5 or more) 0.3 max. A2 220V CZ Lot No. (mm) Standard Plastic platform Series Trade mark (mm) Vibration Resistance Configuration Configuration Vibration Resistance Voltage (V : 35V ) A±0.2 E A±0.2 H Size φ4 to 10 φ12.5 to 18 B±0.2 0.5max. (φ 8 , φ10) Positive C±0.2 Taping code Size code Configuration Rated capacitance (47µF) nichicon φ D±0.5 L±1.0 8 Negative Plastic platform Standard A B C E L H H 0.3 max. Lot No. Pressure relief vent Capacitance B±0.2 φD±0.5 Voltage 680 µF CZ 35V H1015 nichicon Trade mark Standard 7 Capacitance tolerance (±20%) A±0.2 E A±0.2 (φ12.5 to φ18) C±0.2 L±0.5 Capacitance 6 Positive 0.3max. A2 220V CZ Lot No. 5 Negative Plastic platform Series 4 Series name B±0.2 Voltage (V : 35V ) Trade mark 3 A±0.2 E A±0.2 B±0.2 φD±0.5 A2 47V CZ Standard 2 H L±0.3 Capacitance (φ 8 , φ10) 0.5max. C±0.2 0.3max. 0.5 max. Series 1 UC Z 1 V 4 7 0 MC L 1 GS 0.5 max. Positive Plastic platform Type numbering system (Example : 35V 47µF) 63 J 0.5 max. ‚ φ6.3 × 5.8L : The vibration structure-resistant product can t support. φ6.3 × 7.7L : The vibration structure-resistant product is available. B±0.2 Chip Type (φ 6.3) Standard φ D±0.5 Marking φ D±0.5 soldering heat 330 µF CZ  35V H1015 Resistance to Voltage (V:35V) Within ±30% of the initial capacitance value 300% or less than the initial specified value Less than or equal to the initial specified value After storing the capacitors under no load at 125°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. The capacitors are kept on a hot plate for 30 seconds, Within ±10% of the initial capacitance value Capacitance change which is maintained at 250°C. The capacitors shall meet Less than or equal to the initial specified value tan δ the characteristic requirements listed at right when they Less than or equal to the initial specified value Leakage current are removed from the plate and restored to 20°C. Black print on the case top. ※ I : Leakage Current (μA), C : Rated Capacitance (μF), V : Rated Voltage (V) Shelf Life Lot No. Measurement frequency : 120Hz 80 K 100 2A Frequency coefficient of rated ripple current 0 Frequency0/ 50Hz Coefficient 0.35 120Hz­ 0.50­ 300Hz 0.64 1kHz 0.83 10kHz or more 1.00 Dimension table in next page. CAT.8100M ALUMINUM  ELECTROLYTIC  CAPACITORS UCZ ■ Dimensions Rated Voltage （V） （code） 10 （1A） 16 （1C） 25 （1E） 35 （1V） 50 （1H） Leakage Current （µA） at 20℃ after 2 minutes ESR（Ω）max. （20℃/－40℃/100kHz） Rated Capacitance （µF） Case Size φD×L（mm） tan δ 220 8× 10 0.30 22 0.20 3.00 4.5 270 UCZ1A221M□□1GS 330 8× 10 0.30 33 0.20 3.00 4.5 270 UCZ1A331M□□6GS 330 10× 10 0.30 33 0.15 2.00 3.5 500 UCZ1A331M□□1GS 470 10× 10 0.30 47 0.15 2.00 3.5 500 UCZ1A471M□□1GS 47 6.3× 5.8 0.23 1.60 24.00 － 69 100 6.3× 7.7 0.23 16 0.45 5.00 100 8× 10 0.23 16 0.20 3.00 220 8× 10 0.23 35.2 0.20 330 10× 10 0.23 52.8 470 10× 10 0.23 75.2 33 6.3× 5.8 0.18 100 6.3× 7.7 0.18 100 8× 10 0.18 220 8× 10 220 （ ） 7.52 Initial 20℃ Initial －40℃ Rated Ripple （mArms） after endurance test （125℃/100kHz） －40℃ ※ UCZ1C470MCL1GS 197 UCZ1C101M□□6GS 4.5 270 UCZ1C101M□□1GS 3.00 4.5 270 UCZ1C221M□□1GS 0.15 2.00 3.5 500 UCZ1C331M□□1GS 0.15 2.00 3.5 500 1.60 24.00 － 69 25 0.45 5.00 197 UCZ1E101M□□6GS 25 0.20 3.00 4.5 270 UCZ1E101M□□1GS 0.18 55 0.20 3.00 4.5 270 UCZ1E221M□□6GS 10× 10 0.18 55 0.15 2.00 3.5 500 UCZ1E221M□□1GS 330 10× 10 0.18 82.5 0.15 2.00 3.5 500 UCZ1E331M□□1GS 820 12.5× 13.5 0.18 205 0.060 0.40 3 1700 UCZ1E821M□□1MS 1000 12.5× 13.5 0.18 250 0.060 0.40 3 1700 UCZ1E102M□□1MS 1200 16× 16.5 0.18 300 0.047 0.28 1.4 1700 UCZ1E122M□□1MS 1600 16× 16.5 0.18 400 0.047 0.28 1.4 2400 UCZ1E162M□□1MS 2200 18× 16.5 0.20 550 0.045 0.23 1.3 2600 UCZ1E222M□□1MS 2700 16× 21.5 0.20 675 0.034 0.20 0.6 3000 UCZ1E272M□□1MS 3300 18× 21.5 0.22 825 0.032 0.16 0.5 3250 10 6.3×5.8 0.16 3.5 1.60 24.00 － 69 UCZ1V100MCL1GS 22 6.3× 5.8 0.16 7.7 1.60 24.00 69 UCZ1V220MCL1GS 33 6.3× 7.7 0.16 11.55 0.45 5.00 40 197 UCZ1V330M□□1GS 47 6.3× 7.7 0.16 16.45 0.45 5.00 40 197 UCZ1V470M□□6GS 47 8× 10 0.16 16.45 0.20 3.00 4.5 270 UCZ1V470M□□1GS 68 8× 10 0.16 23.8 0.20 3.00 4.5 270 UCZ1V680M□□1GS 100 8× 10 0.16 35 0.20 3.00 4.5 270 UCZ1V101M□□1GS 220 10× 10 0.16 77 0.15 2.00 3.5 500 UCZ1V221M□□1GS 470 12.5× 13.5 0.16 164.5 0.060 0.40 3.0 1700 UCZ1V471M□□1MS 560 12.5× 13.5 0.16 196 0.060 0.40 3.0 1700 UCZ1V561M□□1MS 680 12.5× 13.5 0.16 238 0.060 0.40 3.0 1700 UCZ1V681M□□1MS 820 16 × 16.5 0.16 287 0.047 0.28 1.4 2400 UCZ1V821M□□1MS 1000 16 × 16.5 0.16 350 0.047 0.28 1.4 2400 UCZ1V102M□□1MS 1200 18 × 16.5 0.16 420 0.045 0.28 1.4 2600 UCZ1V122M□□1MS 1400 18× 16.5 0.16 490 0.045 0.28 1.4 2600 UCZ1V142M□□1MS 1600 16× 21.5 0.16 560 0.034 0.20 0.6 3000 UCZ1V162M□□1MS 2200 18× 21.5 0.18 770 0.032 0.16 0.5 3250 UCZ1V222M□□1MS 10 6.3 ×5.8 0.16 5 2.80 42.00 22 6.3 ×7.7 0.16 11 0.50 5.00 40 197 33 6.3 ×7.7 0.16 16.5 0.50 5.00 40 197 UCZ1H330M□□6GS 33 8×10 0.16 16.5 0.25 3.50 6 270 UCZ1H330M□□1GS 8.25 40 Part Number 40 － － 51 UCZ1C471M□□1GS UCZ1E330MCL1GS UCZ1E332M□□1MS UCZ1H100MCL1GS UCZ1H220M□□1GS 47 6.3 ×7.7 0.16 23.5 0.50 5.00 40 197 UCZ1H470M□□6GS 47 8×10 0.16 23.5 0.25 3.50 6 270 UCZ1H470M□□1GS 100 10 ×10 0.16 50 0.20 2.50 4.5 500 UCZ1H101M□□1GS 390 12.5 ×13.5 0.16 195 0.10 0.44 4.0 1300 UCZ1H391M□□1MS 470 16 ×16.5 0.16 235 0.080 0.34 2.6 2000 UCZ1H471M□□1MS 560 16 ×16.5 0.16 280 0.080 0.34 2.6 2000 UCZ1H561M□□1MS 680 18× 16.5 0.16 340 0.078 0.32 2.6 2100 UCZ1H681M□□1MS 820 18 × 16.5 0.16 410 0.078 0.32 2.6 2100 UCZ1H821M□□1MS 1000 16 × 21.5 0.16 500 0.040 0.22 1.5 2800 UCZ1H102M□□1MS 1200 18 × 21.5 0.16 600 0.038 0.20 1.5 2900 UCZ1H122M□□1MS □□ : Enter the appropriate configuration code. CAT.8100M ALUMINUM  ELECTROLYTIC  CAPACITORS UCZ ■ Dimensions Rated Voltage （V） （code） Rated Capacitance （µF） 63 （1J） 80 （1K） 100 (2A) Case Size φD×L（mm） tan δ Leakage Current （µA） at 20℃ after 2 minutes （ ） ESR（Ω）max. （20℃/－40℃/100kHz） Initial 20℃ Initial －40℃ Rated Ripple （mArms） after endurance test （125℃/100kHz） －40℃ ※ Part Number 10 6.3× 7.7 0.12 6.3 2.00 100.00 － 60 UCZ1J100M□□1GS 22 8× 10 0.12 13.86 0.70 35.00 － 100 UCZ1J220M□□1GS 33 8× 10 0.12 20.79 0.70 35.00 － 100 UCZ1J330M□□6GS 33 10× 10 0.12 20.79 0.50 25.00 － 170 UCZ1J330M□□1GS 47 8× 10 0.12 29.61 0.70 35.00 － 100 UCZ1J470M□□6GS 47 10× 10 0.12 29.61 0.50 25.00 － 170 UCZ1J470M□□1GS 150 12.5× 13.5 0.12 94.5 0.20 1.30 14 1000 UCZ1J151M□□1MS 180 12.5× 13.5 0.12 113.4 0.20 1.30 14 1000 UCZ1J181M□□1MS 220 12.5× 13.5 0.12 138.6 0.20 1.30 14 1000 UCZ1J221M□□1MS 390 16× 16.5 0.12 245.7 0.13 0.90 4.8 1900 UCZ1J391M□□1MS 470 18 ×16.5 0.12 296.1 0.11 0.82 3.9 2000 UCZ1J471M□□1MS 560 16 ×21.5 0.12 352.8 0.070 0.46 2.0 2500 UCZ1J561M□□1MS 750 18× 21.5 0.12 472.5 0.068 0.44 1.8 2600 UCZ1J751M□□1MS 10 8× 10 0.12 8 0.75 50.00 － 70 UCZ1K100M□□1GS 22 8× 10 0.12 17.6 0.75 50.00 － 70 UCZ1K220M□□6GS 22 10× 10 0.12 17.6 0.55 35.00 － 115 UCZ1K220M□□1GS 33 8× 10 0.12 26.4 0.75 50.00 － 70 UCZ1K330M□□6GS 33 10× 10 0.12 26.4 0.55 35.00 － 115 UCZ1K330M□□1GS 37.6 － 115 UCZ1K470M□□1GS 700 UCZ1K151M□□1MS 47 10× 10 0.12 0.55 35.00 150 12.5× 13.5 0.12 120 0.28 1.90 270 16× 16.5 0.12 216 0.19 1.40 4.8 1000 UCZ1K271M□□1MS 330 18 ×16.5 0.12 264 0.17 1.10 3.9 1100 UCZ1K331M□□1MS 390 16× 21.5 0.12 312 0.12 0.80 2.6 1600 UCZ1K391M□□1MS 520 18× 21.5 0.12 416 0.11 0.70 2.4 1700 UCZ1K521M□□1MS 10 8× 10 0.10 10 0.75 50.00 － 70 UCZ2A100M□□1GS 22 8× 10 0.10 22 0.75 50.00 － 70 UCZ2A220M□□6GS 22 10× 10 0.10 22 0.55 35.00 － 115 UCZ2A220M□□1GS 33 10× 10 0.10 33 0.55 35.00 82 12.5× 13.5 0.10 82 0.28 1.90 150 16× 16.5 0.10 150 0.19 1.40 180 18 ×16.5 0.10 180 0.17 1.10 220 16× 21.5 0.10 220 0.12 300 18× 21.5 0.10 300 0.11 14 － 115 UCZ2A330M□□1GS 700 UCZ2A820M□□1MS 4.8 1000 UCZ2A151M□□1MS 3.9 1100 UCZ2A181M□□1MS 0.80 2.6 1600 UCZ2A221M□□1MS 0.70 2.4 1700 UCZ2A301M□□1MS 22 □□ : Enter the appropriate configuration code. Guaranteed time of ESR after endurance test Size Guaranteed time φ6.3 × 5.8L - φ6.3 × 7.7L, φ8 × 10L φ10 × 10L 10 to 50V 2000hrs. 63 to 100V - φ12.5 2000hrs. φ16,18 × 16.5L 2000hrs. φ16,18 × 21.5L 3000hrs. For taping specifications, recommended land size/soldering by reflow and minimum order quantity, please refer to the Guidelines for Aluminum Electrolytic Capacitors. CAT.8100M
