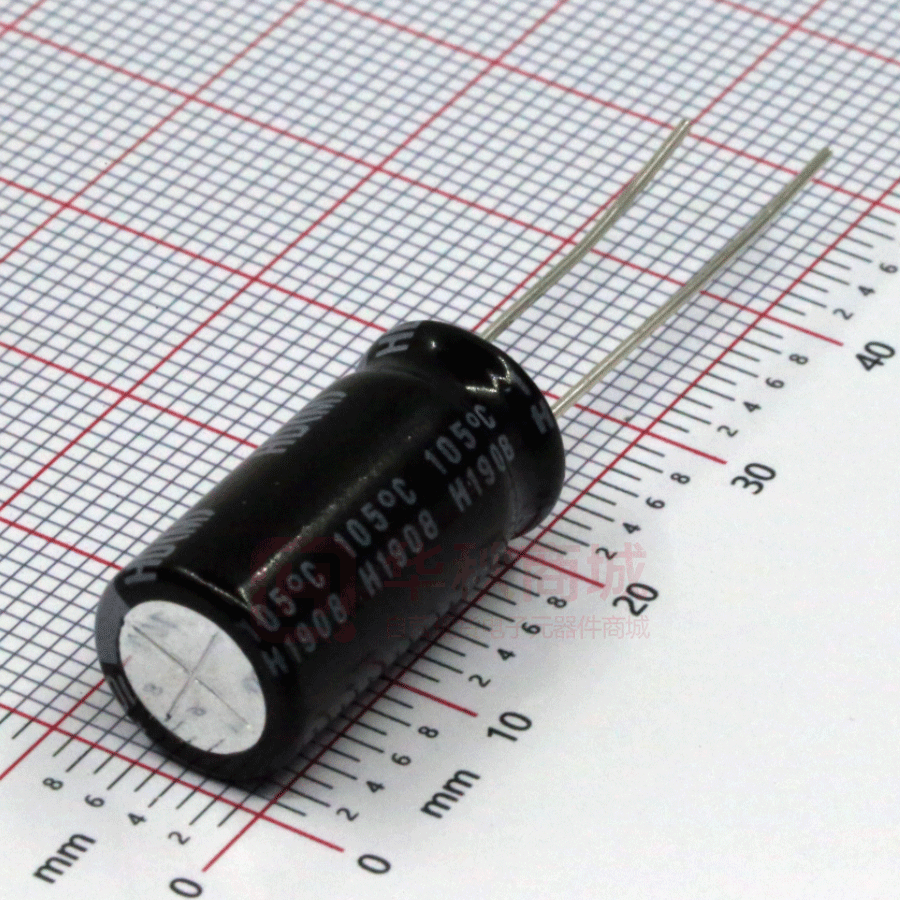

UHD1C102MPD1TD

ALUMINUM ELECTROLYTIC CAPACITORS UHD High Ripple Low Impedance Approved by Reliability Center for Electronic Component, Japan-Certification No. RCJ-03-23C Lower impedance at high frequency range. Smaller case size and high ripple current. Compliant to the RoHS directive (2011/65/EU,(EU)2015/863). UHD Valued marked with an ※ in the dimension table are scheduled to be discontinued and are not recommended for new designs. Smaller UHV Specifications Performance Characteristics ltem Category Temperature Range –40 to +105˚C Rated Voltage Range 6.3 to 50V Rated Capacitance Range 22 to 6800µF Capacitance Tolerance ± 20% at 120Hz, 20˚C Leakage Current ※ After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01CV or 3 (µA), whichever is greater. Rated voltage (V) 6.3 10 16 25 35 50 tan δ (max.) 0.22 0.19 0.16 0.14 0.12 0.10 Tangent of loss angle (tan δ) 120Hz 20˚C For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Rated voltage (V) Stability at Low Temperature Impedance ratio (max.) 6.3 10 16 25 35 50 Z(–25˚C) / Z(+20˚C) 2 2 2 2 2 2 Z(–40˚C) / Z(+20˚C) 3 3 3 3 3 3 The specifications listed below shall be met when the capacitors are restored to 20˚C after D.C. bias plus rated ripple current is applied at 105˚C for the condition listed at right.The peak voltage shall not exceed the rated voltage. Endurance Capacitance change tan δ Leakage current Rated Voltage φD(mm) 6.3〜50V 120Hz < = φ 6.3 φ8 φ10 > = φ12.5 2000hrs. 3000hrs. 4000hrs. 5000hrs. Within ±25% of the initial capacitance value 200% or less than the initial specified value Less than or equal to the initial specified value Printed with white color letter on black sleeve. Marking ※ I : Leakage Current (μA), C : Rated Capacitance (μF), V : Rated Voltage (V) Radial Lead Type Type numbering system (Example : 10V 3300µF) 1 φd 2 3 4 5 6 7 8 9 10 11 12 U HD 1 A 3 3 2 M H D P±0.5 φD+ 0.5 max. Sleeve (PET) Pressure relief vent (φ6.3up) L± 15min. 4min. Configuration (mm) (L < 20) 1.5 (L 20) 2.0 φD 5 6.3 8 10 12.5 16 P 2.0 2.5 3.5 5.0 5.0 7.5 φd 0.5 0.5 0.6 0.6 0.6 0.8 φD  lease refer to the Guidelines for Aluminum Electrolytic Capacitors P for end seal configuration information. Pb-free leadwire Pb-free PET sleeve 5 DD 6.3 8 · 10 12.5 ·16 ED PD HD Frequency coefficient of rated ripple current Frequency 50Hz 120Hz 1kHz 10kHz 100kHz or more 22 to 33 0.45 0.55 0.75 0.90 1.00 47 to 330 0.60 0.70 0.85 0.95 1.00 470 to 1000 0.65 0.75 0.90 0.98 1.00 1200 to 6800 0.75 0.80 0.95 1.00 1.00 Cap. (µF) Dimension table in next page. CAT.8100L ALUMINUM ELECTROLYTIC CAPACITORS UHD Dimensions Rated Voltage （V） （code） 6.3 （0J） 10 （1A） 16 （1C） Rated Capacitance （µF） Leakage Current （µA） at 20℃ after 2 minutes Impedance（Ω） max. Rated Ripple （mArms） （105℃/100kHz） Case Size φD×L（mm） tan δ 150 5× 11 0.22 9.45 0.30 1.00 250 ※UHD0J151MDD 330 6.3×11 0.22 20.79 0.13 0.41 405 ※UHD0J331MED （ ） 20℃/ 100kHz －10℃/ 100kHz Part Number 560 8× 11.5 0.22 35.28 0.072 0.22 760 　UHD0J561MPD 820 8× 15 0.22 51.66 0.056 0.17 995 　UHD0J821MPD 1000 10×12.5 0.22 63 0.053 0.16 1030 　UHD0J102MPD 1200 8× 20 0.22 75.6 0.041 0.13 1250 　UHD0J122MPD 1200 10×16 0.22 75.6 0.038 0.12 1430 　UHD0J122MPD6 1500 10×20 0.22 94.5 0.023 0.069 1820 　UHD0J152MPD 2200 10×25 0.24 138.6 0.022 0.066 2150 　UHD0J222MPD 3300 12.5× 20 0.26 207.9 0.021 0.053 2360 　UHD0J332MHD 3900 12.5× 25 0.26 245.7 0.018 0.045 2770 　UHD0J392MHD 4700 12.5× 30.5 0.28 296.1 0.016 0.041 3290 　UHD0J472MHD 5600 12.5× 35.5 0.30 352.8 0.015 0.039 3400 　UHD0J562MHD 5600 16×20 0.30 352.8 0.018 0.045 3140 　UHD0J562MHD6 6800 16×25 0.32 428.4 0.016 0.043 3460 　UHD0J682MHD 100 5× 11 0.19 10 0.30 1.00 250 ※UHD1A101MDD 220 6.3×11 0.19 22 0.13 0.41 405 ※UHD1A221MED 　UHD1A471MPD 470 8× 11.5 0.19 47 0.072 0.22 760 680 8× 15 0.19 68 0.056 0.17 995 　UHD1A681MPD 680 10× 12.5 0.19 68 0.053 0.16 1030 　UHD1A681MPD6 1000 8× 20 0.19 100 0.041 0.13 1250 　UHD1A102MPD 1000 10× 16 0.19 100 0.038 0.12 1430 　UHD1A102MPD6 1200 10× 20 0.19 120 0.023 0.069 1820 　UHD1A122MPD 1500 10× 25 0.19 150 0.022 0.066 2150 　UHD1A152MPD 2200 12.5× 20 0.21 220 0.021 0.053 2360 　UHD1A222MHD 3300 12.5× 25 0.23 330 0.018 0.045 2770 　UHD1A332MHD 3900 12.5× 30.5 0.23 390 0.016 0.041 3290 　UHD1A392MHD 3900 16× 20 0.23 390 0.018 0.045 3140 　UHD1A392MHD6 4700 12.5× 35.5 0.25 470 0.015 0.039 3400 　UHD1A472MHD 5600 16× 25 0.27 560 0.016 0.043 3460 　UHD1A562MHD 56 5× 11 0.16 0.30 1.00 250 ※UHD1C560MDD 120 6.3× 11 0.16 19.2 0.13 0.41 405 ※UHD1C121MED 8.96 330 8× 11.5 0.16 52.8 0.072 0.22 760 　UHD1C331MPD 470 8× 15 0.16 75.2 0.056 0.17 995 　UHD1C471MPD 470 10× 12.5 0.16 75.2 0.053 0.16 1030 　UHD1C471MPD6 680 8× 20 0.16 108.8 0.041 0.13 1250 　UHD1C681MPD 680 10× 16 0.16 108.8 0.038 0.12 1430 　UHD1C681MPD6 1000 10× 20 0.16 160 0.023 0.069 1820 　UHD1C102MPD 1200 10× 25 0.16 192 0.022 0.066 2150 　UHD1C122MPD 1500 12.5× 20 0.16 240 0.021 0.053 2360 　UHD1C152MHD 2200 12.5× 25 0.18 352 0.018 0.045 2770 　UHD1C222MHD 2700 12.5× 30.5 0.18 432 0.016 0.041 3290 　UHD1C272MHD 2700 16× 20 0.18 432 0.018 0.045 3140 　UHD1C272MHD6 3300 12.5× 35.5 0.20 528 0.015 0.039 3400 　UHD1C332MHD 3900 16× 25 0.20 624 0.016 0.043 3460 　UHD1C392MHD For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ). If there is no size code in the part number, please add size code “1” and then add the appropriate code. CAT.8100L ALUMINUM ELECTROLYTIC CAPACITORS UHD Dimensions Rated Voltage （V） （code） 25 （1E） Rated Capacitance （µF） 50 （1H） tan δ Leakage Current （µA） at 20℃ after 2 minutes （ ） Impedance（Ω） max. 20℃/ 100kHz －10℃/ 100kHz Rated Ripple （mArms） （105℃/100kHz） Part Number 47 5× 11 0.14 11.75 0.30 1.00 250 ※UHD1E470MDD 100 6.3× 11 0.14 25 0.13 0.41 405 ※UHD1E101MED 220 8× 11.5 0.14 55 0.072 0.22 760 　UHD1E221MPD 330 8× 15 0.14 82.5 0.056 0.17 995 　UHD1E331MPD 330 10× 12.5 0.14 82.5 0.053 0.16 1030 　UHD1E331MPD6 470 8× 20 0.14 117.5 0.041 0.13 1250 　UHD1E471MPD 470 10× 16 0.14 117.5 0.038 0.12 1430 　UHD1E471MPD6 680 10× 20 0.14 170 0.023 0.069 1820 　UHD1E681MPD 820 10× 25 0.14 205 0.022 0.066 2150 　UHD1E821MPD 1000 12.5× 20 0.14 250 0.021 0.053 2360 　UHD1E102MHD 1500 12.5× 25 0.14 375 0.018 0.045 2770 　UHD1E152MHD 1800 12.5× 30.5 0.14 450 0.016 0.041 3290 　UHD1E182MHD 1800 16× 20 0.14 450 0.018 0.045 3140 　UHD1E182MHD6 2200 12.5× 35.5 0.16 550 0.015 0.039 3400 　UHD1E222MHD 2700 16× 25 0.16 675 0.016 0.043 3460 　UHD1E272MHD 33 5× 11 0.12 11.55 0.30 1.00 250 ※UHD1V330MDD 56 6.3× 11 0.12 19.6 0.13 0.41 405 ※UHD1V560MED 0.12 52.5 0.072 0.22 760 　UHD1V151MPD 150 35 （1V） Case Size φD×L（mm） 8× 11.5 220 8× 15 0.12 77 0.056 0.17 995 　UHD1V221MPD 220 10× 12.5 0.12 77 0.053 0.16 1030 　UHD1V221MPD6 270 8×20 0.12 94.5 0.041 0.13 1250 　UHD1V271MPD 330 10× 16 0.12 115.5 0.038 0.12 1430 　UHD1V331MPD 470 10× 20 0.12 164.5 0.023 0.069 1820 　UHD1V471MPD 560 10× 25 0.12 196 0.022 0.066 2150 　UHD1V561MPD 680 12.5×20 0.12 238 0.021 0.053 2360 　UHD1V681MHD 1000 12.5×25 0.12 350 0.018 0.045 2770 　UHD1V102MHD 1200 12.5×30.5 0.12 420 0.016 0.041 3290 　UHD1V122MHD 1200 16× 20 0.12 420 0.018 0.045 3140 　UHD1V122MHD6 1500 12.5× 35.5 0.12 525 0.015 0.039 3400 　UHD1V152MHD 1800 16× 25 0.12 630 0.016 0.043 3460 　UHD1V182MHD 22 5×11 0.10 11 0.34 1.18 238 ※UHD1H220MDD 56 6.3× 11 0.10 28 0.14 0.50 385 ※UHD1H560MED 　UHD1H101MPD 100 8×11.5 0.10 50 0.074 0.22 724 120 8×15 0.10 60 0.061 0.18 950 　UHD1H121MPD 150 10× 12.5 0.10 75 0.061 0.18 979 　UHD1H151MPD 180 8×20 0.10 90 0.046 0.14 1190 　UHD1H181MPD 220 10× 16 0.10 110 0.042 0.12 1370 　UHD1H221MPD 270 10× 20 0.10 135 0.030 0.090 1580 　UHD1H271MPD 330 10× 25 0.10 165 0.028 0.085 1870 　UHD1H331MPD 470 12.5× 20 0.10 235 0.027 0.068 2050 　UHD1H471MHD 560 12.5× 25 0.10 280 0.023 0.059 2410 　UHD1H561MHD 680 12.5× 30.5 0.10 340 0.021 0.052 2860 　UHD1H681MHD 820 12.5× 35.5 0.10 410 0.019 0.051 2960 　UHD1H821MHD 820 16× 20 0.10 410 0.023 0.059 2730 　UHD1H821MHD6 1000 16× 25 0.10 500 0.021 0.056 3010 　UHD1H102MHD For cut leads, formed leads or taped parts, please add the appropriate code after the size code (12th digit ). If there is no size code in the part number, please add size code “1” and then add the appropriate code. For formed lead or taped product specifications and minimum order quantity, please refer to the Guidelines for Aluminum Electrolytic Capacitors. CAT.8100L
