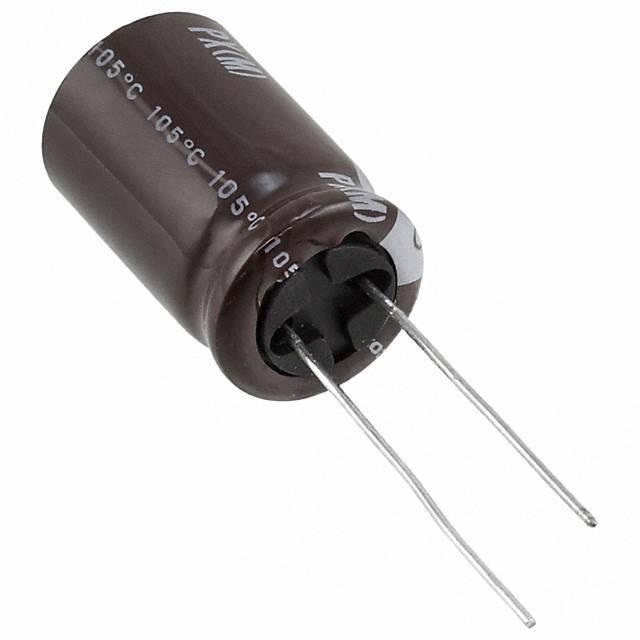

ALUMINUM ELECTROLYTIC CAPACITORS
UPX
Long Life Assurance
Load life of 20000 hours at 105°C.
Compliant to the RoHS directive (2011/65/EU).
UPM
UPX
Long Life
Specifications
Item
Performance Characteristitcs
Category Temperature Range –55 to +105˚C
Rated Voltage Range
10 to 35V
Rated Capacitance Range
1 to 4700µF
Capacitance Tolerance
±20% (120Hz, 20˚C)
Leakage Current
After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03CV or 4 (µA), whichever is greater.
Tangent of loss angle (tan δ)
Rated voltage (V)
10
16
25
35
tan δ (MAX)
0.20
0.16
0.14
0.12
Measurement frequency : 120Hz
Temperature : 20˚C
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.
Rated voltage (V)
Stability at Low Temperature
Endurance
Impedance ratio Z–25˚C / Z+20˚C
(MAX.)
Z–40˚C / Z+20˚C
10
16
25
35
3
2
2
2
4
4
4
4
The specifications listed at right shall be met when the
capacitors are restored to 20˚C after D.C. bias plus
rated ripple current is applied for 20000 hours at 105˚C,
the peak voltage shall not exceed the rated voltage.
Measurement frequency : 120Hz
Capacitance change
Within ±30% of the initial capacitance value
tan δ
300% or less than the initial specified value
Leakage current
Less than or equal to the initial specified value
Shelf Life
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Marking
Printed with white color letter on dark brown sleeve.
• Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
248
CAT.8100E
ALUMINUM ELECTROLYTIC CAPACITORS
UPX
Dimensions
10 (1A)
16 (1C)
25 (1E)
35 (1V)
1
010
10 × 12.5
2.2
2R2
10 × 12.5
84
3.3
3R3
10 × 12.5
101
4.7
59
4R7
10 × 12.5
143
10
100
10 × 12.5
294
22
220
10 × 12.5
336
33
330
10 × 12.5
378
47
470
10 × 12.5
420
100
101
420
10 × 20
672
220
221
840
12.5 × 25
1008
1344
10 × 12.5
10 × 16
504
12.5 × 20
330
331
10 × 16
504
10 × 20
672
12.5 × 25
1008
16 × 25
470
471
10 × 20
672
12.5 × 20
1008
16 × 25
1344
16 × 31.5
1680
1000
102
12.5 × 25
1008
16 × 25
1344
16 × 31.5
1680
18 × 40
2184
2200
222
16 × 31.5
1680
18 × 35.5
2016
3300
332
18 × 35.5
2016
18 × 40
2184
4700
472
18 × 40
2184
Frequency coefficient of rated ripple current
Frequency
120Hz
1kHz
10kHz
100kHz or more
Coefficient
0.75
0.80
0.90
1.00
249
CAT.8100E
