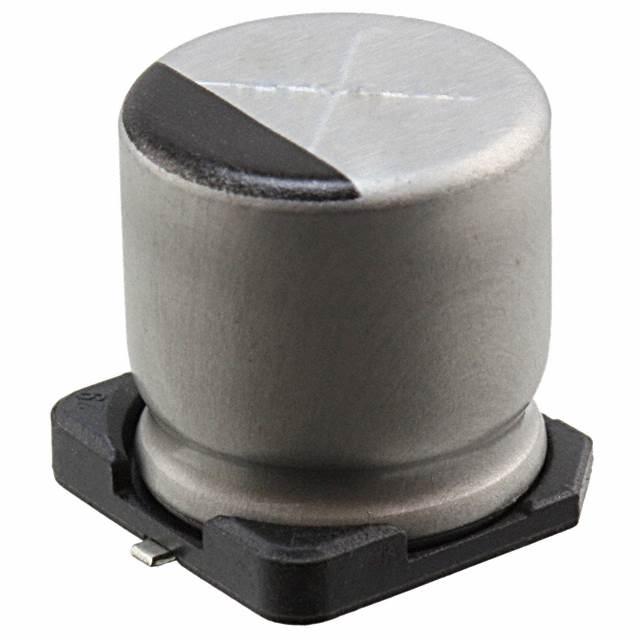

UUA1V221MNL1GS

ALUMINUM  ELECTROLYTIC  CAPACITORS UUA 6mmL Chip Type,  Long Life Assurance Chip type with load life of 3000 to 5000 hours at +105°C. Designed for surface mounting on high density PC board. Compliant to the RoHS directive (2011/65/EU,(EU)2015/863). AEC-Q200 Qualified. Please contact us for details. UUA UUL Long Life Specifications Item Performance Characteristics Category Temperature Range –55 to +105°C Rated Voltage Range 6.3 to 50V Rated Capacitance Range 1 to 1000µF Capacitance Tolerance ± 20% at 120Hz, 20°C Leakage Current After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater. Measurement frequency : 120Hz at 20°C 6.3 0.28 10 0.24 Tangent of loss angle (tan δ) Rated voltage (V) tan δ (max.) Stability at Low Temperature Rated voltage (V) Z(– 25°C) / Z(+20°C) Impedance ratio 16 0.20 25 0.16 35 0.13 50 0.12 Measurement frequency : 120Hz ZT / Z20 (max.) Z(– 55°C) / Z(+20°C) 6.3 4 10 50 2 3 35 2 3 25 2 3 16 2 5 10 3 7 The specifications listed at right shall be met Within ±30% of the initial capacitance value Capacitance change when the capacitors are restored to 20°C 300% or less than the initial specified value tan δ after the rated voltage is applied for 5000 Less than or equal to the initial specified value Leakage current hours (3000 hours for φD = 4, 5 and 6.3) at 105°C. After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. The capacitors are kept on a hot plate for 30 seconds, which is Capacitance change Within ±10% of the initial capacitance value maintained at 250°C. The capacitors shall meet the characteristic Less than or equal to the initial specified value tan δ requirements listed at right when they are removed from the plate Less than or equal to the initial specified value Leakage current and restored to 20°C. Endurance Shelf Life Resistance to soldering heat Black print on the case top. Marking ※ I : Leakage Current (μA), C : Rated Capacitance (μF), V : Rated Voltage (V) Chip Type Type numbering system (Example : 16V 10µF) (φ4 to φ6.3) Positive C±0.2 B±0.2 A2 33 j UA φD±0.5 0.3max. H L±0.3 2 3 4 5 6 7 8 9 10 11 12 13 14 Taping code Configuration Capacitance tolerance (±20%) φD 4 to 6.3 8 • 10 Rated capacitance (10 µF) Negative Capacitance Lot No. 1 UU A 1 C 1 0 0 MC L 1 GS A±0.2 E A±0.2 Series 0.5max. Plastic platform Voltage ( j : 6.3V) Rated voltage (16V) Code CL NL Series name Type Positive (φ8,φ10) C±0.2 B±0.2 φD±0.5 0.3max. H L±0.5 Lot No. Voltage V 6.3 Code j Capacitance φD A±0.2 E A±0.2 Series 0.5max. (mm) Plastic platform A2 100V UA Voltage ( V : 35V) Trade mark Negative Pressure relief vent ×L 10 × 10 4 × 5.8 5 × 5.8 6.3 × 5.8 6.3 × 7.7 8 × 10 A 1.8 2.1 2.4 2.4 2.9 3.2 B 4.3 5.3 6.6 6.6 8.3 10.3 C 4.3 5.3 6.6 6.6 8.3 10.3 E 1.0 1.3 2.2 2.2 3.1 4.5 L 5.8 5.8 5.8 7.7 10 10 H 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.8 to 1.1 0.8 to 1.1 Frequency coefficient of rated ripple current 10 A 16 C 25 E 35 V 50 H Frequency Coefficient 50 Hz 0.70 120 Hz 1.00 300 Hz 1.17 1 kHz 1.36 10 kHz or more 1.50 Dimension table in next page. CAT.8100M ALUMINUM  ELECTROLYTIC  CAPACITORS UUA Dimensions Rated Voltage （V） （code） 6.3 （0J） 10 （1A） 16 （1C） 25 （1E） Rated Capacitance （µF） Leakage Current （µA） at 20℃ after 2 minutes （ ） Rated Ripple （mArms） （105℃/120Hz） Part Number 22 4× 5.8 0.28 3 22 UUA0J220MCL1GS 5× 5.8 0.28 3 35 UUA0J330MCL1GS 47 5× 5.8 0.28 3 38 UUA0J470MCL1GS 100 6.3× 5.8 0.28 6.3 69 UUA0J101MCL1GS 220 6.3× 7.7 0.28 13.86 120 UUA0J221MCL1GS 330 8× 10 0.28 20.79 290 UUA0J331MNL1GS 470 10× 10 0.28 29.61 320 UUA0J471MNL1GS 1000 10× 10 0.28 63 410 UUA0J102MNL1GS 22 5× 5.8 0.24 3 30 UUA1A220MCL1GS 33 5× 5.8 0.24 3.3 35 UUA1A330MCL1GS 47 6.3× 5.8 0.24 4.7 50 UUA1A470MCL1GS 100 6.3× 7.7 0.24 10 81 UUA1A101MCL1GS 220 8× 10 0.24 22 141 UUA1A221MNL1GS 330 10× 10 0.24 33 290 UUA1A331MNL1GS 470 10×10 0.24 47 320 UUA1A471MNL1GS 10 4× 5.8 0.20 3 18 UUA1C100MCL1GS 22 5× 5.8 0.20 3.52 30 UUA1C220MCL1GS 33 6.3× 5.8 0.20 5.28 48 UUA1C330MCL1GS 47 6.3× 5.8 0.20 7.52 50 UUA1C470MCL1GS 100 6.3× 7.7 0.20 16 220 10× 10 0.20 35.2 81 UUA1C101MCL1GS 216 UUA1C221MNL1GS 330 10× 10 0.20 52.8 290 UUA1C331MNL1GS 470 10× 10 0.20 75.2 320 UUA1C471MNL1GS 10 5×5.8 0.16 3 27 UUA1E100MCL1GS 22 6.3×5.8 0.16 5.5 44 UUA1E220MCL1GS 33 6.3× 5.8 0.16 8.25 50 UUA1E330MCL1GS 47 6.3× 7.7 0.16 11.75 63 UUA1E470MCL1GS 100 8× 10 0.16 25 116 UUA1E101MNL1GS 220 10× 10 0.16 55 320 UUA1E221MNL1GS 330 10× 10 0.16 82.5 450 UUA1E331MNL1GS 4.7 4× 5.8 0.13 3 16 UUA1V4R7MCL1GS 5× 5.8 0.13 3.5 27 UUA1V100MCL1GS 22 6.3× 5.8 0.13 7.7 44 UUA1V220MCL1GS 33 6.3× 7.7 0.13 11.55 57 UUA1V330MCL1GS 47 8× 10 0.13 16.45 92 UUA1V470MNL1GS 100 10× 10 0.13 35 151 UUA1V101MNL1GS 220 10×10 0.13 77 375 UUA1V221MNL1GS 1 4× 5.8 0.12 3 8 UUA1H010MCL1GS 2.2 4× 5.8 0.12 3 12 UUA1H2R2MCL1GS 3.3 4× 5.8 0.12 3 17 UUA1H3R3MCL1GS 4.7 50 （1H） tan δ 33 10 35 （1V） Case Size φD×L（mm） 5× 5.8 0.12 3 22 UUA1H4R7MCL1GS 10 6.3× 5.8 0.12 5 32 UUA1H100MCL1GS 22 6.3× 7.7 0.12 11 58 UUA1H220MCL1GS 33 8× 10 0.12 16.5 140 UUA1H330MNL1GS 47 8× 10 0.12 23.5 170 UUA1H470MNL1GS 100 10× 10 0.12 50 310 UUA1H101MNL1GS For taping specifications, recommended land size/soldering by reflow and minimum order quantity, please refer to the Guidelines for Aluminum Electrolytic Capacitors. CAT.8100M
