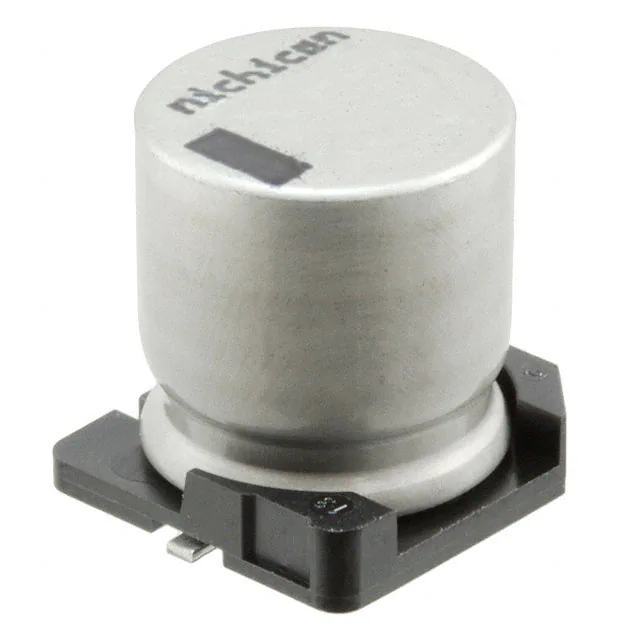

UUJ2C330MNQ1MS

ALUMINUM ELECTROLYTIC CAPACITORS UUJ Chip Type, Higher Capacitance Range Chip Type, higher capacitance in larger case sizes (φ12.5, φ16, φ18) Designed for surface mounting on high density PC board. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU,(EU)2015/863). AEC-Q200 compliant. Please contact us for details. UUJ UUN Bi-Polarized Specifications Item Performance Characteristics –55 to +105°C (6.3 to 100V), –40 to +105°C (160 to 450V) 6.3 to 450V 3.3 to 6800µF ± 20% at 120Hz, 20°C Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Rated voltage (V) 6.3 to 100 — After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.03CV or 4 (µA), whichever is greater. Leakage Current 160 to 450 I = 0.04CV+100 ( µA) max. (1 minute's at 20°C) Measurement frequency : 120Hz at 20°C Rated voltage (V) tan δ (MAX.) Tangent of loss angle (tan δ) 6.3 0.26 10 0.22 16 0.18 25 0.16 35 0.14 50 0.12 63 0.10 100 0.08 160 to 250 400 • 450 0.20 0.15 For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. ( φ12.5 to φ18 ) Measurement frequency: 120Hz Rated voltage (V) Stability at Low Temperature Impedance ratio (MAX.) Z–25°C / Z+20°C Z–40°C / Z+20°C 6.3 5 10 10 4 8 16 3 6 35 2 3 50 2 3 Capacitance change tan δ Leakage current The specifications listed at right shall be met when the capacitors are restored to 20°C after the rated voltage is applied for 5000 hours at 105°C. Endurance 25 2 4 63 2 3 100 2 3 160 to 250 400 • 450 3 6 6 10 Within ±20% of the initial capacitance value 200% or less than the initial specified value Less than or equal to the initial specified value Shelf Life After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. Marking Black print on the case top. Chip Type Type numbering system (Example : 50V 330µF) Plastic platform Capacitance L ±1.0 1 2 3 5 6 7 8 9 10 11 12 13 14 A ±0.2 E A ±0.2 Package code Size code Configuration Capacitance Tolerance (±20%) Rated capacitance (330µF) H Rated voltage (50V) Negative Series 4 U U J 1 H 3 3 1 M NQ 1 MS 0.5 MAX. B ±0.2 Pressure relief vent Positive C ±0.2 0.3 MAX. φD ±0.5 nichicon Trade mark 330 µF UJ 50V H1015 Voltage Lot No. Series name Type (mm) φD 12.5×13.5 12.5×16. 12.5×21. 16×16.5. 16×21.5. 18×16.5. 18×21.5. 4.8 4.8 5.4 5.4 6.4 6.4 A 4.8 13.6 13.6 17.1 17.1 19.1 19.1 B 13.6 13.6 13.6 17.1 17.1 19.1 19.1 C 13.6 4.0 4.0 6.3 6.3 6.3 6.3 E 4.0 13.5 16.0 16.5 21.5 16.5 21.5 L 21.0 H 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 1.0 to 1.4 The vibration structure-resistant product is also available upon request, please ask for details. Frequency coefficient of rated ripple current V 6.3 to 100 160 to 450 Cap.(µF) Frequency 47 to 680/ 100 to 4700 1000 to 6800 3.3 to 100 50Hz 0.75 0.80 0.85 0.80 120Hz 1.00 1.00 1.00 1.00 300Hz 1.35 1.23 1.10 1.25 1kHz 1.57 1.34 1.13 1.40 10kHz or more 2.00 1.50 1.15 1.60 Dimension table in next page. CAT.8100K 12. ALUMINUM ELECTROLYTIC CAPACITORS UUJ ■ Dimensions Rated Voltage （V） （code） Rated Capacitance （µF） 0.26 189 440 UUJ0J102MNQ1MS 415.8 750 UUJ0J222MNQ1MS 0.28 415.8 750 UUJ0J222MNQ6MS φD Code NQ 3300 18× 16.5 0.30 623.7 930 UUJ0J332MNQ1MS 16× 21.5 0.30 623.7 930 UUJ0J332MNQ6MS 4700 18× 21.5 0.32 888.3 1100 UUJ0J472MNQ1MS 6800 18× 21.5 0.36 1285.2 1350 UUJ0J682MNQ6MS 3300 16× 16.5 12.5× 21 18× 16.5 0.22 300 500 UUJ1A102MNQ1MS 0.24 660 810 UUJ1A222MNQ1MS 0.24 660 810 UUJ1A222MNQ6MS 0.26 990 1000 UUJ1A332MNQ1MS 3300 16×21.5 0.26 990 1000 UUJ1A332MNQ6MS 18× 21.5 0.28 1410 1200 UUJ1A472MNQ1MS 6800 18× 21.5 0.32 2040 1450 UUJ1A682MNQ6MS 470 12.5× 13.5 0.18 360 UUJ1C471MNQ1MS 1000 16×16.5 12.5× 21 225.6 0.18 480 630 UUJ1C102MNQ1MS 0.18 480 630 UUJ1C102MNQ6MS 2200 18× 16.5 0.20 1056 930 UUJ1C222MNQ1MS 2200 16× 21.5 0.20 1056 930 UUJ1C222MNQ6MS 1584 1150 UUJ1C332MNQ1MS 320 UUJ1E331MNQ1MS 3300 18× 21.5 0.22 330 12.5× 13.5 0.16 470 12.5× 16 1000 18× 16.5 247.5 0.16 352.5 400 UUJ1E471MNQ1MS 0.16 750 700 UUJ1E102MNQ1MS 1000 16× 21.5 0.16 750 700 UUJ1E102MNQ6MS 2200 18×21.5 0.18 1650 1050 UUJ1E222MNQ1MS 220 12.5× 13.5 0.14 231 280 UUJ1V221MNQ1MS 330 12.5× 16 0.14 346.5 360 UUJ1V331MNQ1MS 470 16× 16.5 12.5× 21 0.14 493.5 490 UUJ1V471MNQ1MS 0.14 493.5 490 UUJ1V471MNQ6MS 1000 18× 16.5 0.14 1050 750 UUJ1V102MNQ1MS 1000 16× 21.5 0.14 1050 750 UUJ1V102MNQ6MS 18× 21.5 0.16 2310 1150 UUJ1V222MNQ6MS 0.12 330 320 UUJ1H221MNQ1MS 220 330 330 12.5× 16 16× 16.5 12.5× 21 0.12 495 440 UUJ1H331MNQ1MS 0.12 495 440 UUJ1H331MNQ6MS 470 18× 16.5 0.12 705 550 UUJ1H471MNQ1MS 470 16× 21.5 0.12 705 550 UUJ1H471MNQ6MS 1000 18× 21.5 0.12 1500 820 UUJ1H102MNQ1MS 68 12.5× 13.5 0.10 175 UUJ1J680MNQ1MS 100 220 63 （1J） 12.5× 16 4700 2200 50 （1H） 12.5× 21 3300 470 .5 to 18 Part Number 0.28 1000 35 （1V） ） 16× 16.5 2200 25 （1E） （ Rated Ripple （mArms） （105℃/120Hz） 12.5× 13.5 1000 16 （1C） Leakage Current （µA） at 20℃ after 1 minute 1000 2200 10 （1A） tan δ 2200 2200 6.3 （0J） Case Size φD×L（mm） 220 330 12.5× 16 16× 16.5 12.5× 21 18× 16.5 128.52 0.10 189 225 UUJ1J101MNQ1MS 0.10 415.8 385 UUJ1J221MNQ1MS 0.10 415.8 385 UUJ1J221MNQ6MS 0.10 623.7 490 UUJ1J331MNQ1MS 330 16× 21.5 0.10 623.7 490 UUJ1J331MNQ6MS 470 18× 21.5 0.10 888.3 590 UUJ1J471MNQ1MS CAT.8100K ALUMINUM ELECTROLYTIC CAPACITORS UUJ ■ Dimensions Rated Voltage （V） （code） Rated Capacitance （µF） 0.08 141 160 UUJ2A470MNQ1MS 204 205 UUJ2A680MNQ1MS 0.08 300 285 UUJ2A101MNQ1MS 100 16× 16.5 12.5× 21 18× 16.5 0.08 300 285 UUJ2A101MNQ6MS 0.08 660 440 UUJ2A221MNQ1MS 220 16× 21.5 0.08 660 440 UUJ2A221MNQ6MS 330 18× 21.5 0.08 990 500 UUJ2A331MNQ6MS 33 12.5× 13.5 0.15 311.2 95 UUJ2C330MNQ1MS 47 16× 16.5 0.15 400.8 260 UUJ2C470MNQ1MS 47 68 12.5× 21 18×16.5 0.15 400.8 260 UUJ2C470MNQ6MS 0.15 535.2 320 UUJ2C680MNQ1MS 68 16× 21.5 0.15 535.2 320 UUJ2C680MNQ6MS 100 16× 21.5 0.15 740 380 UUJ2C101MNQ1MS 10 12.5× 13.5 0.15 180 80 UUJ2D100MNQ1MS 22 12.5× 16 0.15 276 105 UUJ2D220MNQ1MS 33 16×16.5 12.5× 21 0.15 364 220 UUJ2D330MNQ1MS 0.15 364 220 UUJ2D330MNQ6MS 47 18× 16.5 0.15 476 270 UUJ2D470MNQ1MS 47 16× 21.5 0.15 476 270 UUJ2D470MNQ6MS 68 18× 21.5 0.15 644 330 UUJ2D680MNQ1MS 100 18× 21.5 0.15 900 410 UUJ2D101MNQ6MS 22 22 12.5× 13.5 0.15 147 65 UUJ2E4R7MNQ1MS 12.5× 16 0.15 200 105 UUJ2E100MNQ1MS 16× 16.5 12.5× 21 0.15 320 180 UUJ2E220MNQ1MS 0.15 320 180 UUJ2E220MNQ6MS 33 18× 16.5 0.15 430 230 UUJ2E330MNQ1MS 33 16× 21.5 0.15 430 230 UUJ2E330MNQ6MS 47 18× 21.5 0.15 570 280 UUJ2E470MNQ1MS 68 18× 21.5 0.15 780 340 UUJ2E680MNQ6MS 4.7 450 （2W） Part Number 0.08 4.7 400 （2G） ） 12.5×13.5 10 250 （2E） （ Rated Ripple （mArms） （105℃/120Hz） 12.5× 16 33 200 （2D） Leakage Current （µA） at 20℃ after 1 minute 47 220 160 （2C） tan δ 68 100 100 （2A） Case Size φD×L（mm） 10 12.5× 16 16× 16.5 0.20 175.2 50 UUJ2G4R7MNQ1MS 0.20 260 85 UUJ2G100MNQ1MS 22 18× 21.5 0.20 452 130 UUJ2G220MNQ1MS 33 18× 21.5 0.20 628 160 UUJ2G330MNQ6MS 3.3 12.5× 13.5 0.20 159.4 40 UUJ2W3R3MNQ1MS 4.7 12.5× 16 0.20 184.6 50 UUJ2W4R7MNQ1MS 10 16× 16.5 0.20 280 85 UUJ2W100MNQ1MS 22 18× 21.5 0.20 496 130 UUJ2W220MNQ1MS 33 18× 21.5 0.20 694 160 UUJ2W330MNQ6MS For taping specifications, recommended land size/soldering by reflow and minimum order quantity, please refer to the Guidelines for Aluminum Electrolytic Capacitors. CAT.8100K
