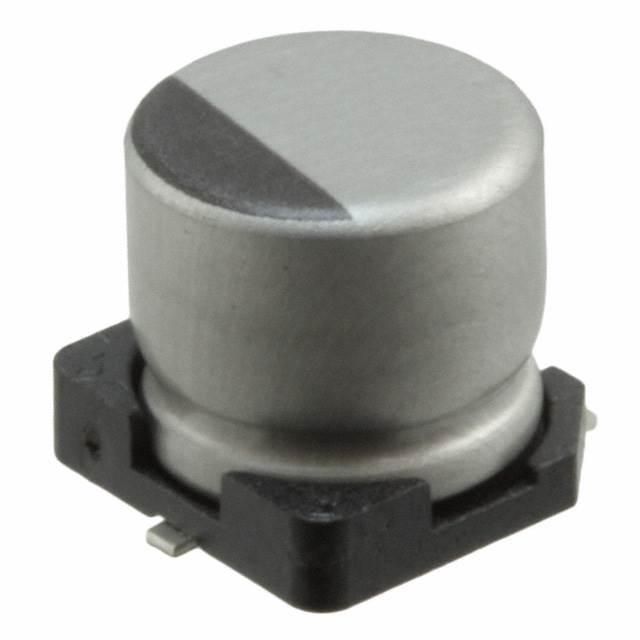

UUT0G101MCL1GS

ALUMINUM  ELECTROLYTIC  CAPACITORS UUT 6mmL Chip Type ,  Wide Temperature Range Chip type with load life 2000 hours at +105°C. Designed for surface mounting on high density PC board. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU,(EU)2015/863). AEC-Q200 compliant. Please contact us for details. Products which are scheduled to be discontinued. Not recommended for new designs. UUA Long Life UUX Higher C/V UUT Long Life UWT Specifications Item Performance Characteristics Category Temperature Range –55 to +105°C Rated Voltage Range 4 to 50V Rated Capacitance Range 1 to 100µF Capacitance Tolerance ± 20% at 120Hz, 20°C Leakage Current After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater. Measurement frequency :120Hz at 20°C 4 0.37 Rated voltage (V) tan δ (max.) Tangent of loss angle (tan δ) 6.3 0.28 10 0.24 16 0.20 25 0.16 35 0.13 50 0.12 Measurement frequency :120Hz Rated voltage (V) Z(– 25°C) / Z(+20°C) Impedance ratio Z(– 40°C) / Z(+20°C) ZT / Z20 (max.) Stability at Low Temperature 6.3 3 8 4 6 12 The specifications listed at right shall be met when the capacitors are restored to 20°C after the rated voltage is applied for 2000 hours at 105°C. Endurance 50 2 3 35 2 3 25 2 3 16 2 4 10 3 5 Within ±25% of the initial capacitance value (16V or less) Within ±20% of the initial capacitance value (25V or more) 200% or less than the initial specified value Less than or equal to the initial specified value Capacitance change tan δ Leakage current After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above. The capacitors are kept on a hot plate for 30 seconds, which is Within ±10% of the initial capacitance value Capacitance change maintained at 250°C. The capacitors shall meet the characteristic Less than or equal to the initial specified value tan δ requirements listed at right when they are removed from the plate Less than or equal to the initial specified value Leakage current and restored to 20°C. Shelf Life Resistance to soldering heat Black print on the case top. Marking ※ I : Leakage Current (μA), C : Rated Capacitance (μF), V : Rated Voltage (V) Chip Type Voltage mark for 6.3V is 6V . 6V . C±0.2 0.3max. φD±0.5 φD±0.5 A2PA2P 10 10 16V16V Voltage B±0.2 B±0.2 Lot No. C±0.2 0.3max. Plastic platform 0.5 to 0.8 5.8±0.3 0.5max. 0.5max. Plastic platform Voltage φD 4 Negative 0.5 to 0.8 1 Positive A±0.2 E A±0.2 A±0.2 E A±0.2 Capacitance 105°C Marking Lot No. Capacitance Voltage mark for 6.3V is Type numbering system (Example : 16V 10µF) Positive 105°C Marking A φD1.8 4 B 4.3 A 1.8 C 4.3 B 4.3 E 1.0 C 4.3 E 1.0 Negative 5.8±0.3 (mm) 5 6.3 (mm) 2.1 2.4 5 6.3 5.3 6.6 2.1 2.4 5.3 6.6 5.3 6.6 1.3 2.2 5.3 6.6 1.3 2.2 2 3 4 5 6 7 8 9 10 11 12 13 14 U1 U2 T3 14 C5 16 07 08 M9 C10 L11 112G13 S14 UU T 1 C 1 0 0 M C L 1 GS Taping code Configuration Taping code Capacitance tolerance (±20%) Configuration Rated capacitance Capacitance tolerance(10µF) (±20%) Rated voltage (16V) Rated capacitance (10µF) RatedSeries voltagename (16V) SeriesType name Type Frequency coefficient of rated ripple current Frequency Coefficient 50 Hz 0.70 120 Hz 1.00 300 Hz 1.17 1 kHz 1.36 10 kHz or more 1.50 Dimension table in next page. CAT.8100L ALUMINUM  ELECTROLYTIC  CAPACITORS UUT Dimensions Rated Voltage （V） （code） 4 （0G） 6.3 （0J） 10 （1A） 16 （1C） Rated Capacitance （µF） Case Size φD×L（mm） tan δ 22 4× 5.8 0.37 50 （1H） ） 3 Part Number 22 UUT0G220MCL1GS 33 5×5.8 0.37 3 30 UUT0G330MCL1GS 5× 5.8 0.37 3 36 UUT0G470MCL1GS 100 6.3× 5.8 0.37 4 60 UUT0G101MCL1GS 22 4× 5.8 0.28 3 22 UUT0J220MCL1GS 33 5× 5.8 0.28 3 30 UUT0J330MCL1GS 47 5× 5.8 0.28 3 36 UUT0J470MCL1GS 100 6.3× 5.8 0.28 6.3 60 UUT0J101MCL1GS 22 5× 5.8 0.24 3 27 UUT1A220MCL1GS 33 5× 5.8 0.24 3.3 35 UUT1A330MCL1GS 47 6.3× 5.8 0.24 4.7 46 UUT1A470MCL1GS 100 6.3× 5.8 0.24 10 60 UUT1A101MCL1GS 10 4× 5.8 0.20 3 18 UUT1C100MCL1GS 22 5× 5.8 0.20 3.52 30 UUT1C220MCL1GS 33 6.3× 5.8 0.20 5.28 40 UUT1C330MCL1GS 47 6.3× 5.8 0.20 7.52 50 UUT1C470MCL1GS 4× 5.8 0.16 3 13 UUT1E4R7MCL1GS 10 5× 5.8 0.16 3 23 UUT1E100MCL1GS 22 6.3× 5.8 0.16 5.5 38 UUT1E220MCL1GS 33 6.3× 5.8 0.16 8.25 48 UUT1E330MCL1GS 4× 5.8 0.13 3 15 UUT1V4R7MCL1GS 10 5× 5.8 0.13 3.5 25 UUT1V100MCL1GS 22 6.3× 5.8 0.13 7.7 42 UUT1V220MCL1GS 1 4× 5.8 0.12 3 4.7 35 （1V） （ Rated Ripple （mArms） （105℃/120Hz） 47 4.7 25 （1E） Leakage Current （µA） at 20℃ after 2 minutes 6.2 UUT1H010MCL1GS 2.2 4×5.8 0.12 3 11 UUT1H2R2MCL1GS 3.3 4× 5.8 0.12 3 14 UUT1H3R3MCL1GS 4.7 5× 5.8 0.12 3 19 UUT1H4R7MCL1GS 6.3× 5.8 0.12 5 30 UUT1H100MCL1GS 10 For taping specifications, recommended land size/soldering by reflow and minimum order quantity, please refer to the Guidelines for Aluminum Electrolytic Capacitors. Please select UUX, UUJ if high C/V products are required. CAT.8100L
