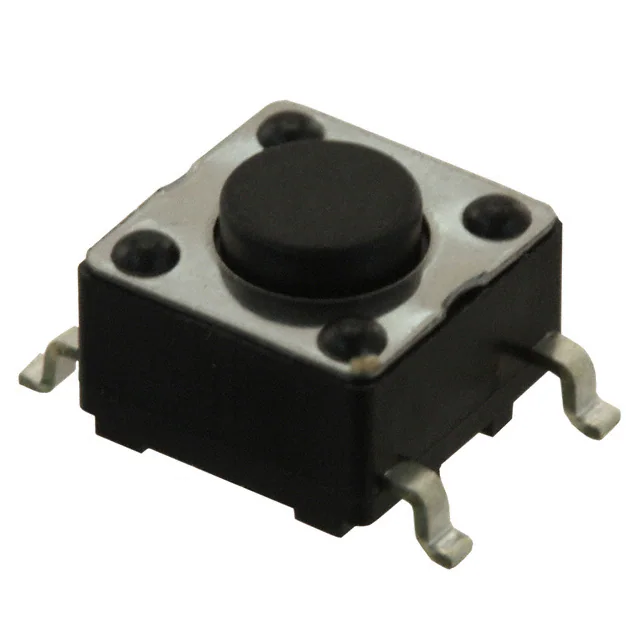

HP0315AFKP2-R

Toggles Series HP03 6mm SMT Tactiles Rockers General Specifications Electrical Capacity (Resistive Load) Programmable Illuminated PB Pushbuttons Power Level (silver): Logic Level (gold): Other Ratings Keylocks Rotaries Materials & Finishes Slides Tactiles Tilt Touch Indicators Contact Resistance: Insulation Resistance: Dielectric Strength: Mechanical Life: Electrical Life: Nominal Operating Force: Total Travel: J Actuator: Case: Base: Movable Contacts: Stationary Contacts: Terminals: 100 milliohms maximum 100 megohms minimum @ 100V DC 250V AC minimum for 1 minute minimum between contacts & between contacts & case 500,000 operations minimum 500,000 operations minimum 1.60N .008” (0.2mm) Glass fiber reinforced polyamide (UL94V-0) Stainless steel Glass fiber reinforced polyamide (UL94V-0) Stainless steel with silver or gold plating Brass with silver or gold plating Brass with silver or gold plating Environmental Data Operating Temperature Range: –20°C through +70°C (–4°F through +158°F) Humidity: 90 ~ 95% humidity for 240 hours @ 40°C (104°F) Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute; 3 right angled directions for 2 hours Shock: 100G (981m/s2) acceleration (tested in 6 right angled directions, with 5 shocks in each direction) Processing Soldering: Cleaning: Reflow Soldering Recommended. See Profile A in Supplement section. Manual Soldering: See Profile A in Supplement section. These devices are not process sealed. Hand clean locally using alcohol based solution. Standards & Certifications Flammability Standards: UL94V-0 actuator and base These switches are designed for use in a low-voltage, low-current circuit. When used as intended, the results do not produce hazardous energy. Supplement Accessories 3VA maximum @ 28V DC maximum (Applicable Range 10mA ~ 125mA @ 0.1V ~ 28V) 0.4VA maximum @ 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V) Note: See Supplement for further explanation of operating range. J16 www.nkkswitches.com Toggles Series HP03 6mm SMT Tactiles Rockers Distinctive Characteristics Pushbuttons .244” (6.2mm) square body allows compact mounting. Programmable Illuminated PB Heat resistant resin body meets lead-free solder processing requirements and UL flammability rating of 94V-0. Stick-tube and tape-reel packaging allow rapid automated placement of devices. Rotaries Keylocks Gold plated contacts available for very low voltage/current applications offer advantages of little or no oxidization or sulfurization and stable contact resistance. Insert molded terminals lock out flux, solvents, and other contaminants and allow automated soldering. Tape-reel packaging meets EIA-481-D Standard. J Indicators Touch Tilt Coplanarity: all considered surfaces must lie between two parallel planes that are a maximum distance apart of .0039” (0.10mm). (Additional coplanarity details in Terms and Acronyms in the Supplement section.) Tactiles Slides Gull-winged terminals ensure mechanical stability during soldering and simplified solder joint inspection. Supplement Accessories Actual Size www.nkkswitches.com J17 Series HP03 Toggles 6mm SMT Tactiles TYPICAL SWITCH ORDERING EXAMPLE 15A Pushbuttons Rockers HP03 F Pole & Circuit Programmable Illuminated PB 15A SPST OFF K P4 R Actuator Color K (ON) Packaging Black ( ) = Momentary Normally Open Contacts Terminals & Contacts Actuator Flat Button Keylocks F P2 Gull Wing for Upright Mount; Silver Contacts Rated 3VA max. DC P4 Gull Wing for Upright Mount; Gold Contacts Rated 0.4VA max. @ 28V AC/DC max. S Stick-Tube 100 Pieces/ Tube R Tape-Reel 1,000 Pieces/ Reel DESCRIPTION FOR TYPICAL ORDERING EXAMPLE Rotaries HP0315AFKP4-R Gold Contacts with 0.4VA Rating Flat Black Button J POLE & CIRCUIT Actuator Position ( ) = Momentary Normal Touch Pole SP Switch Throw & Schematic Down Model HP0315A SPST OFF 1 3 2 4 Note: Terminal numbers are not actually on the switch. (ON) TYPICAL SWITCH DIMENSIONS Gull-winged (3.5) Dia .138 Accessories Indicators Gull Wing Terminals for Upright Mount Tape-Reel Packaging Tilt Tactiles Slides SPST OFF-(ON) Circuit and Normally Open Contacts (2.2) Typ .087 (0.3) Typ .012 (0.5) Max .020 1 (6.2) .244 3 Supplement 1 (9.0) .354 (9.0) .354 2 (6.2) .244 (0.8) .031 (4.4) .173 4 (0.5) .020 HP0315AFKP4 J18 3 www.nkkswitches.com (4.5) .177 4 (0.7) Typ .028 2 (4.5) .177 (1.4) Typ .055 Series HP03 Toggles 6mm SMT Tactiles PACKAGING Rockers Switches must be ordered in 100piece increments when stick-tube packaging is selected. Tape-Reel Pushbuttons Switches must be ordered in 1,000-piece increments when tape-reel packaging is selected. Programmable Illuminated PB Packaging meets EIA-481-D Standard. Stick-Tube Dimensions (10.5) .413 Each stick-tube contains 100 switches (12.5) .492 (660.0) 25.984 Keylocks Tape-Reel Dimensions Each tape-reel of 1,100 pockets contains 1,000 switches. Minimum Leader Length: 15.748” (400mm). Minimum Trailer Length: 6.299” (160mm). (4.0) Typ .157 (1.5) Dia Typ .059 (4.6) .181 (5.1) .201 (80.0) Dia 3.150 (6.5) .256 (0.4) .016 Direction of Feed (22.4) Max .882 (3.0) .118 J KEYBOARD MATRIX Common Bus Matrix X-Y Matrix These single pole, single throw switches can be used in a keyboard matrix and, using strapped terminals, achieve a common bus electrical configuration on a single-sided PC board. 9 5 4 6 13 10 6 4 7 8 9 3 11 8 A B 0 1 2 12 1 2 3 4 5 6 7 8 9 0 A B 3 2 1 P C Te r m i n a t i o n s 1 2 3 4 5 6 7 8 9 10 11 12 13 1 5 4 6 2 7 8 9 6 A B 0 7 = ON 5 7 Red = PCB Trace 4 Keys (Switches) 3 2 Keys (Switches) 5 1 Tilt These single pole, single throw switches can be arranged on a single-sided PC board matrix with strapped terminals to achieve an X-Y type electrical interconnection. P C Te r m i na t i ons 1 2 3 4 5 6 7 1 2 3 4 5 6 7 8 9 0 A B = ON 3 Black = Switch Circuit www.nkkswitches.com J19 Touch (16.4) .646 3ϒMax Indicators Overall Dia (330.0) 13.0 (7.5) (16.0) .295 .630 Accessories (10.5) Typ .413 (2.0) Typ .079 Rotaries (12.0) Typ .472 (1.75) .069 Slides (2.0) Typ .079 (6.5) R .256 Tactiles R Stick-Tube Supplement S
