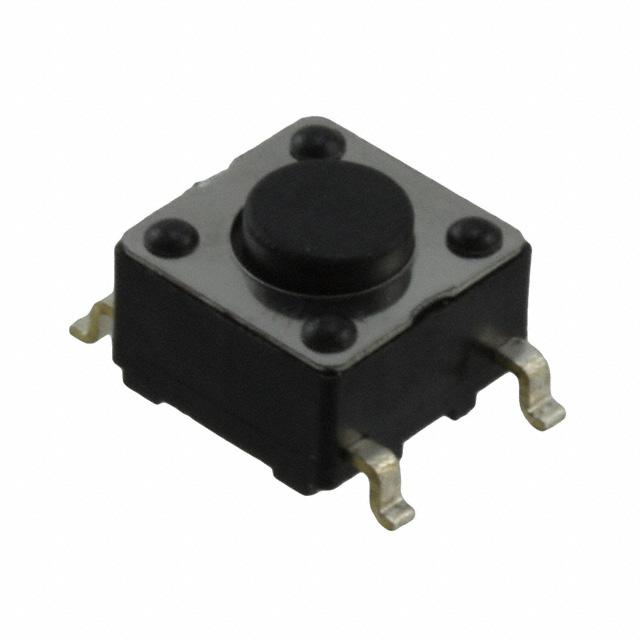

HP0315AFKP2-S

6mm SMT Tactiles Series HP03 Distinctive Characteristics .244” (6.2mm) square body allows compact mounting. Heat resistant resin body meets lead-free solder processing requirements and UL flammability rating of 94V-0. Stick-tube and tape-reel packaging allow rapid automated placement of devices. Gold plated contacts available for very low voltage/current applications offer advantages of little or no oxidization or sulfurization and stable contact resistance. Gull-winged terminals ensure mechanical stability during soldering and simplified solder joint inspection. Insert molded terminals lock out flux, solvents, and other contaminants and allow automated soldering. Tape-reel packaging meets EIA-481-2 Standard. Coplanarity: all considered surfaces must lie between two parallel planes that are a maximum distance apart of .0039” (0.10mm). (Additional coplanarity details in Terms and Acronyms in the Supplement section.) Actual Size N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 03-07 6mm SMT Tactiles Series HP03 General Specifications Electrical Capacity (Resistive Load) Power Level (code P2): Logic Level (code P4): 3VA maximum @ 28V DC maximum (Applicable Range 10mA ~ 125mA @ 0.1V ~ 28V) 0.4VA maximum @ 28V AC/DC maximum (Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V) Note: See Supplement for further explanation of operating range. Other Ratings Contact Resistance: Insulation Resistance: Dielectric Strength: Mechanical Life: Electrical Life: Nominal Operating Force: Total Travel: 100 milliohms maximum 100 megohms minimum @ 100V DC 250V AC minimum for 1 minute minimum between contacts & between contacts & case 500,000 operations minimum 500,000 operations minimum 1.60N .008” (0.2mm) Materials & Finishes Actuator: Case: Base: Movable Contacts: Stationary Contacts: Terminals: Glass fiber reinforced polyamide (UL94V-0) Stainless steel Glass fiber reinforced polyamide (UL94V-0) Stainless steel with silver or gold plating Brass with silver or gold plating Brass with silver or gold plating Environmental Data Operating Temperature Range: Humidity: Vibration: Shock: –20°C through +70°C (–4°F through +158°F) 90 ~ 95% humidity for 240 hours @ 40°C (104°F) 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute; 3 right angled directions for 2 hours 100G (981m/s2) acceleration (tested in 6 right angled directions, with 5 shocks in each direction) Processing Soldering: Cleaning: Reflow Soldering Recommended. See Profile A in Supplement section. Manual Soldering: See Profile A in Supplement section. These devices are not process sealed. Hand clean locally using alcohol based solution. Standards & Certifications Flammability Standards: UL Recognition & CSA Certification: UL94V-0 actuator and base These switches are designed for use in a low-voltage, low-current circuit. When used as intended, the results do not produce hazardous energy. N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 03-07 6mm SMT Tactiles T YPICAL SWITCH ORDERING EXAMPLE Series HP03 R PACKAGING S Stick-Tube 100 Pieces/ Tube Tape-Reel 1,000 Pieces/ Reel HP03 POLE & CIRCUIT 15A SPST OFF (ON) ( ) = Momentary Normally Open Contacts 15A F K P4 ACTUATOR COLOR K Black TERMINALS & CONTACTS ACTUATOR F Flat Button P2 P4 Gull Wing for Upright Mount; Silver Contacts Rated 3VA max. DC Gull Wing for Upright Mount; Gold Contacts Rated 0.4VA max. @ 28V AC/DC max. R DESCRIPTION FOR TYPICAL ORDERING EXAMPLE HP0315AFKP4-R Flat Black Button SPST OFF-(ON) Circuit and Normally Open Contacts Tape-Reel Packaging Gold Contacts with 0.4VA Rating Gull Wing Terminals for Upright Mount POLE & CIRCUIT Actuator Position ( ) = Momentary Normal Pole SP Model HP0315A OFF (ON) Down 1 3 4 Switch Throw & Schematic SPST 2 Note: Terminal numbers are not actually on the switch. TYPICAL SWITCH DIMENSIONS Gull-winged (3.5) Dia .138 (6.2) .244 (0.8) .031 (0.5) Max .020 (0.3) Typ .012 1 3 3 1 (2.2) Typ .087 (9.0) .354 2 4 4 2 (9.0) .354 (0.5) .020 (4.5) .177 (0.7) Typ .028 HP0315AFKP4 (6.2) .244 (4.4) .173 (4.5) .177 (1.4) Typ .055 N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 03-07 6mm SMT Tactiles PACKAGING S Stick-Tube Series HP03 R Tape-Reel Switches must be ordered in 100piece increments when stick-tube packaging is selected. Switches must be ordered in 1,000-piece increments when tape-reel packaging is selected. Packaging meets EIA-481-2 Standard. Stick-Tube Dimensions Each stick-tube contains 100 switches (12.5) .492 (10.5) .413 (660.0) 25.984 Tape-Reel Dimensions Each tape-reel of 1,100 pockets contains 1,000 switches. Minimum Leader Length: 15.748” (400mm). Minimum Trailer Length: 6.299” (160mm). (6.5) R .256 (80.0) Dia 3.150 (2.0) Typ .079 (1.75) .069 (7.5) (16.0) .295 .630 (12.0) Typ .472 (4.0) Typ .157 (1.5) Dia Typ .059 (4.6) .181 (5.1) .201 3° Max (6.5) .256 (3.0) .118 (10.5) Typ .413 (2.0) Typ .079 Overall Dia (330.0) 13.0 (16.4) .646 (22.4) Max .882 Direction of Feed (0.4) .016 K EYBOARD MATRIX Common Bus Matrix 5 1 2 9 3 13 X-Y Matrix 1 2 3 1 4 5 6 2 7 8 4 4 7 3 5 6 6 11 8 12 8 9 9 6 A 1 2 0 B A 0 B 7 = ON 5 4 3 7 Blue = PCB Trace, Black = Switch Circuit These single pole, single throw switches can be used in a keyboard matrix and, using strapped terminals, achieve a common bus electrical configuration on a single-sided PC board. Blue = PCB Trace, Black = Switch Circuit These single pole, single throw switches can be arranged on a single-sided PC board matrix with strapped terminals to achieve an X-Y type electrical interconnection. 03-07 N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com Keys (Switches) 10 1 2 3 4 5 6 7 8 9 0 A B P C Te r m i n a t i o n s 1 2 3 4 5 6 7 8 9 10 11 12 13 P C Te rmina ti ons 1 234 567 1 2 3 4 5 6 7 8 9 0 A B = ON Keys (Switches)
