SS12SDP2LE

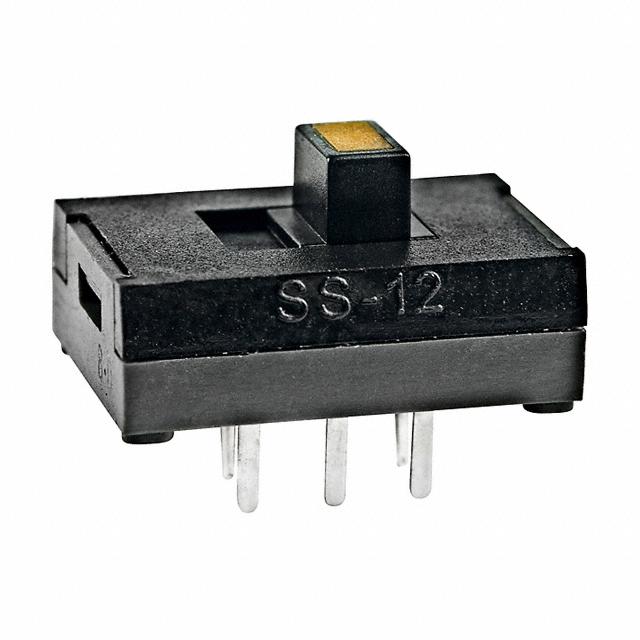

Ultra-Miniature Slides Series SS Distinctive Characteristics Top or side actuation permits flexible board design. Bright, LED illumination at tip of actuator. Compact dimensions and low profile allow high density mounting and close stacking of PC boards. Crisp actuation positively indicates circuit status. Double molded thermoset base and thermoplastic housing prevent loosening of terminals due to high soldering temperatures. Sliding twin contact mechanism with self-cleaning action provides smooth actuation and produces high contact reliability. Insert molded terminals lock out flux, solvents, and other contaminants. Inch terminal spacing for standard PC board grid (.100” x .100”). Actual Size N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 07-07 Ultra-Miniature Slides Series SS General Specifications Electrical Capacity (Resistive Load) Power Level: 0.1A @ 30V DC Other Ratings Contact Resistance: Insulation Resistance: Dielectric Strength: Mechanical Life: Electrical Life: Contact Timing: Total Travel: 20 milliohms maximum 100 megohms minimum @ 500V DC 500V AC minimum 1 minute minimum 10,000 operations minimum 10,000 operations minimum Shorting (make-before-break) .079” (2.0mm) Materials & Finishes Actuator: Upper Case: Lower Case: Movable Contactor: Interior Base: Terminals: Polyacetal Polyacetal Glass fiber reinforced polyester Phosphor bronze with silver plating Phenolic resin (thermoset) Brass with silver plating over copper plating Environmental Data Operating Temp Range: Humidity: Vibration: Shock: –15°C through +60°C (+5°F through +140°F) 90 ~ 95% humidity for 96 hours @ 40°C (104°F) 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning in 1 minute; 3 right angled directions for 2 hours 50G (490m/s2) acceleration (tested in 6 right angled directions, with 5 shocks in each direction) PCB Processing Soldering: Cleaning: Wave Soldering: See Profile B in Supplement section. Manual Soldering: See Profile B in Supplement section. These devices are not process sealed. Hand clean locally using alcohol based solution. Standards & Certifications UL Recognition or CSA Certification: The SS series devices have not been tested for UL recognition and CSA certification. These switches are designed for se in a low-voltage, low-current circuit. When used as intended in a low-voltage, low-current circuit, the results do not produce hazardous energy. N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 07-07 Ultra-Miniature Slides TYPICAL SWITCH ORDERING EXAMPLE Series SS C LED COLORS C E F Red Yellow Green SS 12S 22S SPDT DPDT ON ON 12S NONE NONE ON ON D P H P ACTUATION Top Actuated Side Actuated 2 L P OLES & CIRCUITS TERMINAL SPACING D Inch .100” x .100” CONTACT MATERIAL & R ATINGS 2 Silver Rated 0.1A @ 30V DC LED CIRCUIT L Isolated DESCRIPTION FOR TYPICAL ORDERING EXAMPLE SS12SDP2LC Top Actuated Silver Contacts Rated 0.1A @ 30V DC Red LED SPDT ON-NONE-ON Circuit Terminals with .100” Spacing POLES & CIRCUITS Slide Position Right Pole SP DP Model SS12S SS22S ON ON NONE NONE ON ON 2-1 2-1 5-4 OPEN OPEN 2-3 2-3 5-6 Center Left Connected Terminals Right Center Left Throw & Schematics Note: Terminal numbers are not actually on switch. Isolated LED circuit requires external power source. SPDT 1 2 (COM) 3 (+) (-) DPDT 1 2 (COM) 3 4 5 (COM) 6 (+) (-) TERMINAL SPACING D Inch .100” x .100” (0.4) Typ .016 (2.54) Typ .100 (3.4) Typ .134 (9.0) .354 (2.54) Typ .100 (0.6) Typ .024 (0.4) Typ .016 (2.54) Typ .100 (3.4) Typ .134 (2.54) Typ .100 (0.6) Typ .024 Single Pole Models (13.0) .512 Double Pole Models (9.0) .354 (13.0) .512 N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 07-07 Ultra-Miniature Slides CONTACT MATERIALS & RATINGS 2 Silver over Phosphor Bronze Power Level 0.1A @ 30V DC Series SS TYPICAL SWITCH DIMENSIONS Top Actuated Single & Double Pole (2.54) .100 L (+) 1 2 (2.0) Travel .079 (0.4) .016 (0.6) Typ .024 (2.54) .100 1 2 3 L (-) L (+) (0.3) Typ .012 (2.54) Typ .100 1 L (+) L (-) 4 5 6 (0.3) Typ .012 (13.0) .512 L (-) 3 (2.54) Typ .100 (13.0) .512 (0.8) Dia Typ .031 (2.54) Typ .100 4 L (+) 1 2 3 5 6 L (-) 2 3 (3.7) .146 (9.0) .354 (2.5) .098 (2.5) .098 (4.5) .177 (2.54) Typ .100 (3.0) .118 (0.6) Typ .024 (0.4) Typ .016 (0.6) Typ .024 (0.4) Typ .016 (2.54) Typ .100 SS22SDP2LC (0.8) Dia Typ .031 Side Actuated Single & Double Pole (2.54) .100 L (+) 1 2 L (-) 3 (2.0) Travel .079 (3.7) .146 (0.4) .016 (0.6) Typ .024 (2.54) .100 1 2 3 L (-) L (+) (0.3) Typ .012 (13.0) .512 (2.54) Typ .100 1 2 3 L (-) L (+) 4 5 6 (0.4) Typ (0.3) Typ .016 .012 (13.0) .512 (2.54) Typ .100 (0.8) Dia Typ .031 (2.54) Typ .100 (2.5) .098 (4.85) .191 (7.5) .295 (2.5) .098 (7.5) .295 (2.54) Typ .100 (0.4) Typ .016 (3.0) .118 (4.5) .177 (0.6) Typ .024 (9.0) .354 (0.6) Typ .024 4 L (+) 5 6 L (-) 1 2 3 (2.54) Typ .100 SS12SDH2LC (0.8) Dia Typ .031 LED COLORS & SPECIFICATIONS LEDs are supplied as an integral part of the switch (not available separately). The lamp circuit is independent of switch operation. Electrical specifications shown are determined at a basic temperature of 25°C. If the source voltage exceeds the rated voltage, a ballast resistor is required. The resistor value can be calculated by using the formula given in the Supplement. L Isolated, 1-element (+) (-) Color IFM IF VF VRM ∆IF C Red E Yellow F Green 25mA 16mA Forward Peak Current Continuous Forward Current Forward Voltage Reverse Peak Voltage Current Reduction Rate Above 25°C Ambient Temperature Range 30mA 16mA 1.98V 5V 0.40mA/°C 30mA 16mA 2.06V 5V 0.42mA/°C –15° ~ +60°C 2.16V 5V 0.33mA/°C OPTIONAL CAP AT4065 Slide Cap Material: Polycarbonate Cap can be assembled on request Cap Color: Black only (5.0) .197 (3.2) .126 (5.0) .197 Window color should match LED color. Colors Available: C Red E Yellow F Green (8.5) .335 (0.6) .024 (11.0) .433 N KK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com 07-07
