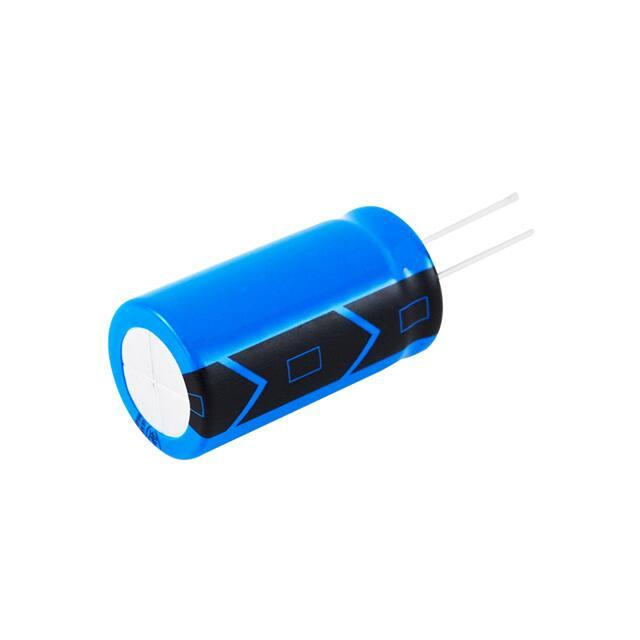

NEV15M50

ALUMINUM ELECTROLYTIC 6.3V to 100V NEV, NEH SERIES SUBMINIATURE (NEV: Radial Lead, NEH: Axial Leads) The NEV and NEH series subminiature aluminum electrolytic capacitors are especially suitable for applications requiring high capacitance, low cost, and very small size. In fact, you’ll find these capacitors in some of the most demanding applications, from precision medical electronics and automobiles to the newest personal computers and disk drives. They operate over a broad temperature range and are available in either blister pack or bulk. MECHANICAL SPECIFICATIONS Lead Solderability: Meets the requirements of MIL - STD 202, Method 208 Marking: Consists of series type, nominal capacitance, rated voltage, temperature range, anode and/or cathode identification, vendor identification. Recommended Cleaning Solvents: Methanol, isopropanol ethanol, isobutanol, petroleum ether, propanol and/or commercial detergents. Halogenated hydrocarbon cleaning agents such as Freon (MF, TF, or TC), trichloroethylene, trichloroethane, or methylchloride are not recommended as they may damage the capacitor. RATINGS Capacitance Range: 0.1µf to 22,000µf Tolerance: ±20% Voltage Range: 6.3V to 100V PERFORMANCE SPECIFICATIONS Operating Temperature Range: - 40°C to +85°C ( - 40°F to +185°F) Leakage Current: I ≤ 0.01CV + 3µA (measured after 3 minutes of applied voltage) I = Leakage Current (µA) C = Nominal Capacitance (µf) V = Rated Voltage (V) Capacitance Tolerance (M): ±20% measured at +20°C (+68°F), 120HZ Dissipation Factor: measured at +20°C (+68°F),120HZ Rated Voltage 0.1µf to 1000µf 1000µf to 22,000µf 6.3 0.24 10 0.2 16 0.17 25 0.15 35 0.12 50 - 80 0.10 100 0.08 CASE SIZE AND DIMENSIONS: NEV SERIES Insulating Sleeve 18.0 Min dØ A ±0.5  L L’ 5.0 Min L’ = L + 1.0 Max at D Ø ≤ 8.0 DØ D’ Ø L’ = L + 2.0 Max at D Ø ≥ 10.0 D’ Ø = D Ø + 0.5 Max Values above plus 0.02 for each 1000µf Impedance Ratio at Low Temperature: 120HZ Comparison Z WV Z @ - 25°C ( - 13°F)/ Z @ +20°C (+68°F) Z @ - 40°C ( - 40°F)/ Z @ +20°C (+68°F) 6.3 4 8 10 3 6 16 2 4 25 2 4 35 2 4 50 - 100 NEH SERIES (Insulating Bar = Negative) L Insulating Sleeve 2 dØ 4  2.3 Max Surge Voltage: DC Rated Voltage Surge Voltage 6.3 8 10 13 16 20 25 32 35 44 50 63 63 79 100 125 D’ Ø = D Ø + 0.5 Max 35.0 Min L’ DØ 35.0 Min D’ Ø Load Life: 1000 ±12Hrs @ +85°C (+185°F), at rated voltage Leakage Current: Within values specified above Dissipation Factor: Within ±150% of specified value Capacitance Change Max: See Table Rated Voltage 6.3V to 16V 25V to 100V Capacitance Change Max Within ±30% of the initial value Within ±20% of the initial value L’ = L + 1.0 Max at D Ø ≤ 8.0 L’ = L + 2.0 Max at D Ø ≥ 10.0 ORDERING INFORMATION NEV Series Capacitance Tolerance Voltage 47 M 50 Shelf Life: 1000 Hrs @ +85°C (+185°F), no voltage applied Leakage Current: Within ±200% of specified value Dissipation Factor: Within ±150% of specified value Capacitance Change Max: Within ±20% of initial value 2 NTE Electronics, Inc. D Voice (800) 631 - 1250 (973) 748 - 5089 D FAX (973) 748 - 6224 D http://www.nteinc.com ALUMINUM ELECTROLYTIC 6.3V to 100V NEV, NEH SERIES NEV Series (Radial Type) Dimensions: Diameter (D Ø) x Length (L): mm WV Cap (µf) 0.10 0.15 0.22 0.33 0.47 0.56 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 1500 2200 3300 4700 6800 10000 22000 8 x 11.5 6.3 x 11 6.3 x 11 8 x 11 10 x 16 10 x 12.5 13 x 25 13 x 21 13 x 21 16 x 25 16 x 25 16 x 31.5 5 x 11 6.3 x 11 5 x 11 8 x 11.5 6.3 x 11 8 x 11.5 8 x 11.5 10 x 16 10 x 16 13 x 25 13 x 21 13 x 25 16 x 25 16 x 31.5 18 x 36 18 x 46 5 x 11 5 x 11 6.3 x 11 6.3 x 11 8.5 x 11 8 x 11.5 8 x 11.5 10 x 12.5 10 x 12.5 10 x 20 16 x 31.5 13 x 25 16 x 25 16 x 31.5 18 x 36 18 x 40 5 x 11 5 x 11 5 x 11 8 x 11.5 6.3 x 11 10 x 12 8 x 11.5 10 x 12.5 10 x 16 10 x 16 13 x 21 16 x 35.5 16 x 25 16 x 31.5 18 x 36 18 x 40 22 x 41 5 x 11 5 x 11 5 x 11 6.3 x 11 8 x 11.5 8 x 11 10 x 16 10 x 12.5 10 x 16 10 x 20 13 x 21 13 x 25 16 x 35.5 16 x 31.5 18 x 36 18 x 40 22 x 41 18 x 36 18 x 40 22 x 41 18 x 40 22 x 41 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 6.3 x 11 6.3 x 11 10 x 12.5 8 x 11 10 x 20 10 x 16 10 x 20 13 x 21 13 x 25 16 x 25 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 6.3 x 11 6.3 x 11 6.3 x 11 8 x 11.5 10 x 16 10 x 12.5 13 x 20 10 x 20 13 x 21 13 x 25 13 x 25 16 x 31.5 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 6.3 x 11 6.3 x 11 8 x 11.5 8 x 11.5 10 x 12.5 10 x 16 10 x 20 13 x 21 13 x 25 16 x 25 16 x 25 16 x 31.5 16 x 25 18 x 40 6.3 10 16 25 35 50 5 x 11 63 5 x 11 100 5 x 11 5 x 11 5 x 11 5 x 11 5 x 11 * These dimensions are for reference only, please consult the factory for actual size. NEV Series (Radial Type) Mechanical Specifications: mm Outside Diameter (D Ø) Lead Spacing (A) Lead Diameter (d Ø) 5 2 0.5 6.3 2.5 0.6 8 3.5 0.6 10 5 0.6 13 5 0.6 16 7.5 0.8 18 7.5 0.8 22 10 1.0 * These dimensions are for reference only, please consult the factory for actual size. NTE Electronics, Inc. D Voice (800) 631 - 1250 (973) 748 - 5089 D FAX (973) 748 - 6224 D http://www.nteinc.com 3 ALUMINUM ELECTROLYTIC 6.3V to 100V NEV, NEH SERIES NEH Series (Axial Type) Dimensions: Diameter (D Ø) x Length (L): mm WV Cap (µf) 0.10 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 1500 2200 3300 4700 6800 10000 22000 5 x 11 6.3 x 11 6.3 x 12.5 8 x 16 8 x 16 8 x 16 8 x 16 10 x 16 10 x 20 13 x 25 10 x 25 13 x 25 16 x 30 16 x 30 16 x 30 5 x 12 6.3 x 12.5 6.3 x 11 6.3 x 16 8 x 16 8 x 16 8 x 16 8 x 20 10 x 20 10 x 20 13 x 25 13 x 25 13 x 30 16 x 30 16 x 40 18 x 40 25 x 50 5 x 11 5 x 11 6.3 x 12.5 6.3 x 12.5 8 x 11.5 6.3 x 16 8 x 16 8 x 16 8 x 20 10 x 20 10 x 20 13 x 25 13 x 20 13 x 30 16 x 30 16 x 40 18 x 40 22 x 40 6.3 x 12.5 5 x 11 6.3 x 12.5 6.3 x 12.5 6.3 x 16 8 x 16 8 x 16 10 x 16 8 x 20 10 x 20 10 x 20 10 x 25 13 x 25 16 x 31.5 16 x 25 16 x 30 18 x 40 22 x 40 22 x 50 16 x 30 16 x 40 22 x 40 22 x 50 18 x 40 22 x 40 22 x 50 22 x 40 22 x 50 5 x 11 6.3 x 11 6.3 x 12.5 6.3 x 16 8 x 16 8 x 16 8 x 20 10 x 16 10 x 20 10 x 20 10 x 25 13 x 25 13 x 30 5 x 12.5 5 x 12.5 5 x 12.5 5 x 11 6.3 x 12.5 6.3 x 11 6.3 x 16 8 x 16 8 x 16 10 x 12.5 8 x 20 10 x 16 10 x 20 13 x 25 13 x 25 13 x 30 16 x 30 5 x 12.5 6.3 10 16 25 35 50 5 x 12.5 5 x 12.5 5 x 12.5 5 x 12.5 63 5 x 12.5 5 x 12.5 5 x 12.5 5 x 12.5 5 x 12.5 5 x 12.5 5 x 11 5 x 12.5 5 x 12.5 5 x 12.5 6.3 x 11 6.3 x 12.5 8 x 11.5 8 x 16 8 x 16 8 x 20 10 x 16 10 x 20 10 x 20 10 x 25 13 x 25 13 x 30 16 x 30 16 x 30 13 x 25 13 x 35 16 x 30 16 x 30 18 x 40 10 x 25 8 x 20 8 x 20 10 x 20 6.3 x 16 5 x 12.5 5 x 12.5 5 x 12.5 5 x 12.5 100 5 x 12.5 5 x 12.5 5 x 12.5 5 x 12.5 * These dimensions are for reference only, please consult the factory for actual size. NEH Series (Axial Type) Mechanical Specifications: mm Outside Diameter (D Ø) Lead Diameter (d Ø) 5 0.6 6.3 0.6 8 0.6 10 0.6 13 0.8 16 0.8 18 0.8 22 0.8 25 0.8 * These dimensions are for reference only, please consult the factory for actual size. 4 NTE Electronics, Inc. D Voice (800) 631 - 1250 (973) 748 - 5089 D FAX (973) 748 - 6224 D http://www.nteinc.com
