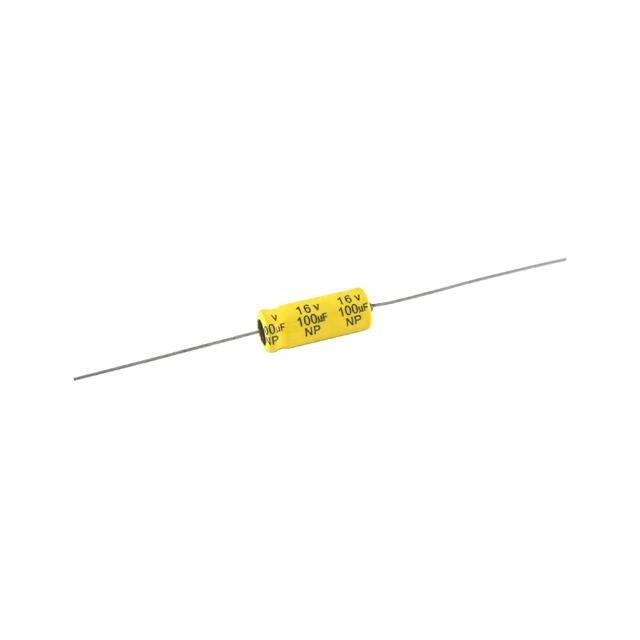

NPA100M100

NON−POLAR ALUMINUM ELECTROLYTIC SUBMINIATURE N0N−POLARIZED (NPR: Radial Leads, NPA: Axial Leads) MECHANICAL SPECIFICATIONS Lead Solderability: The NPR and NPA Series subminiature aluminum electrolytic capacitors are especially designed for use in circuits whose polarity is reversed or unknown or in crossover networks which do not require tough characteristic requirements. Meets the requirements of MIL−STD 202, Method 208 Marking: Consists of series type, nominal capacitance, rated voltage, temperature range, anode and/or cathode identification, vendor identification. RATINGS Recommended Cleaning Solvents: Capacitance Range: 0.47 f to 1000 f Tolerance: 20% Voltage Range: 16V to 100V Methanol, isopropanol ethanol, isobutanol, petroleum ether, propanol and/or commercial detergents. Halogenated hydrocarbon cleaning agents such as Freon (MF, TF, or TC), trichloroethylene, trichloroethane, or methylchloride are not recommended as they may damage the capacitor. PERFORMANCE SPECIFICATIONS Operating Temperature Range: CASE SIZES AND DIMENSIONS: −40 C to +85 C (−40 F to +185 F) Leakage Current: I 0.002CV + 3 A (measured after 5 minutes of applied voltage) I = Leakage Current ( A) C = Nominal Capacitance ( f) V = Rated Voltage (V) Capacitance Tolerance (M): 20% measured at 20 C (68 F), 120Hz Dissipation Factor: measured at +20 C (+68 F),120HZ Rated Voltage 16 25 50 63 100 0.1 f to 1000 f 0.16 0.12 0.08 0.06 0.06 NPR SERIES Impedance Ratio at Low Temperature: 120HZ Comparison Z WV 16 25 50 63 100 Z @ −25 C (−13 F)/ Z @ +20 C (+68 F) 2 1.5 1.5 2 2 Z @ −40 C (−40 F)/ Z @ +20 C (+68 F) 3 2 2 4 4 Insulating Sleeve 18.0 Min L’ 16 25 50 63 100 Surge Voltage 20 32 63 79 125 D’ Ø = D Ø + 0.5 Max 160V to 450V Within 30% of the initial value Shelf Life: 1000 Hrs @ +85 C (+185 F), no voltage applied L’ = L + 1.0 Max at D Ø 8.0 L’ = L + 2.0 Max at D Ø 10.0 Insulating Sleeve dØ 2.3 Max DØ 35.0 Min D’ Ø = D Ø + 0.5 Max Leakage Current: Within values specified above Dissipation Factor: Within 150% of specified value Capacitance Change Max: Within 15% of initial value D’ Ø L Leakage Current: Within values specified above Dissipation Factor: Within 150% of specified value Capacitance Change Max: 15% of initial value Capacitance Change Max 5.0 Min NPA SERIES Load Life: 1000 12Hrs @ +85 C (+185 F), at rated voltage Rated Voltage DØ L Surge Voltage: DC Rated Voltage A 0.5 dØ L’ 35.0 Min L’ = L + 1.0 Max at D Ø 8.0 D’ Ø L’ = L + 2.0 Max at D Ø 10.0 ORDERING INFORMATION NPR 47 M 50 Series Capacitance Tolerance Voltage NTE Electronics, Inc. Voice (973) 748−5089 FAX (973) 748−6224 http://www.nteinc.com 37 NON−POLAR ALUMINUM ELECTROLYTIC NPR, NPA (Non−Polarized) SERIES NPR Series (Radial Type) Dimensions: Diameter (D Ø) x Length (L): mm Rated Voltage Cap ( f) (WV) 16 25 50 63 100 Surge Voltage (V) 20 32 63 79 125 0.47 5 x 11 1.0 5 x 11 5 x 11 2.2 5 x 11 5 x 11 6 x 11 3.3 5 x 11 6 x 11 6.3 x 11 4.7 5 x 11 5 x 11 5 x 11 6 x 11 6 x 11 10 5 x 11 10 x 17 8 x 11.5 8 x 11.5 8.5 x 11 8 x 11.5 22 6 x 11 6 x 11 10 x 12.5 10 x 12.5 10 x 20 33 6 x 11 8 x 11.5 10 x 16 10 x 16 13 x 20 47 8 x 11.5 10 x 12.5 10 x 20 10 x 20 13 x 21 100 10 x 12.5 8 x 11 13 x 25 13 x 25 16 x 25 220 10 x 20 10 x 12 16 x 25 16 x 30 330 13 x 20 13 x 25 16 x 30.5 470 13 x 25 16 x 25 1000 16 x 25 16 x 30.5 * These dimensions are for reference only, please consult the factory for actual size. NPR Series (Radial Type) Mechanical Specifications: mm Outside Diameter (D Ø) Lead Spacing (A) Lead Diameter (d Ø) 5 6 8 2 2.5 3.5 0.5 0.6 0.6 10 13 16 5 5 7.5 0.6 0.6 0.8 * These dimensions are for reference only, please consult the factory for actual size. NPA Series (Axial Type) Dimensions: Diameter (D Ø) x Length (L): mm Rated Voltage Cap ( f) (WV) 16 25 50 63 100 Surge Voltage (V) 20 32 63 79 125 0.47 6 x 15 1.0 6 x 15 6 x 15 6 x 15 2.2 6 x 15 6 x 15 6 x 15 3.3 6 x 15 6 x 15 6 x 19 4.7 6 x 15 6 x 15 8 x 19 10 6 x 15 6 x 15 6 x 19 8 x 19 10 x 21 22 6 x 15 10 x 19 10 x 21 10 x 21 10 x 25 33 6 x 19 8 x 19 10 x 21 10 x 25 13 x 30 47 8 x 19 8 x 19 10 x 25 10 x 25 13 x 30 100 10 x 21 10 x 25 13 x 30 13 x 30 16 x 30 220 10 x 25 13 x 30 16 x 30 16 x 30 330 10 x 30 13 x 30 16 x 41 470 13 x 30 16 x 30 1000 16 x 30 * These dimensions are for reference only, please consult the factory for actual size. NPA Series (Axial Type) Mechanical Specifications: mm Outside Diameter (D Ø) 10 13 16 Lead Diameter (d Ø) 0.6 0.6 0.6 * These dimensions are for reference only, please consult the factory for actual size. 0.8 0.8 38 6 8 NTE Electronics, Inc. Voice (973) 748−5089 FAX (973) 748−6224 http://www.nteinc.com
