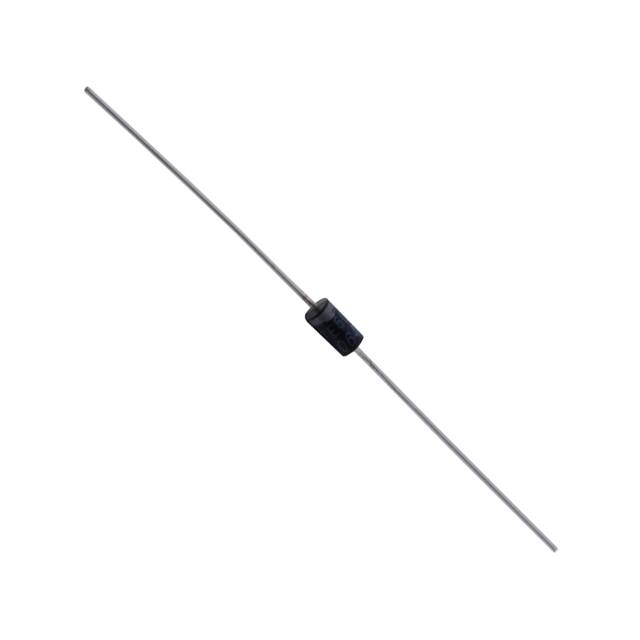

NTE117

NTE117 General Purpose Silicon Rectifier Features: D Cylindrical Design with Axial Leads for Simple Handling and Installation D High Maximum Forward Current Rating: 750mA @ TA = +75°C D Maximum Ambient Operating Temperature: +175°C Absolute Maximum Ratings: DC Blocking Voltage, VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V Forward Current (TA = +75°C), IF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 750mA Surge Current (50Hz), ISurge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45A Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +175°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +175°C Electrical Characteristics: Parameter Symbol Test Conditions Min Typ Max Unit Maximum Forward Voltage VF IF = 500mA, TA = +25°C – – 1.2 V Maximum Reverse Current IR VR = 600V, TJ = +150°C – – 0.4 mA 1.100 (27.94) Min .032 (0.81) Dia Max .375 (9.52) Max .260 (6.6) Dia Max
