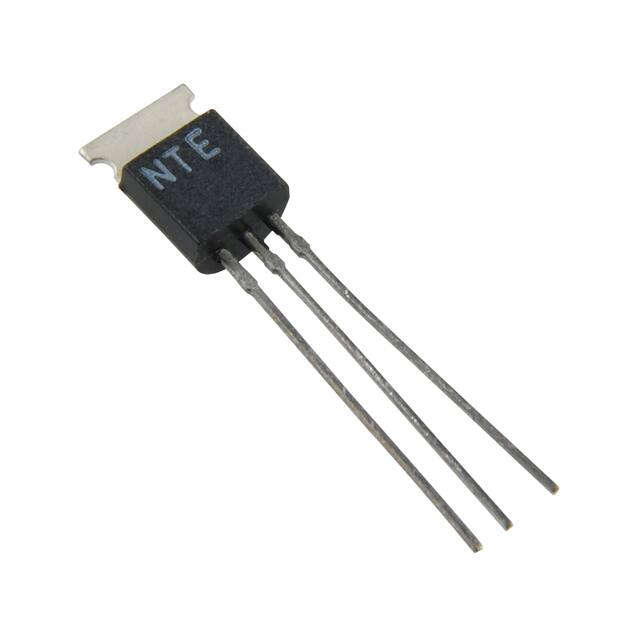

NTE128P

NTE128P (NPN) & NTE129P (PNP) Silicon Complementary Transistors General Purpose Amp Description: The NTE128P (NPN) and NTE129P (PNP) are silicon complemedntary transistors designed for use in general purpose power amplifier and switching applications. Features: D High VCE Ratings D Exceptional Power Dissipation Capability Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V Collector–Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V Emitter–Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Continuous Collector Current , IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A Power Dissipation, PTOT TA = +25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.850W TC = +25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2W Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55° to +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55° to +150°C Thermal Resistance, Junction–to–Ambient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147°C/W Thermal Resistance, Junction–to–Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.5°C/W Electrical Characteristics: (TA = +25°C unless otherwise specified) Parameter Collector–Emitter Breakdown Voltage Symbol Test Conditions BVCEO IC = 10mA, IB = 0 Min Typ Max Unit 80 – – V Collector Cutoff Current ICBO VCB = 80V – – 100 nA Emitter Cutoff Current IEBO VEB = 4V – – 100 nA DC Current Gain hFE IC = 10mA, VCE = 2V 100 – – IC = 350mA, VCE = 2V 100 – 300 – – 0.35 IC = 50mA 50 – – VCB = 10V, IE = 0, f = 1MHz – – 15 Collector–Emitter Saturation Voltage Current Gain Bandwidth Product Output Capacitance VCE(sat) IC = 350mA fT Cob V pF .200 (5.08) .180 (4.57) .100 (2.54) E B C .180 (4.57) .594 (15.09) .018 (0.46) .015 (0.38) 3.050 (1.27) .050 (1.27) .050 (1.27) .140 (3.55) .090 (2.28) R
