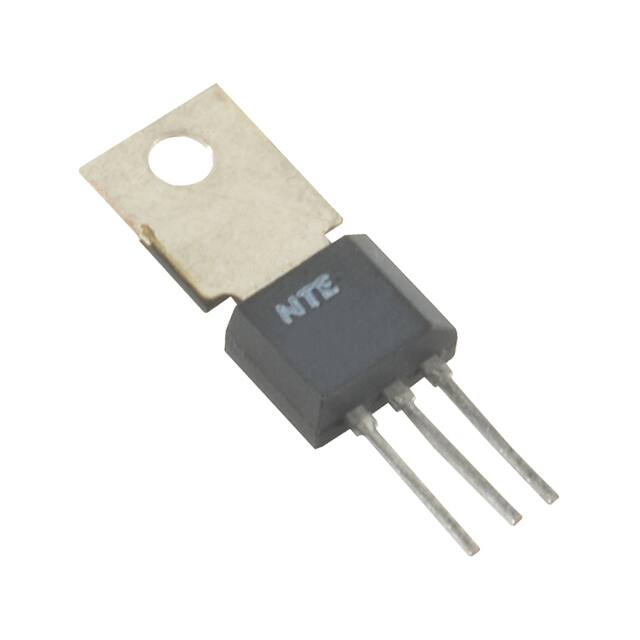

NTE187A

NTE186A (NPN) & NTE187A (PNP) Silicon Complementary Transistors Medium Power Audio Amplifier Features: D 5W Output in Complementary Pair Absolute Maximum Ratings: (TA = +25C unless otherwise specified) Collector−Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V Collector−Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V Emitter−Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Peak Collector Current, ICP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3A Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600mA Collector Power Dissipation (TC = +25C), PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10W Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55 to +150C Electrical Characteristics: (TC = +25C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Collector−Base Breakdown Voltage V(BR)CBO IC = 1mA, IE = 0 50 − − V Collector−Emitter Breakdown Voltage V(BR)CEO IC = 10mA, IB = 0 40 − − V Collector Cutoff Current ICBO VCB = 20V, IE = 0 − − 1 A ICEO VCE = 12V, IB = 0 − − 100 A Emitter Cutoff Current IEBO VEB = 5V, IC = 0 − − 100 A DC Current Gain hFE VCE = 5V, IC = 1A 50 120 220 VCE = 5V, IC = 500mA − 150 − MHz Transition Frequency fT Base−Emitter Saturation Voltage VBE(sat) IC = 2A, IB = 200mA − − 1.5 V Collector−Emitter Saturation Voltage VCE(sat) IC = 2A, IB = 200mA − 0.4 1.0 V VCB = 5V, IE = 0, f = 1MHz − 50 − pF Collector Output Capacitance Cob Rev. 4−13 .394 (10.0) .165 (4.2) Dia C .492 (12.5) .335 (8.5) .197 (5.0) .059 (1.5) x 45 Chamf .335 (8.5) .119 (3.0) .532 (13.5) B .098 (2.5) C E .181 (4.6) .138 (3.5)
