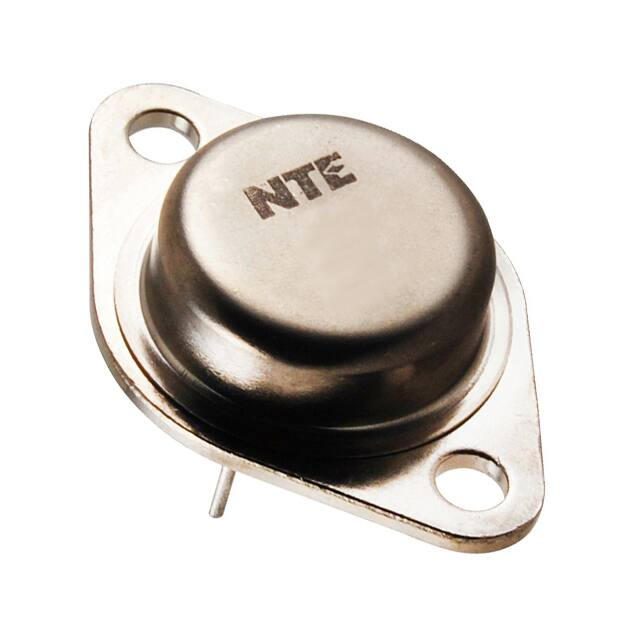

NTE1925
3 Terminal Negative Voltage Regulator
−24V, 1.5A
TO−3 Type Package
Description:
The NTE1925 is a negative 3−terminal voltage regulator in a TO−3 type package suitable for numerous
applications including local, on−card regulation requiring up to 1.5A. This device features thermal shutdown and current limiting making the NTE1925 remarkably rugged.
Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents.
Features:
• Internal Thermal Overload Protection
• Output Transistor Safe Area Protection
• Internal Short Circuit Current Limit
• No External Components Required
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40V
Internal Power Dissipation (TA = +25°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.2mW/°C
Internal Power Dissipation (TC = +25°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internally Limited
Derate Above 25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182mW/°C
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +150°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65° to +150°C
Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5°C/W
Thermal Resistance, Junction−to−Ambient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45°C/W
Electrical Characteristics: (0° ≤ TJ ≤ +125°C, VIN = −33V, IO = 0.5Aunless otherwise specified)
Parameter
Output Voltage
Symbol
VO
Test Conditions
Min
Typ
Max
Unit
−23
−24
−25
V
−22.8
−24.0
−25.2
V
TJ = +25°C, −38V ≤ VIN ≤ −27V, Note 1
−
118
480
mV
TJ = +25°C, −36V ≤ VIN ≤ −30V, Note 1
−
70
240
mV
TJ = +25°C, 5mA ≤ IO ≤ 1.5A, Note 1
−
150
480
mV
TJ = +25°C, 250mA ≤ IO ≤ 750mA, Note 1
−
85
240
mV
TJ = +25°C
5mA ≤ IO ≤ 1A, −38V ≤ VIN ≤ −27V, PO ≤ 15W
Line Regulation
Load Regulation
Regline
Regload
Note 1. Load and line regulation are specified at constant junction temperature. Change in VO due
to heating effects must be taken into account separately. Pulse testing with low duty cycle is
used.
Rev. 2−21
Electrical Characteristics (Cont’d): (0° ≤ TJ ≤ +125°C, VIN = −27V, IO = 0.5Aunless otherwise
specified)
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
Input Bias Current
IB
TJ = +25°C
−
4.5
8.0
mA
Input Bias Current Change
IB
−38V ≤ VIN ≤ −27V
−
−
1.0
mA
5mA ≤ IO ≤ 1.5A
−
−
0.5
mA
Output Noise Voltage
Vn
TA = +25°C, f = 10Hz to 100kHz
−
170
−
μV
Ripple Rejection Ratio
RR
IO = 20mA, f = 120Hz
−
56
−
dB
TJ = +25°C, IO = 1A
−
2.0
−
V
1.3
2.5
3.3
A
−
−1.0
−
mV/°C
Dropout Voltage
Peak Output Current
IOmax
TJ = +25°C
Average Temperature
Coefficient of Output
Voltage
IO = 5mA
Note 2. Load and line regulation are specified at constant junction temperature. Change in VO due
to heating effects must be taken into account separately. Pulse testing with low duty cycle is
used.
.135 (3.45) Max
.350 (8.89)
.875 (22.2)
Dia Max
Seating Plane
.312 (7.93) Min
VOUT
.040 (1.02)
1.187 (30.16)
.665
(16.9)
.215 (5.45)
.156 (3.96) Dia
(2 Holes)
.430
(10.92)
.188 (4.8) R Max
.525 (13.35) R Max
GND
VIN/Case
