NTE2328

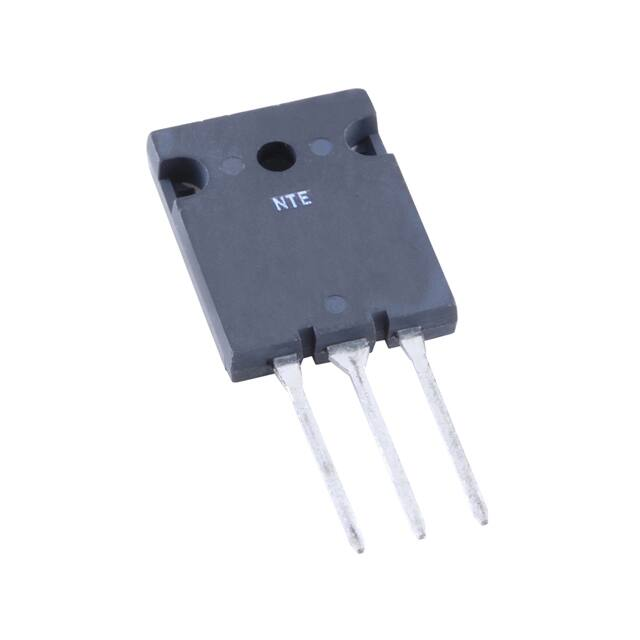

NTE2328 (NPN) & NTE2329 (PNP) Silicon Complementary Transistors Audio Power Output TO3PBL Type Package Features: D Recommended for 100W High Fidelity Audio Frequency Amplifier Output Stage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector−Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V Collector−Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V Emitter−Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5A Collector Power Dissipation (TC = +25°C), PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150W Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55° to +150°C Electrical Characteristics: (TA = +25°C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Collector Cutoff Current ICBO VCB = 200V, IE = 0 − − 5.0 μA Emitter Cutoff Current IEBO VBE = 5V, IC = 0 − − 5.0 μA Collector−Emitter Breakdown Voltage V(BR)CEO IC = 50mA, IB = 0 200 − − V DC Current Gain hFE1 VCE = 5V, IC = 1A 55 − 160 hFE2 VCE = 5V, IC = 8A 35 60 − VCE(sat) IC = 10A, IB = 1A − 1.5 3.0 V Base−Emitter Voltage VBE VCE = 5V, IC = 8A − 1.0 1.5 V Transistion Frequency fT VCE = 5V, IC = 1A − 25 − MHz VCB = 10V, IE = 0, f = 1MHz − 470 − pF Collector−Emitter Saturation Voltage Collector Output Capacitance Cob .810(20.57) Max .204 (5.2) .236 (6.0) 1.030 (26.16) .137 (3.5) Dia Max .098 (2.5) .787 (20.0) .040 (1.0) .215 (5.45) B C E Note: Collector connected to heat sink. .023 (0.6)
